Masonry Openings

Overview

Preparing your masonry for casings, sill noses, and sub sills.

Masonry openings for a window or door increase when casings and/or sill noses are present.
Masonry widths are impacted by the specific casings that are present, whereas masonry heights are impacted by both the casings and the sill noses that are present.
The masonry opening is impacted considerably when some of our larger sill noses and sub sills are present.

Metal-Clad Installations

Masonry Opening - Metal Clad

EXAMPLE 1 – CA1 7515 with 2″ Brickmold & Standard Sill Nose
The frame dimension of this window is 29-1/2″ x 59-1/16″.
Your masonry width adds 1-11/16″ (per side) for the Brickmold.

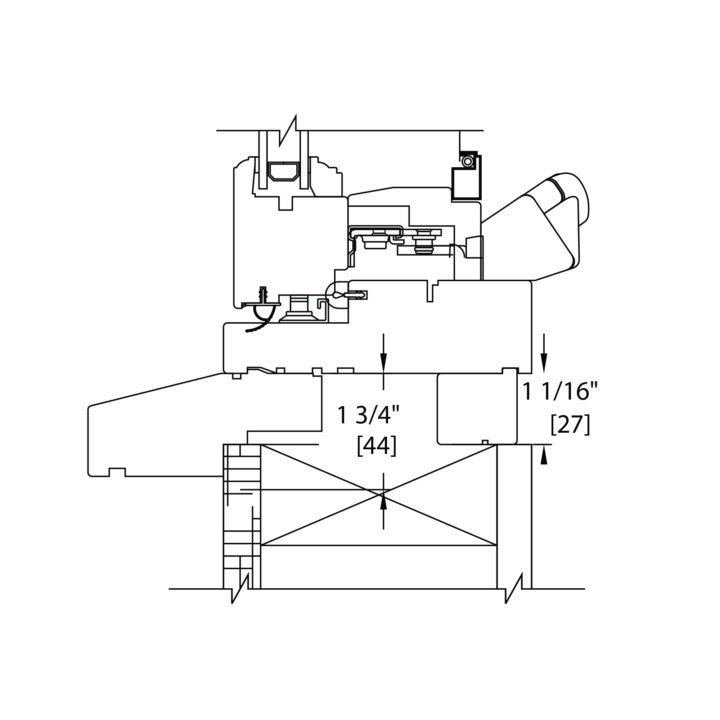

Your masonry height adds 1-11/16″ (for the Brickmold) and 13/16″ (for the Sill Nose).
In this case, the masonry opening would be 32-7/8″ x 61-9/16″.

EXAMPLE 2 – CA1 0918 with Adams Casing & BC Sill Nose
The frame dimension of this window is 35-7/16″ x 70-7/8″.
Your masonry width adds 3-3/16″ (per side) for the Casing.

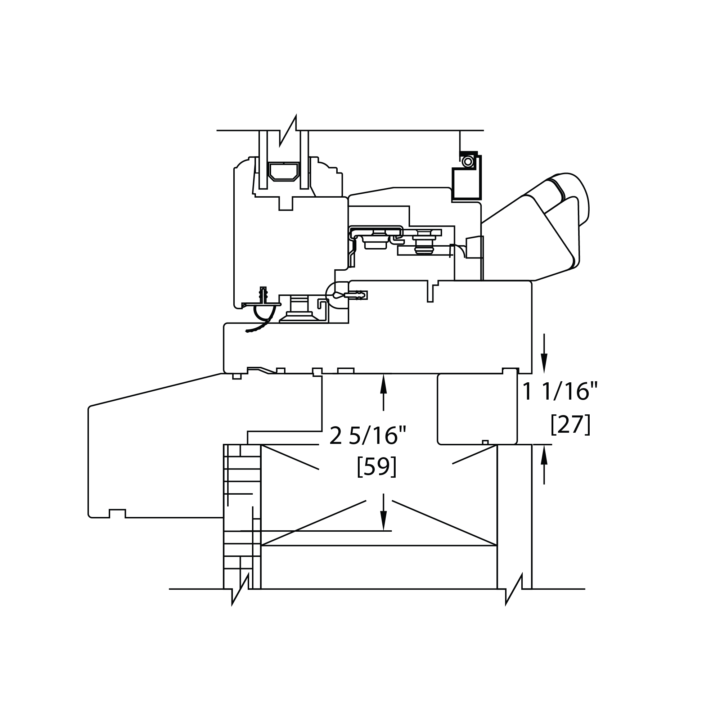

Your masonry height adds 3-3/16″ (for the Casing) and 1-7/16″ (for the Sill Nose).
In this case, the masonry opening would be 41-13/16″ x 75-1/2″.

All-Wood Installations

Masonry Opening - All Wood

EXAMPLE 1 – CA1 7515 with 2″ Brickmold & Standard Sill Nose
The frame dimension of this window is 29-1/2″ x 59-1/16″.
Your masonry width adds 1-9/16″ (per side) for the Brickmold.

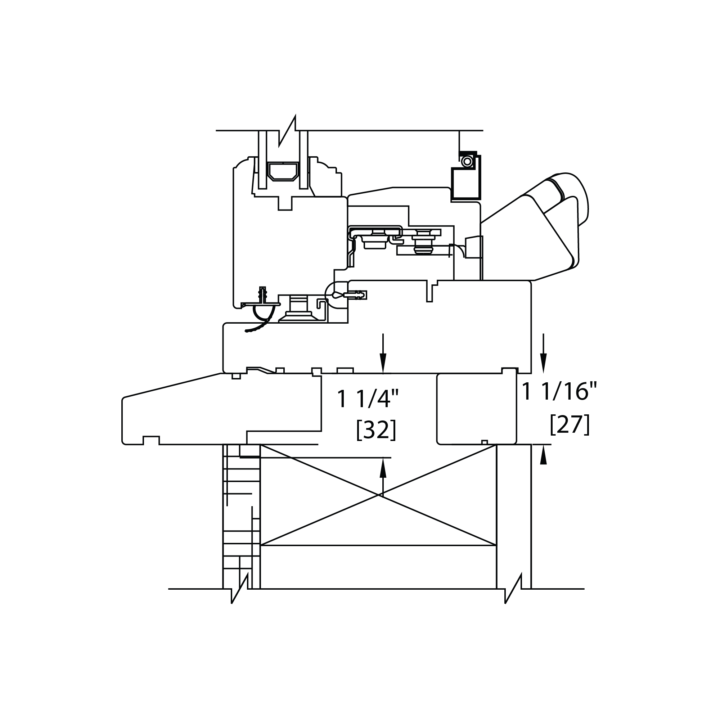

Your masonry height adds 1-9/16″ (for the Brickmold) and 1-1/4″ (for the Sill Nose).
In this case, the masonry opening would be 32-5/8″ x 61-15/16″.

EXAMPLE 2 – CA1 0918 with Adams Casing & BC Sill Nose
The frame dimension of this window is 35-7/16″ x 70-7/8″.
Your masonry width adds 2-11/16″ (per side) for the Casing.
Your masonry height adds 2-11/16″ (for the Casing) and 1-3/4″ (for the Sill Nose).
In this case, the masonry opening would be 40-13/16″ x 75-5/16″.
