Awning Windows

ADDITIONAL RESOURCES

Use the buttons below to view additional technical drawings, models, and performance data, or keep scrolling.

CAD Drawings

3D Models

NFRC Ratings

Air, Water, Structural Performance

Looking for Loewen standard sizes? Our Product Configurator allows you to browse our standard sizes and make configurations.

01 - Basics

Standard Awning Sizes

Our Legacy PDF Size Charts

These charts were last updated November 2024.

FRAME CLADDING

Standard Frame Cladding

Contemporary Frame Cladding

Our contemporary frame cladding moves the nailing flange towards the interior, because of this a jamb extension is needed to obtain a 4-9/16″ jamb depth.

Wall Connection Detail

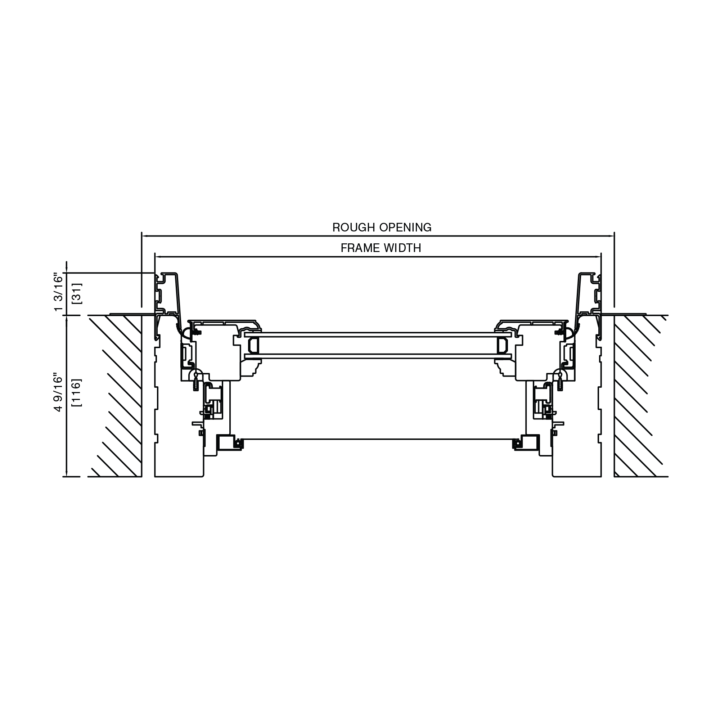

Metal Clad - Dual Glazed, Plan View - Wall Connection

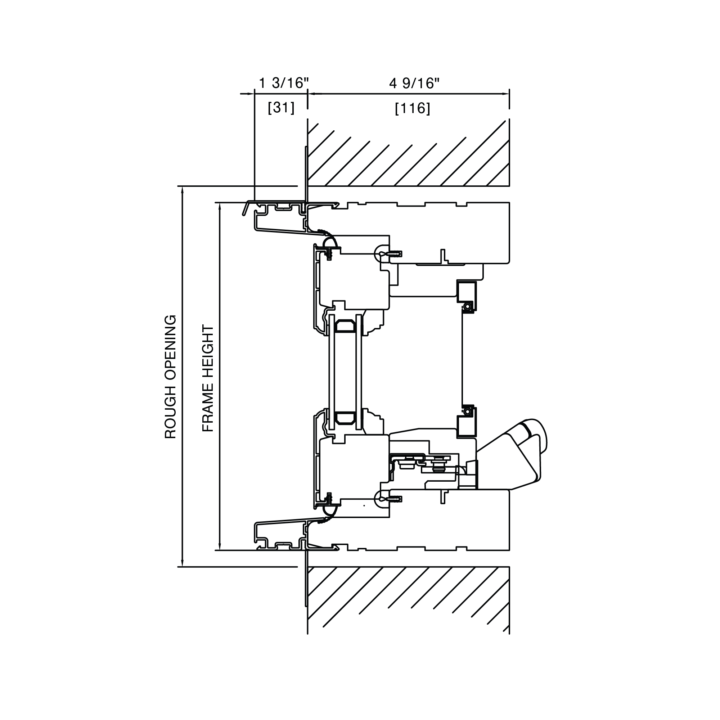

Metal Clad - Dual Glazed, Head & Sill Detail - Wall Connection

All Wood - Triple Glazed, Plan View - Wall Connection

All Wood - Triple Glazed, Head & Sill Detail - Wall Connection

02 - MAIN CONFIGURATIONS

Rotogear

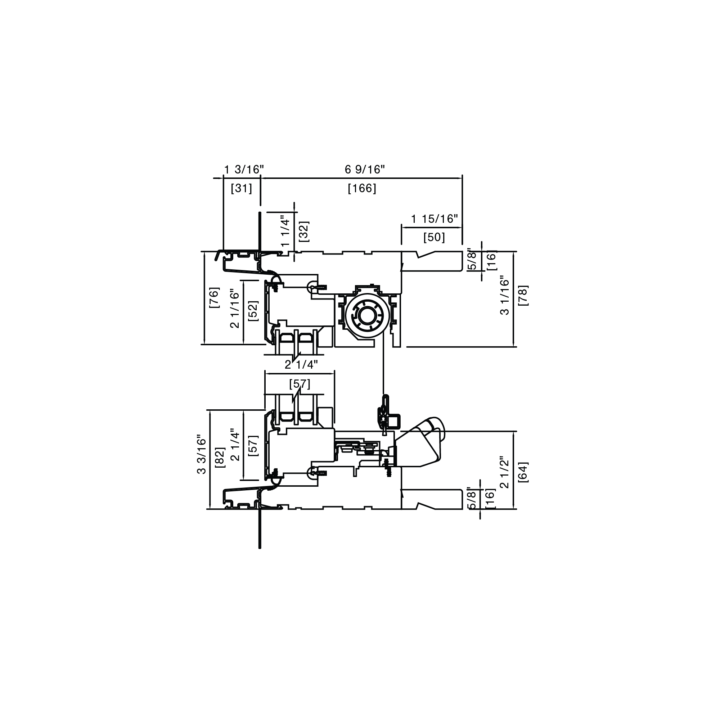

Metal Clad - Triple Glazed, Square Glazing Stops, Retractable Screen - Head & Sill Detail

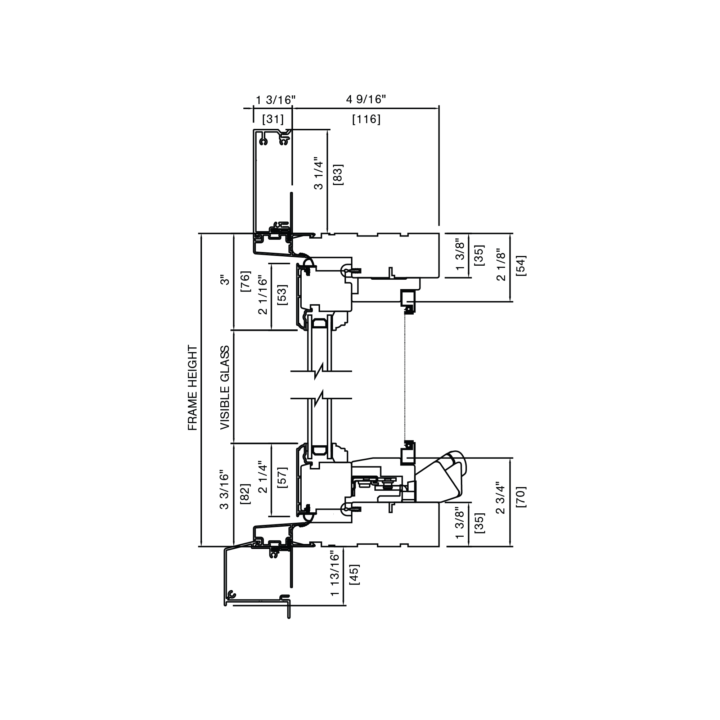

Metal Clad - Dual Glazed, Flat Casing with Heritage Sill Nose, Standard Screen - Head & Sill Detail

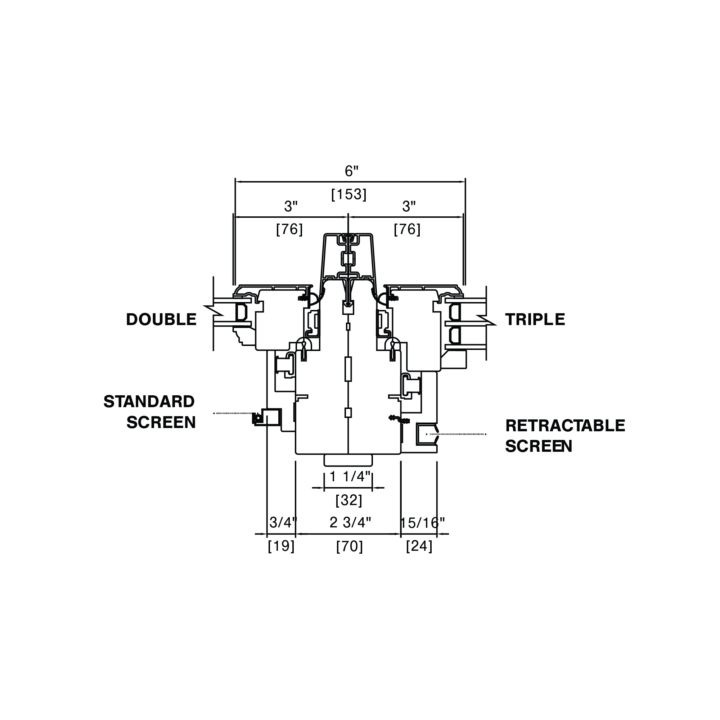

Metal Clad - Dual, Triple, Standard, Retractable Screen - Plan View

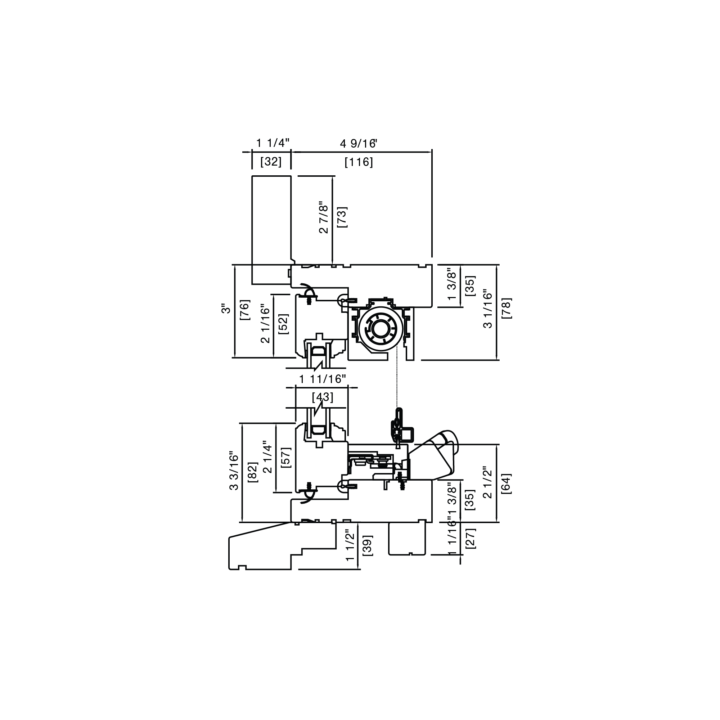

All Wood - Dual Glazed, Flat Casing, BC Subsill, Retractable Screen

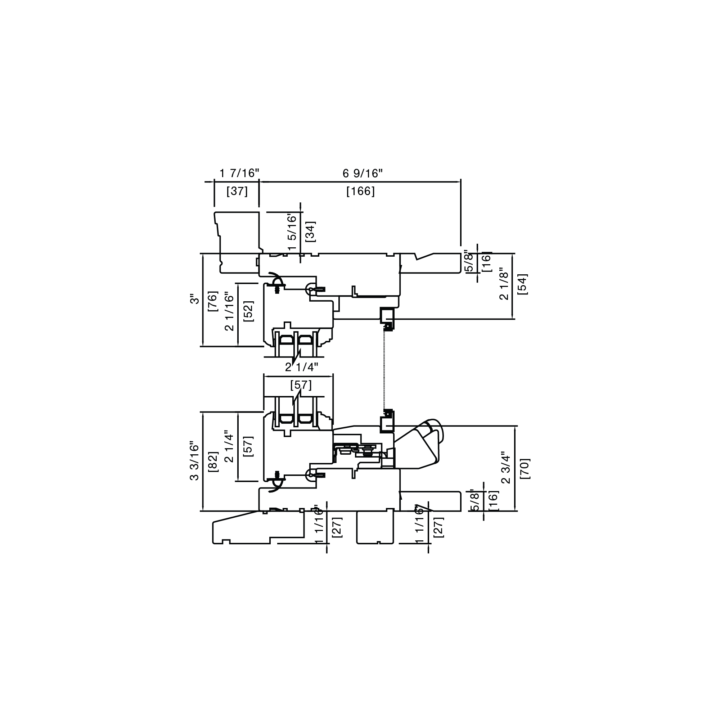

All Wood - Triple Glazed, 2 inch Brickmould, with Standard Subsill, Standard Screen - Head & Sill Detail

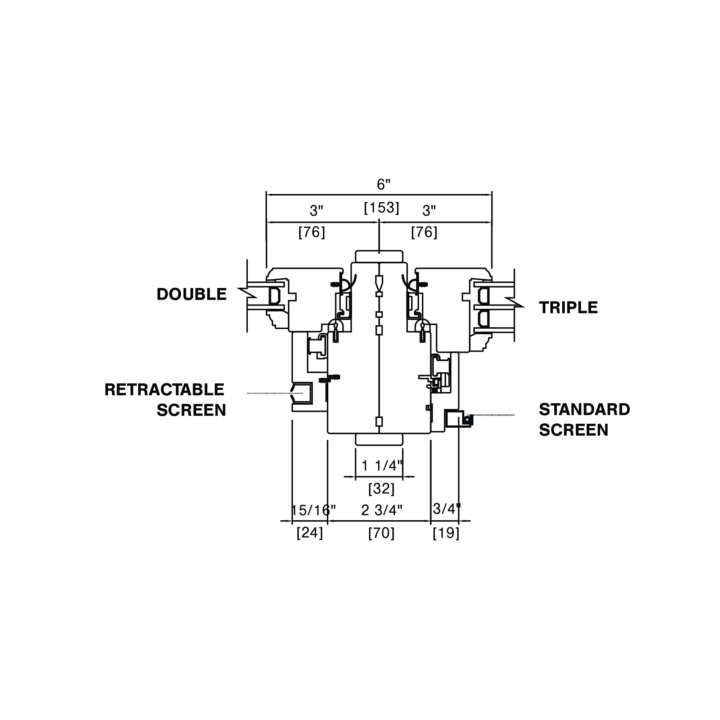

All Wood - Dual, Triple, Standard, Retractable Screen - Plan View

Pushout

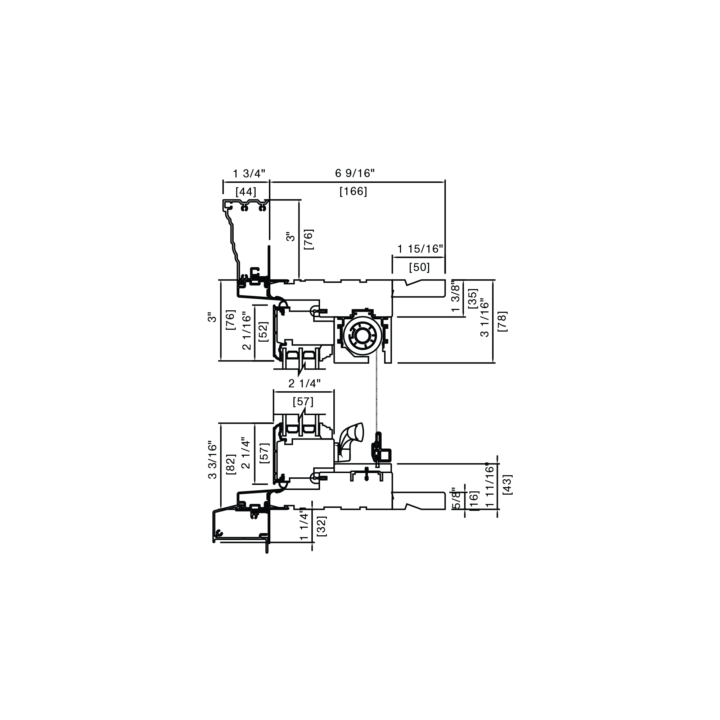

Metal Clad - Triple Glazed, Adams Casing with BC Sill Nose, Retractable Screen - Head & Sill Detail

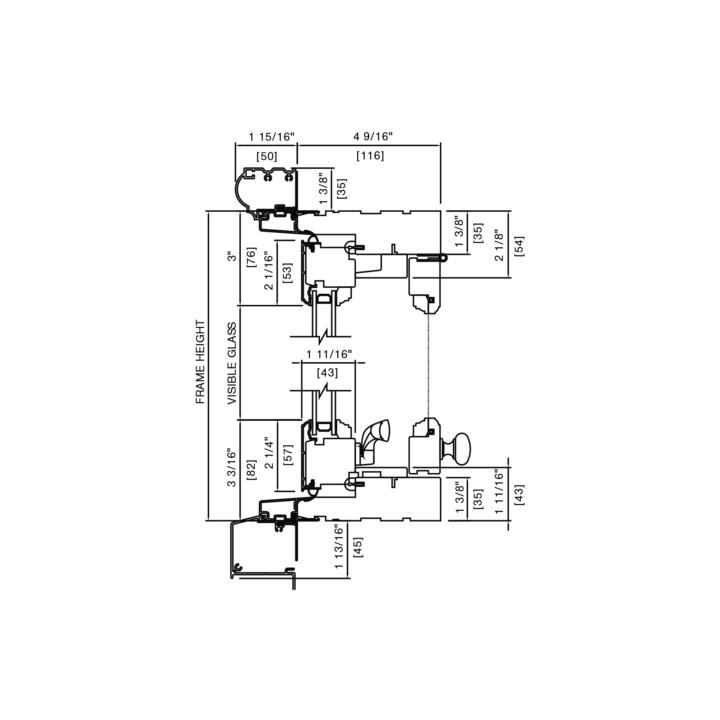

Metal Clad - Dual Glazed, Nose & Cove Casing with Heritage Sill Nose, Hinged Wood Screen - Head & Sill Detail

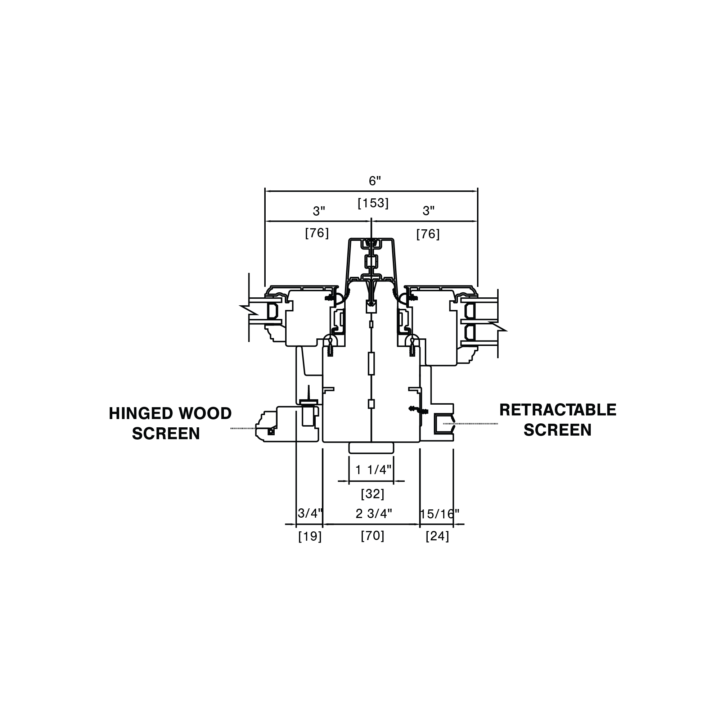

Metal Clad - Hinged Wood, Retractable Screen - Plan View

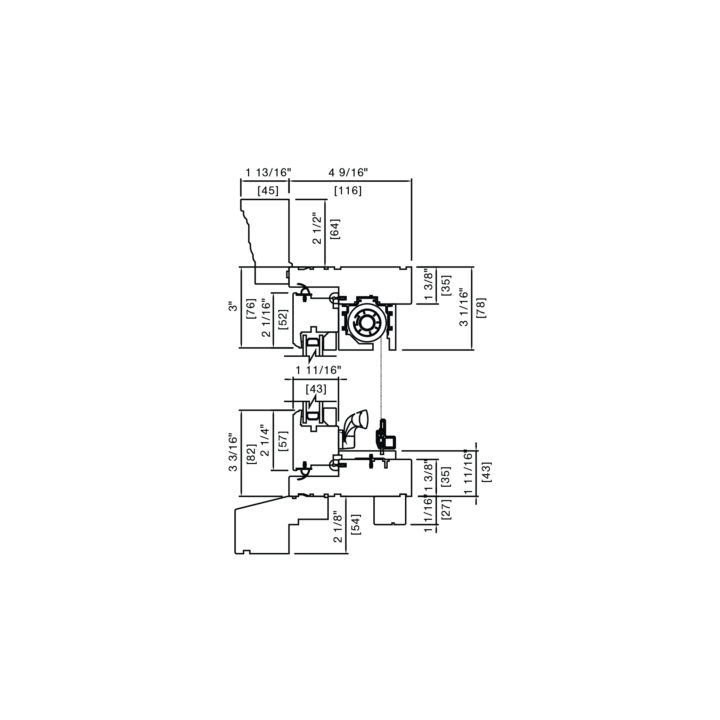

All Wood - Dual Glazed, Adams Casing with Heritage Subsill, Square Glazing Stops, Retractable Screen - Head & Sill Detail

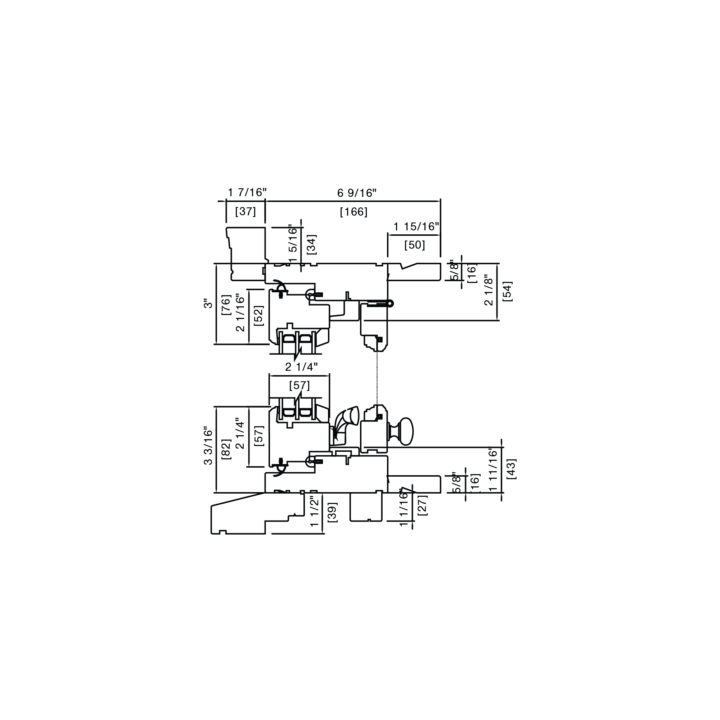

All Wood - Triple Glazed, 2 inch Brickmould with BC Subsill, Putty Glazing Stops, Hinged Wood Screen - Head & Sill Detail

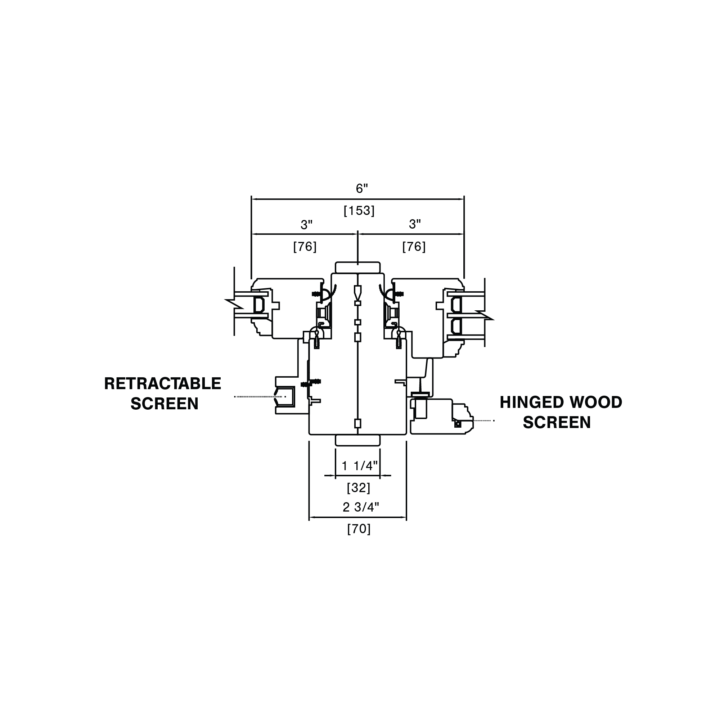

All Wood - Hinged Wood, Retractable Screen - Plan View

Mission®

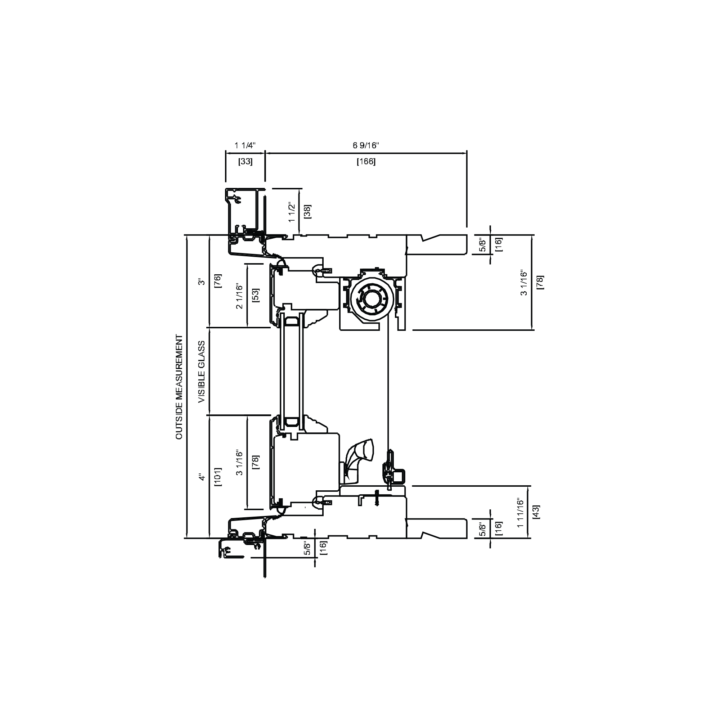

Metal Clad - Dual Glazed, 2 inch Brickmould, Standard Sill Nose, Retractable Screen - Head & Sill Details

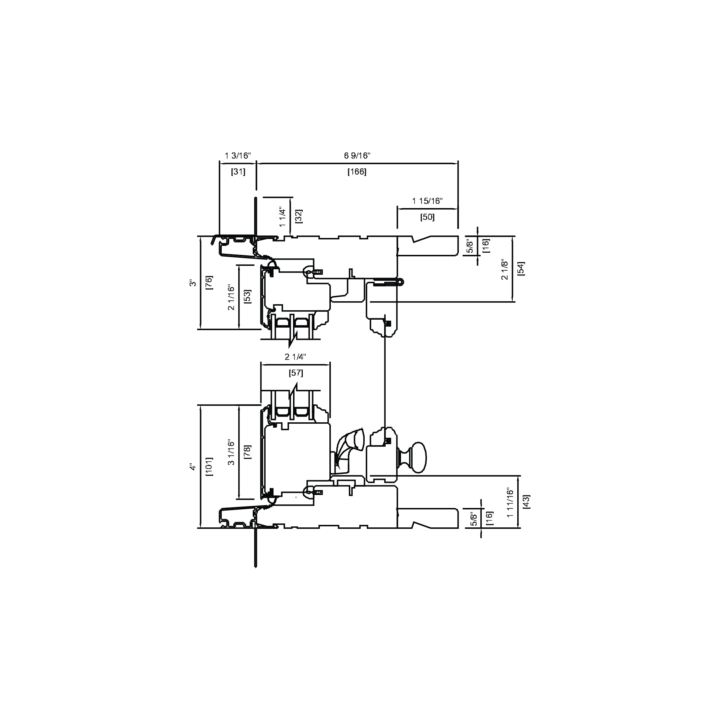

Metal Clad - Triple Glazed, Hinged Wood Screen - Head & Sill Detail

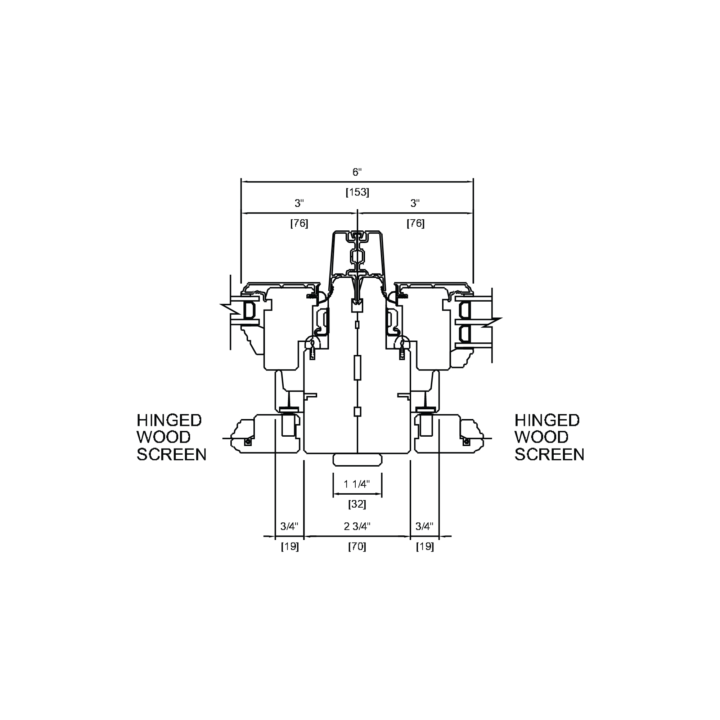

Metal Clad - Hinged Wood Screen - Plan Details

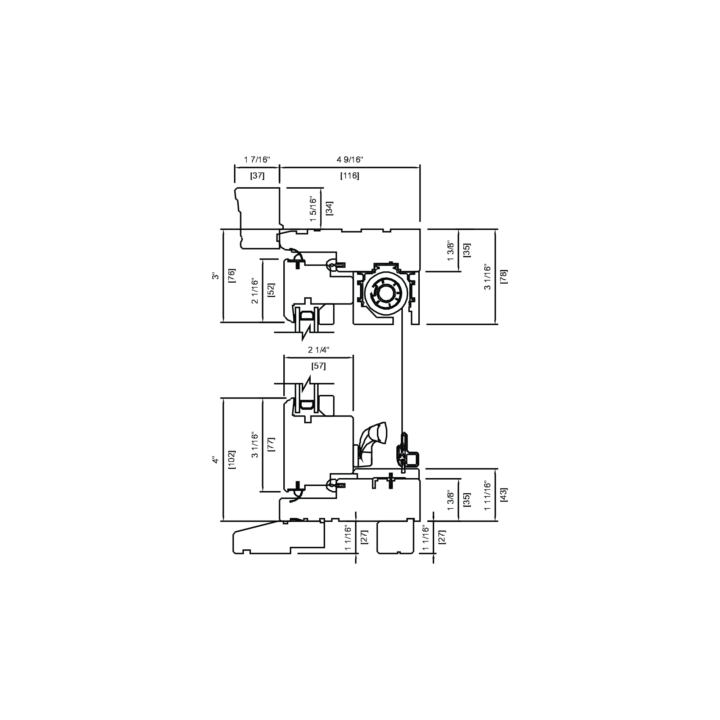

Non-Clad - Dual Glazed, Square Glazing Stops, Retractable Screen, 2 inch Brickmould, Standard Subsill - Head & Sill Detail

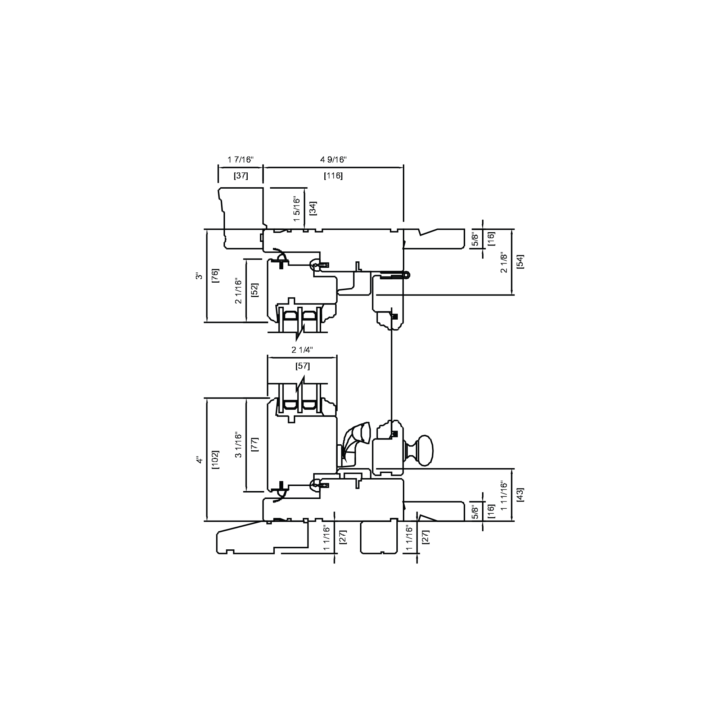

Non-Clad - Triple Glazed, Hinged Wood Screen, 2 inch Brickmould, Standard Screen - Head & Sill Detail

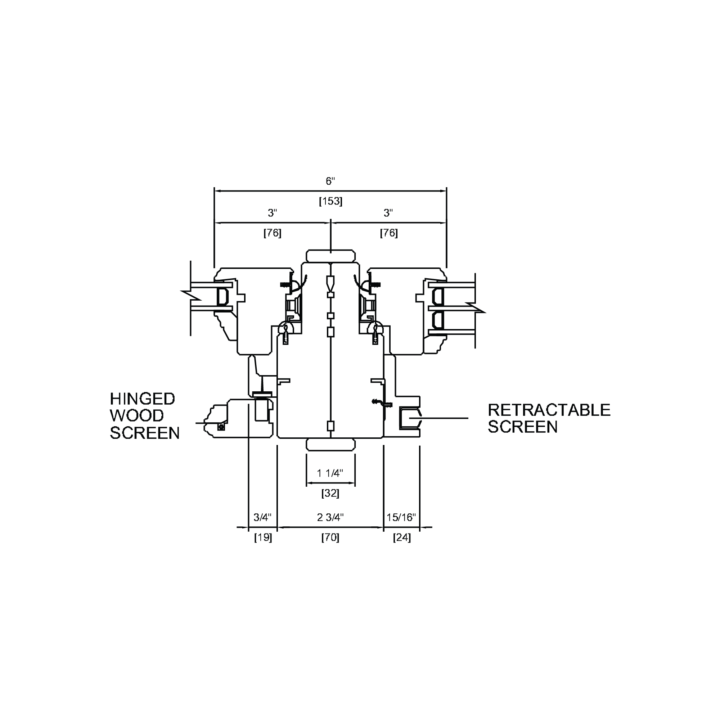

Non-Clad - Hinged Wood Screen - Plan Details
