Swinging French Doors (2.25″)

Overview

High-Performing swinging doors for every architectural scenario.

Our swinging door program includes many options for size, shape, styling, and operation in both aluminum-clad and all-wood presentations.

These doors are renowned for their performance. Every detail has been designed to the highest performance standards. We’ve reflected on every choice, ensuring all aspects of our doors exceed expectation.

Our Offering

Terrace & French Terrace Doors (up to 4 doors in one frame)
1 ¾” Thick Panels & 2 ¼” Thick Panels
Aluminum-Clad Doors & All-Wood Doors
Rectangular Doors & Radius-Top Doors
Inswing & Outswing Configurations
Right-Handed, Left-Handed, & Fixed Configurations

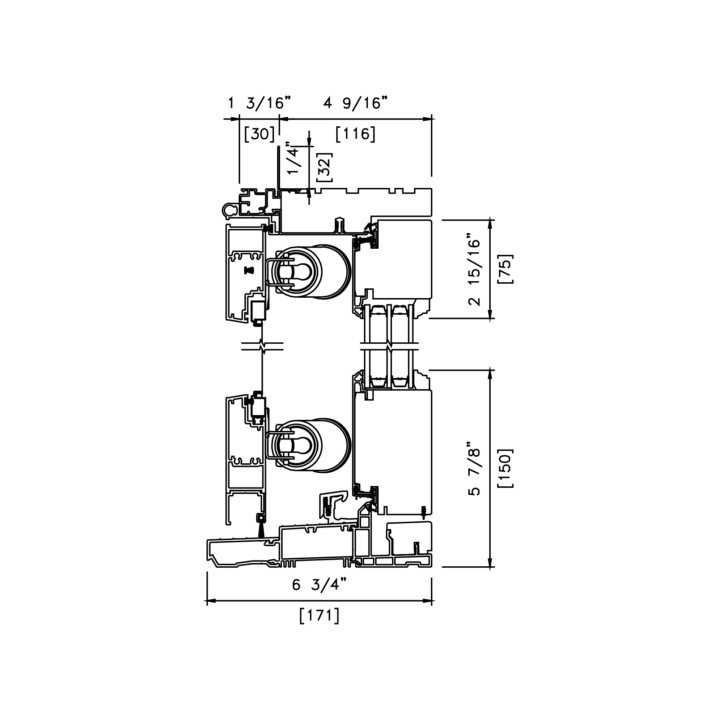

Transoms, Sidelites, & Screen Doors

Looking for Loewen standard sizes? Our Product Configurator allows you to browse our standard sizes and make configurations.

01 - Basics

Shapes

2 Panels

Rectangular (or Square)
Camber Top Full
Half-Round

3 Panels

Rectangular (or Square)

4 Panels

Rectangular (or Square)
Camber Top Full

Panels

Narrow stile & rail option includes 3” vertical stile & top rail, and 4-5/16″ bottom rail.

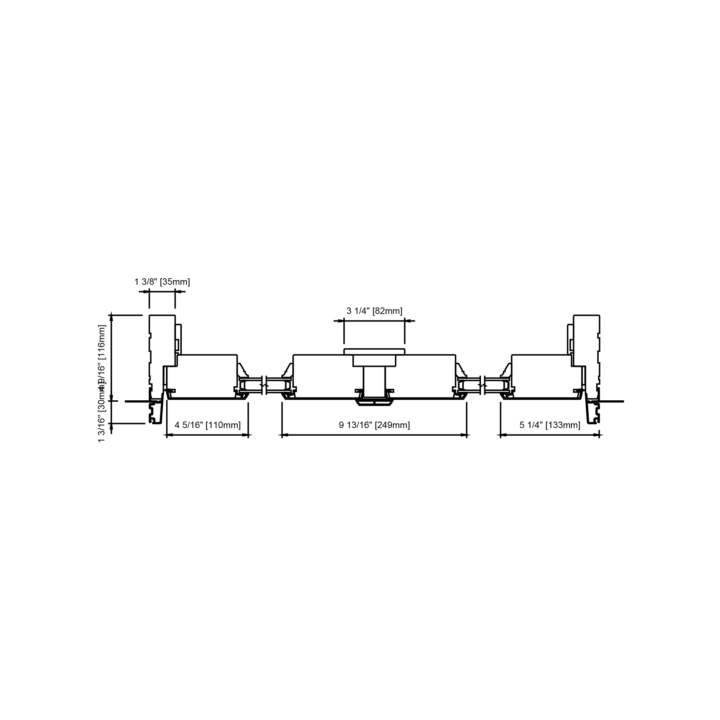

Standard stile & rail option includes 4-5/16″ vertical stile & top rail, and 7-7/8″ bottom rail.

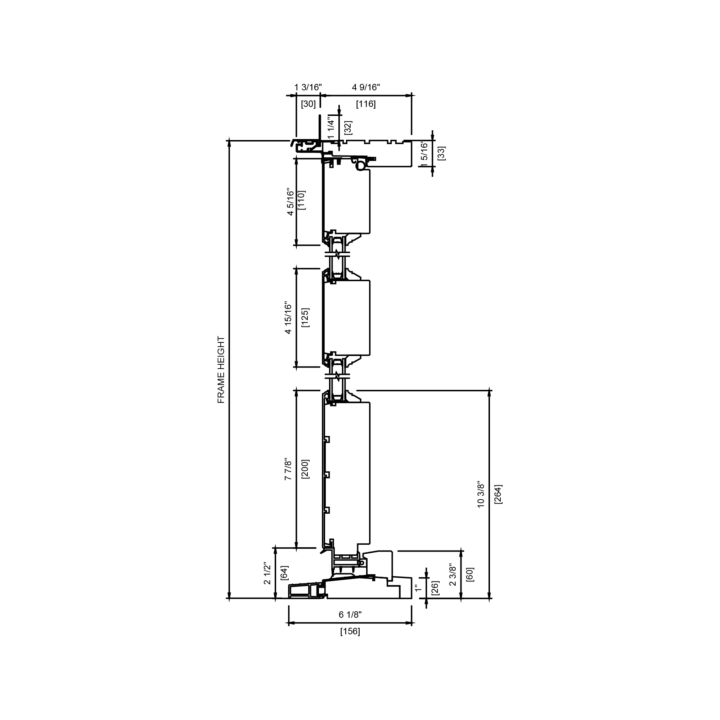

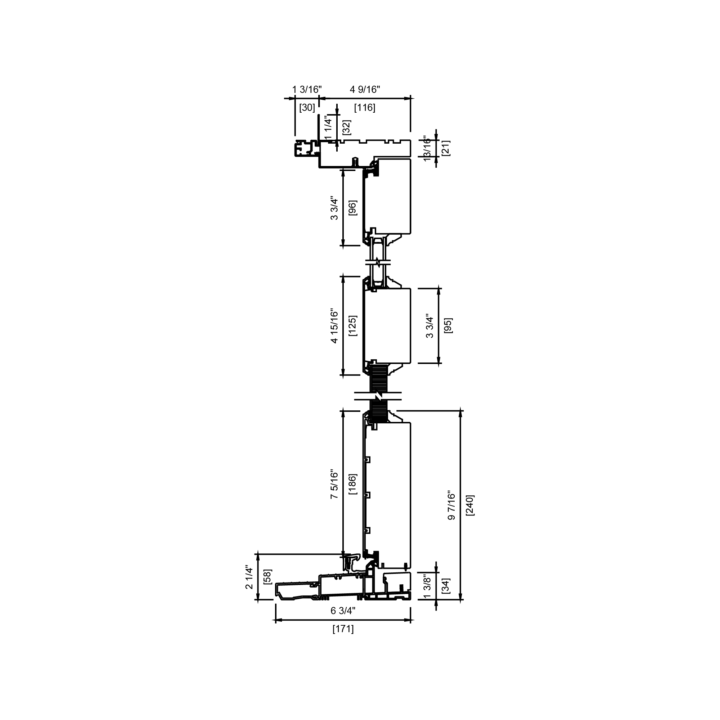

Middle rail options can include a bottom flat panel, a bottom raised panel, or a bottom sealed unit.
Panels with a middle rail and a vertical rail can include two bottom flat panels or two bottom raised panels.
All options shown here apply to metal-clad doors and all-wood doors.

Narrow Stiles & Rails - Middle Rail - Bottom Sealed Unit

Narrow Stiles - Middle Rail & Vertical Rail - Flat Panels

Standard Stiles - Middle Rail - Bottom Sealed Unit

Standard Stiles - Middle Rail & Vertical Rail - Raised Panels

All examples shown are 36-3/8″ x 94-1/2″ frame size.

Door Swings

Inswing - Active / Passive / Fixed / Fixed

Inswing - Passive / Active / Fixed / Fixed

Inswing - Fixed / Active / Passive / Fixed

Inswing - Fixed / Passive / Active / Fixed

Inswing - Fixed / Fixed / Active / Passive

Inswing - Fixed / Fixed / Passive / Active

Outswing - Active / Passive / Fixed / Fixed

Outswing - Passive / Active / Fixed / Fixed

Outswing - Fixed / Active / Passive / Fixed

Outswing - Fixed / Passive / Active / Fixed

Outswing - Fixed / Fixed / Active / Passive

Outswing - Fixed / Fixed / Passive / Active

The “handing” designation always assumes an exterior to interior viewing angle. Looking from the exterior, if the hinge is on the left it is left-handed, if the hinge is on the right it is right-handed.
