Standard Cyprium Sizes

Standard Cyprium Sizes

Our Legacy PDF Size Charts

Cyprium Casements

Cyprium Awnings

Cyprium Direct Sets

Cyprium Terrace Doors

Cyprium French Doors

Cyprium LiftSlide Doors

01 - Casements

Rotogear

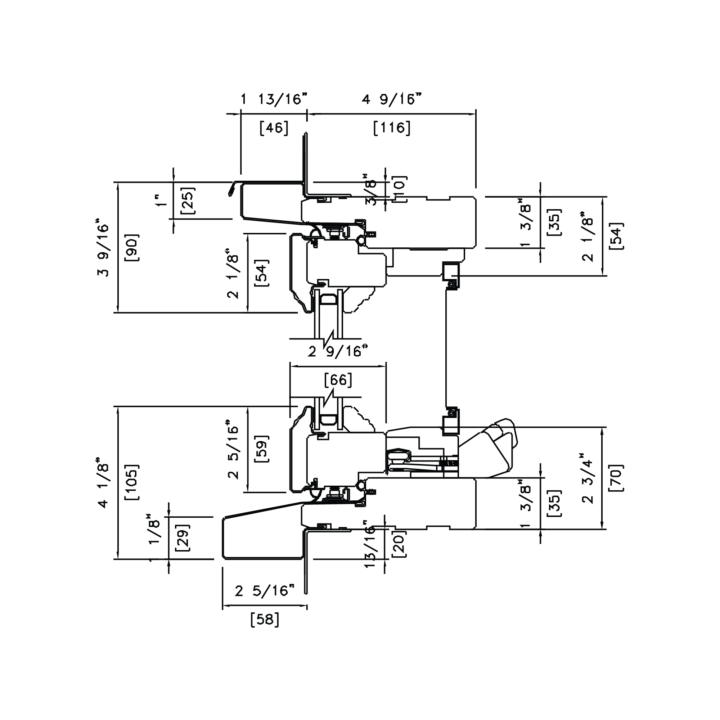

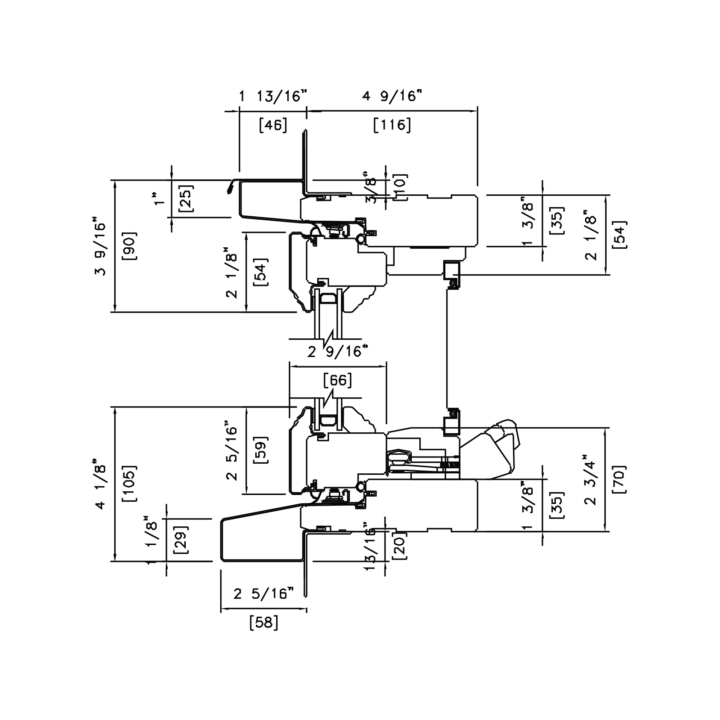

Cyprium - Double 4 9/16" (116mm) Standard Screen

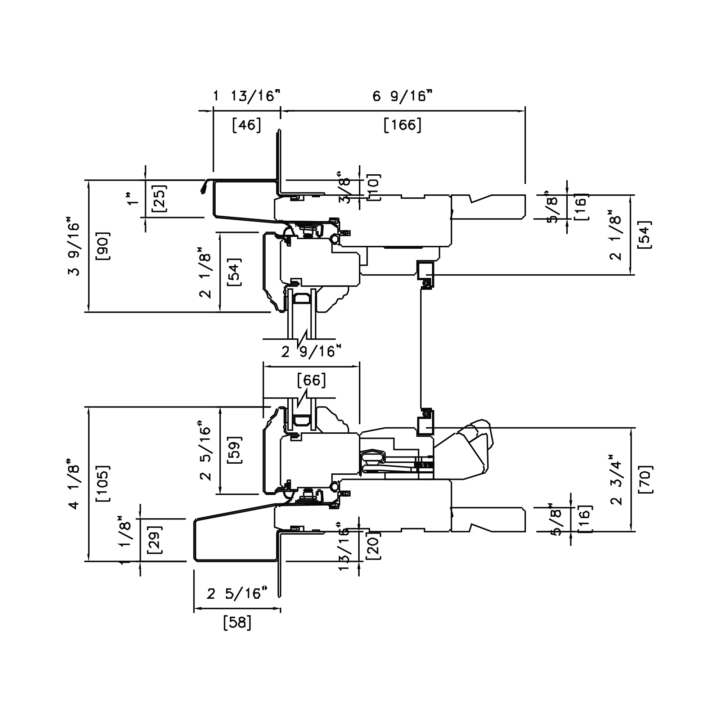

Cyprium - Double 6 9/16" (166mm) Standard Screen

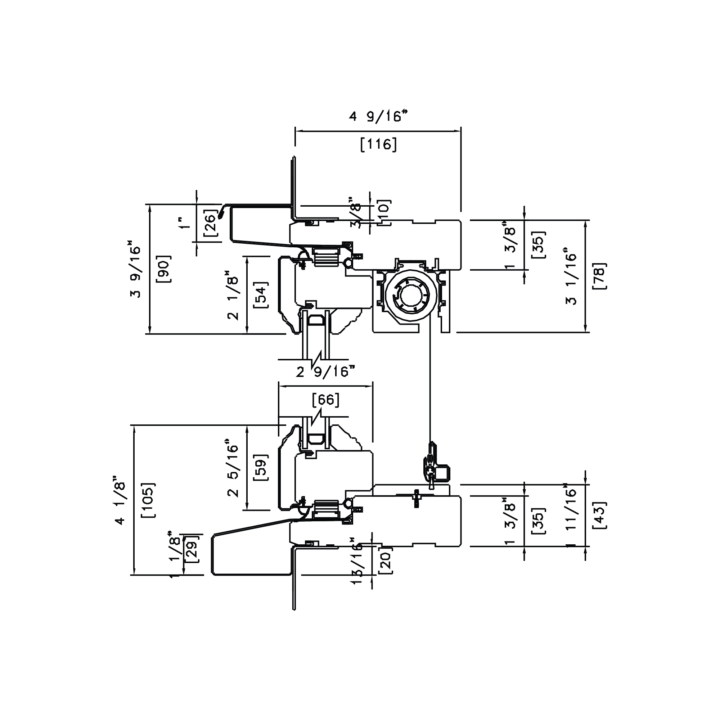

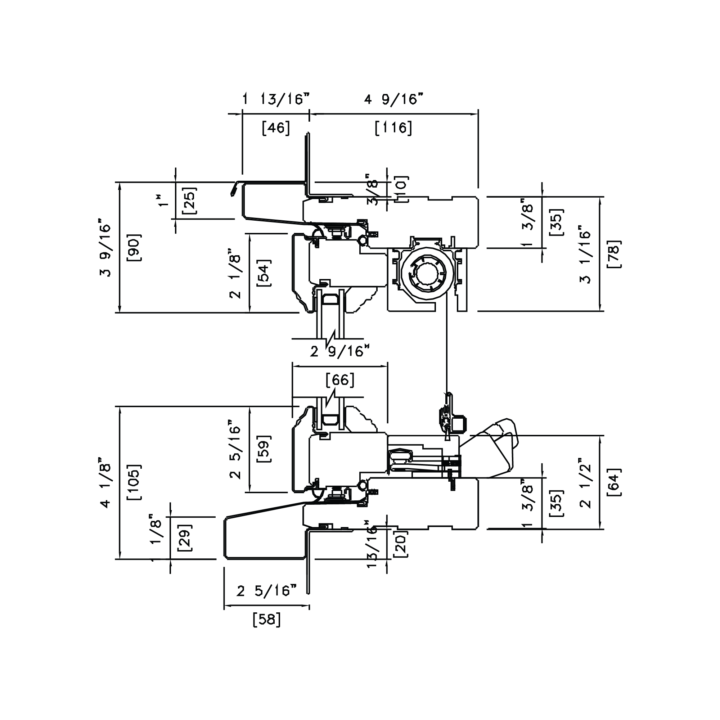

Cyprium - Double 4 9/16" (116mm) Retractable Screen

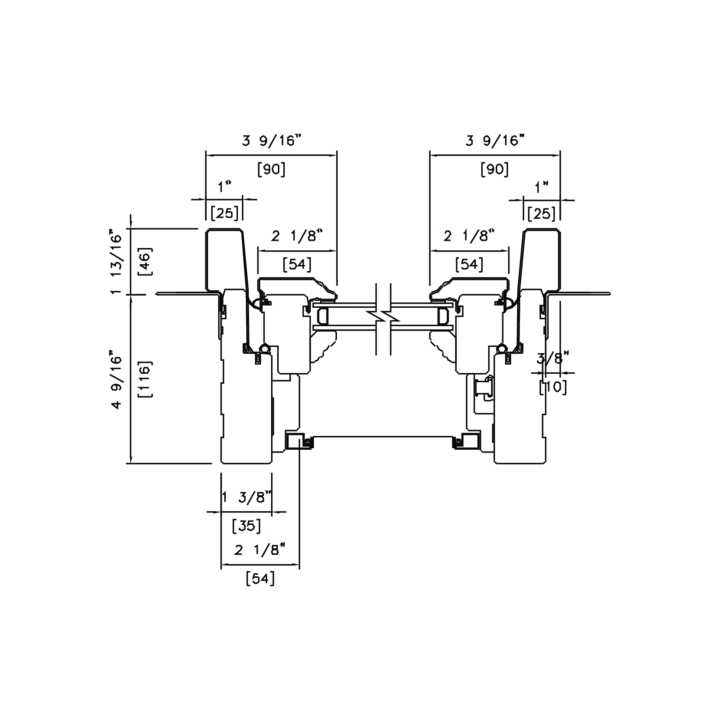

Cyprium - Double 4 9/16" (116mm) Standard Screen, Plan View

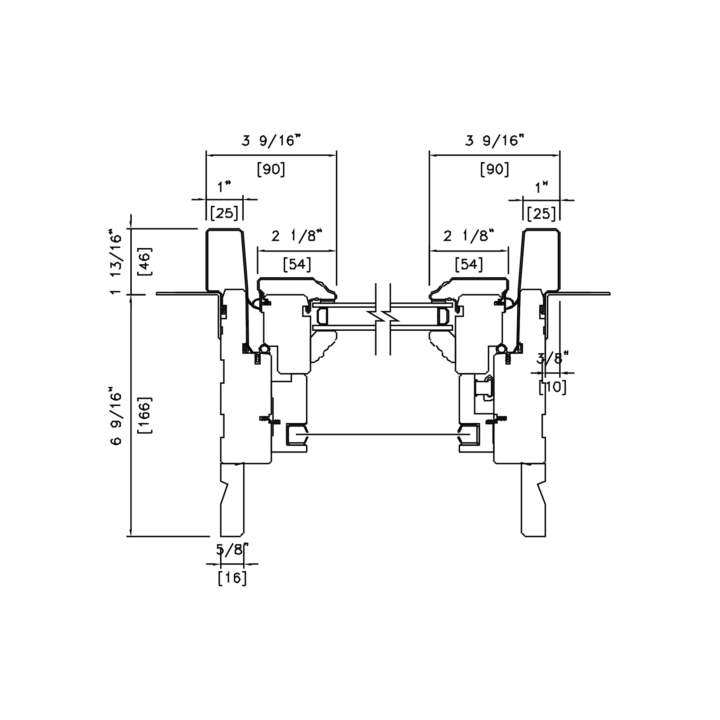

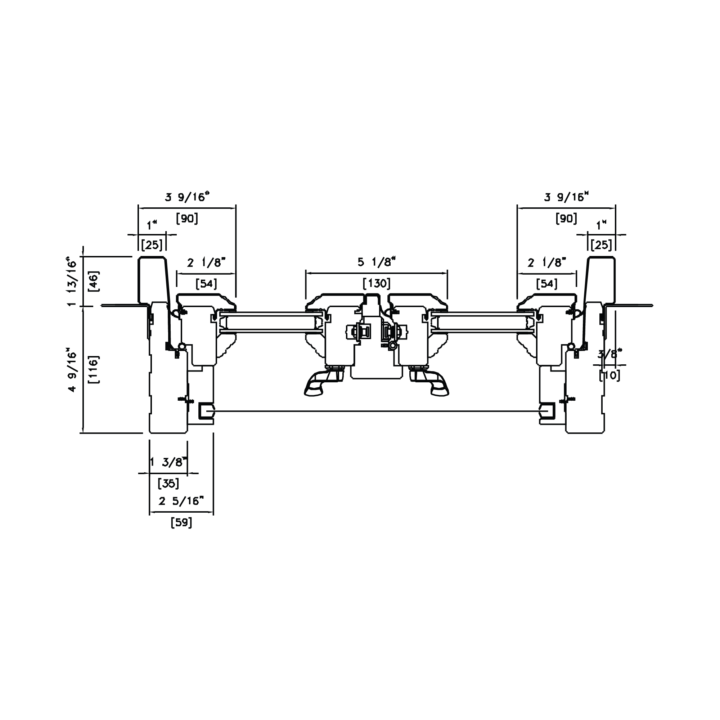

Cyprium - Double 6 9/16" (166mm) Retractable Screen, Plan View

Pushout

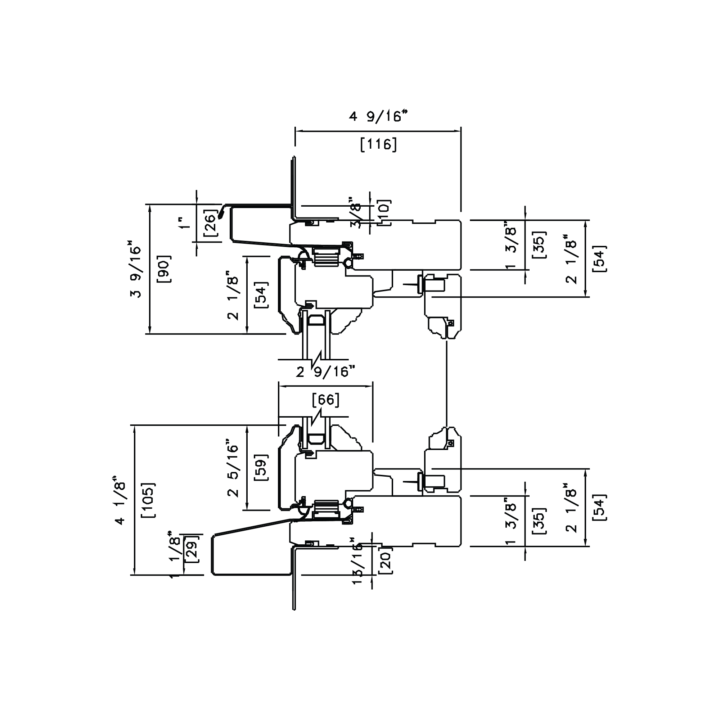

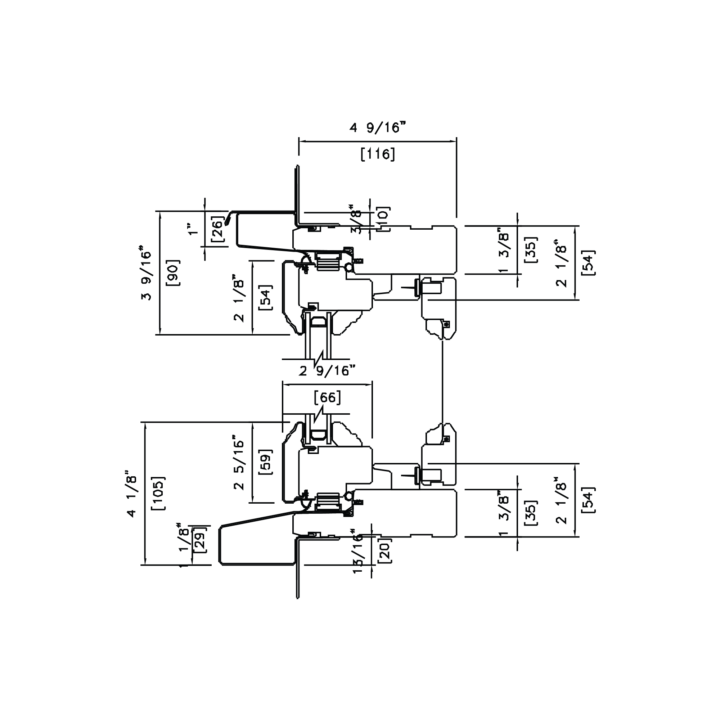

Cyprium - Double 4 9/16" (116mm) Hinged Wood Screen

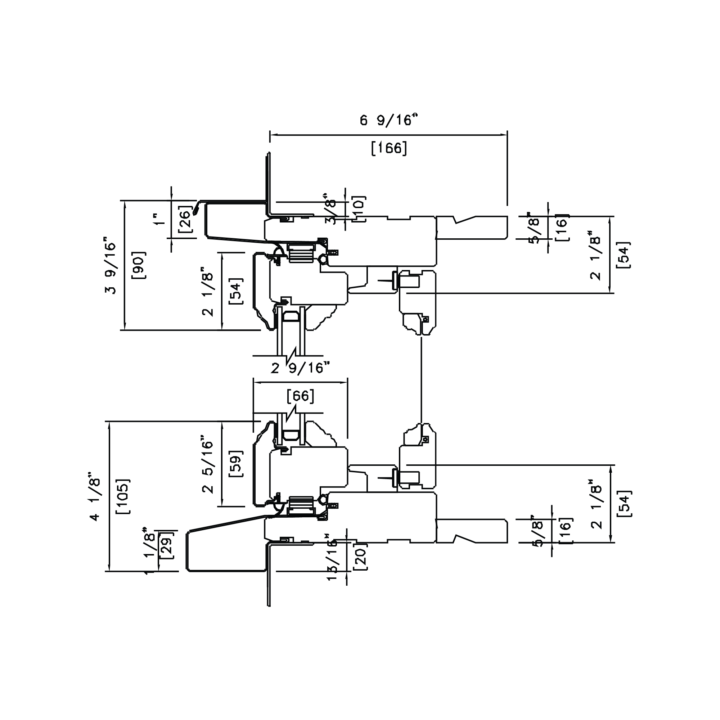

Cyprium - Double 6 9/16" (166mm) Hinged Wood Screen

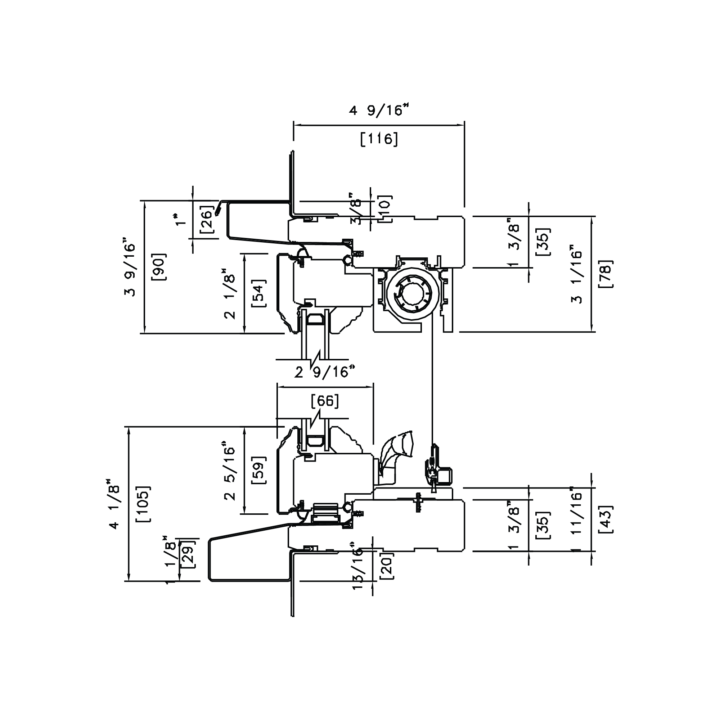

Cyprium - Double 4 9/16" (116mm) Retractable Screen

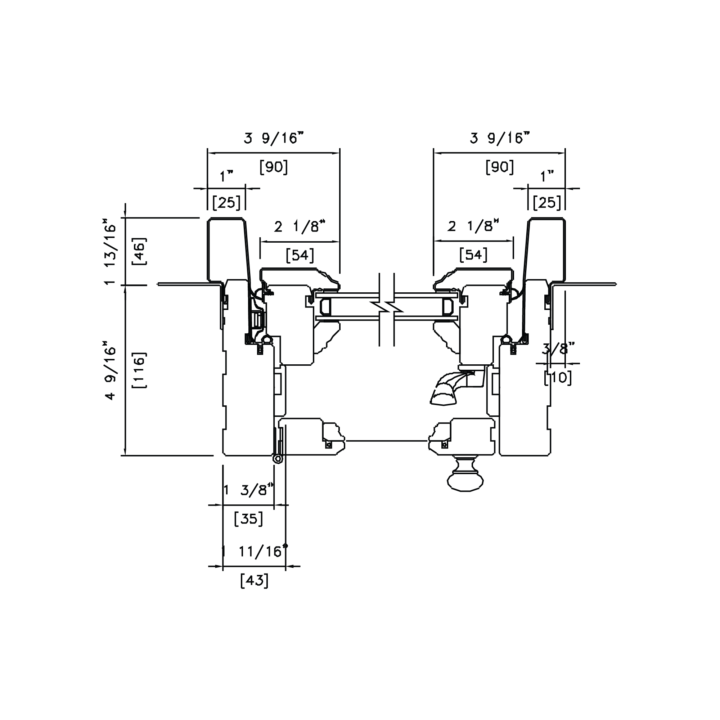

Cyprium - Double 4 9/16" (116mm) Hinged Wood Screen, Plan View

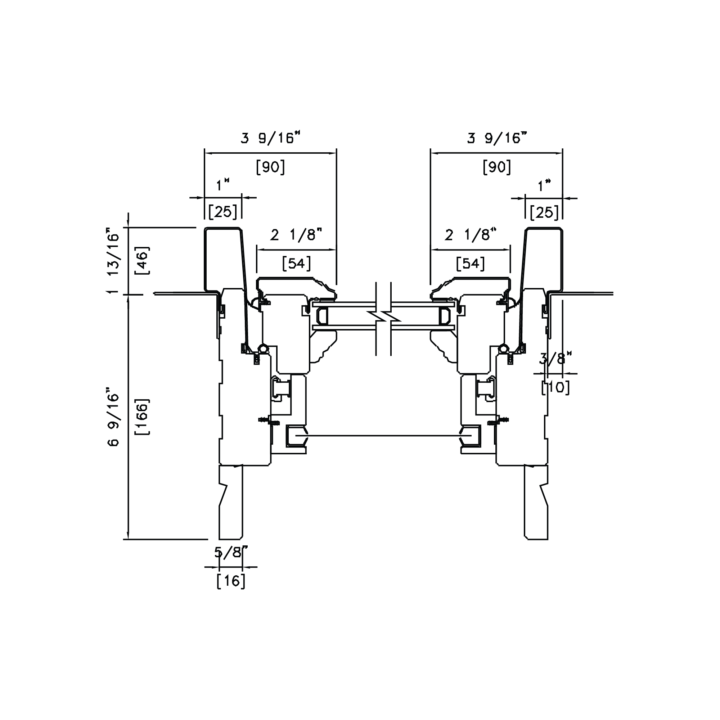

Cyprium - Double 6 9/16" (166mm) Retractable Screen, Plan View

Fixed

Cyprium - Double 4 9/16" (116mm) Match Standard Jamb Moulding

Cyprium - Double 6 9/16" (166mm) Match Pushout Jamb Moulding

Cyprium - Double 4 9/16" (116mm) Match Retractable Screen Jamb Moulding

Cyprium - Double 4 9/16" (116mm) Match Standard Jamb Moulding, Plan View

Cyprium - Double 6 9/16" (166mm) Match Pushout Jamb Moulding, Plan View

Cyprium - Double 4 9/16" (116mm) Match Retractable Screen Jamb Moulding, Plan View

French

Cyprium - Double 4 9/16" (116mm) Hinged Wood Screen

Cyprium - Double 6 9/16" (166mm) Hinged Wood Screen

Cyprium - Double 4 9/16" (116mm) Retractable Screen

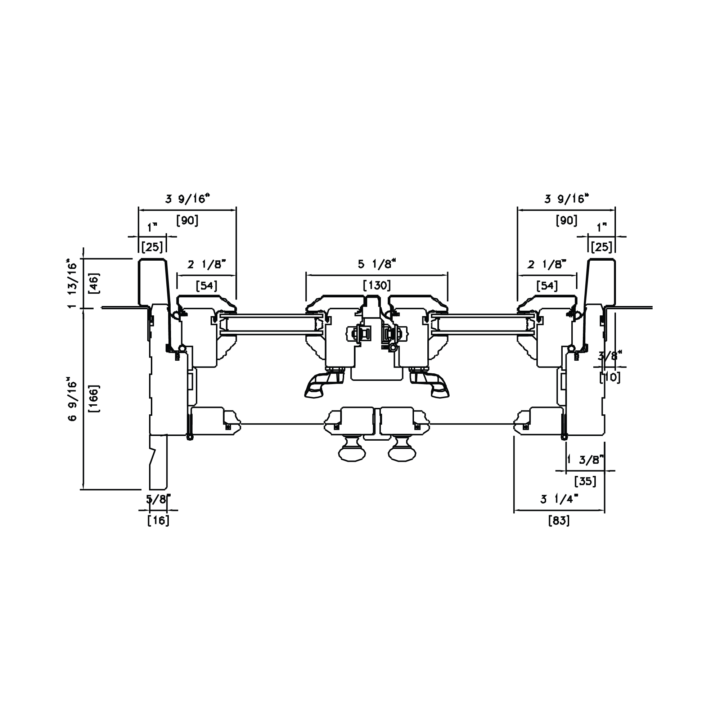

Cyprium - Double 6 9/16" (166mm) Hinged Wood Screen, Plan View

Cyprium - Double 4 9/16" (116mm) Retractable Screen, Plan View

Radius Top

Cyprium - Double 4 9/16" (116mm) Standard, Standard Screen

Cyprium - Double 6 9/16" (166mm) Standard, Standard Screen

Cyprium - Double 4 9/16" (116mm) Pushout, Hinged Wood Screen

Cyprium - Double 4 9/16" (116mm) Standard, Standard Screen, Plan View

Cyprium - Double 4 9/16" (116mm) Pushout, Hinged Wood Screen, Plan View

Recessed Mullion

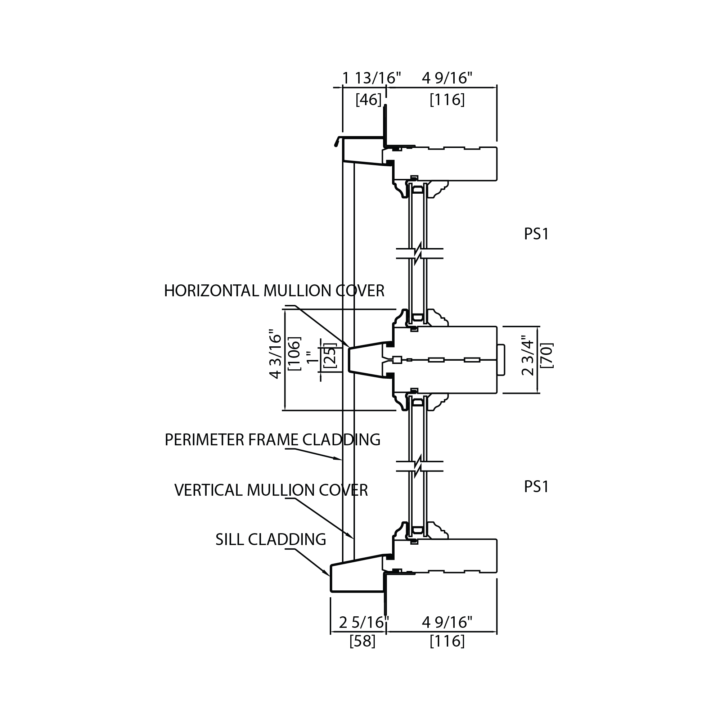

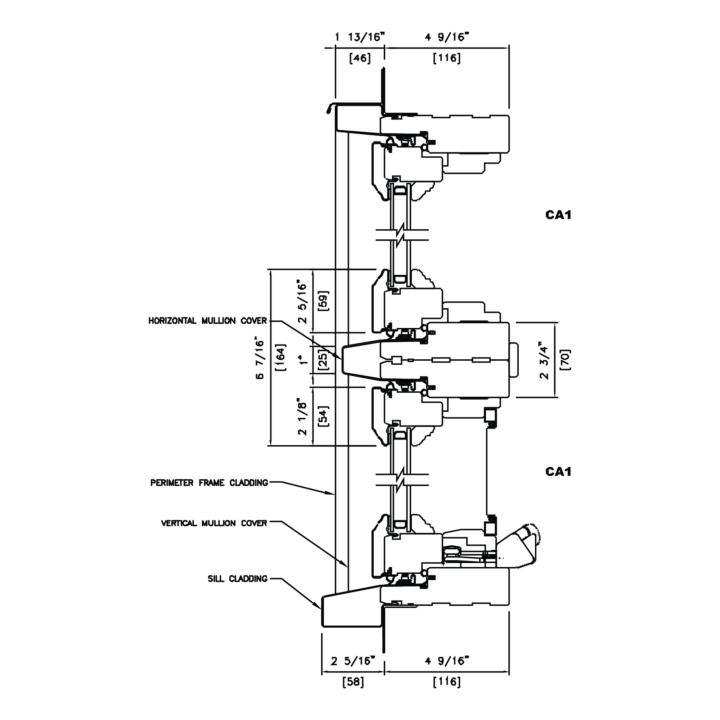

Cyprium - Double 4 9/16" (116mm) Same Product Type

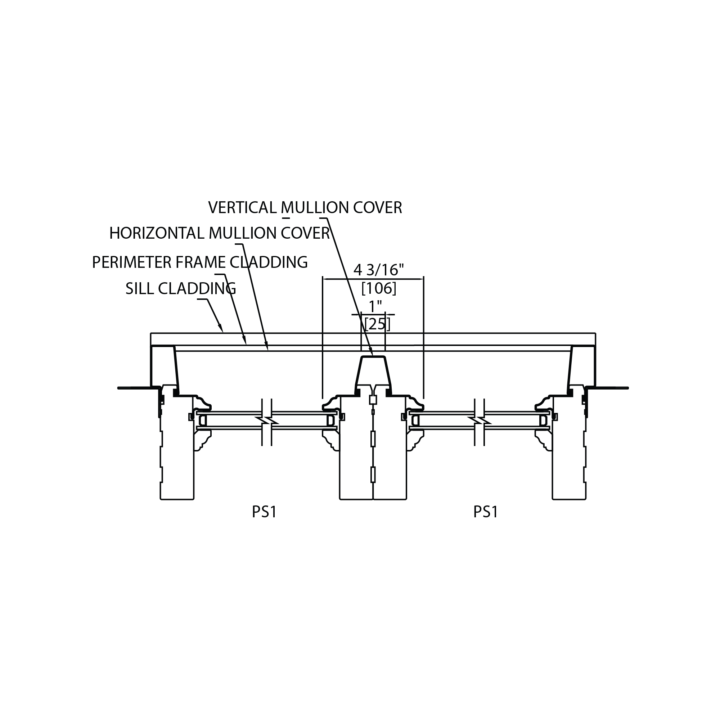

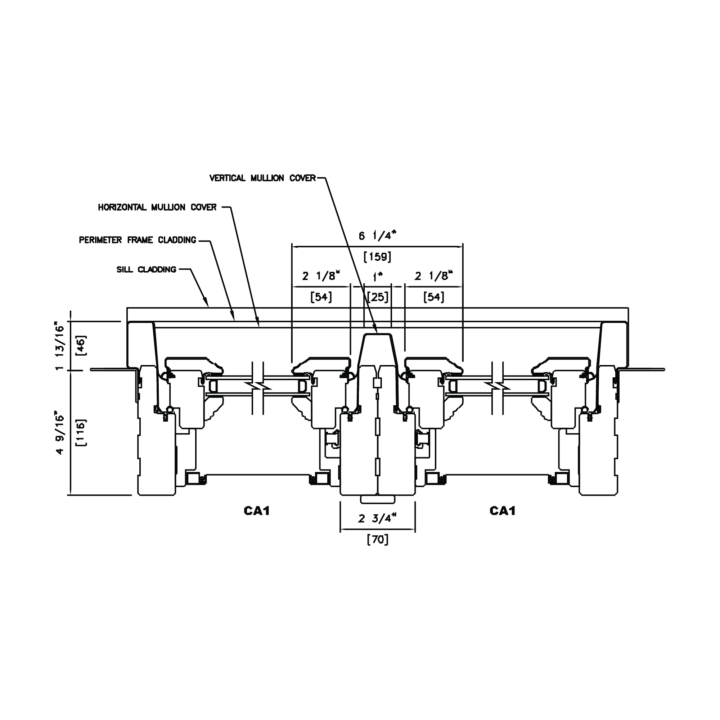

Cyprium - Double 4 9/16" (116mm) Same Product Type, Plan View

"T" Mullion

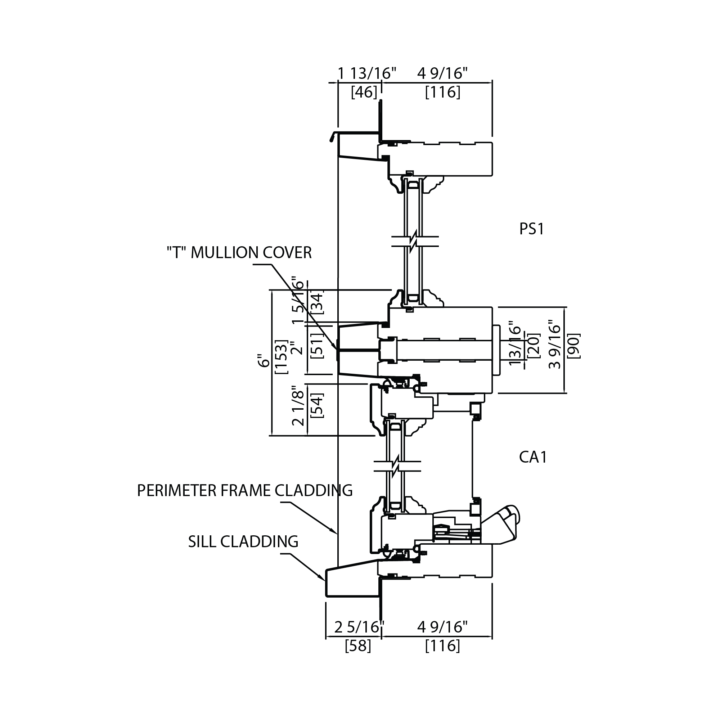

Cyprium - Double 4 9/16" (116mm)

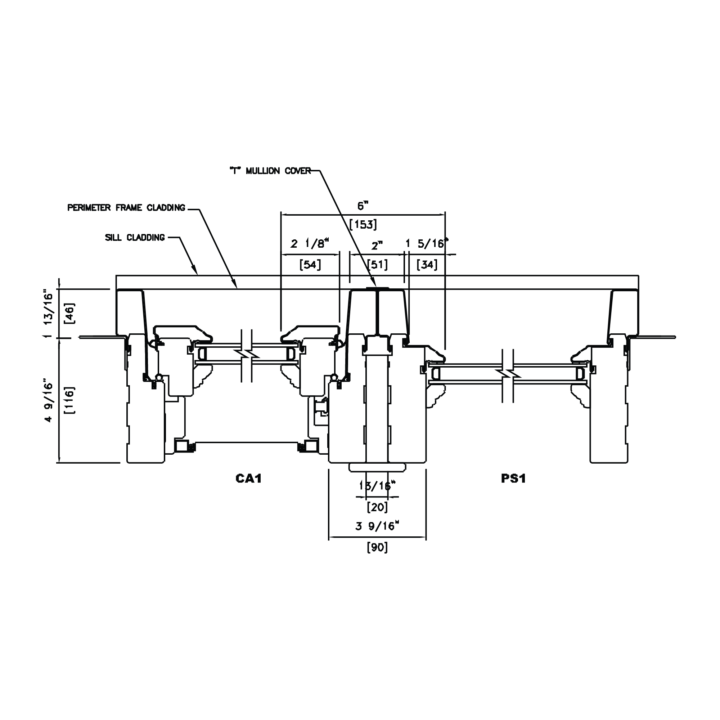

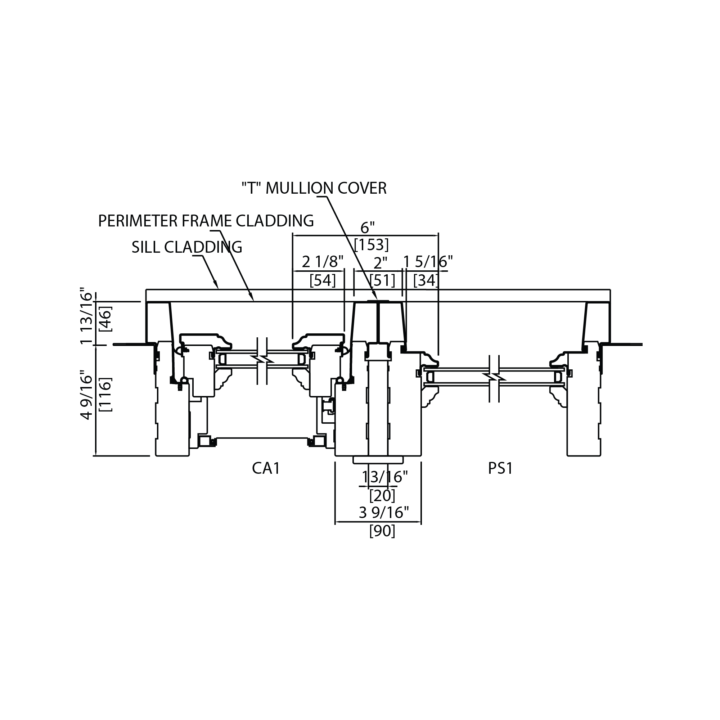

Cyprium - Double 4 9/16" (116mm), Plan View

Masonry Opening

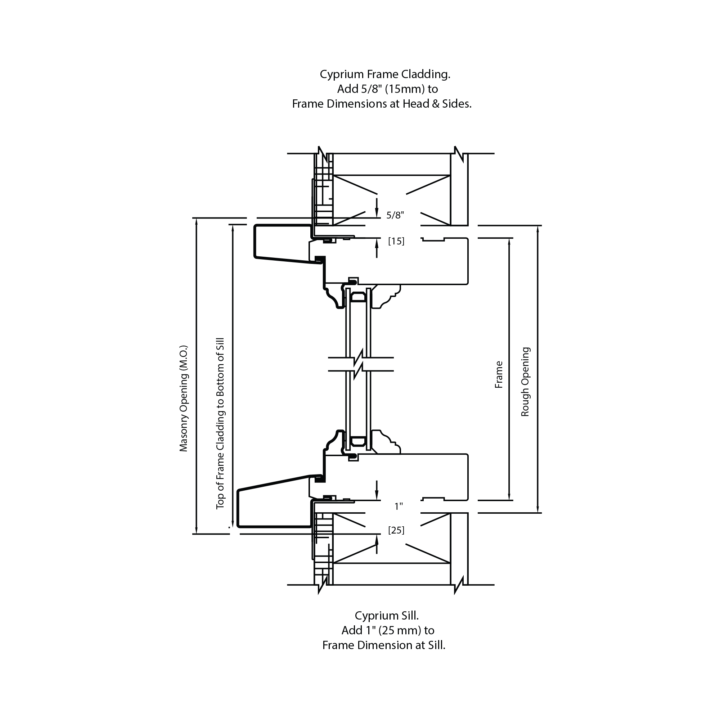

Example #1

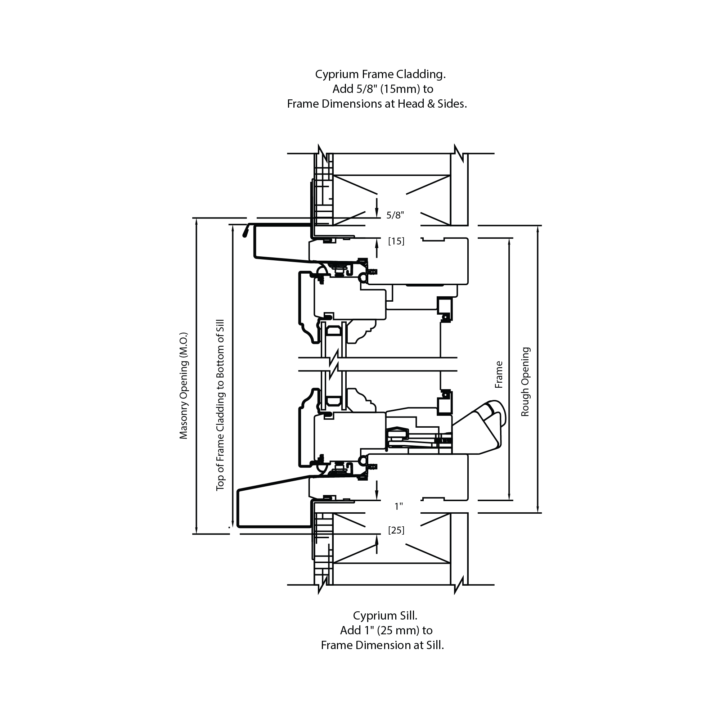

Example #2

EXAMPLE #1:
PS1 2415, Frame dimensions, 94 1/2″ (2400mm) x 59 1/16″ (1500mm).
Masonry width = 94 1/2″ (2400mm) + [5/8″ (15mm) x 2] = 95 3/4″ (2430mm)
Masonry height = 59 1/16″ (1500mm) + 5/8″ (15mm) + 1″ (25mm) = 60 11/16″ (1540mm)

EXAMPLE #2:
CA1 0816, Frame dimensions, 31 1/2″ (800mm) x 63″ (1600mm).
Masonry width = 31 1/2″ (800mm) + [5/8″ (15mm) x 2] = 32 3/4″ (830mm)
Masonry height = 63″ (1600mm) + 5/8″ (15mm) + 1″ (25mm) = 64 5/8″ (1640mm)

02 - Awnings

Rotogear

Cyprium - Double 4 9/16" (116mm) Standard Screen

Cyprium - Double 6 9/16" (166mm) Standard Screen

Cyprium - Double 4 9/16" (116mm) Retractable Screen

Cyprium - Double 4 9/16" (116mm) Standard Screen, Plan View

Cyprium - Double 6 9/16" (166mm) Retractable Screen, Plan View

Pushout

Cyprium - Double 4 9/16" (116mm) Standard Screen

Cyprium - Double 6 9/16" (166mm) Standard Screen

Cyprium - Double 4 9/16" (116mm) Retractable Screen

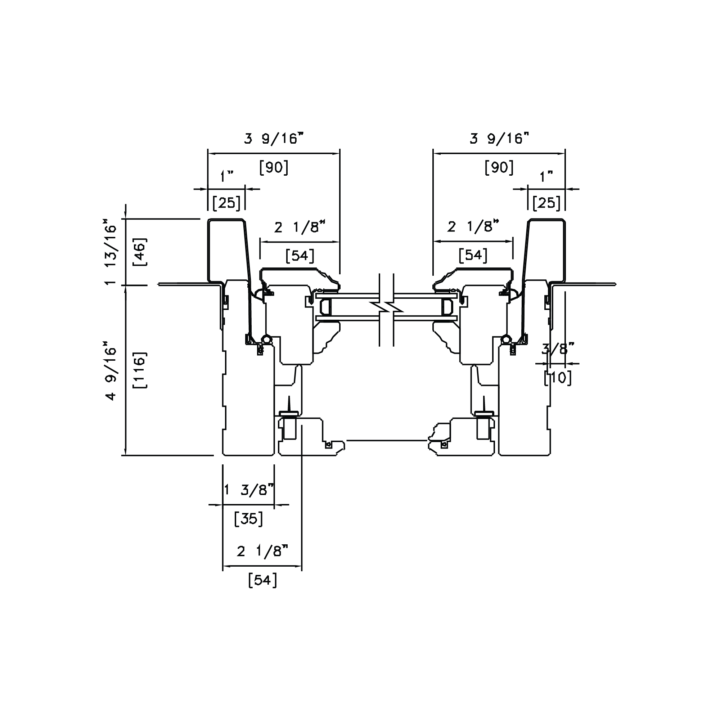

Cyprium - Double 4 9/16" (116mm) Hinged Wood Screen, Plan Vew

Cyprium - Double 6 9/16" (166mm) Retractable Screen, Plan View

03 - Direct Set

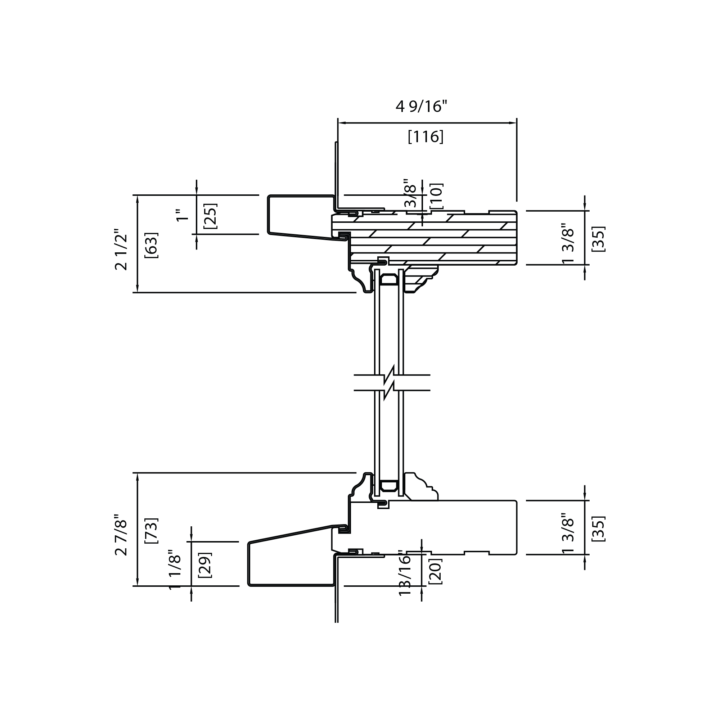

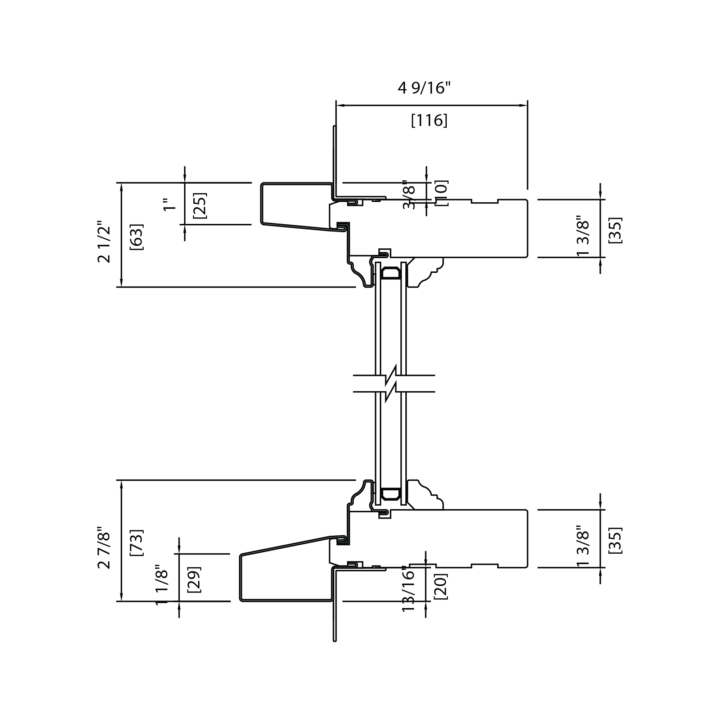

Cyprium - Double 4 9/16" (116mm)

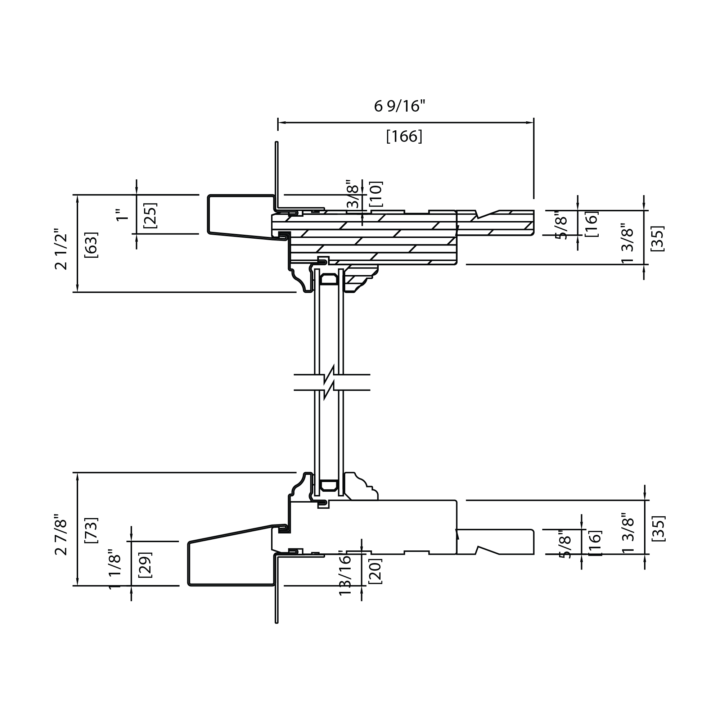

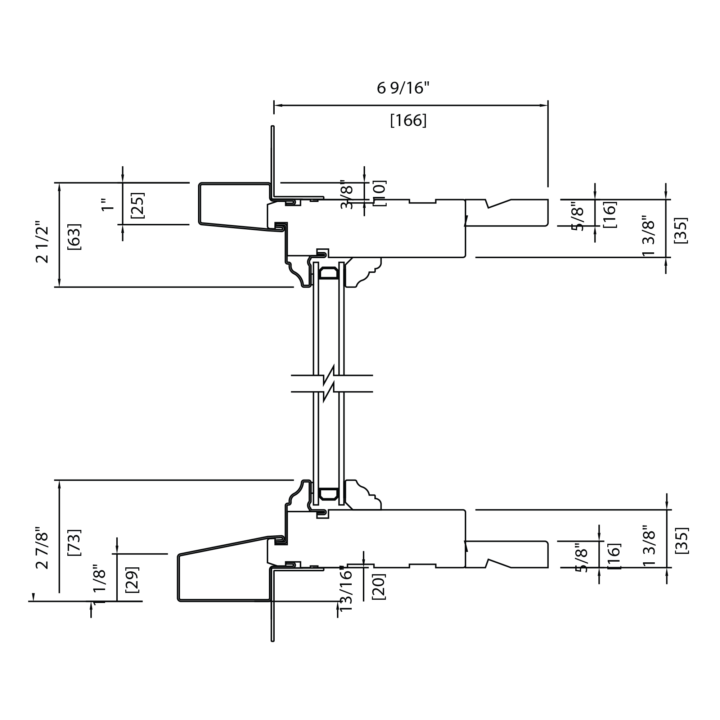

Cyprium - Double 6 9/16" (166mm)

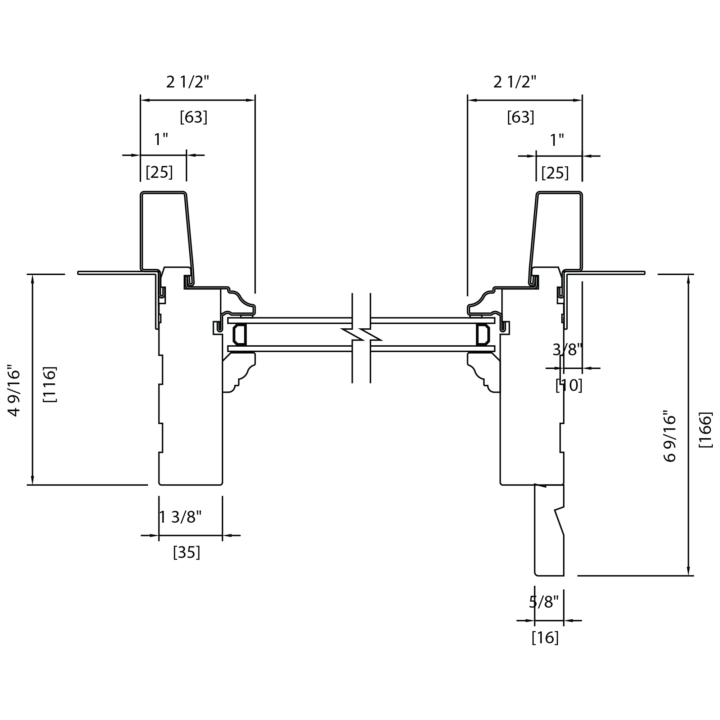

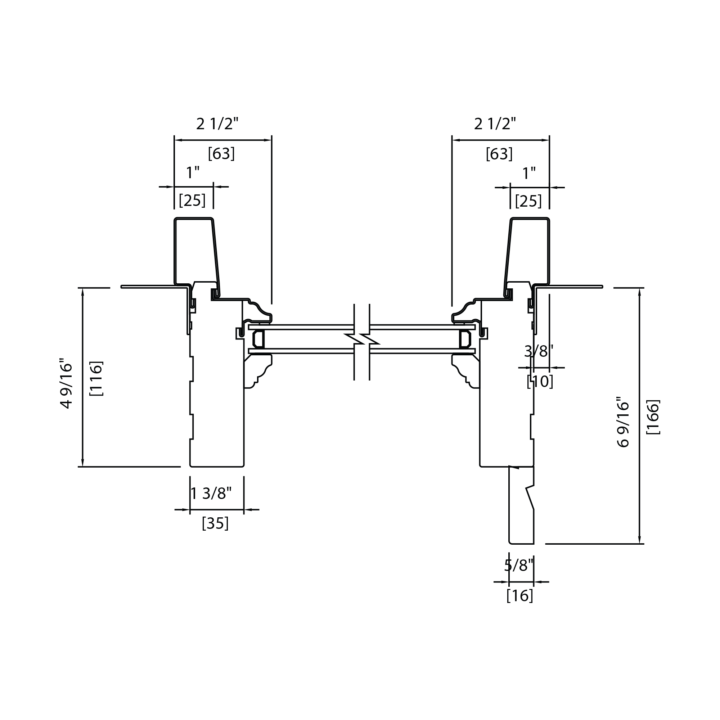

Cyprium - Double 4 9/16" (116mm) / 6 9/16" (166mm), Plan View

Shaped Picture

Cyprium - Double 4 9/16" (116mm)

Cyprium - Double 6 9/16" (166mm)

Cyprium - Double 4 9/16" (116mm) / 6 9/16" (166mm), Plan View

Recessed Mullion Picture

Cyprium - Double 4 9/16" (116mm) Same Product Type

Cyprium - Double 4 9/16" (116mm) Same Product Type, Plan View

"T" Mullion with Picture

Cyprium - Double 4 9/16" (116mm)

Cyprium - Double 4 9/16" (116mm) Plan View

04 - Swinging Terrace Doors

Inswing

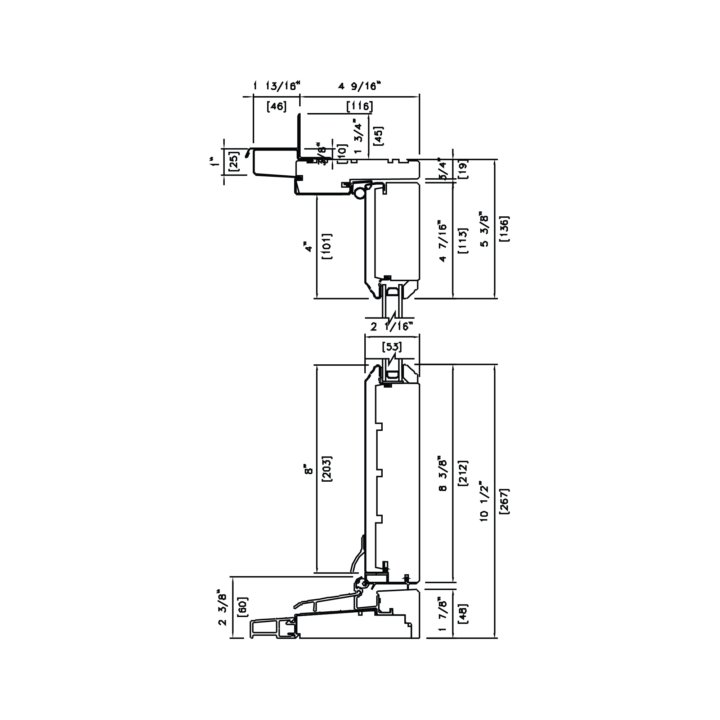

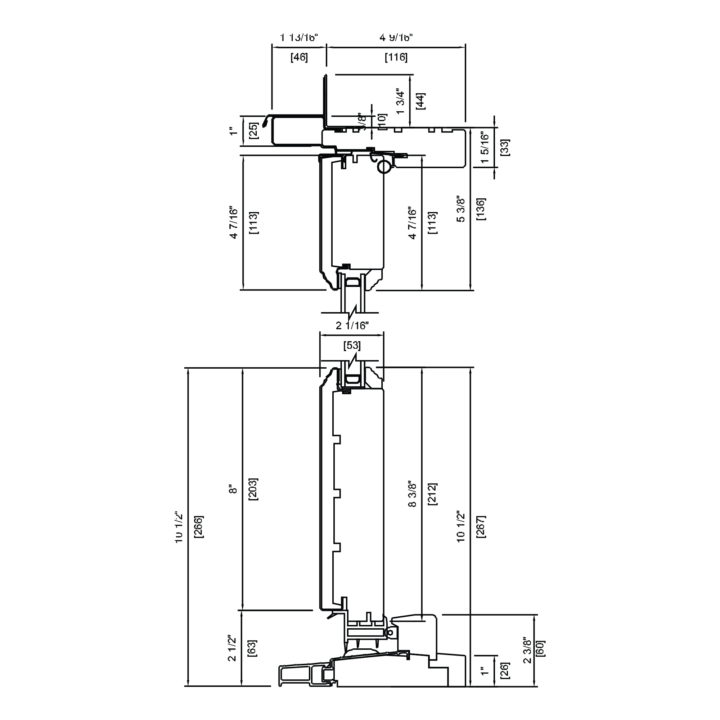

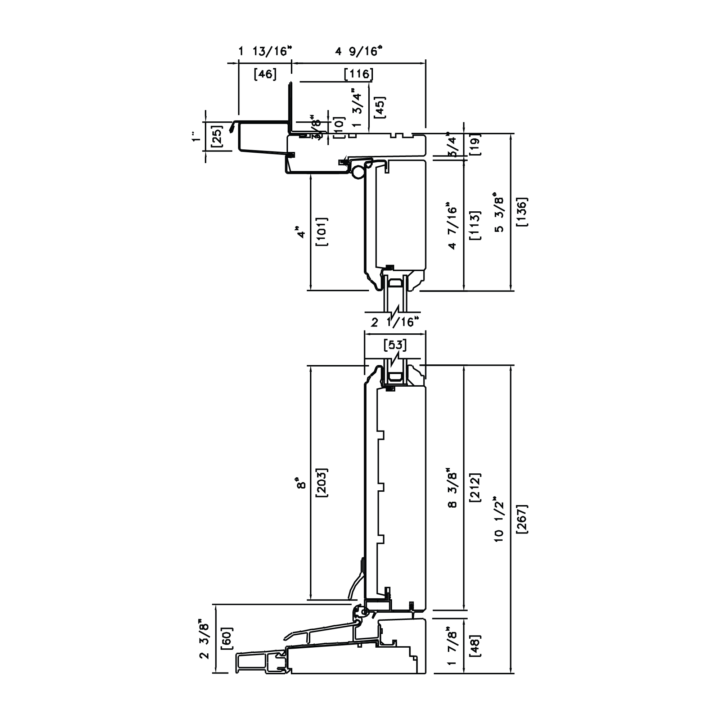

Cyprium - Double, 4 9/16" (116mm)

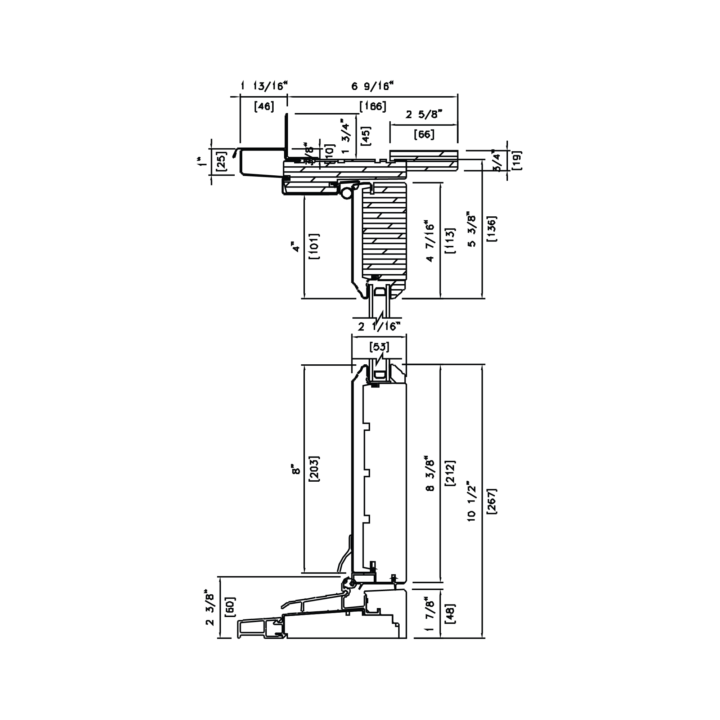

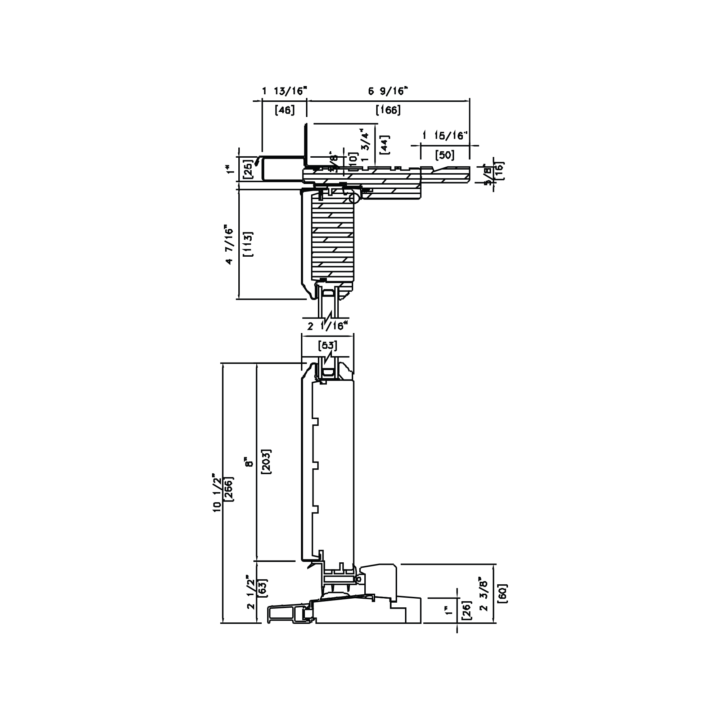

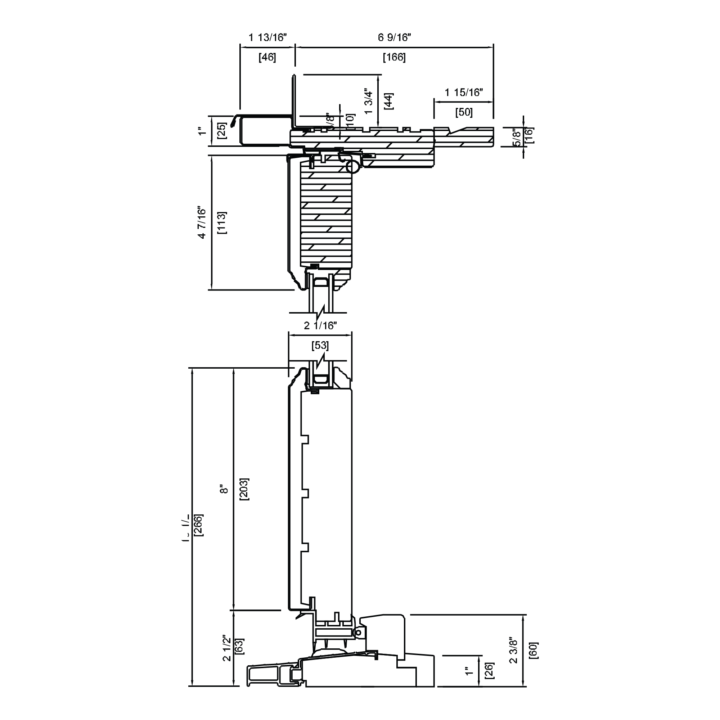

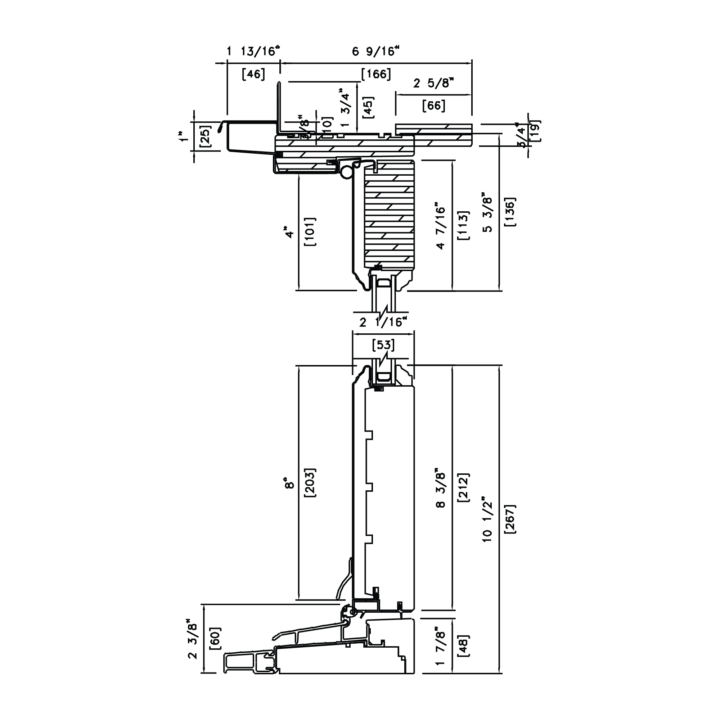

Cyprium - Double 6 9/16" (166mm)

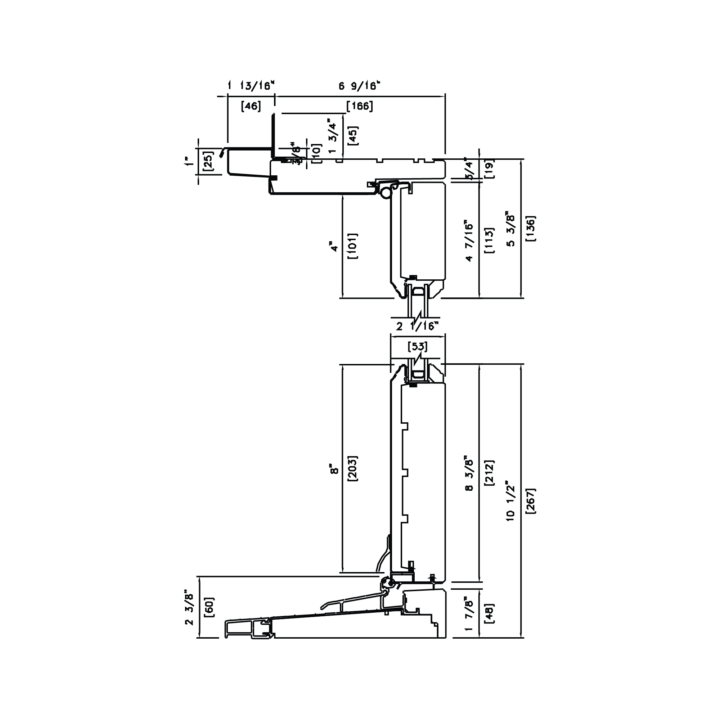

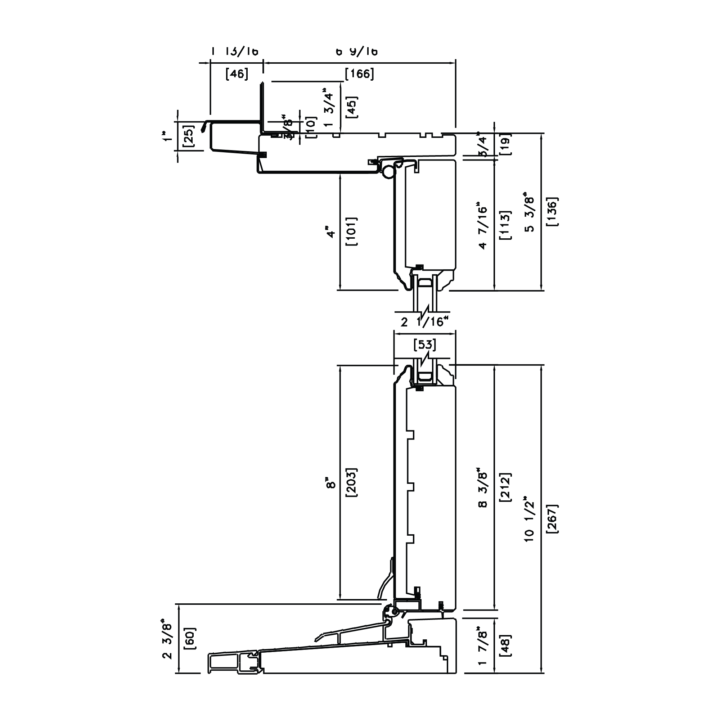

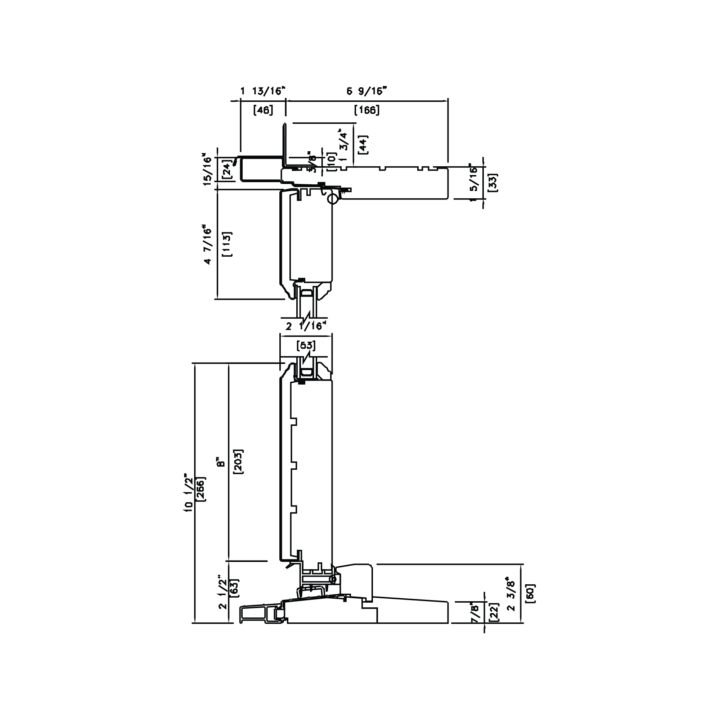

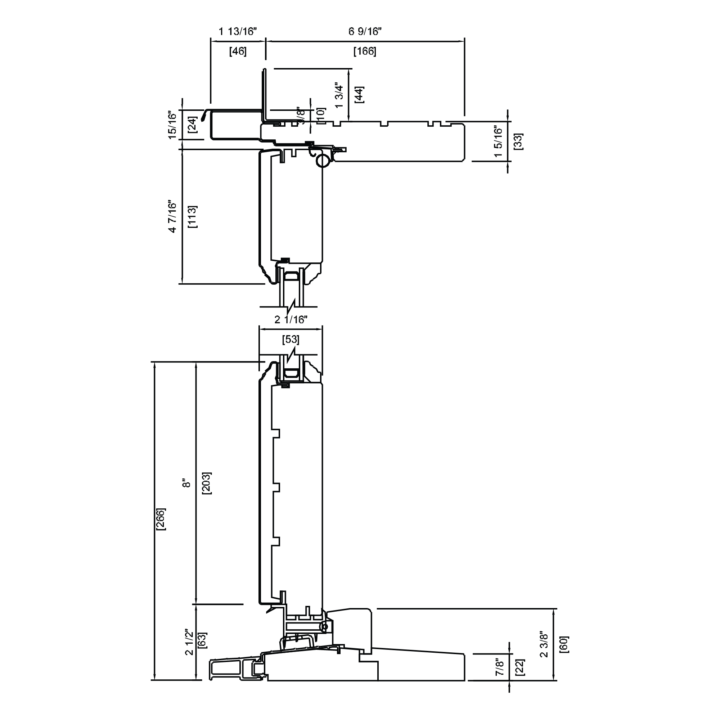

Cyprium - Double 6 9/16" (166mm) Full Jamb

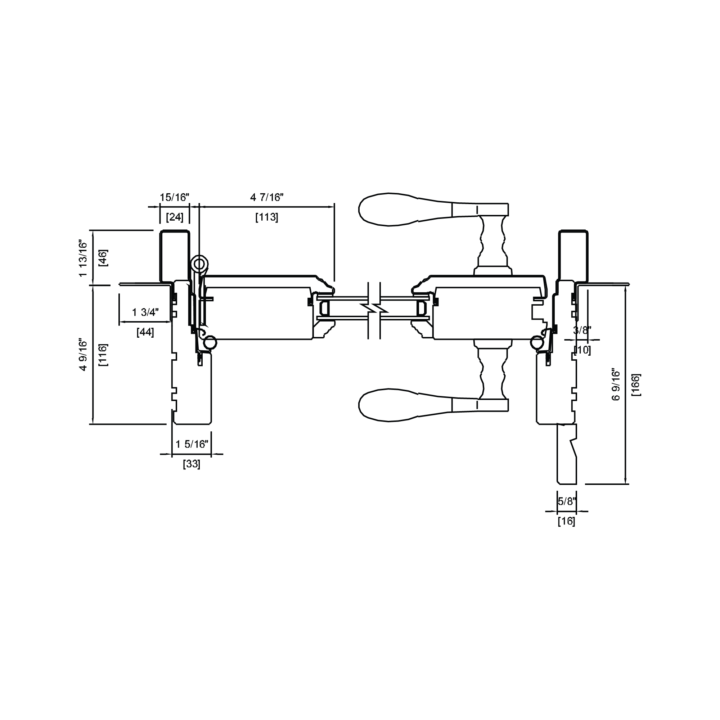

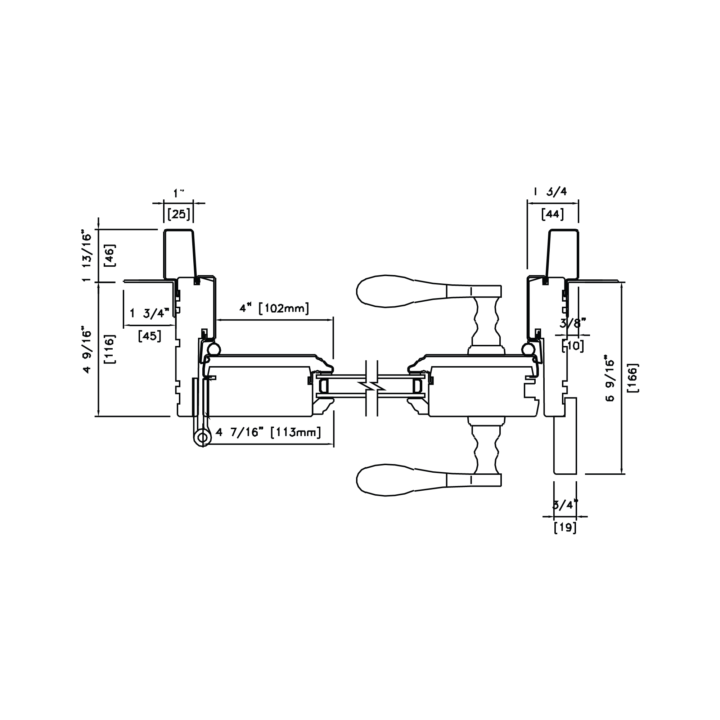

Cyprium - Double, One Panel, 4 9/16" (116mm) 6 9/16" (166mm)

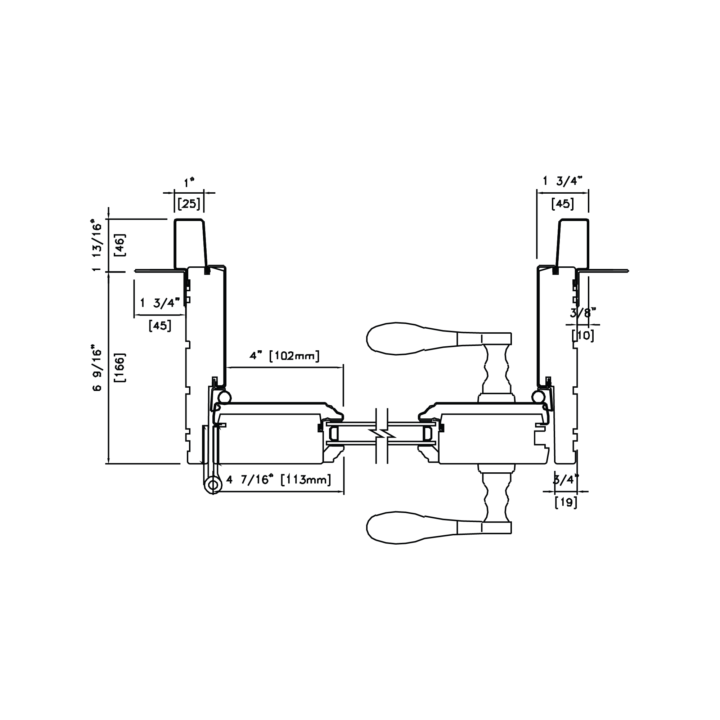

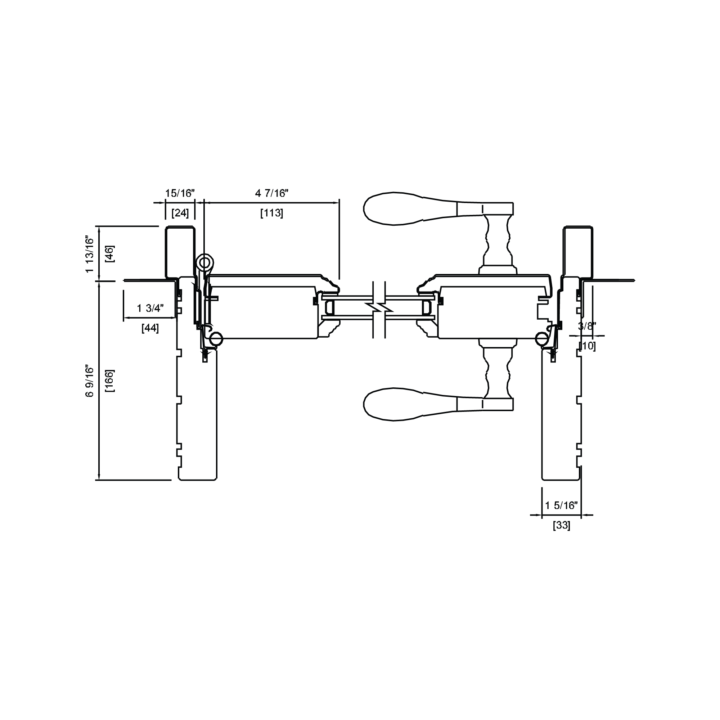

Cyprium - Double, One Panel, 6 9/16" (166mm)

Outswing

Cyprium - Double 4 9/16" (116mm)

Cyprium - Double 6 9/16" (166mm)

Cyprium - Double 6 9/16" (166mm) Full Jamb

Cyprium - Double, One Panel, 4 9/16" (116mm) 6 9/16" (166mm)

Cyprium - Double, One Panel, 6 9/16" (166mm)

Inswing & Outswing

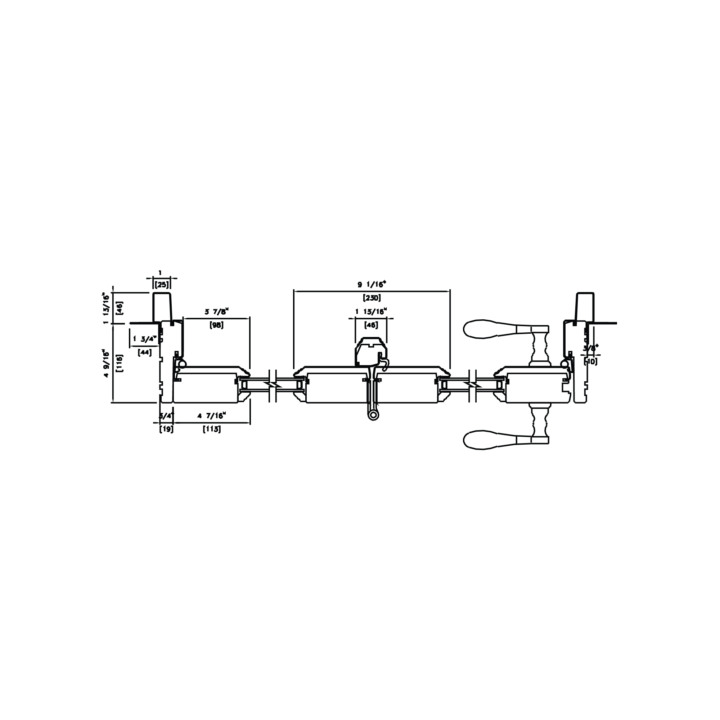

Cyprium - Double 4 9/16" (116mm) Two Panel

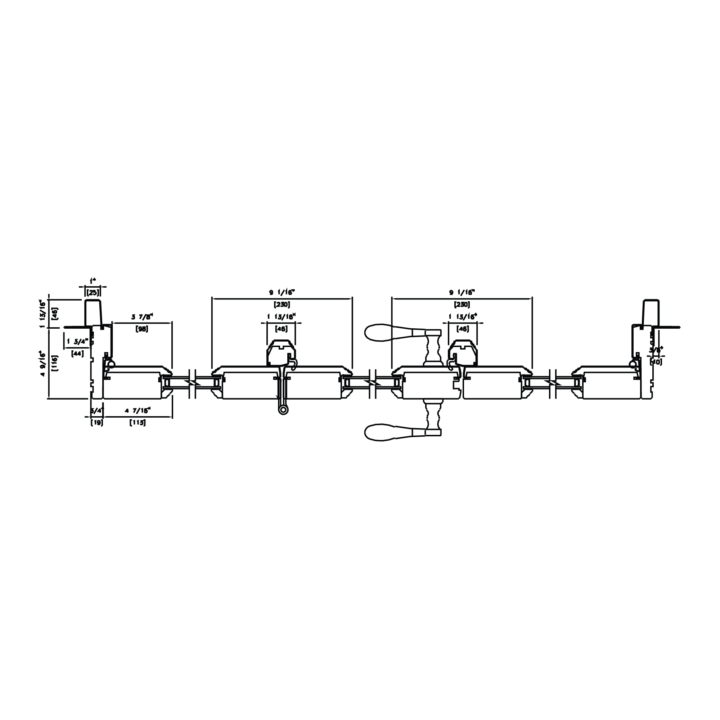

Cyprium - Double 4 9/16" (116mm) Three Panel

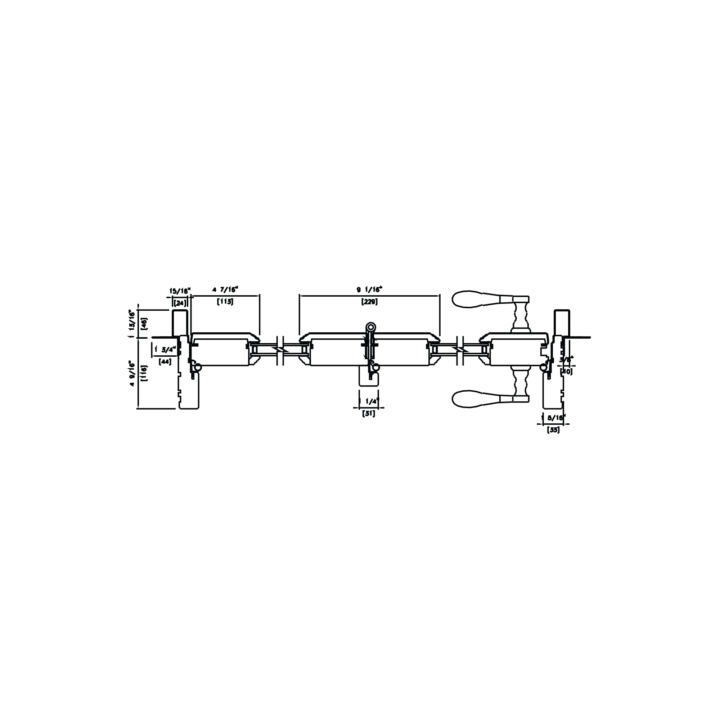

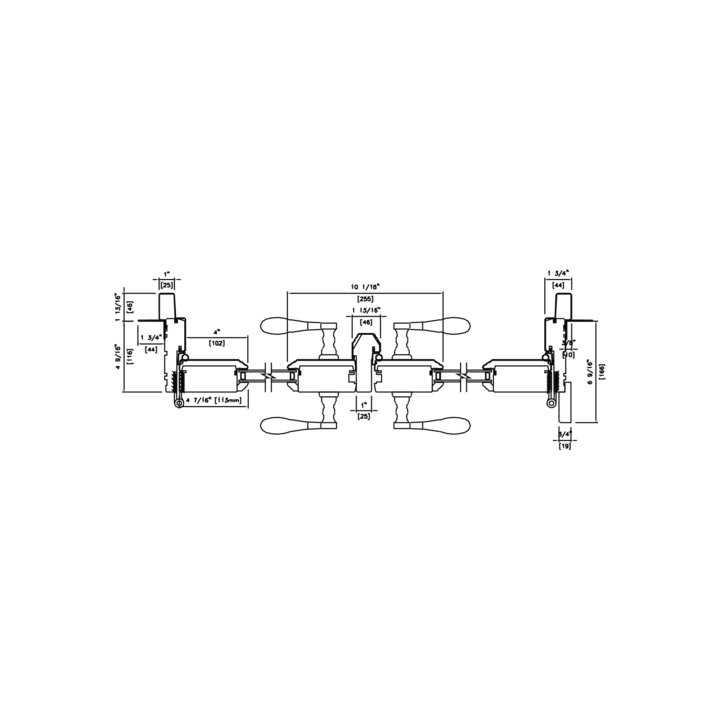

Cyprium - Double 4 9/16" (116mm) Two Panel, Plan View

Cyprium - Double 4 9/16" (116mm) Three Panel, Plan View

Transom

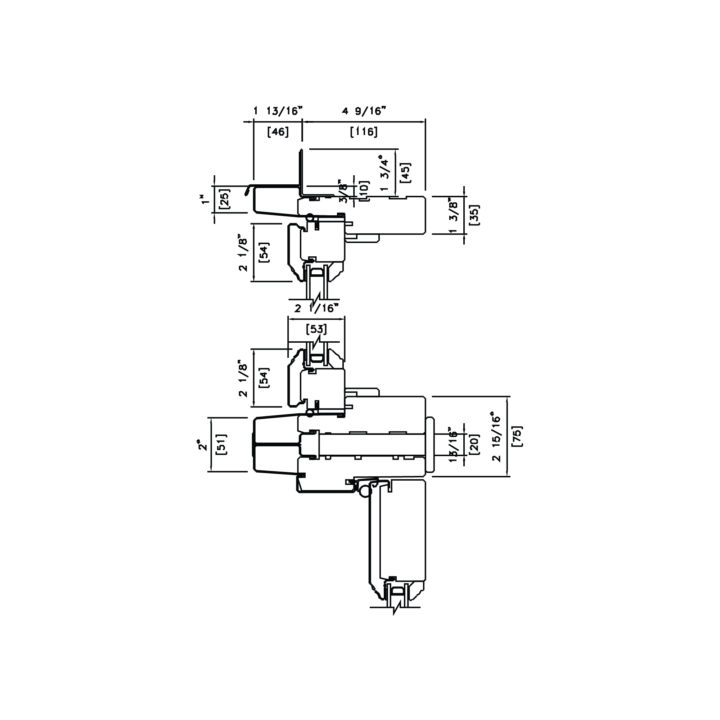

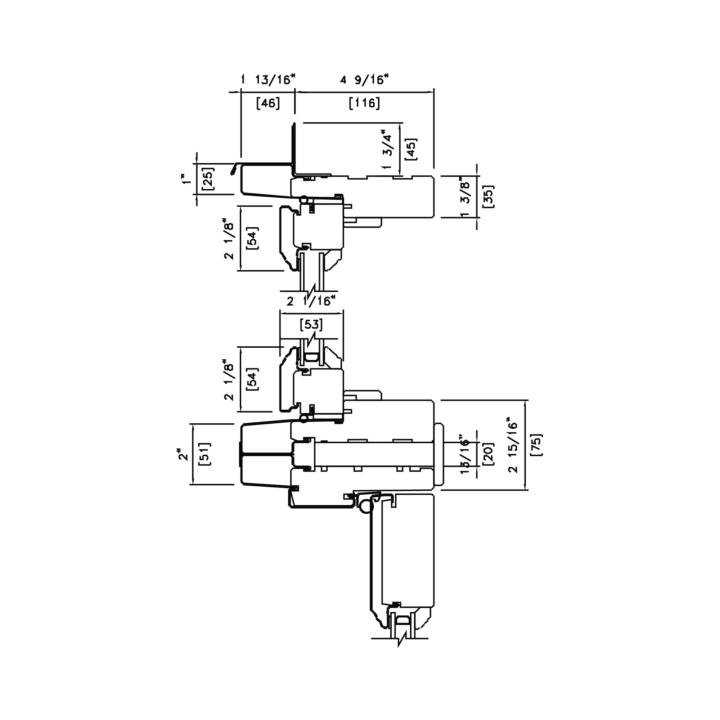

Cyprium - Double 4 9/16" (116mm) Transom, Inswing

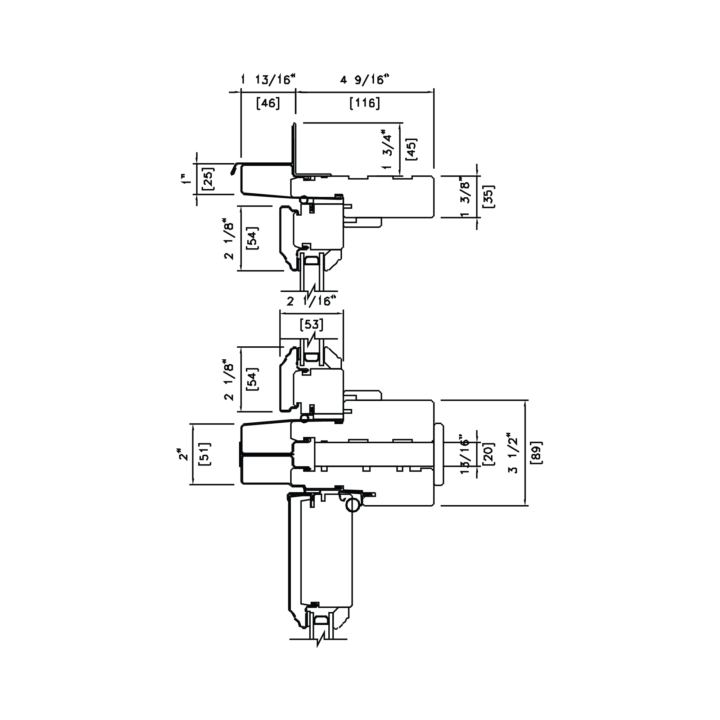

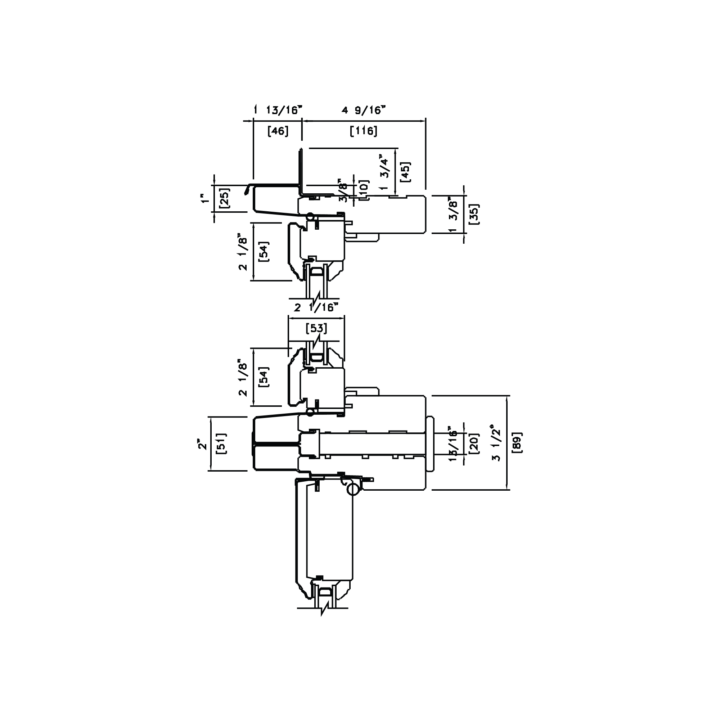

Cyprium - Double 4 9/16" (116mm) Transom, Outswing

Cyprium - Double, TDT1 - One Panel, 4 9/16" (116mm)

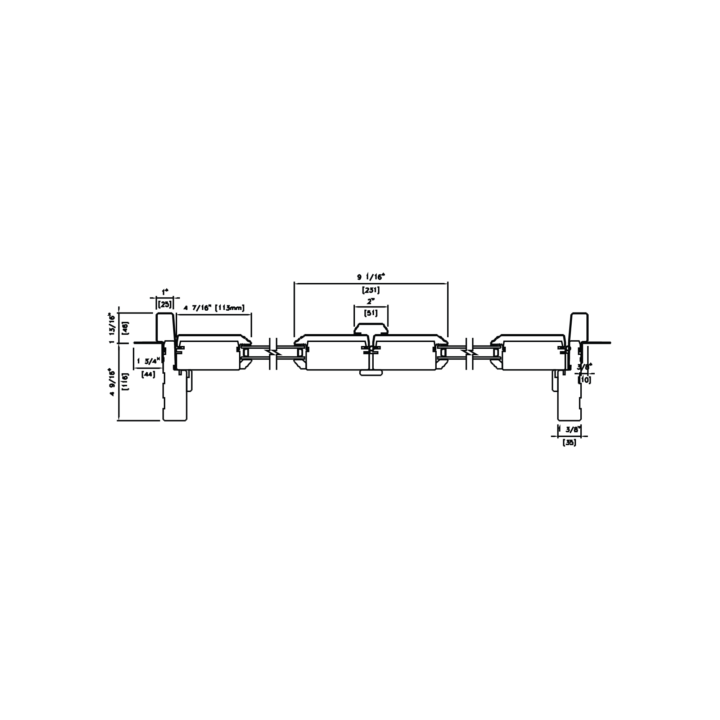

Cyprium - Double, TDT2 - Two Panel, 4 9/16" (116mm)

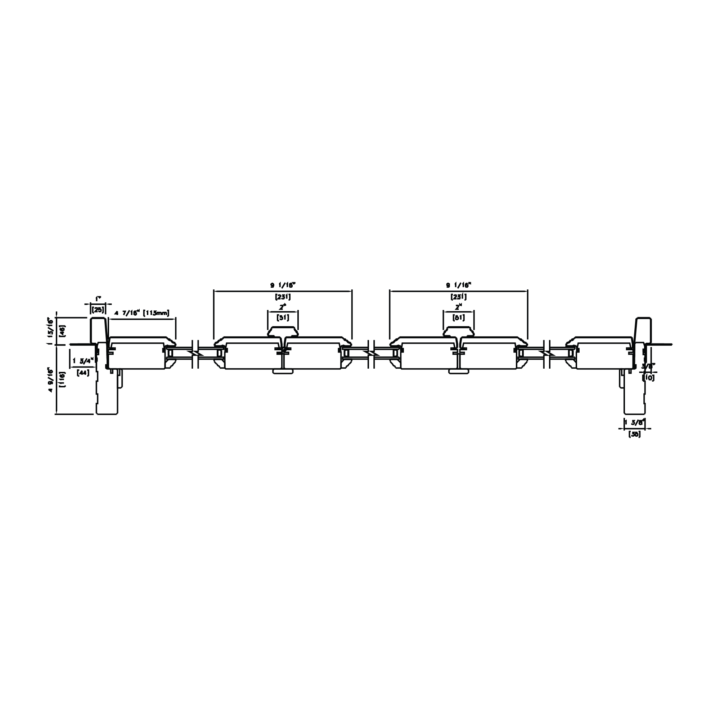

Cyprium - Double, TDT3 - Three Panel, 4 9/16" (116mm)

05 - Swinging French Doors

Inswing

Cyprium - Double 4 9/16" (116mm)

Cyprium - Double 6 9/16" (166mm)

Cyprium - Double 6 9/16" (166mm) Full Jamb

Cyprium - Double 4 9/16" (116mm) Two Panel

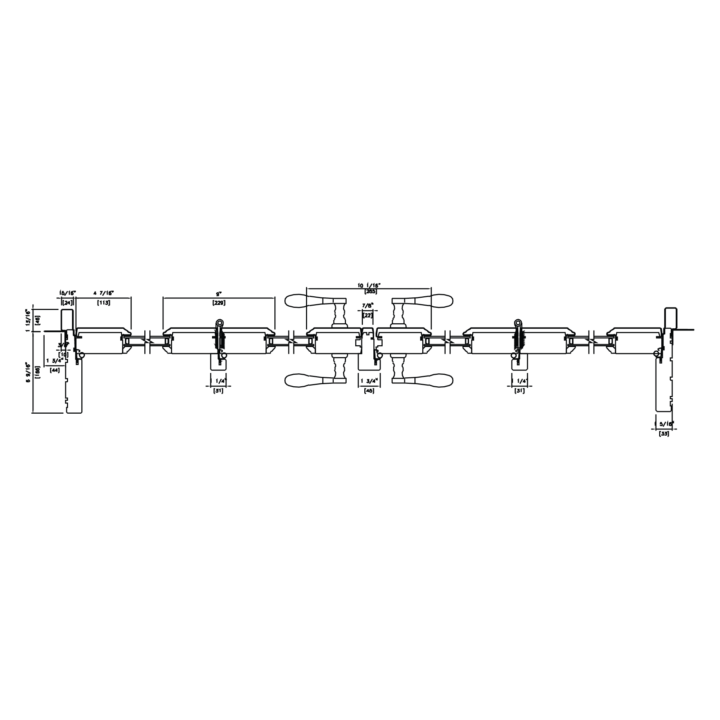

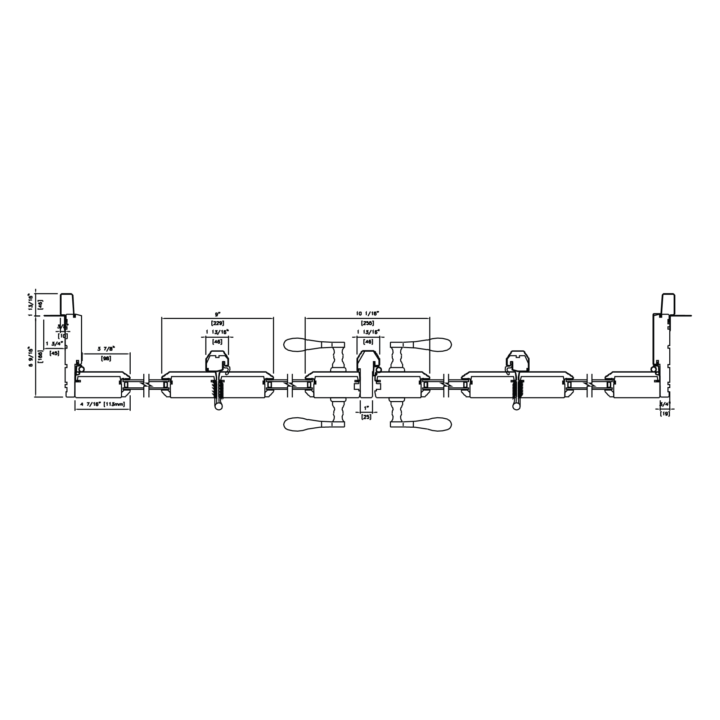

Cyprium - Double 6 9/16" (166mm) Four Panel

Outswing

Cyprium - Double 4 9/16" (116mm)

Cyprium - Double 6 9/16" (166mm)

Cyprium - Double 6 9/16" (166mm) Full Jamb

Cyprium - Double 4 9/16" (116mm) Two Panel

Cyprium - Double 6 9/16" (166mm) Four Panel

Transom

Cyprium - Double 4 9/16" (116mm) Transom, Inswing

Cyprium - Double 4 9/16" (116mm) Transom, Outswing

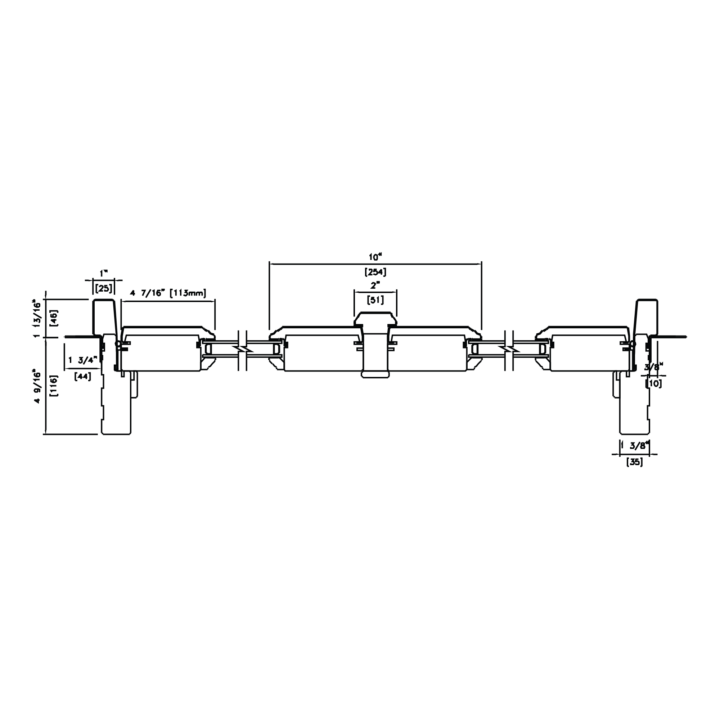

Cyprium - Double FDT2, 4 9/16" (116mm) Two Panel

Cyprium - Double FDT4, 6 9/16" (166mm) Four Panel

06 - LiftSlide Doors

LiftSlide Doors

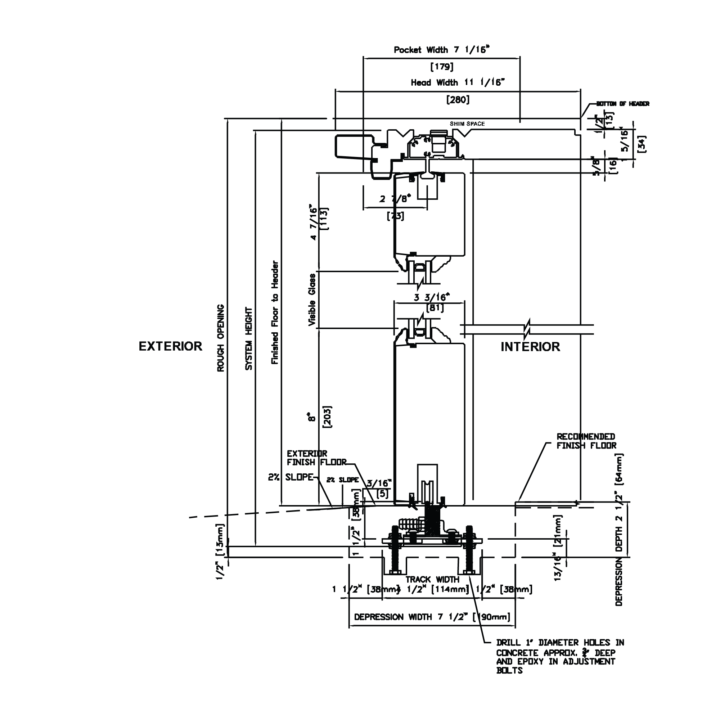

Cyprium - Double, PX-XP with Flush Sill

Cyprium - Double, PX-XP

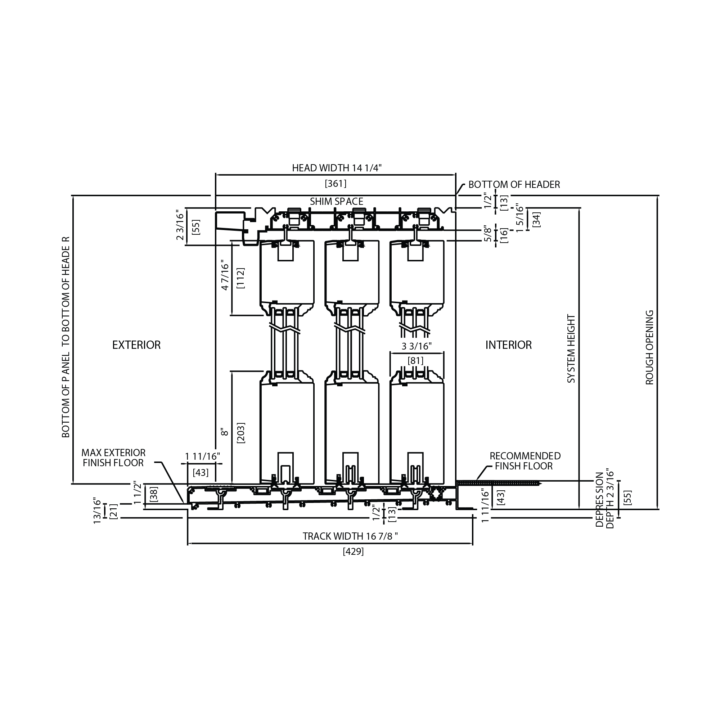

Cyprium - Triple, XXO with Raised Threshold

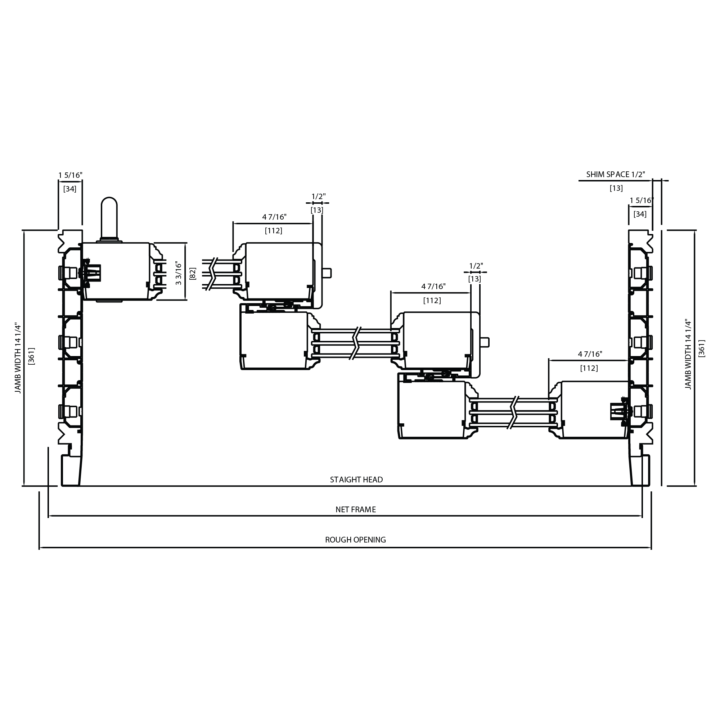

Cyprium - Triple, XXO
