View Resources| Stacking | Pocketed |
|---|---|
| OXX | PXX |
| OXXX | PXXX |
| OXXXX | PXXX |
|
OXXXXXXX |
PXXXXXXXX |

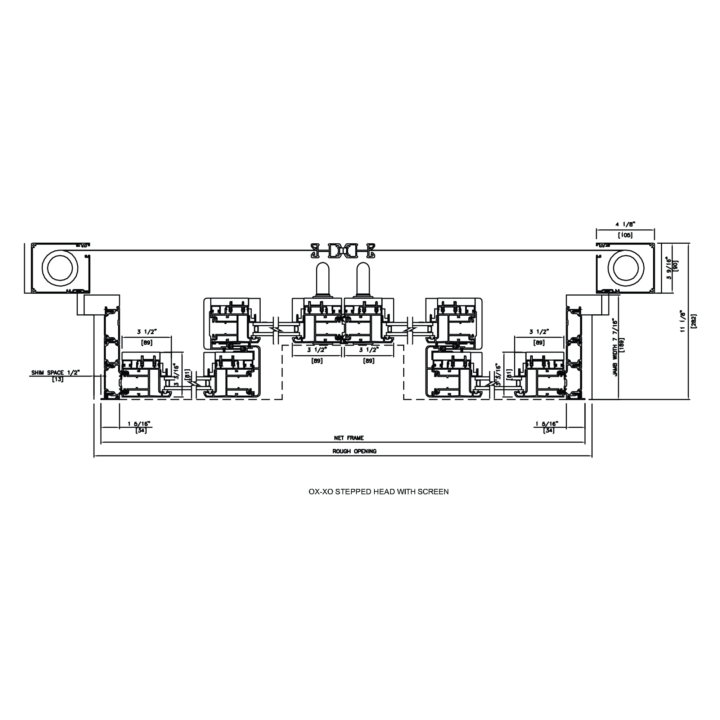

| OX – XO | PXX – XXP |
| OXX – XXO |
PXXX – XXXP |
|
OXXX – XXXO |
PXXXX – XXXXP |
X = Operating O = Fixed P = Pocket
The preparation of rough openings for large door systems, including but not limited to LiftSlide, BiFold, and MultiSlide doors, has unique requirements. Structural headers that allow for deflection no greater than 1/8″ over the unsupported span when fully loaded are required. Special care must be taken when installing any unit with transoms above large opening systems. Loewen is not responsible for site measurements or for determining the structural and architectural requirements associated with the installation of large opening products, including but not limited to LiftSlide, BiFold, and MultiSlide doors. Site-specific requirements and specifications are the responsibility of qualified building professionals or engineers.

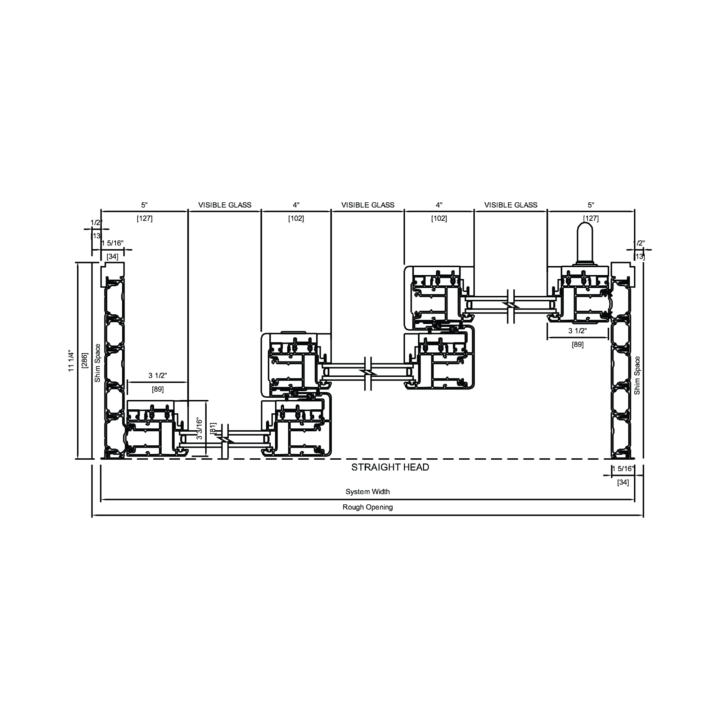

| Rough Opening (3′ Panels) | Head Width (3′ Panels, No Screens) | Finish Pocket Width | Rough Opening (4′ Panels) | Head Width (4′ Panels, No Screens) | Finish Pocket Width | ||||
|---|---|---|---|---|---|---|---|---|---|
| Panels | Configuration | Style | Frame Type | X | |||||
| 2 | OX OR XO | STACKING | JAMB | 73 [1854] | 7 7/16 [189] | – | 97 [2464] | 7 7/16 [189] | – |
| 3 | OXX OR XXO | STACKING | JAMB | 106 [2692] | 11 1/4 [286] | – | 142 [3617] | 11 1/4 [286] | – |
| 4 | OXXX OR XXXO | STACKING | JAMB | 139 [3531] | 15 1/8 [384] | – | 187 [4750] | 15 1/8 [384] | – |
| 5 | OXXXX OR XXXXO | STACKING | JAMB | 172 [4369] | 19 [483] | – | 231 [5863] | 19 [483] | – |
| 6 | OXXXXX OR XXXXXO | STACKING | JAMB | 205 [5207] | 22 13/16 [579] | – | 277 [7036] | 22 13/16 [579] | – |
| 4 | OXX-XXO | BI-PARTING | JAMB | 142 3/16 [3612] | 7 7/16 [189] | – | 190 3/16 [4831] | 7 7/16 [189] | – |
| 6 | OXXX-XXXO | BI-PARTING | JAMB | 208 3/16 [5288] | 11 1/4 [286] | – | 280 3/16 [7117] | 11 1/4 [286] | – |
| 8 | OXXXX-XXXXO | BI-PARTING | JAMB | 274 3/16 [6964] | 15 1/8 [384] | – | 370 3/16 [9401] | 15 1/8 [384] | – |
| 10 | OXXXXX-XXXXXO | BI-PARTING | JAMB | 340 3/16 [8641] | 19 [483] | – | 460 3/16 [11689] | 19 [483] | – |
| 12 | OXXXXXX-XXXXXXO | BI-PARTING | JAMB | 406 3/16 [10317] | 22 13/16 [579] | – | 549 13/16 [13975] | 22 13/16 [579] | – |
| 1 | PX OR XP | STACKING | SINGLE POCKET | 73 [1854] | 7 7/16 [189] | 7 7/16 [189] | 97 [2464] | 7 7/16 [189] | 7 7/16 [189] |
| 2 | PXX OR XXP | STACKING | SINGLE POCKET | 106 [2692] | 11 1/4 [286] | 11 1/4 [286] | 142 [3617] | 11 1/4 [286] | 11 1/4 [286] |

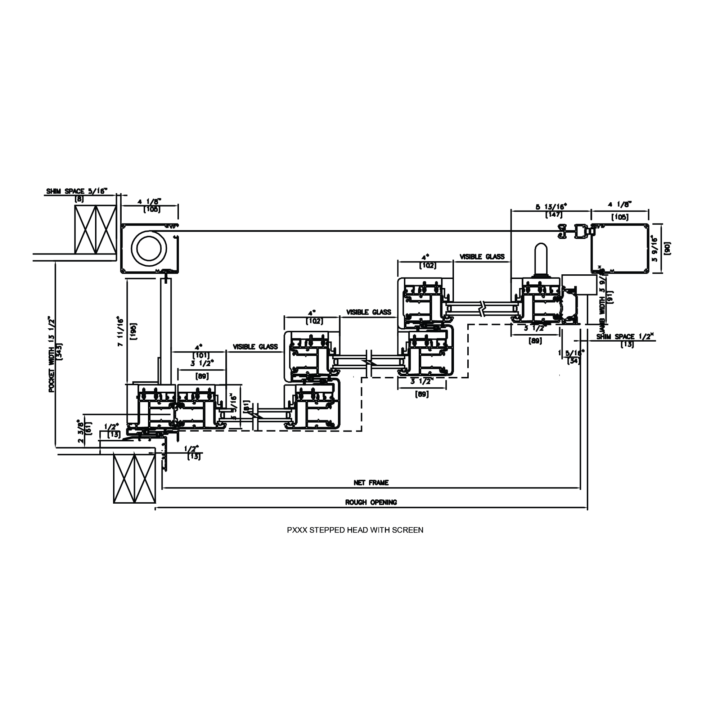

| 3 | PXXX OR XXXXP | STACKING | SINGLE POCKET | 139 [3532] | 15 1/16 [384] | 15 1/16 [384] | 187 [4754] | 15 1/16 [384] | 15 1/16 [384] |
| 4 | PXXXX OR XXXXXP | STACKING | SINGLE POCKET | 171 [4344] | 19 [483] | 19 [483] | 231 [5868] | 19 [483] | 19 [483] |
| 5 | PXXXXX OR XXXXXXP | STACKING | SINGLE POCKET | 204 [5196] | 22 13/16 [579] | 22 13/16 [579] | 276 [7016] | 22 13/16 [579] | 22 13/16 [579] |
| 6 | PXXXXXX OR XXXXXX | STACKING | SINGLE POCKET | 237 [6028] | 26 9/16 [675] | 26 9/16 [675] | 324 [8224] | 26 9/16 [675] | 26 9/16 [675] |

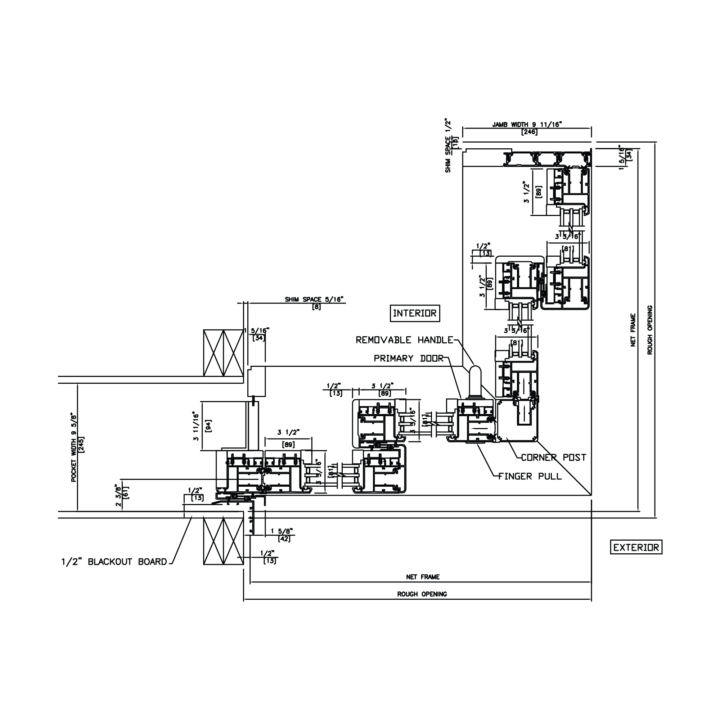

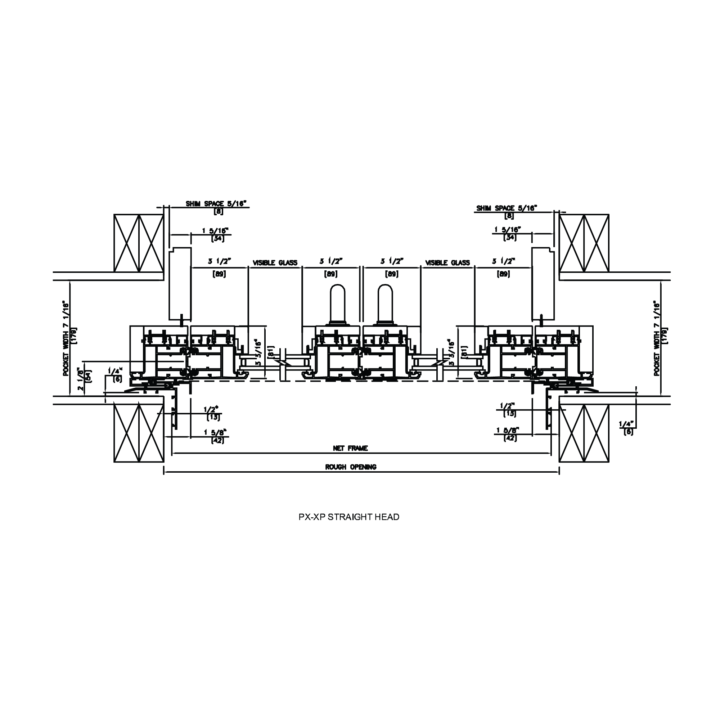

| 2 | PX-XP | BI-PARTING | DUAL POCKET | 75 1/2 [1918] | – | 7 7/16 [189] | 99 1/2 [2528] | – | 7 7/16 [189] |
| 4 | PXX-XXP | BI-PARTING | DUAL POCKET | 140 [3554] | – | 11 1/4 [286] | 188 [4773] | – | 11 1/4 [286] |
| 6 | PXXX-XXXP | BI-PARTING | DUAL POCKET | 205 [5211] | – | 15 1/16 [384] | 278 [7099] | – | 15 1/16 [384] |
| 8 | PXXXX-XXXXP | BI-PARTING | DUAL POCKET | 270 1/2 [6872] | – | 19 [483] | 368 [9355] | – | 19 [483] |
| 10 | PXXXXX-XXXXXP | BI-PARTING | DUAL POCKET | 335 1/2 [8512] | – | 22 13/16 [579] | 457 [11609] | – | 22 13/16 [579] |
| 12 | PXXXXXX-XXXXXXP | BI-PARTING | DUAL POCKET | 405 1/2 [10300] | – | 24 9/16 [624] | 549 12/16 [13957] | – | 24 9/16 [624] |
Additional configurations and sizes available. Consult your Authorized Loewen Dealer for details.

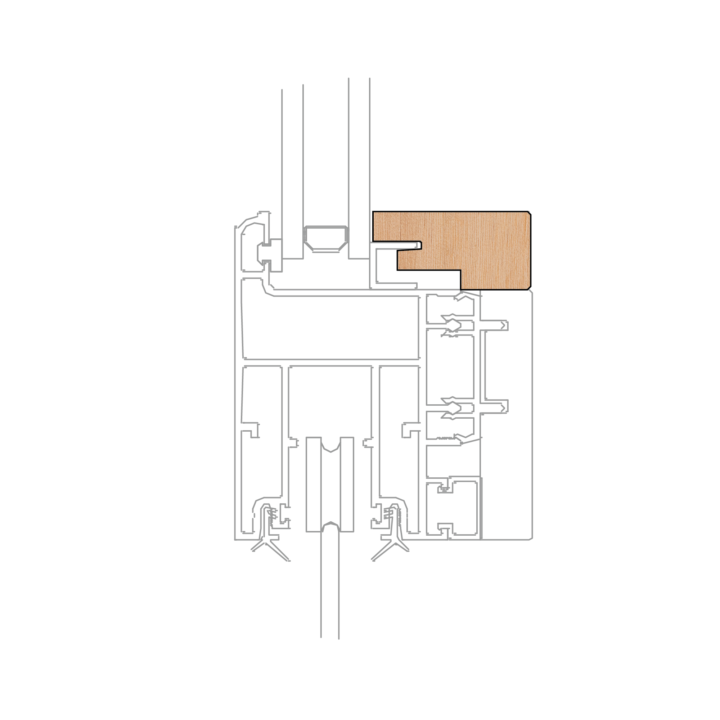

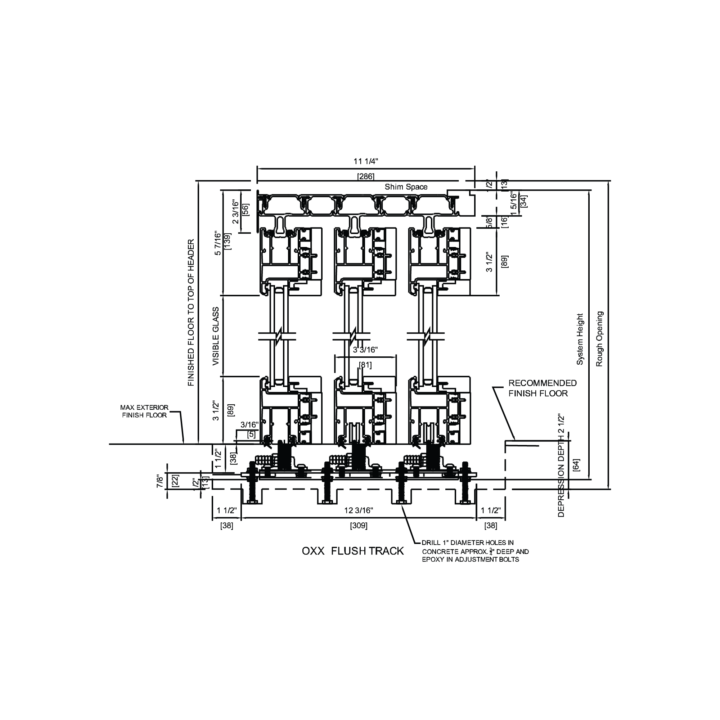

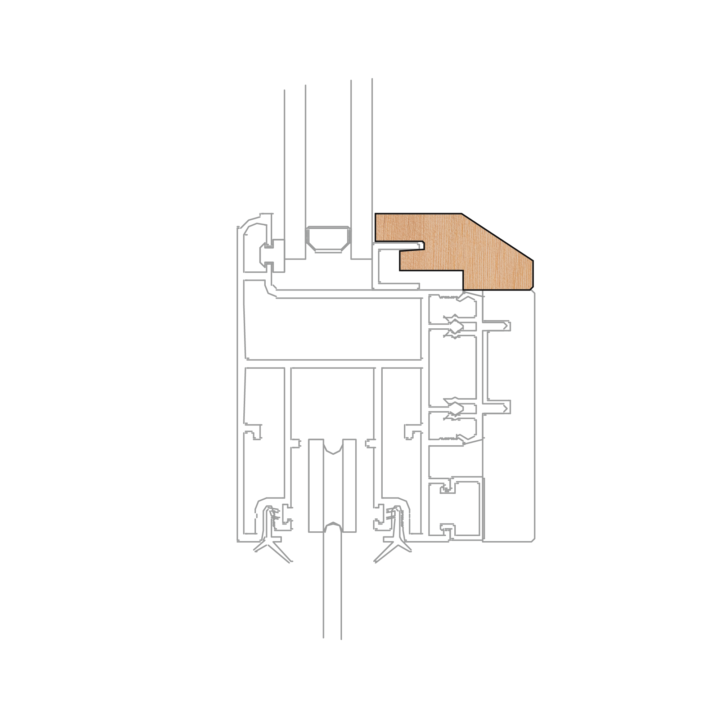

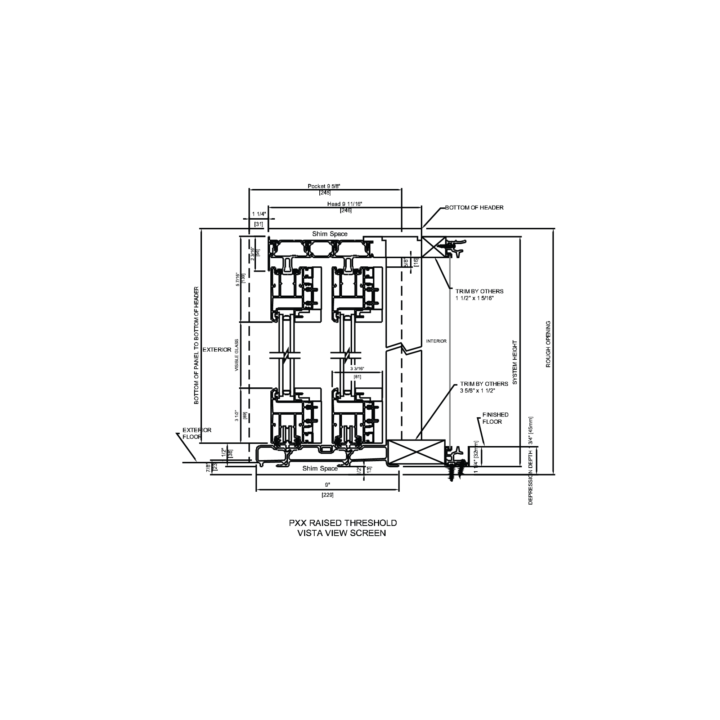

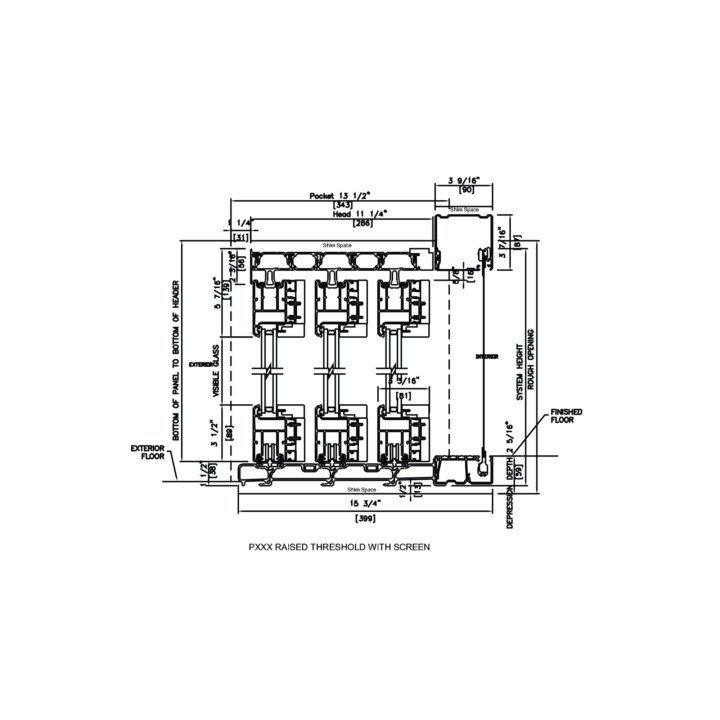

| Panel Height | Rough Opening Height (1″ Flush Track) | Rough Opening Height (1 1/2″ Flush Track) | Rough Opening Height (Raised Threshold) |
|---|---|---|---|
| 84 [2134] | 87 15/16 [2234] | 88 7/16 [2246] | 88 7/16 [2246] |
| 96 [2438] | 99 1516 [2538] | 100 7/16 [2551] | 100 7716 [2551] |
| 108 [2743] | 111 15/16 [2843] | 112 7/16 [2856] | 112 7/16 [2856] |
| 120 [3048] | 123 15/16 [3148] | 124 7/16 [3161] | 124 7/16 [3161] |
| 144 [3658] | 147 15/16 [3758] | 148 7/16 [3770] | 148 7/16 [3770] |
Additional heights available. Consult your Authorized Loewen Dealer for details.
Note:
O = Fixed
X = Operating
P = Pocketing
The preparation of rough openings for large door systems, including but not limited to LiftSlide, BiFold, and MultiSlide doors, has unique requirements. Structural headers that allow for deflection no greater than 1/8″ over the unsupported span when fully loaded are required. Special care must be taken when installing any unit with transoms above large opening systems. Loewen is not responsible for site measurements or for determining the structural and architectural requirements associated with the installation of large opening products, including but not limited to LiftSlide, BiFold, and MultiSlide doors. Site-specific requirements and specifications are the responsibility of qualified building professionals or engineers.
