Swinging Terrace Doors (1.75″)

ADDITIONAL RESOURCES

Use the buttons below to view additional technical drawings, models, and performance data, or keep scrolling.

CAD Drawings

3D Models

NFRC Ratings

Air, Water, Structural Performance

Looking for Loewen standard sizes? Our Product Configurator allows you to browse our standard sizes and make configurations.

01 - Basics

Standard Terrace Door Sizes

Our Legacy PDF Size Charts

1 Wide

1 Wide (Narrow Stile) Sizes

1 Wide (Standard Stile) Sizes

1 Wide Cambertop Sizes

1 Wide Half Round (Non Clad) Sizes

1 Wide Quarter Round Sizes

2 Wide 10ft Tall Sizes

2 Wide

2 Wide (Narrow Stile) Sizes

2 Wide (Standard Stile) Sizes

2 Wide Cambertop Sizes

2 Wide Quarter Round Sizes

1 Wide 10ft Tall Sizes

3 Wide

3 Wide (Narrow Stile) Sizes

3 Wide (Standard Stile) Sizes

4 Wide

4 Wide (Narrow Stile) Sizes

4 Wide (Standard Stile) Sizes

Shapes

1 Panel

Rectangular (or Square)
Camber Top Full
Half-Round
Camber Top – Left
Camber Top – Right
Quarter Round – Left
Quarter Round – Right

2 Panels

Rectangular (or Square)
Camber Top Full
Half-Round

3 Panels

Rectangular (or Square)
Camber Top Full

4 Panels

Rectangular (or Square)
Camber Top Full

Panels

Narrow stile & rail option includes 3” vertical stile & top rail, and 4-5/16″ bottom rail.
Standard stile & rail option includes 4-5/16″ vertical stile & top rail, and 7-7/8″ bottom rail.
Middle rail options can include a bottom flat panel, a bottom raised panel, or a bottom sealed unit.
Panels with a middle rail and a vertical rail can include two bottom flat panels or two bottom raised panels.
All options shown here apply to metal-clad doors and all-wood doors.

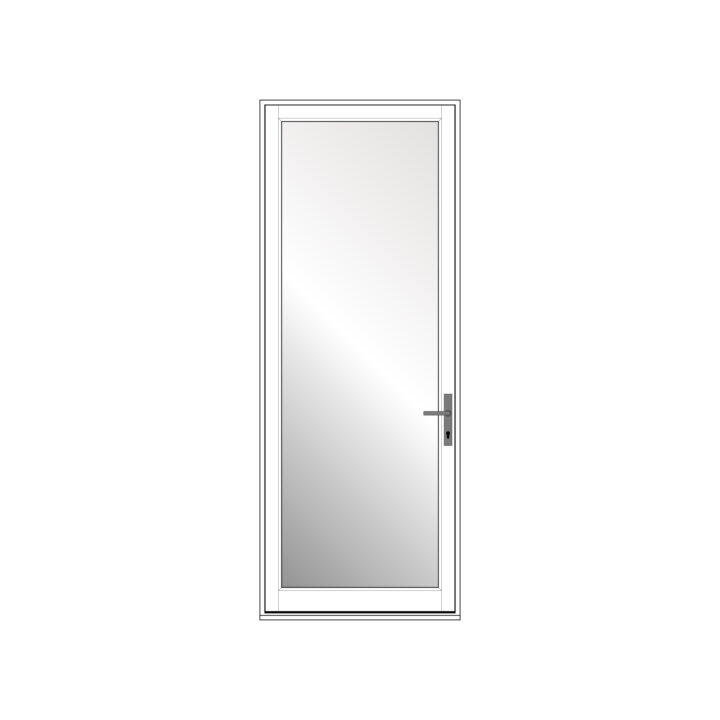

Narrow Stiles & Rails

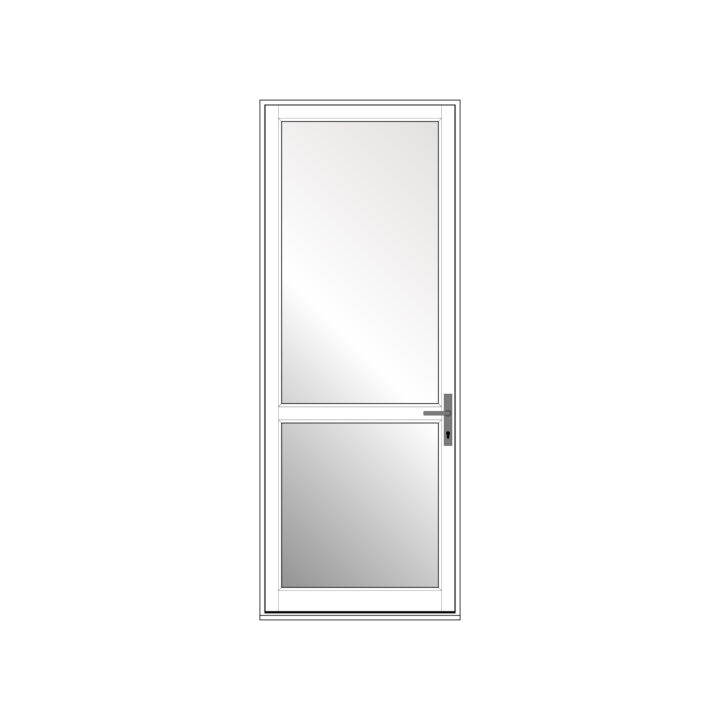

Narrow Stiles & Rails - Middle Rail - Bottom Sealed Unit

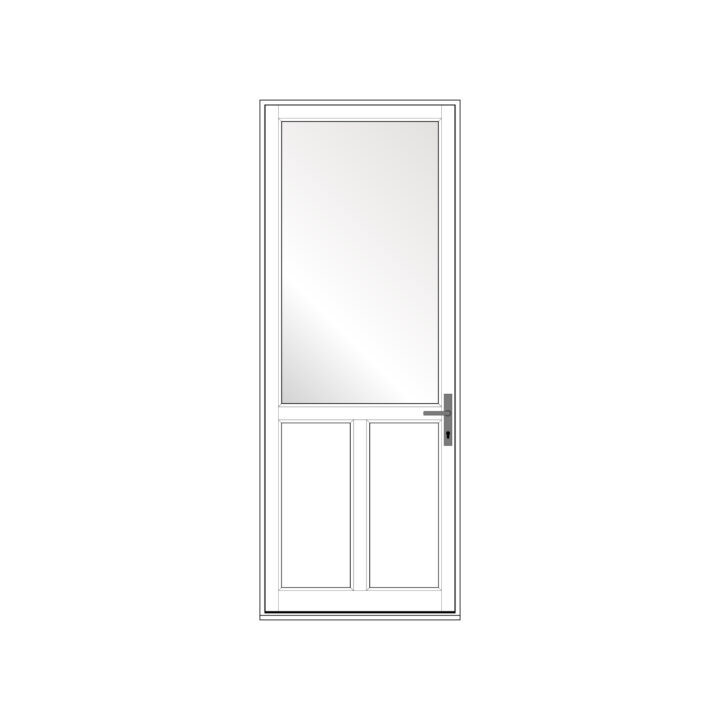

Narrow Stiles - Middle Rail & Vertical Rail - Flat Panels

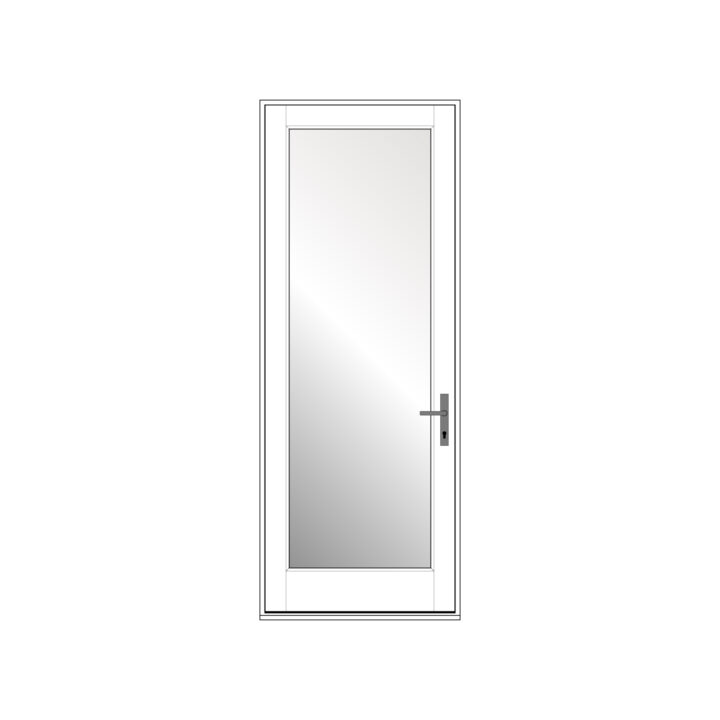

Standard Stiles & Rails

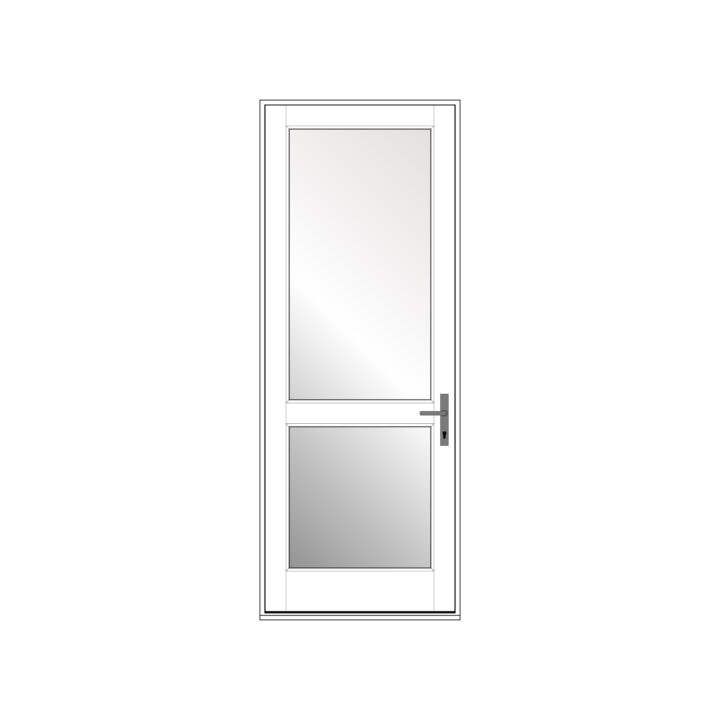

Standard Stiles - Middle Rail - Bottom Sealed Unit

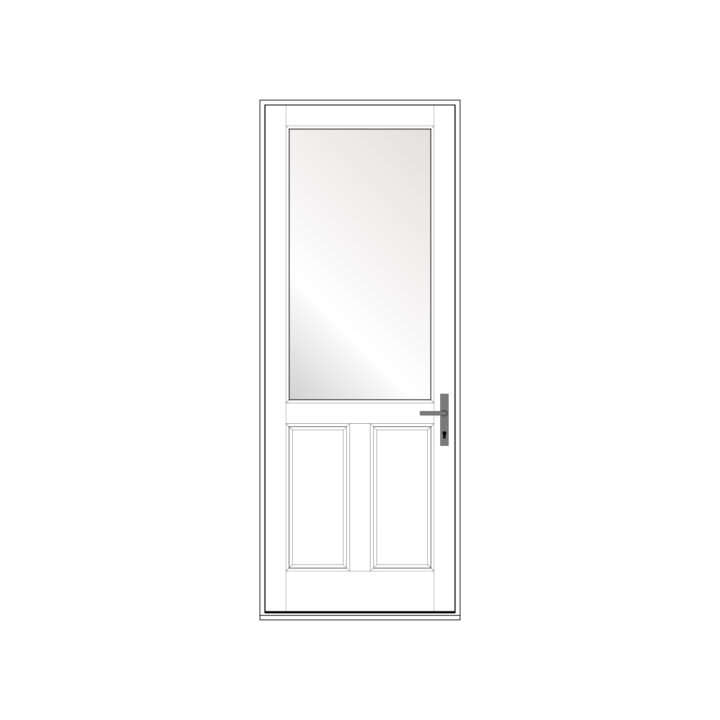

Standard Stiles - Middle Rail & Vertical Rail - Raised Panels

All examples shown are 36-3/8″ x 94-1/2″ frame size.

Door Swings

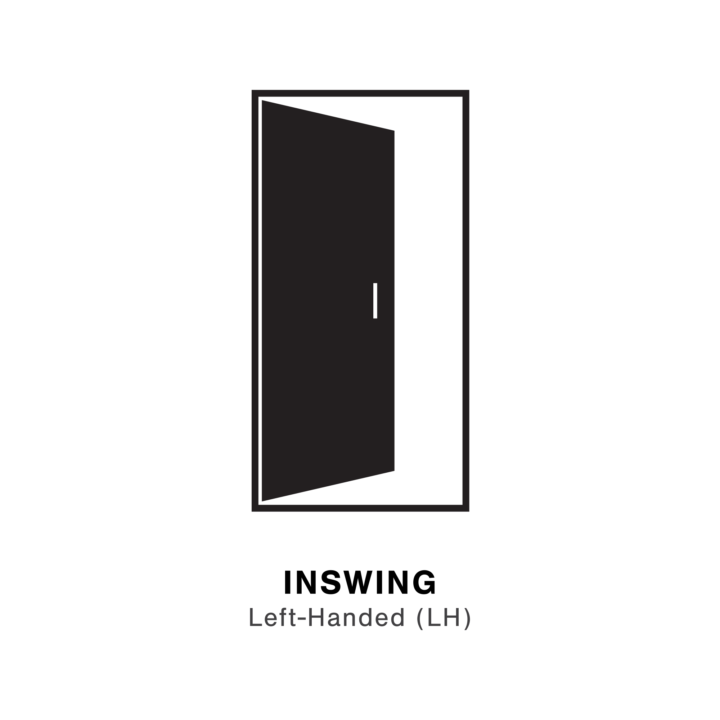

Inswing - Left-Handed (LH)

Inswing - Right-Handed (RH)

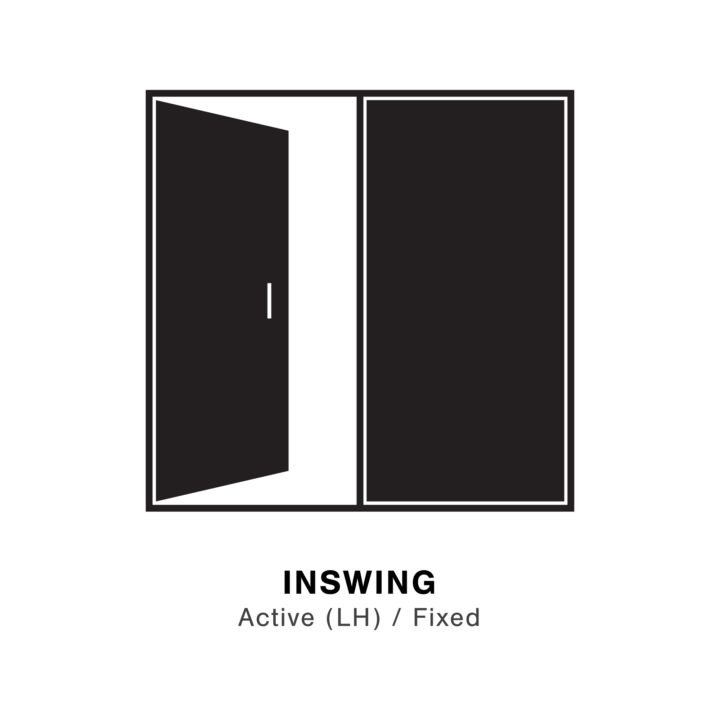

Inswing - Active (LH) / Fixed

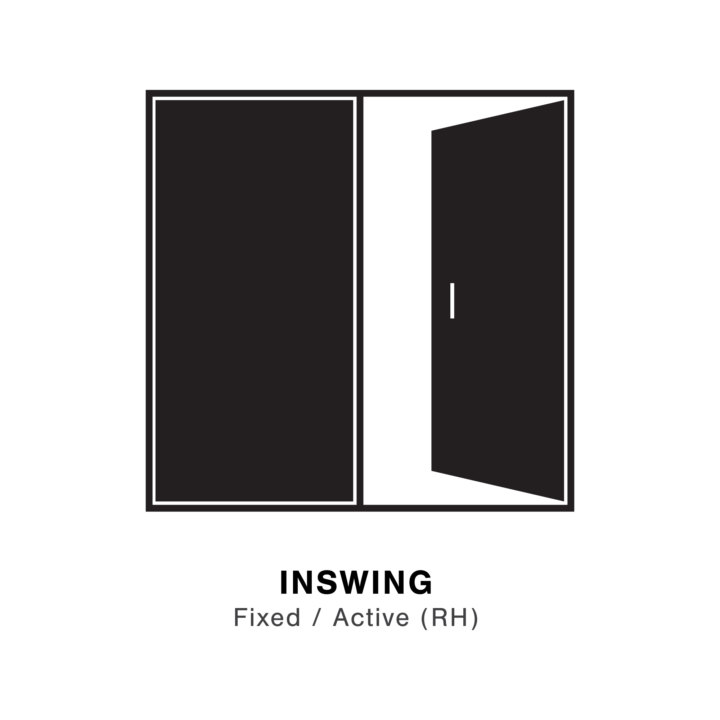

Inswing - Fixed / Active (RH)

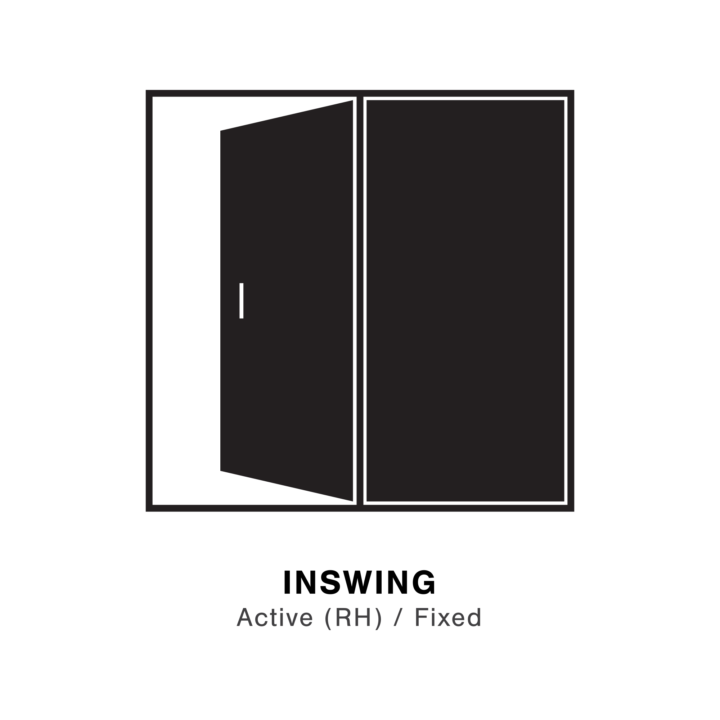

Inswing - Active (RH) / Fixed

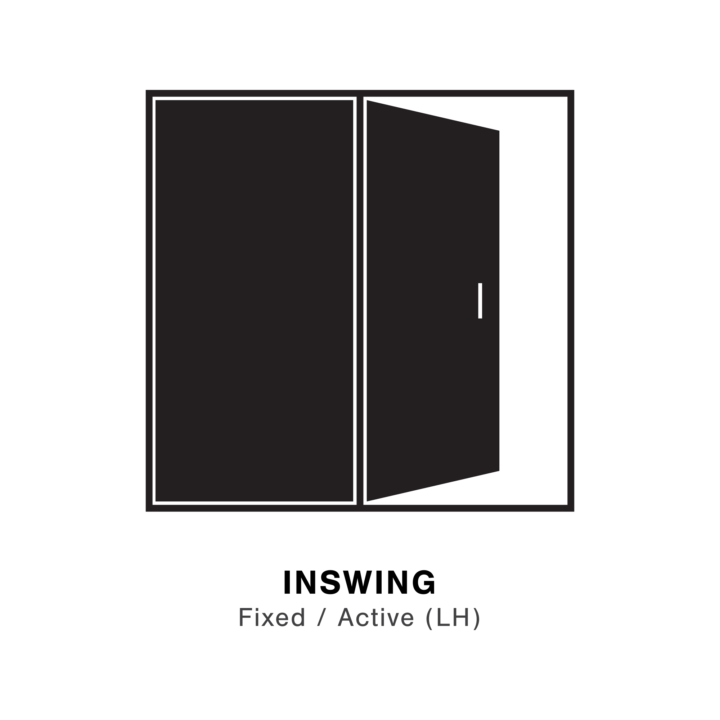

Inswing - Fixed / Active (LH)

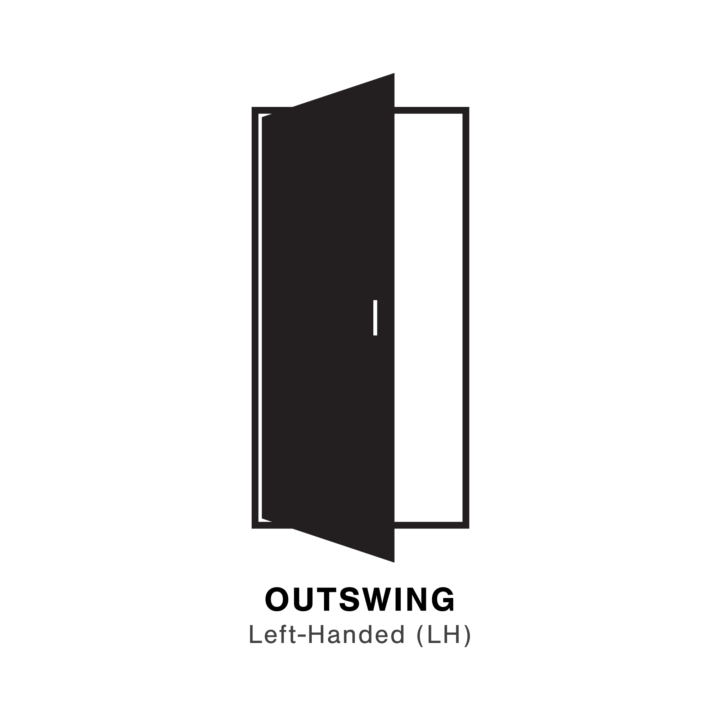

Outswing - Left-Handed (LH)

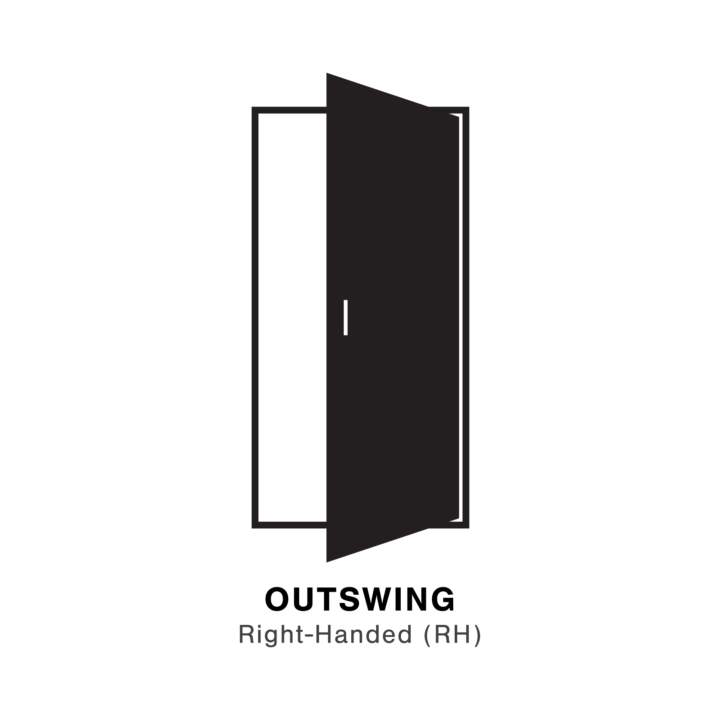

Outswing - Right-Handed (RH)

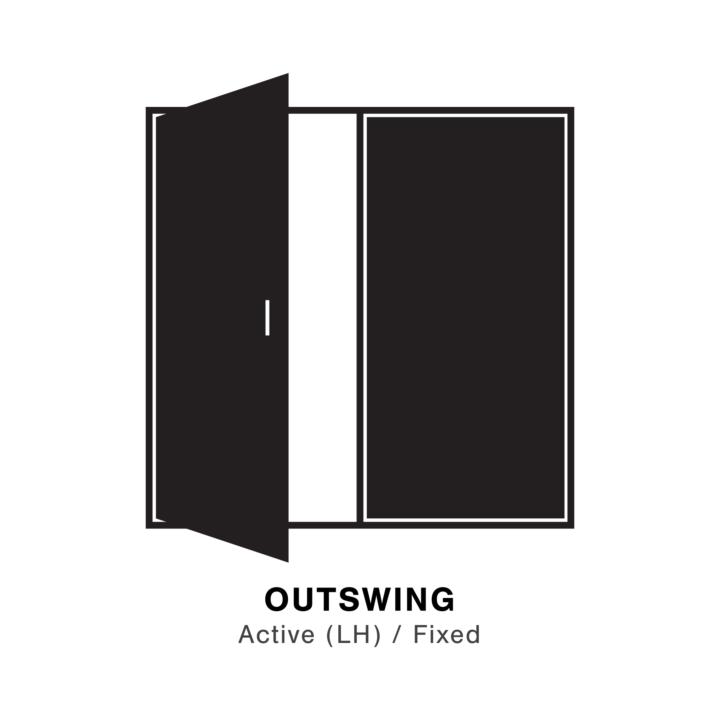

Outswing - Active (LH) / Fixed

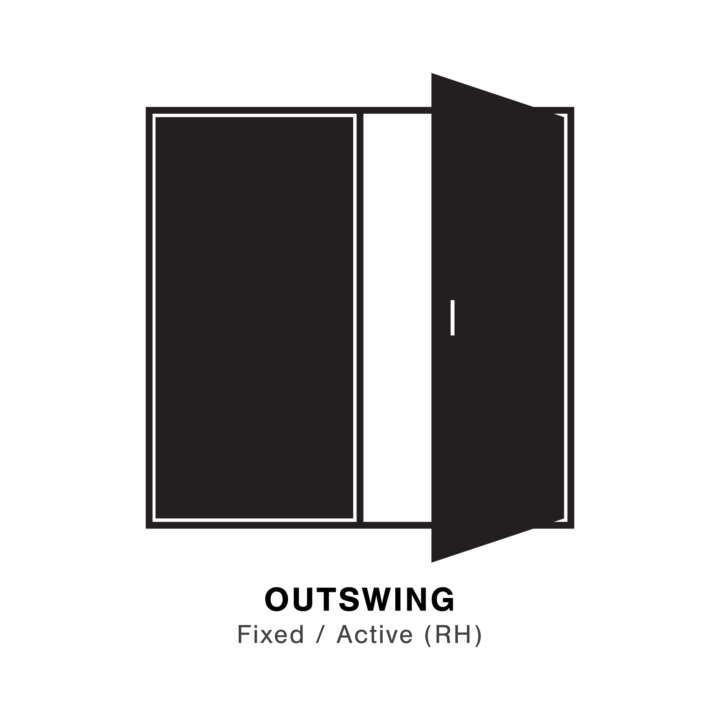

Outswing - Fixed / Active (RH)

Outswing - Active (RH) / Fixed

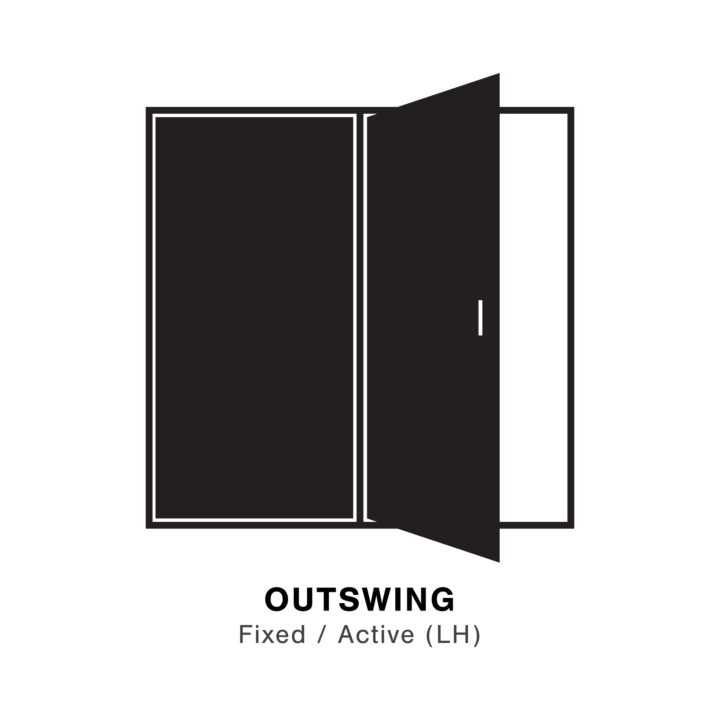

Outswing - Fixed / Active (LH)

The “handing” designation always assumes an exterior to interior viewing angle. Looking from the exterior, if the hinge is on the left it is left-handed, if the hinge is on the right it is right-handed. One and two panel examples included, three and four panels in a single frame are available.

Frame Cladding

Standard Frame Cladding (Inswing)

Contemporary Frame Cladding (Inswing)

Standard Frame Cladding (Outswing)

Contemporary Frame Cladding (Outswing)

02 - Narrow Stile & Rail / Outswing

Outswing

Narrow Stile & Rail Terrace Doors

Metal Clad - Double 4 9/16" (116mm)

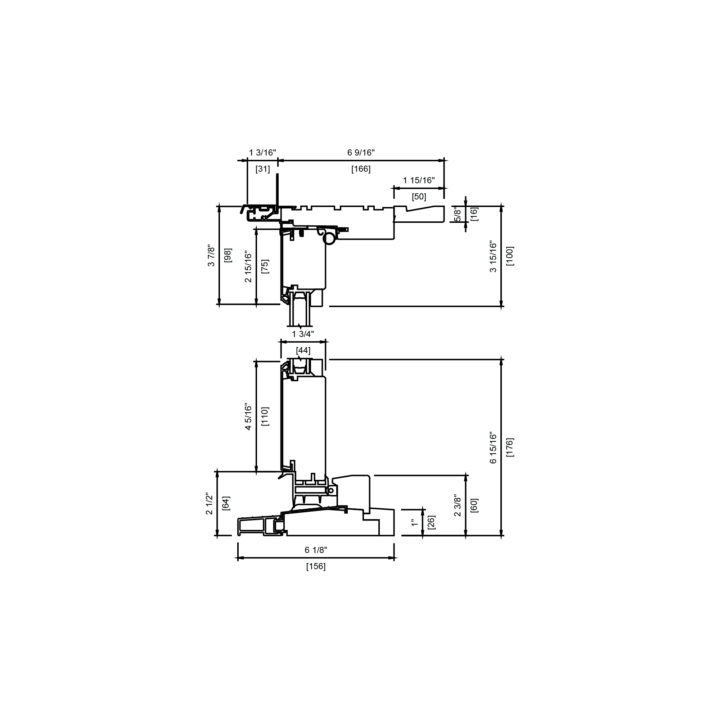

Metal Clad - Double 6 9/16" (166mm)

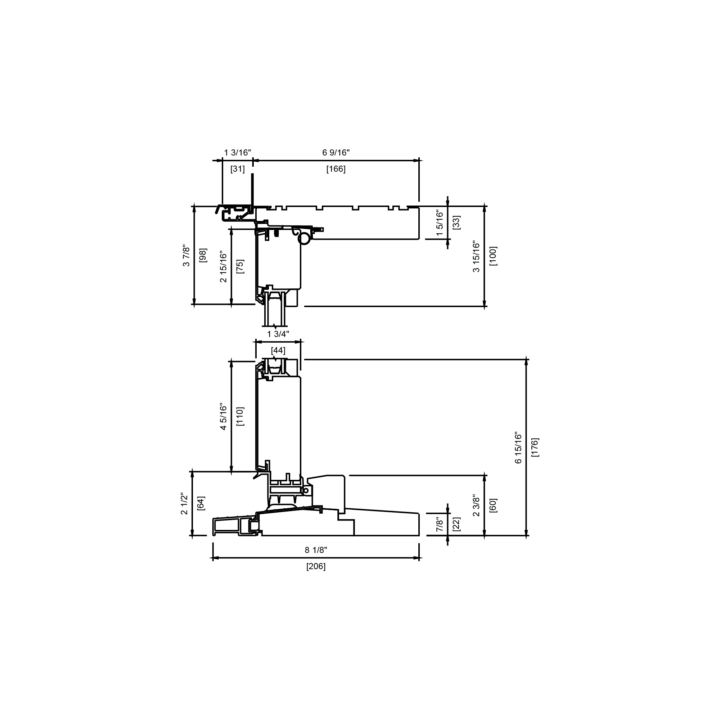

Metal Clad - Double 6 9/16" (166mm) Full Jamb

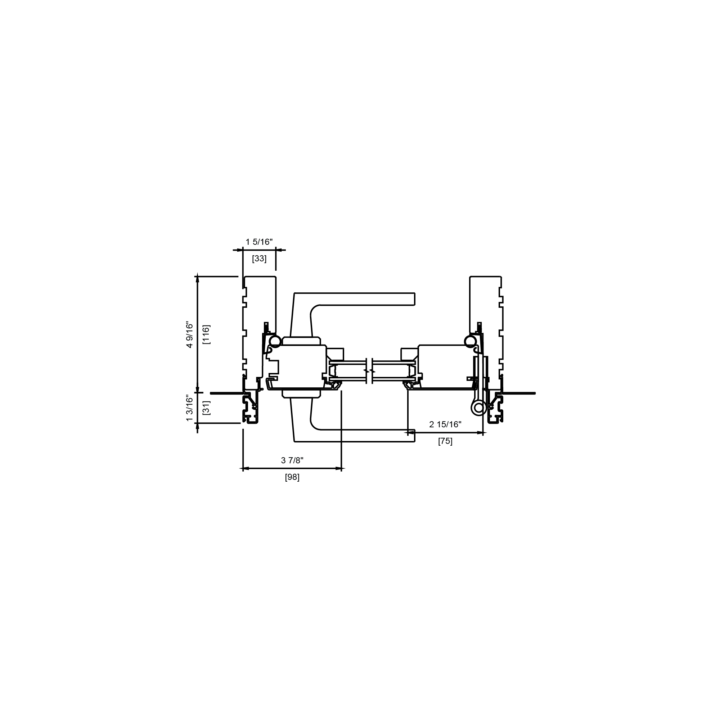

Metal Clad - Double, One Panel 4 9/16" (116mm) Plan View

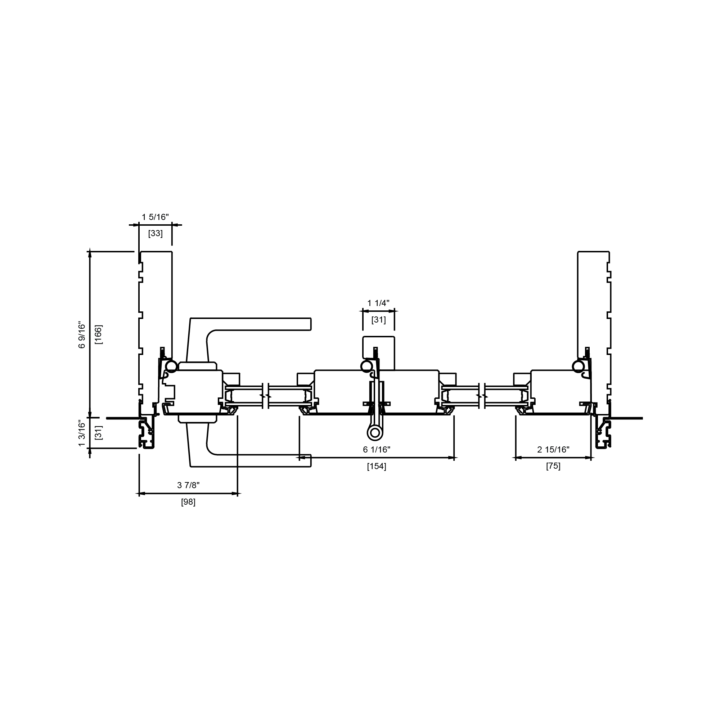

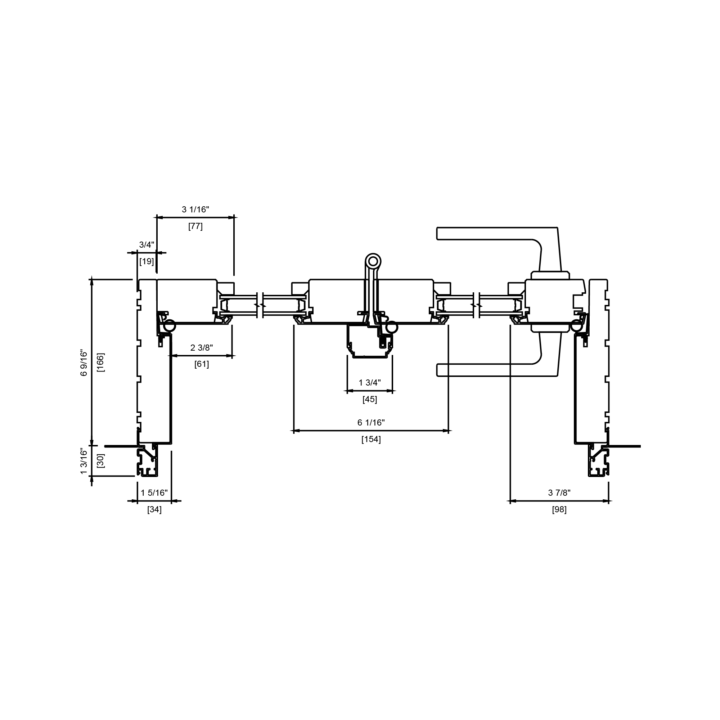

Metal Clad - Double, Two Panel 6 9/16" (166mm) Plan View

Outswing & Inswing - 3 & 4 Wide

Narrow Stile & Rail Terrace Doors

Metal Clad - Triple 4 9/16" (116mm) Jamb - Inswing

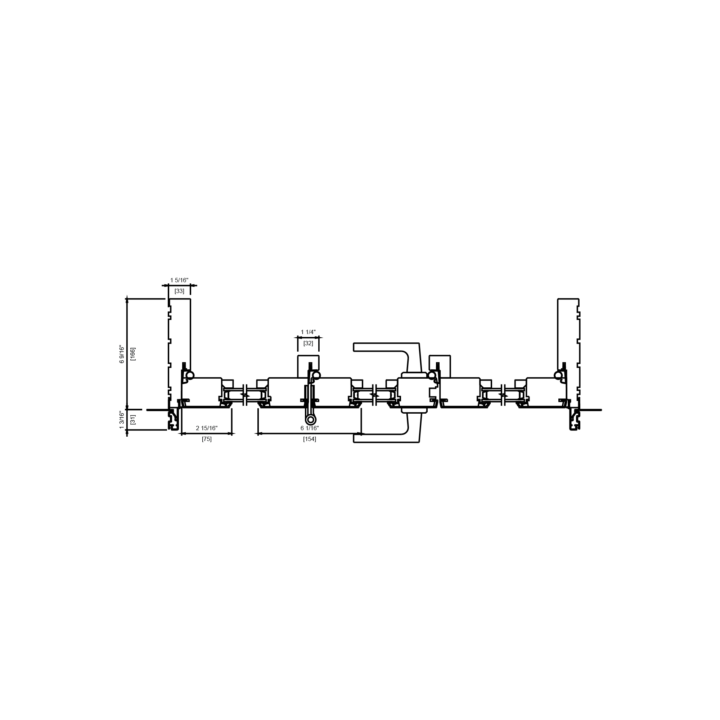

Metal Clad - Triple 6 9/16" (166mm) Jamb - Outswing

Metal Clad - Quadruple 4 9/16" (116mm) Jamb - Outswing

Metal Clad - Quadruple 6 9/16" (166mm) Jamb - Inswing

03 - Narrow Stile & Rail / Inswing

Inswing

Narrow Stile & Rail Terrace Doors

Metal Clad - Double, One Panel 4 9/16" (116mm) Plan View

Metal Clad - Double, Two Panel 6 9/16" (166mm) Plan View

Metal Clad - Double 4 9/16" (116mm)

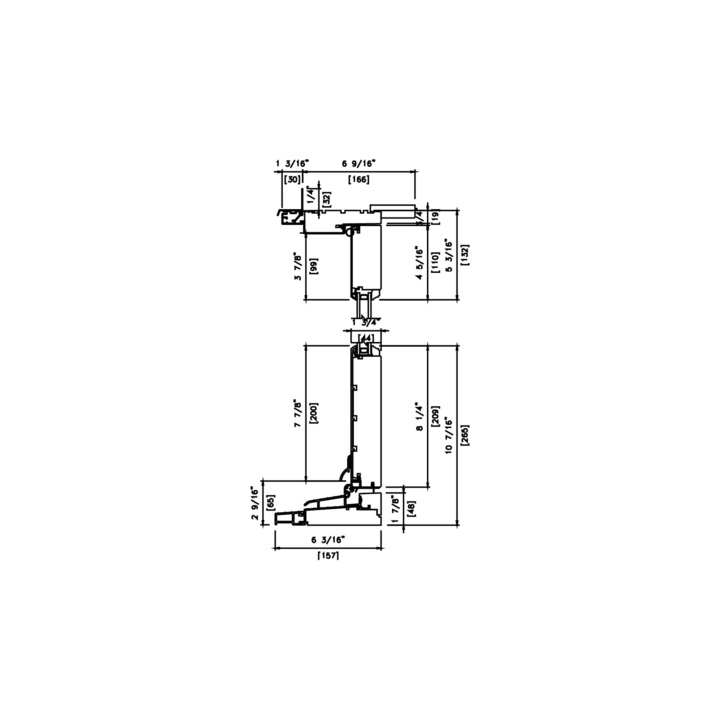

Metal Clad - Double 6 9/16" (166mm)

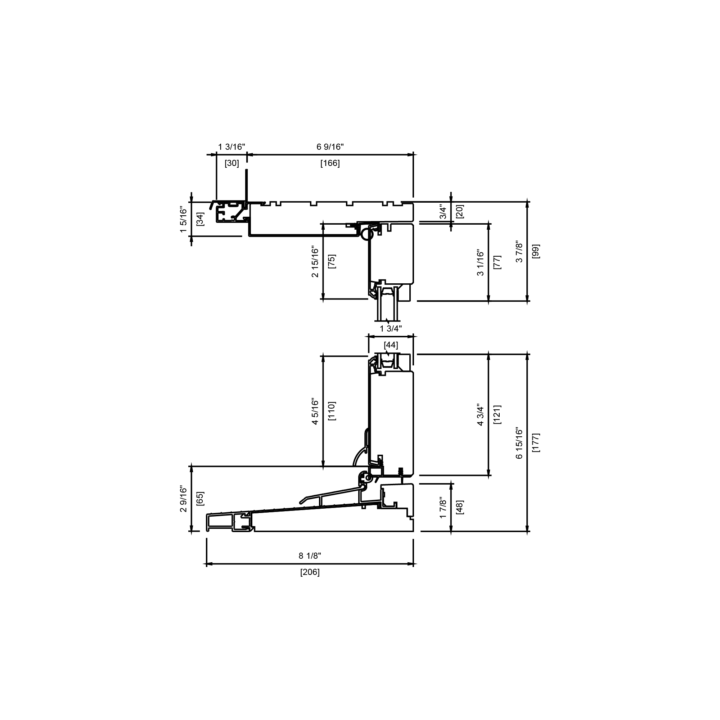

Metal Clad - Double 6 9/16" (166mm) Full Jamb

04 - Standard Stile & Rail / Outswing

Outswing

Standard Stile & Rail Terrace Doors

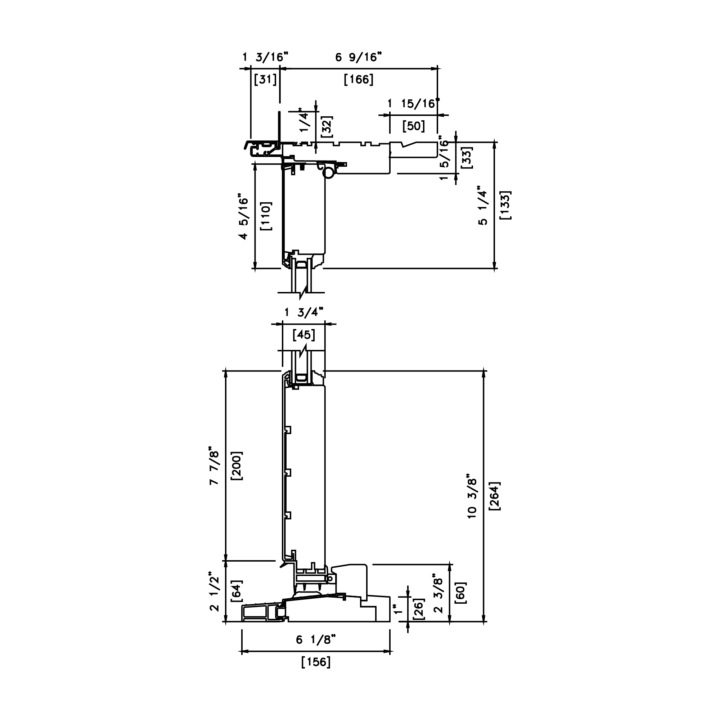

Metal Clad - Double 6 9/16" (166mm)

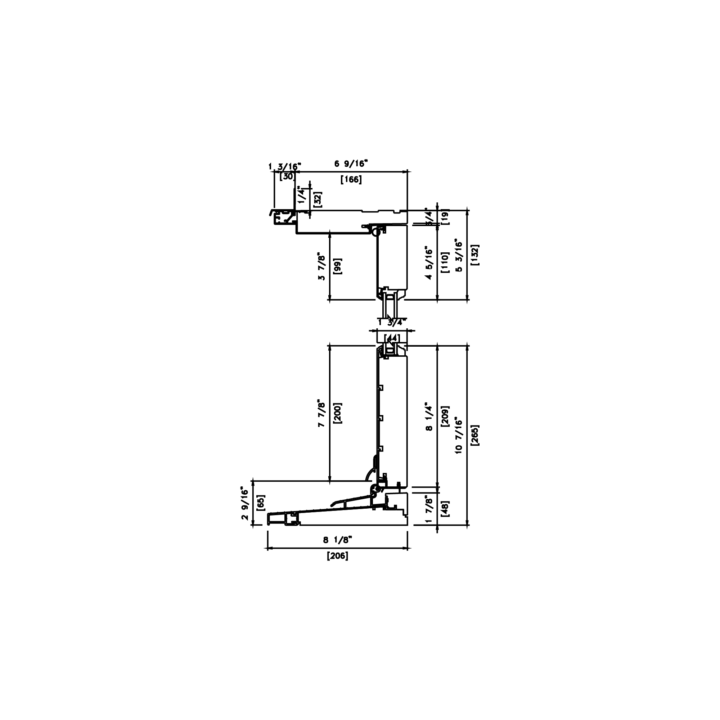

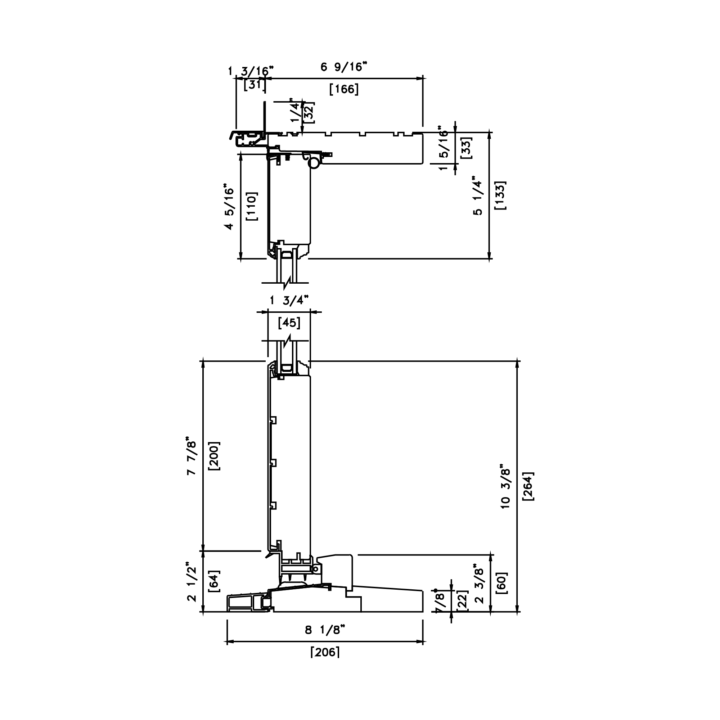

Metal Clad - Double 6 9/16" (166mm) Full Jamb

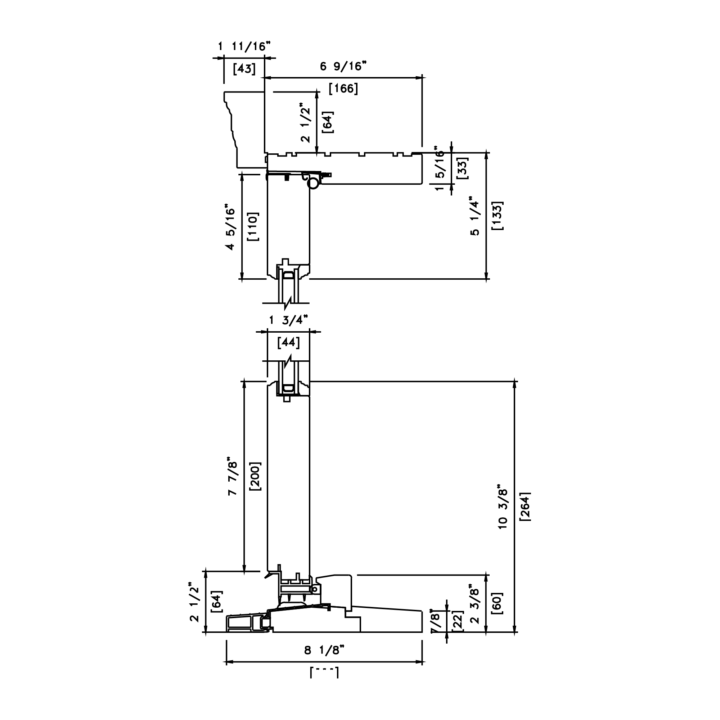

Metal Clad - Double 6 9/16" (166mm) Full Jamb, Adams Casing

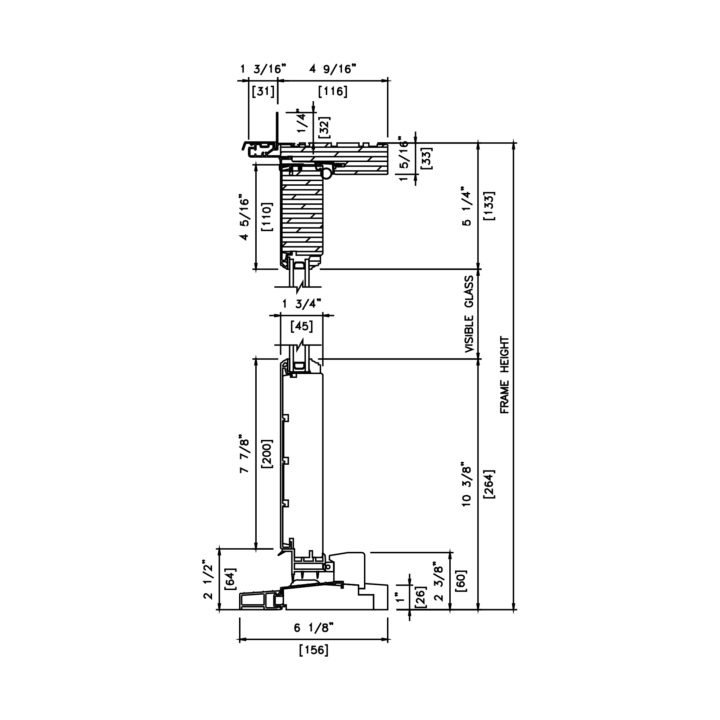

Metal Clad - Double Cambertop 4 9/16" (116mm)

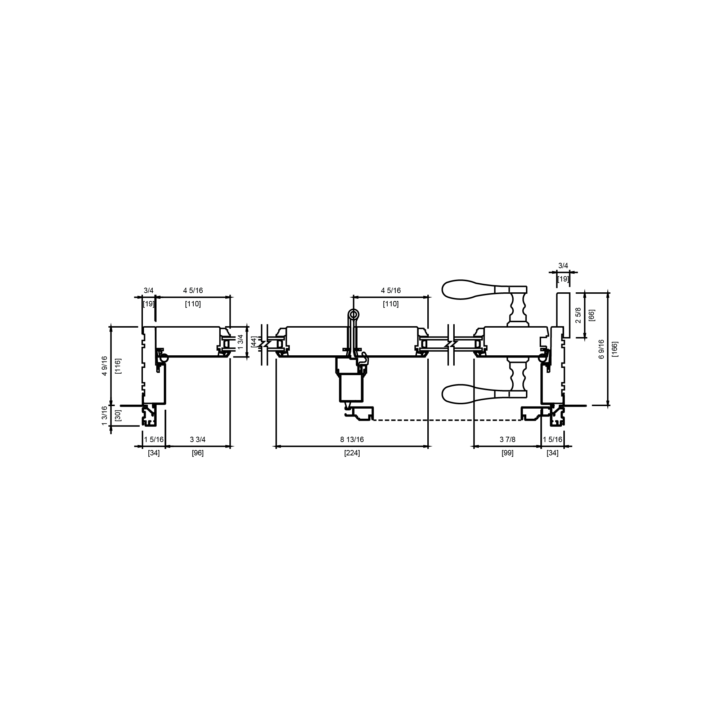

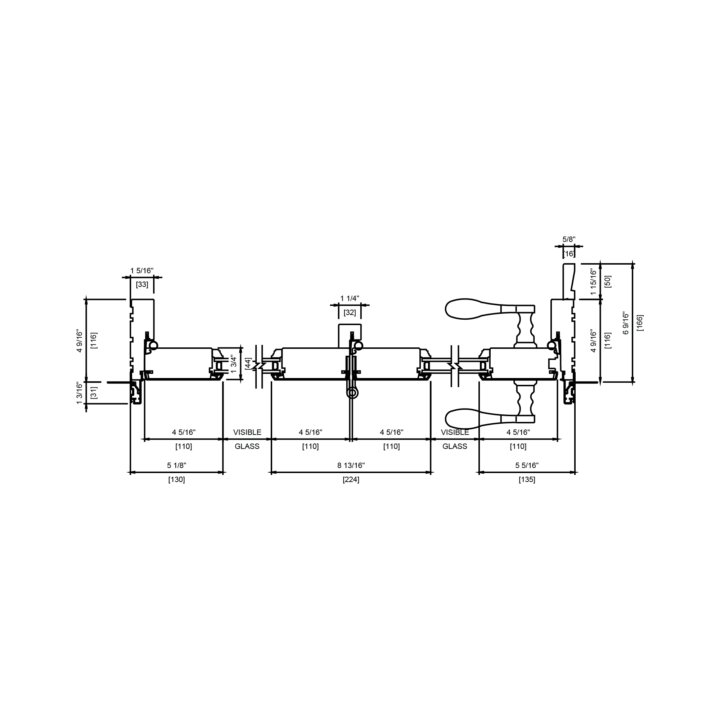

Metal Clad - Double, Two Panel

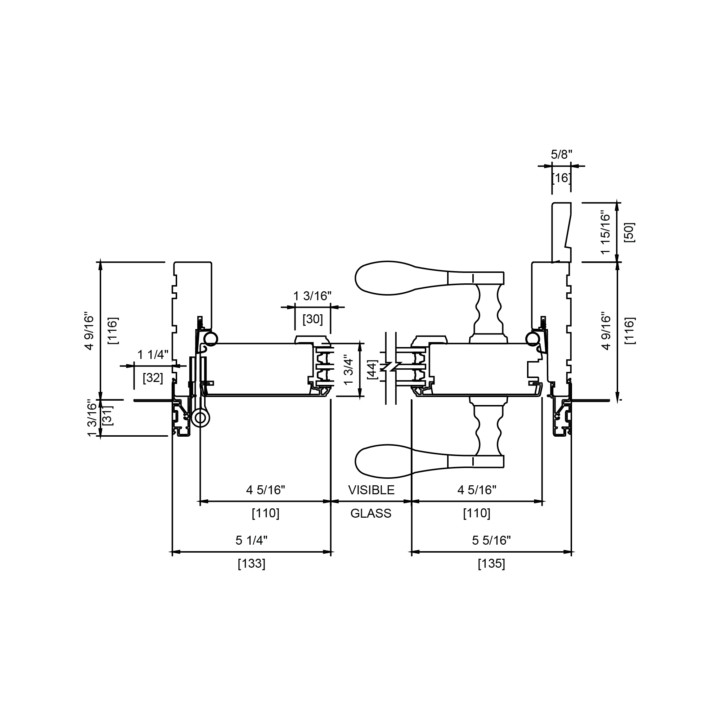

Metal Clad - Triple, One Panel, Triple Glazing Stop

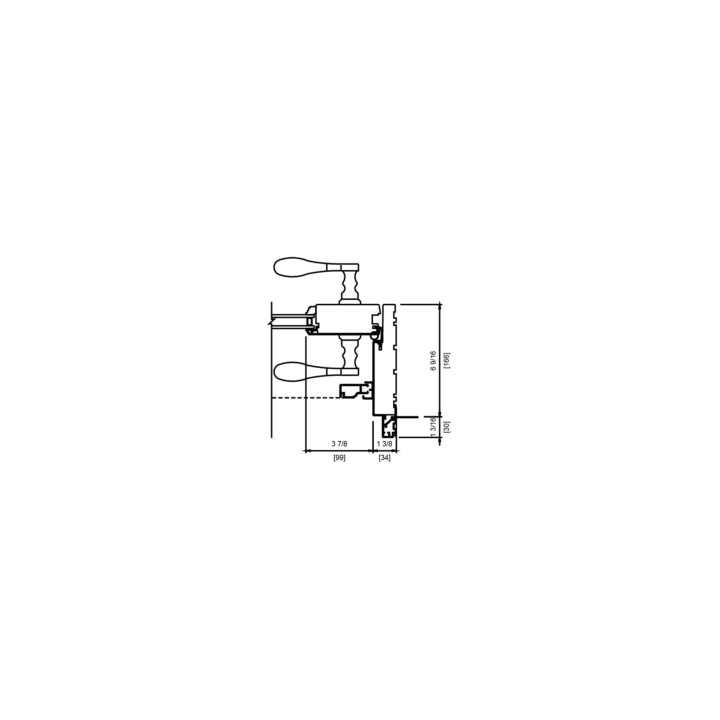

Metal Clad - Double 6 9/16" (166mm) Full Jamb - Plan View

All Wood - Double 6 9/16" (166mm) 2" Brickmould, Square Stop

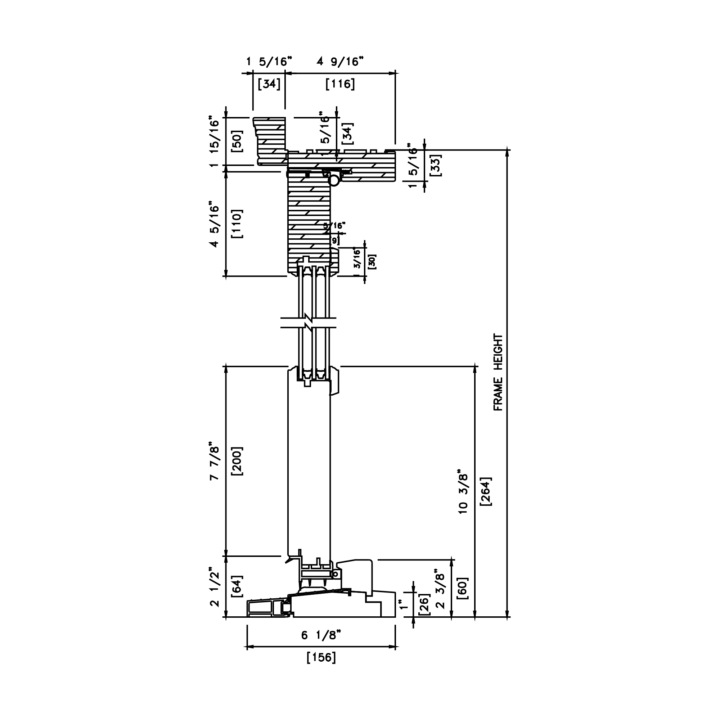

All Wood - Triple Cambertop, 2" Brickmould, Triple Glazing Stop

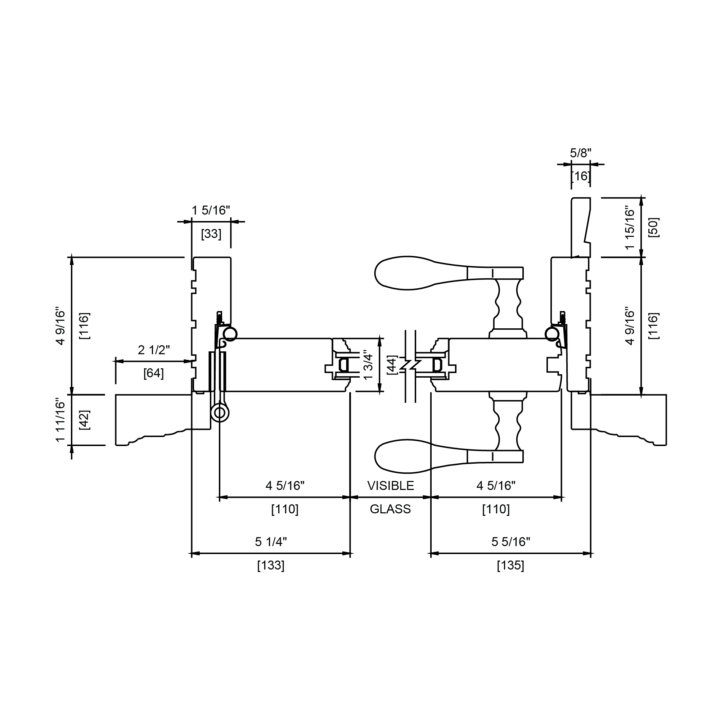

All Wood - Double, One Panel, Adams Casing

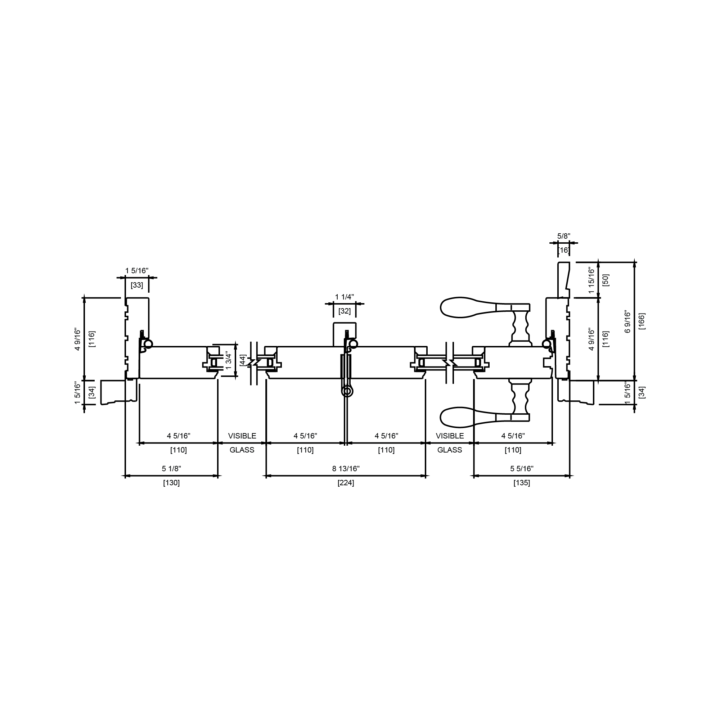

All Wood - Double, Two Panel, 2" Brickmould Square Stop

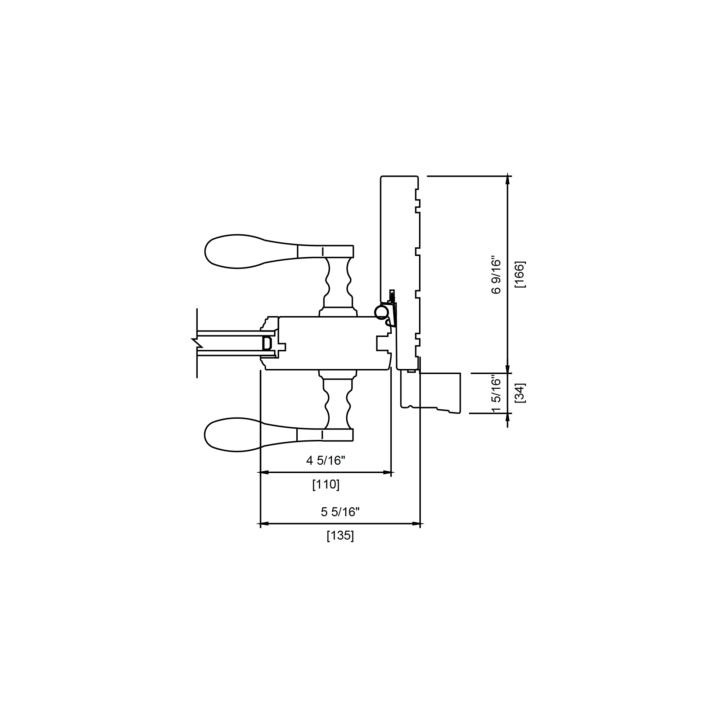

All Wood - Double 6 9/16" (166mm) Full Jamb, 2" Brickmould - Plan View

Outswing - 3 & 4 Wide

Standard Stile & Rail Terrace Doors

Metal Clad - Three Wide, 4 9/16" (116mm) Jamb

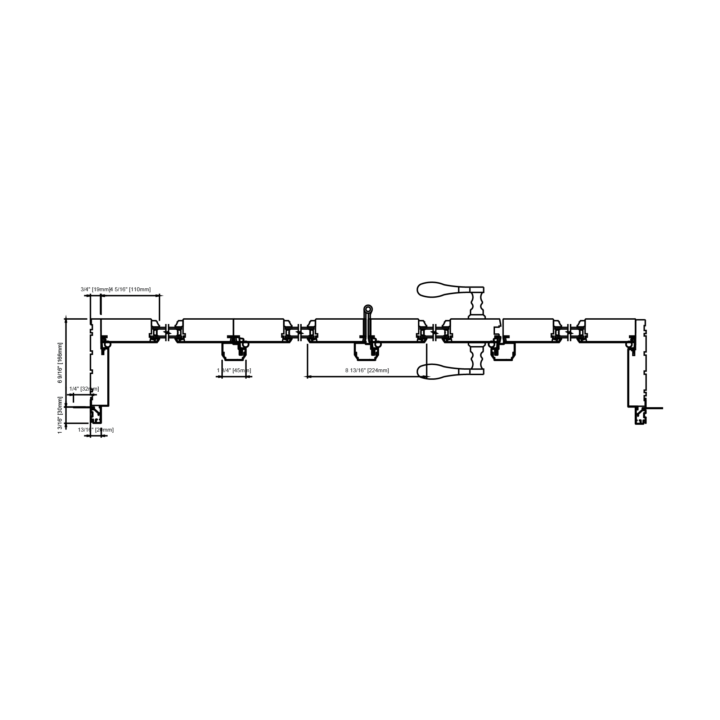

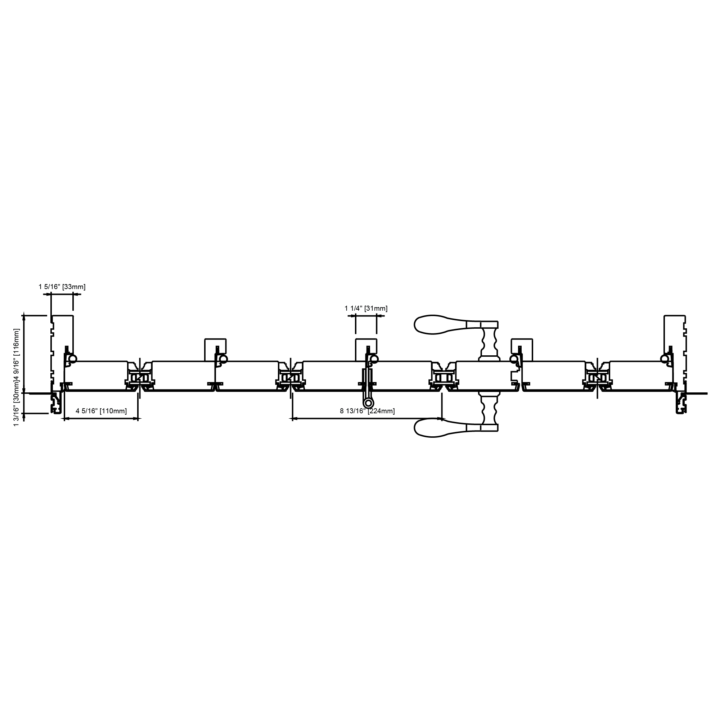

Metal Clad - Four Wide 6 9/16" (166mm) Jamb

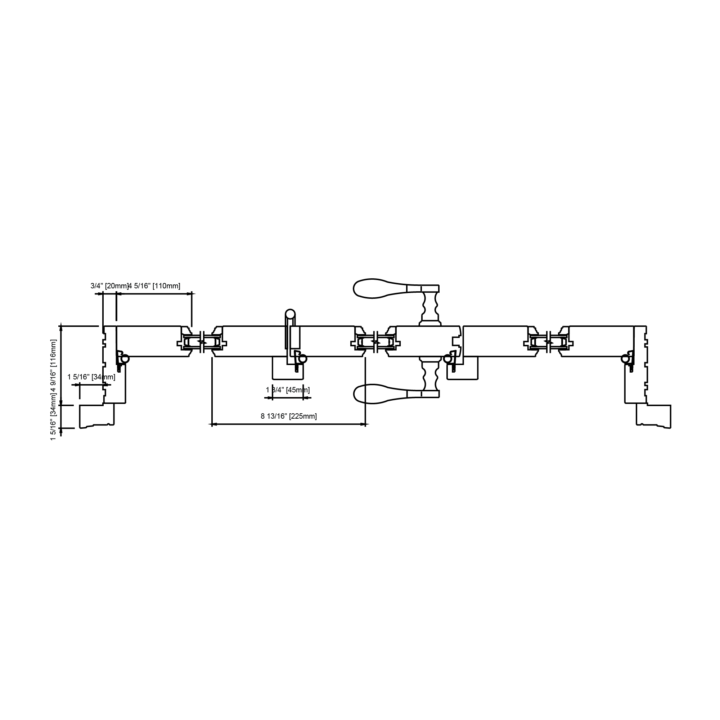

All Wood - Three Wide, 4 9/16" (116mm) Jamb

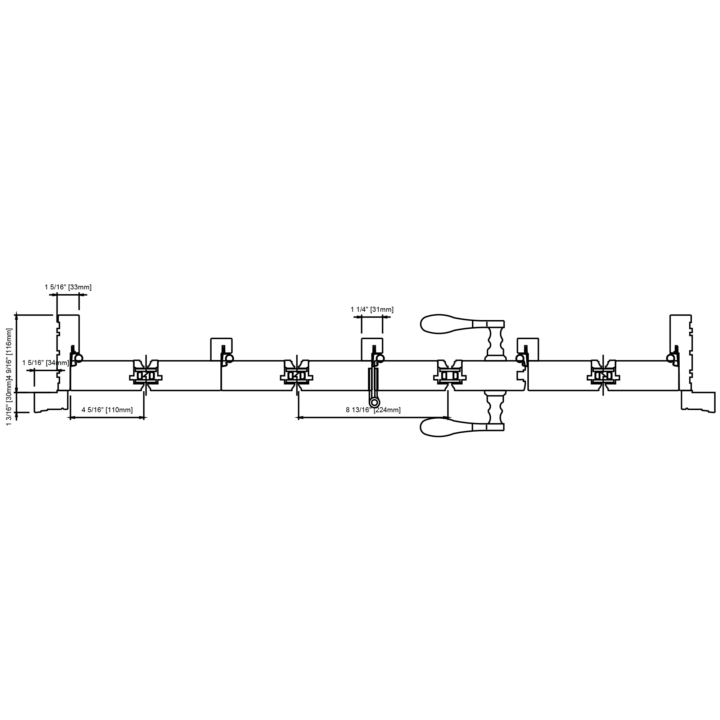

All Wood - Four Wide 6 9/16" (166mm) Jamb

05 - Standard Stile & Rail / Inswing

Inswing

Standard Stile & Rail Terrace Doors

Metal Clad - Double 6 9/16" (166mm)

Metal Clad - Double 6 9/16" (166mm) Full Jamb

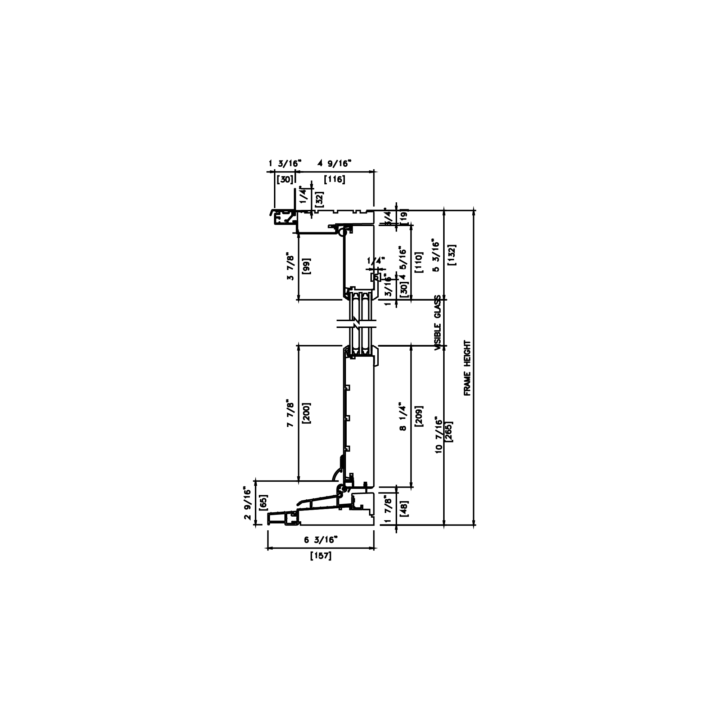

Metal Clad - Triple 4 9/16" (116mm) Triple Glazing Stop

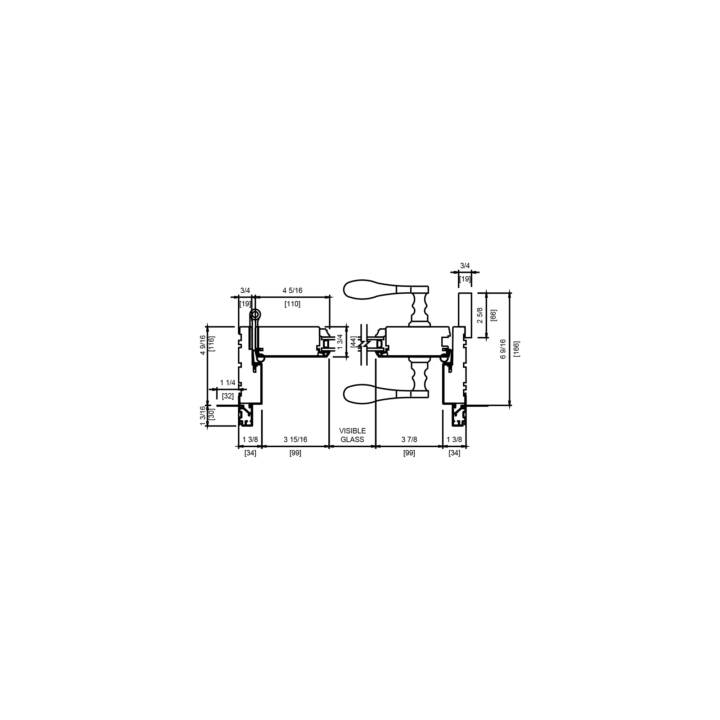

Metal Clad - Double, One Panel

Metal Clad - Double, Two Panel

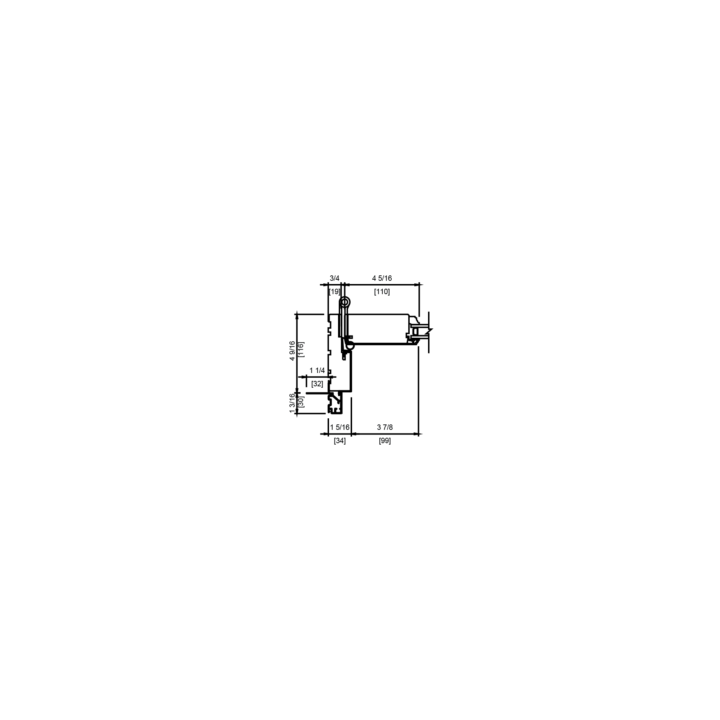

Metal Clad - Double Cambertop

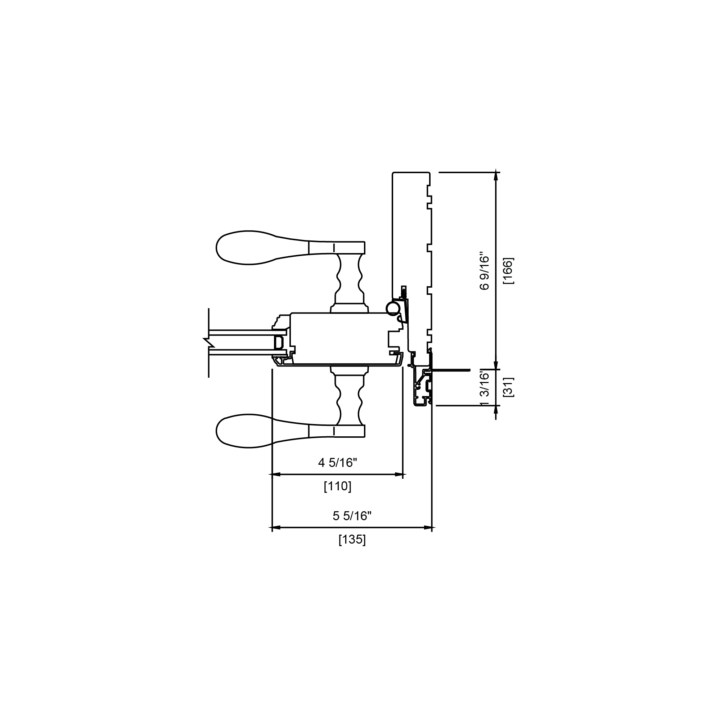

Metal Clad - Double 6 9/16" (166mm) Full Jamb - Plan View

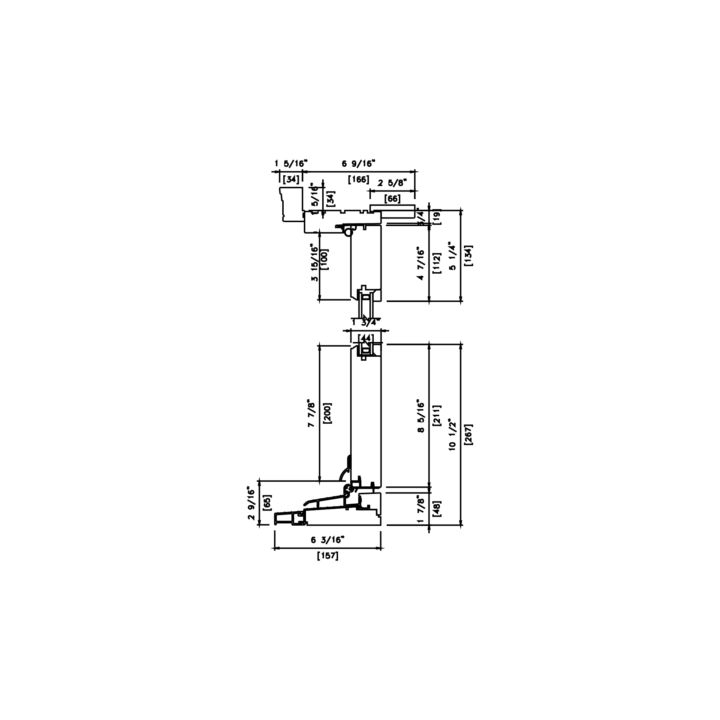

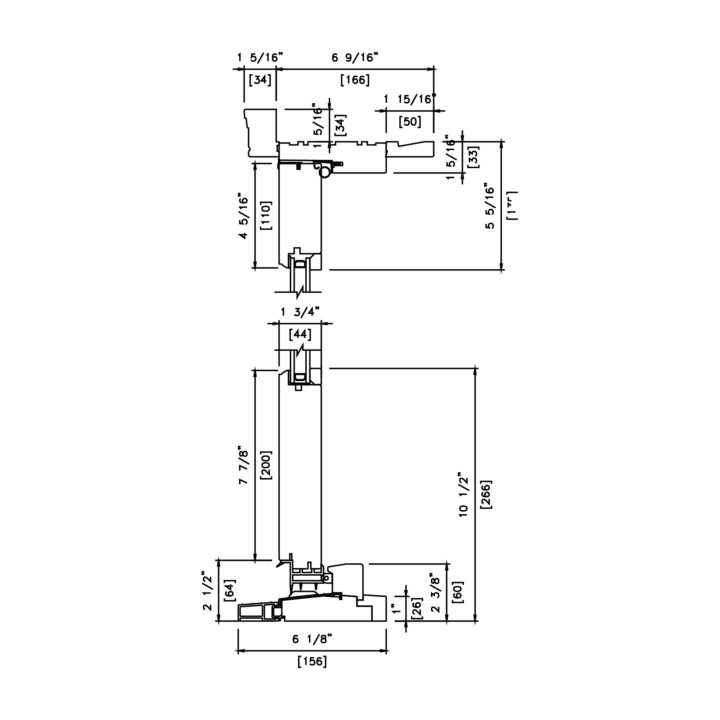

All Wood - Double 6 9/16" (166mm) 2" Brickmould, Square Stop

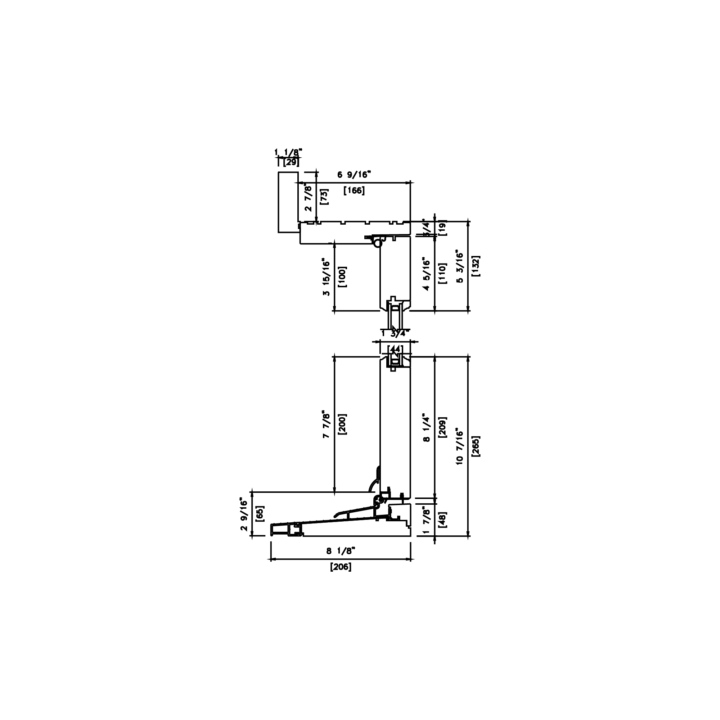

All Wood - Double 6 9/16" (166mm) Full Jamb, 3 1/2" Flat Casing

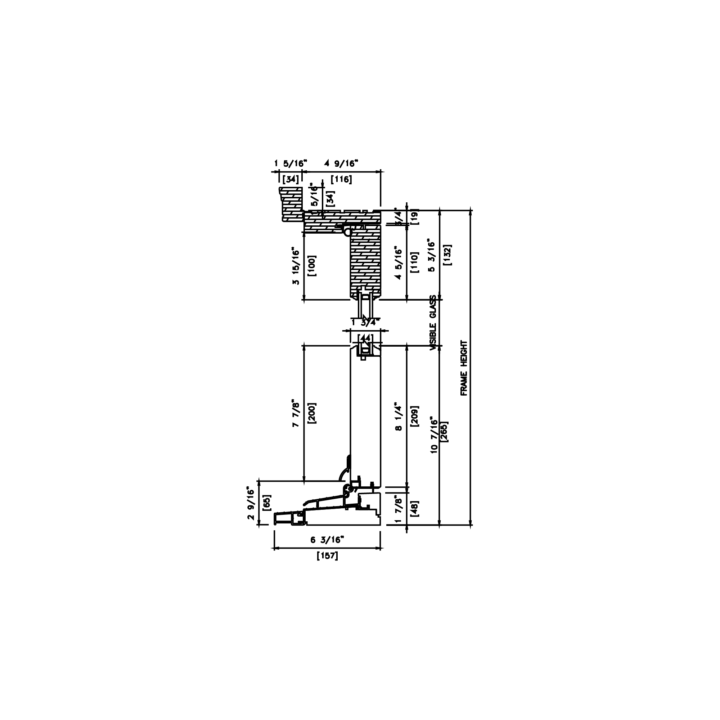

All Wood - Double Camber/Roundtop 4 9/16" (116mm) 2" Brickmould

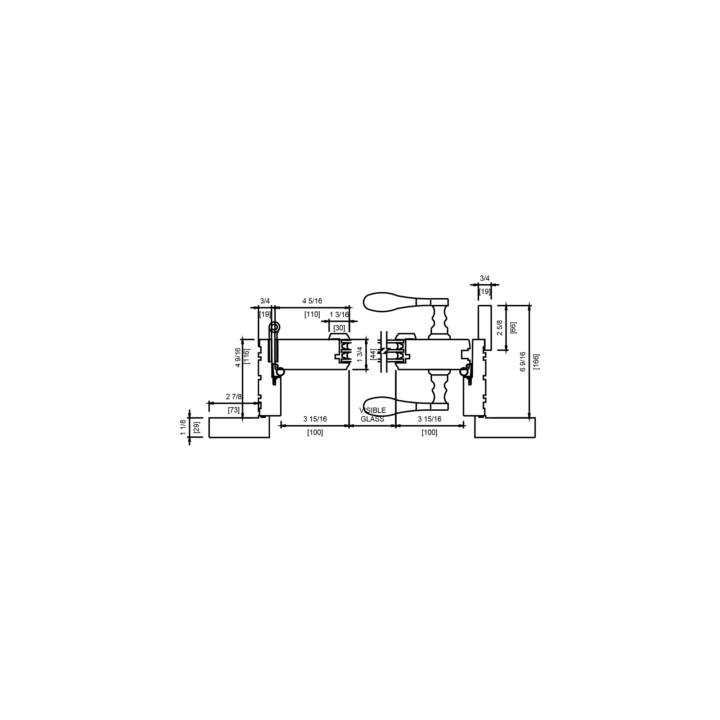

All Wood - Triple, 3 1/2" Flat Casing, Triple Glazing Stop

All Wood - Double, Two Panel, 2" Brickmould, Square Stop

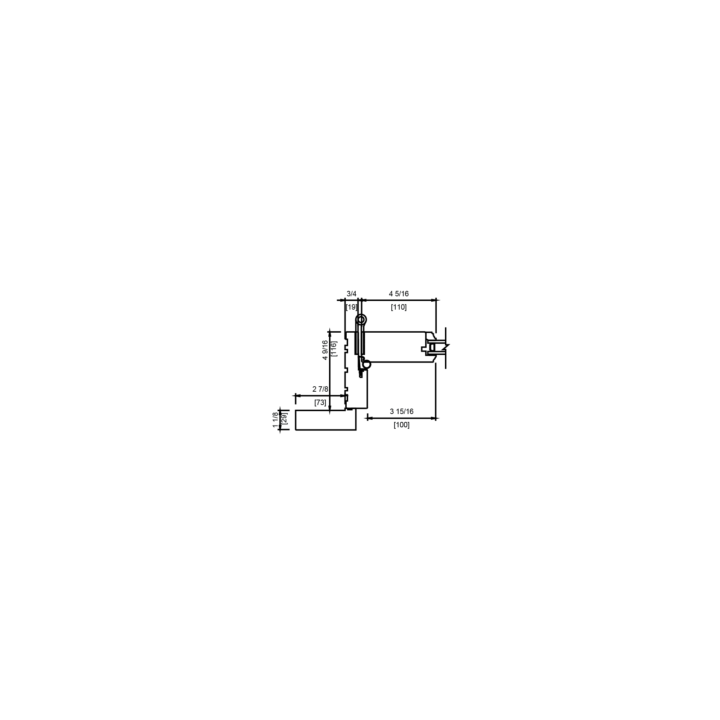

All Wood - Double, Cambertop, 3 1/2" Flat Casing

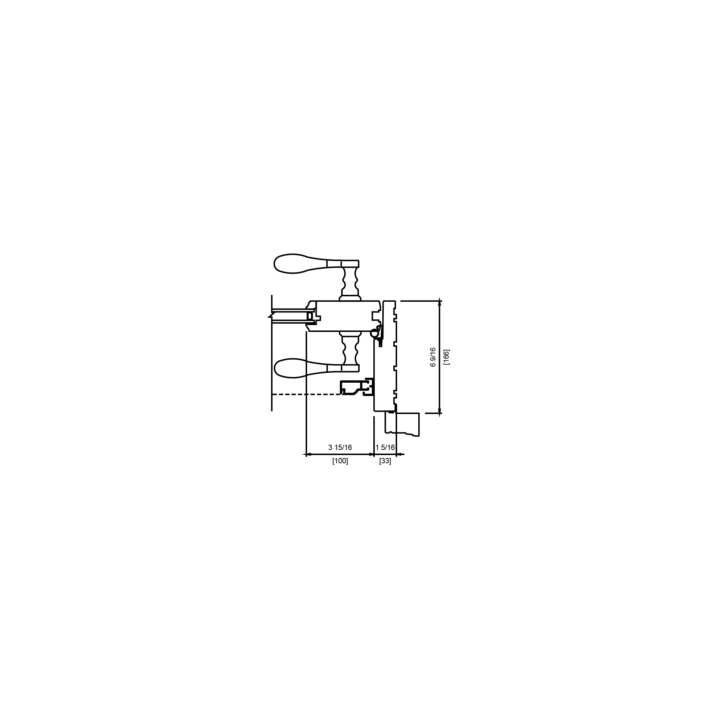

All Wood - Double 6 9/16" (166mm) Full Jamb - 2" Brickmould

Inswing - 3 & 4 Wide

Standard Stile & Rail Terrace Doors

Metal Clad - Three Wide, 4 9/16" (116mm) Jamb

Metal Clad - Four Wide 6 9/16" (166mm) Jamb

All Wood - Three Wide, 4 9/16" (116mm) Jamb

All Wood - Four Wide 6 9/16" (166mm) Jamb

Transom Rail

Narrow Stile & Rail Terrace Doors

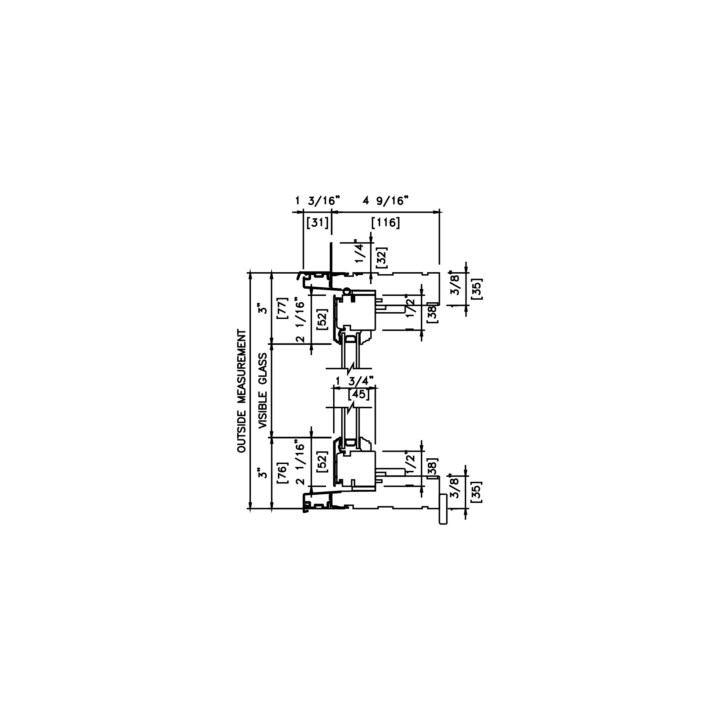

Metal Clad - Double 2 1/16" (52mm) Rails

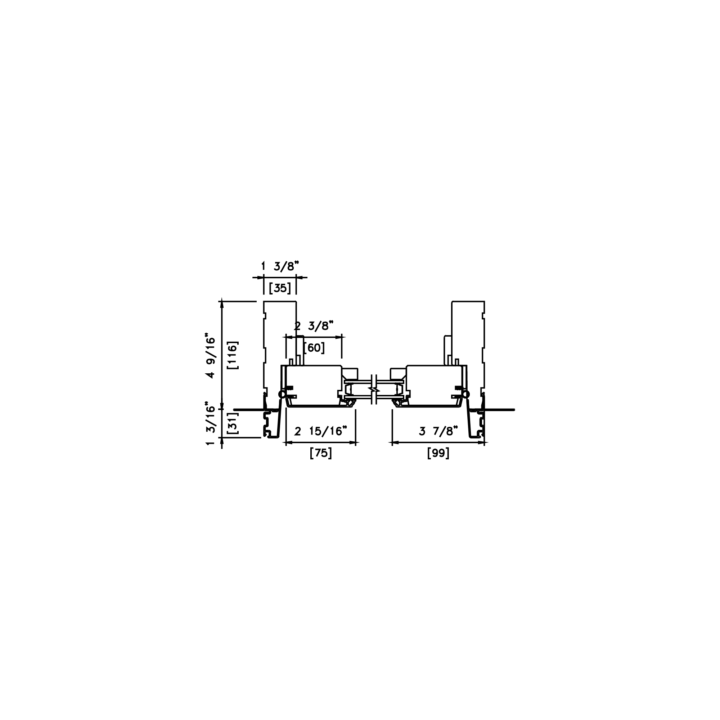

Metal Clad - Narrow Stile 3" (75mm) Stiles

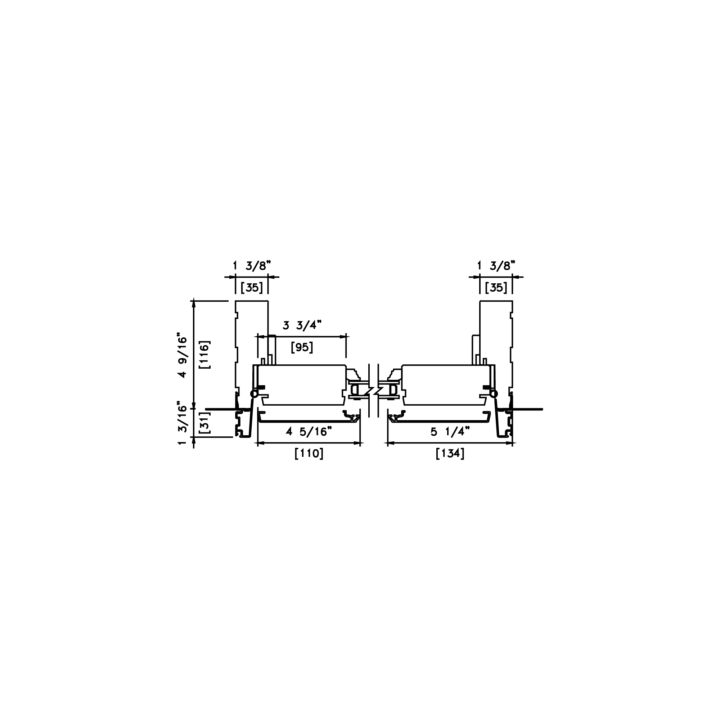

Metal Clad - Standard Stile 4 5/16" (110mm) Stiles

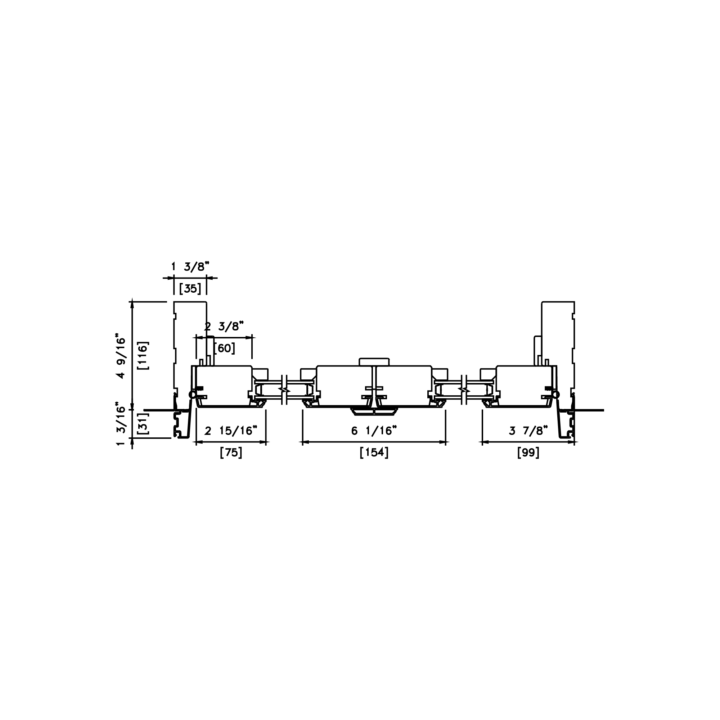

Metal Clad - Narrow Stile, Two Wide 3" (75mm) Stiles

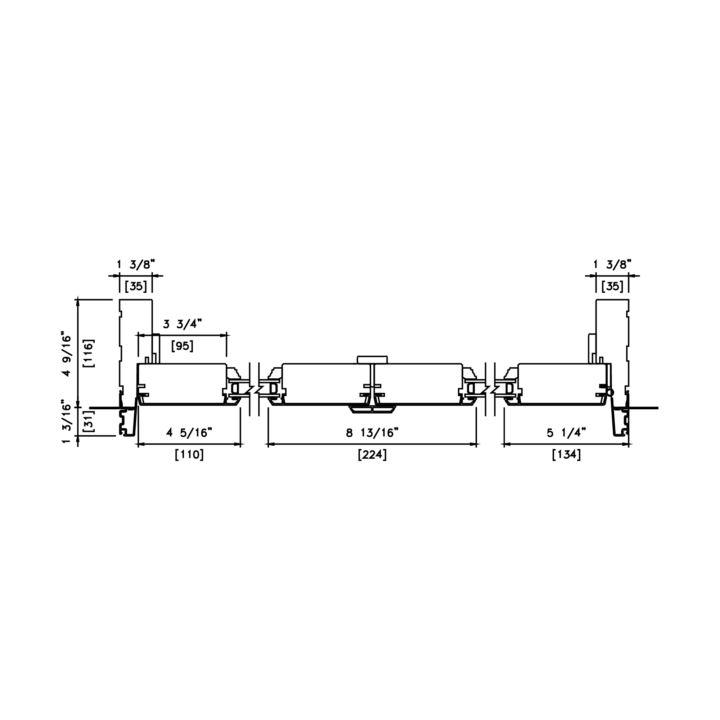

Metal Clad - Standard Stile 4 5/16" (110mm) Stiles, Two Panel

All Wood - Double 2 1/16" (52mm) Rails, 2" Brickmould

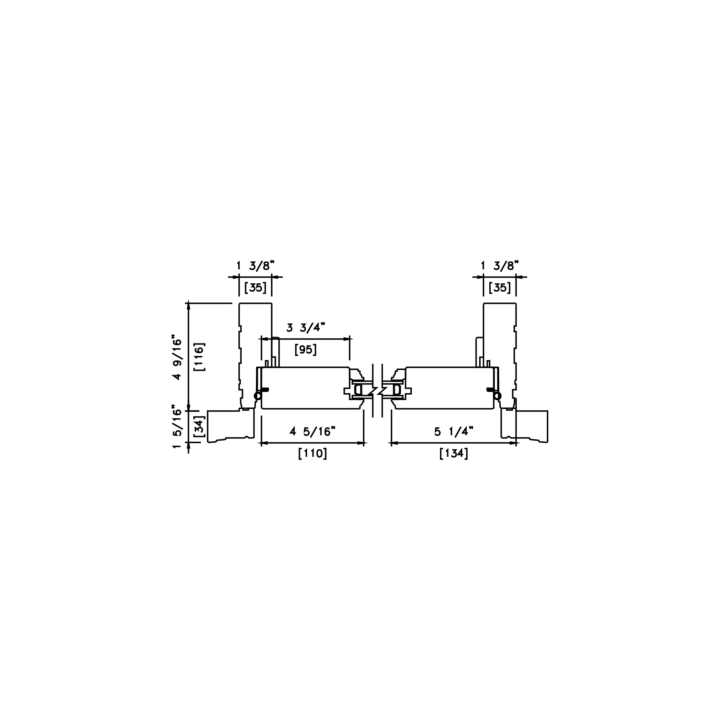

All Wood - Standard Stile 4 5/16" (110mm) Stiles

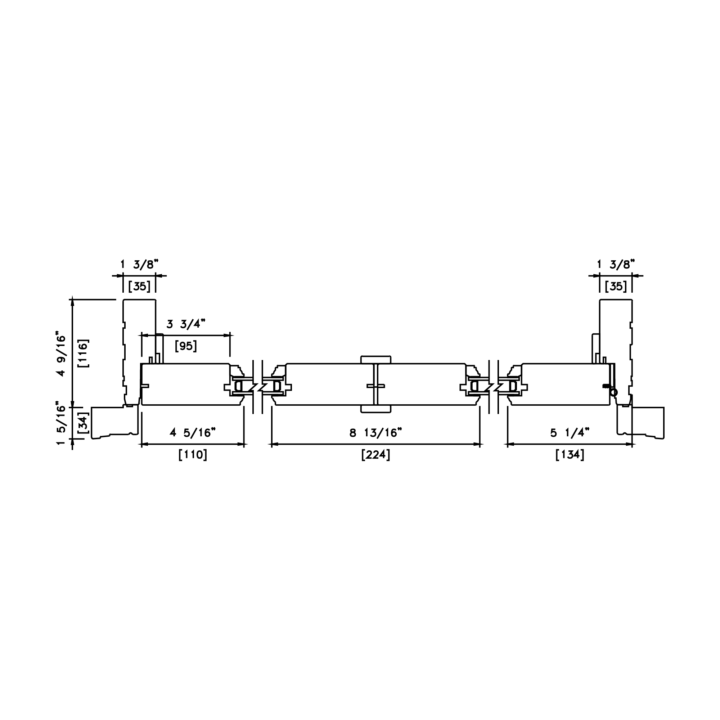

All Wood - Standard Stile 4 5/16" (110mm) Stiles, Two Panel
