Looking for Loewen standard sizes? Our Product Configurator allows you to browse our standard sizes and make configurations.
CAD Drawings
View Resources3D Models
View ResourcesNFRC Ratings
View ResourcesAir, Water, Structural Performance

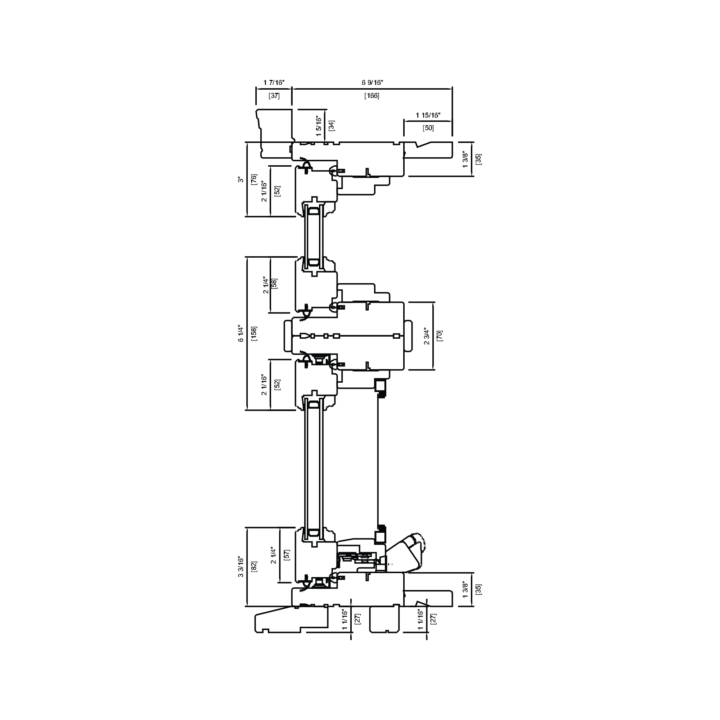

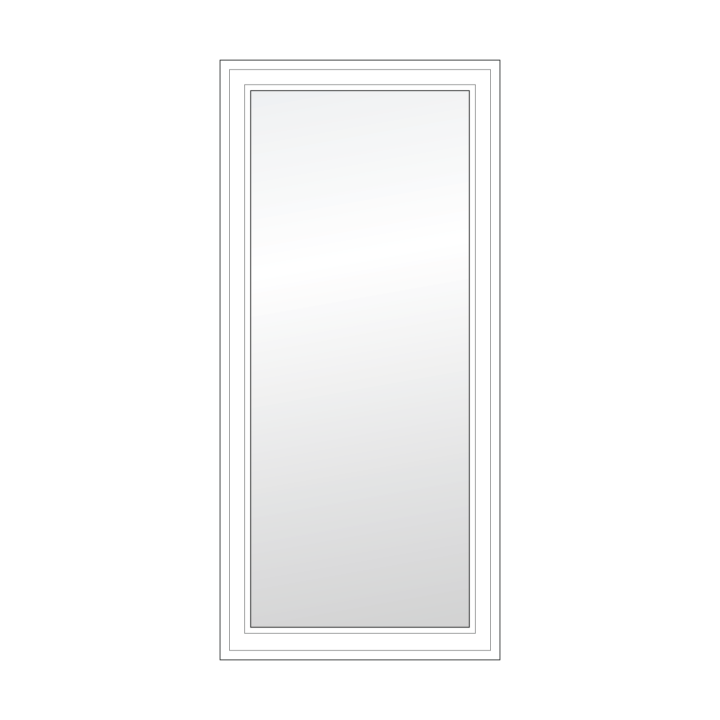

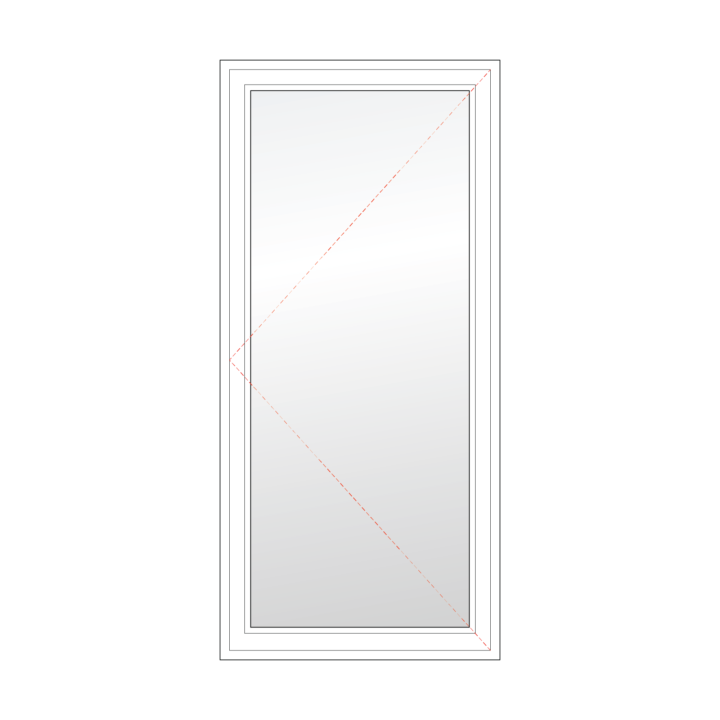

View ResourcesOur three main casement configurations are Traditional Rotogear, Pushout, and Fixed.

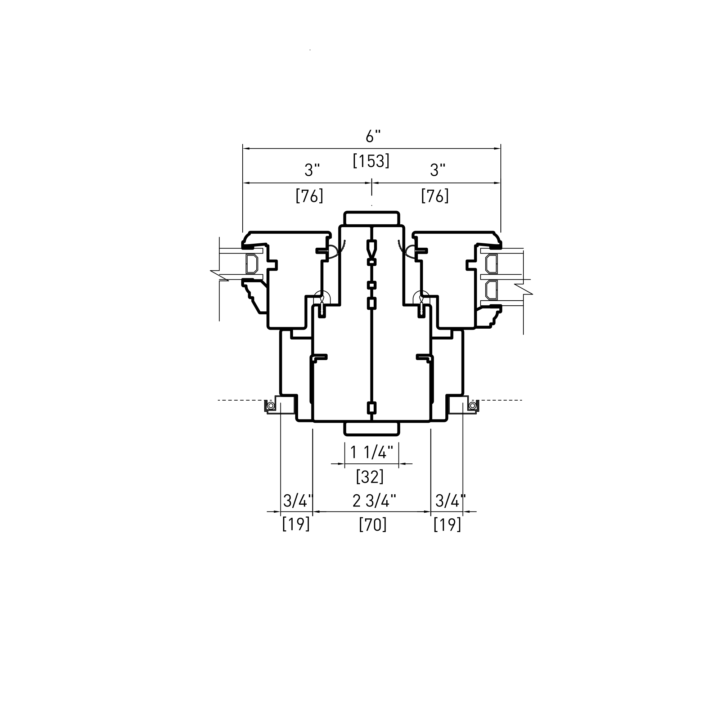

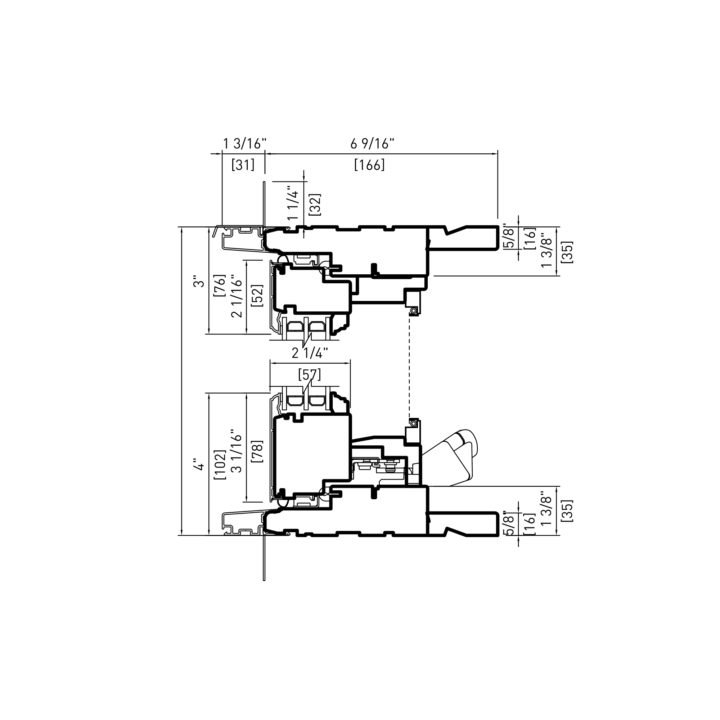

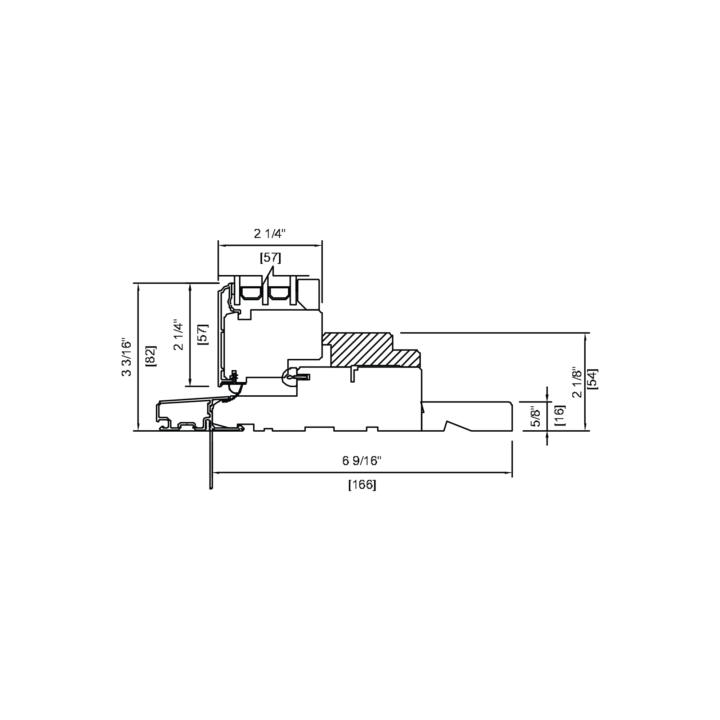

Mission® casements have a larger bottom rail (mission sash), these casements are sometimes configured to look like Double Hung windows.

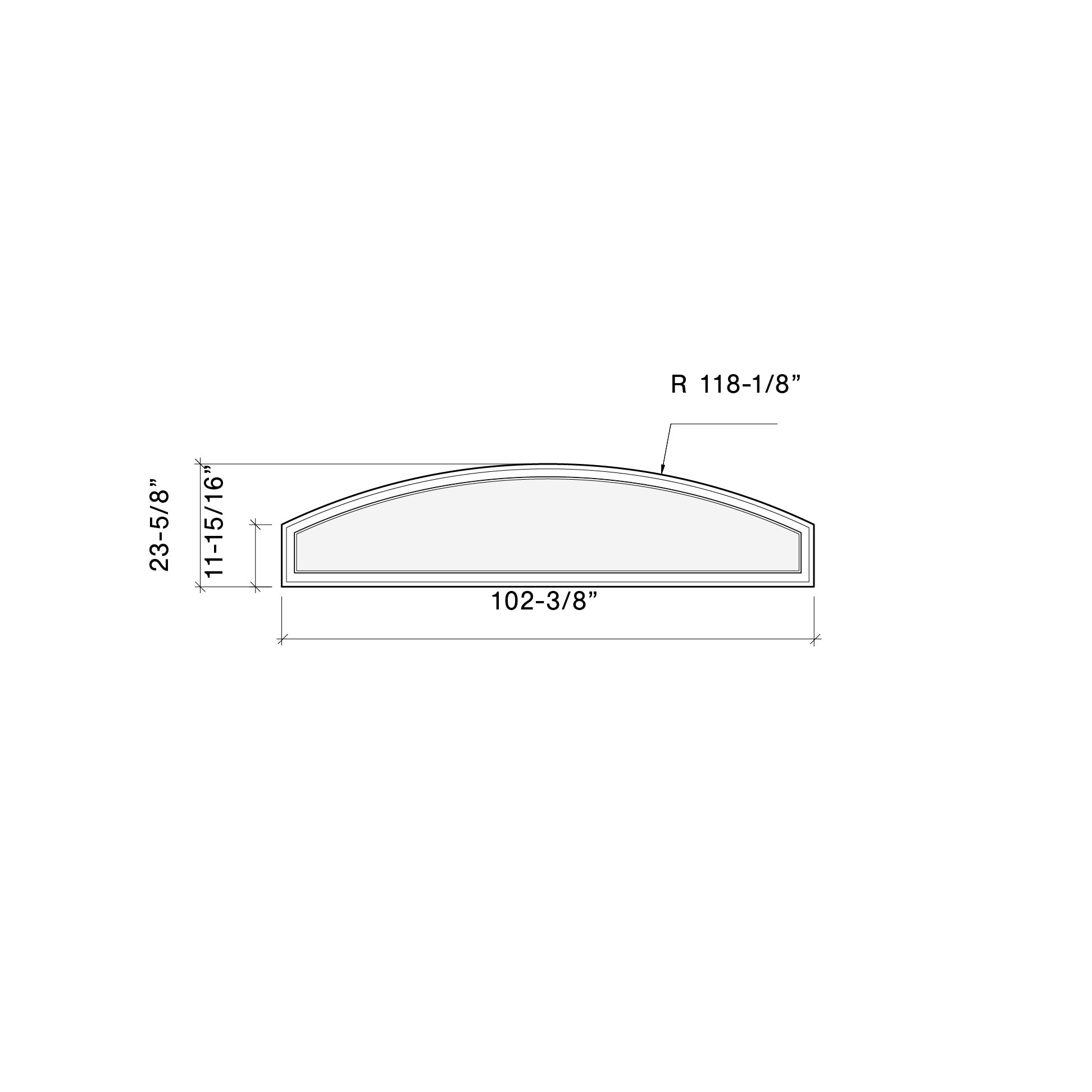

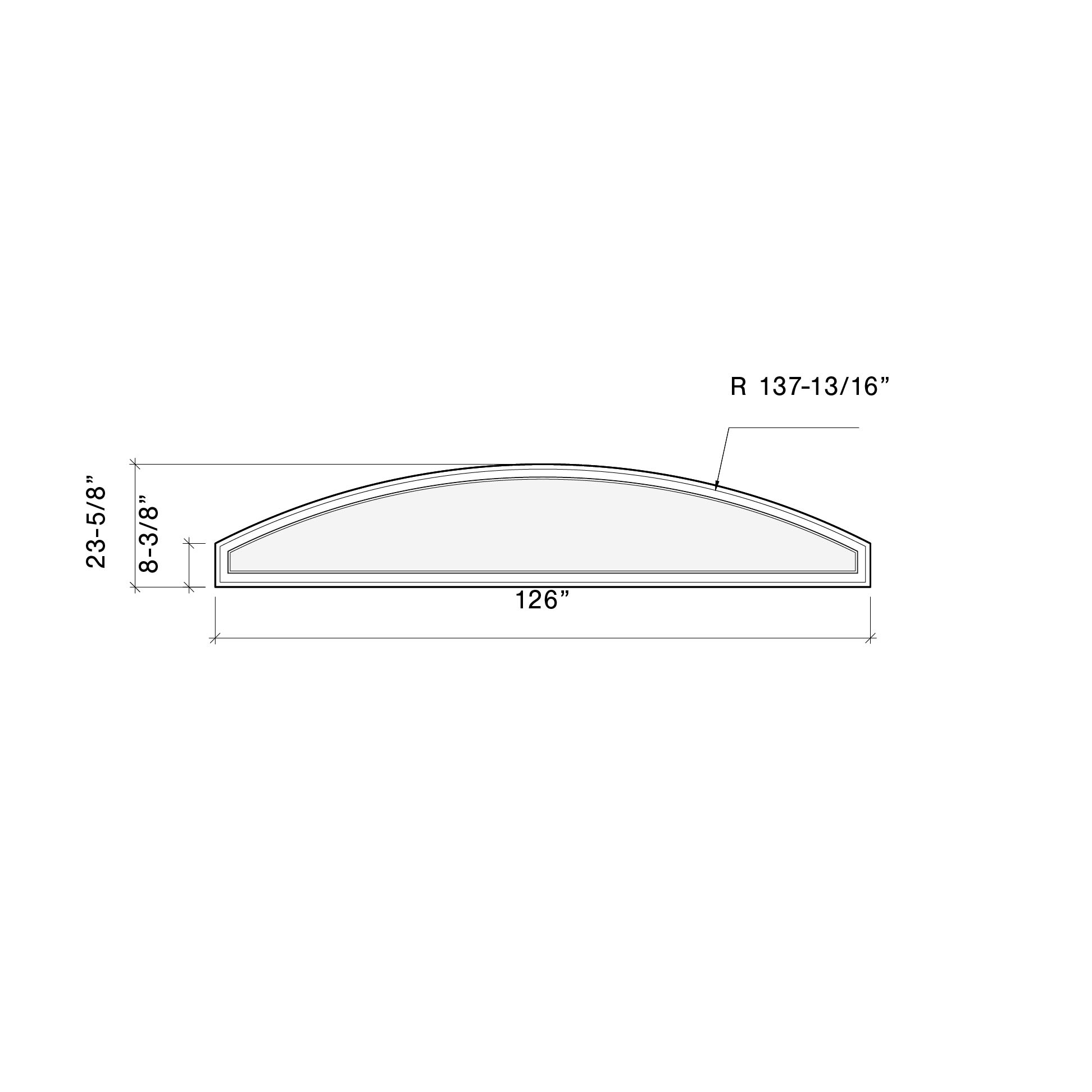

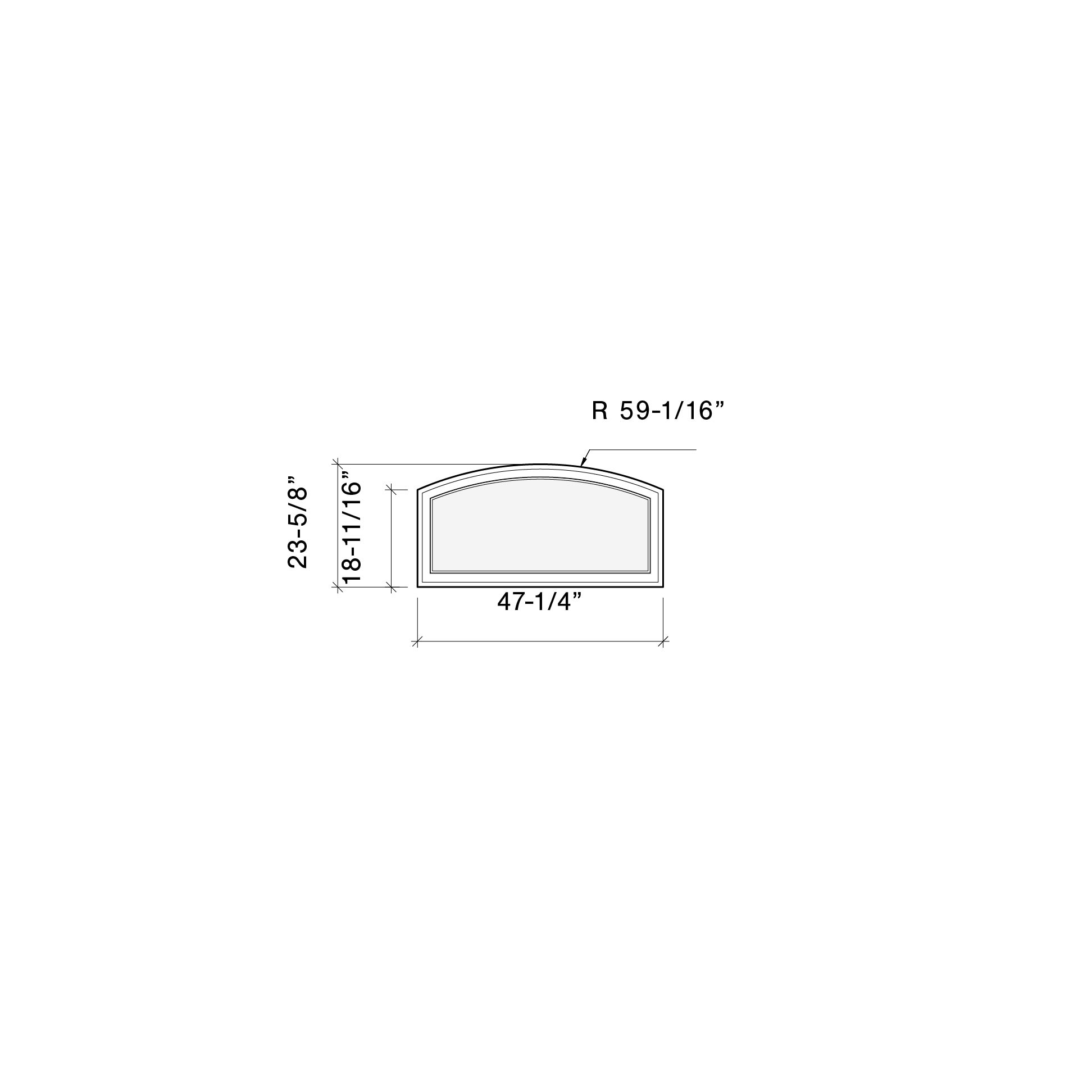

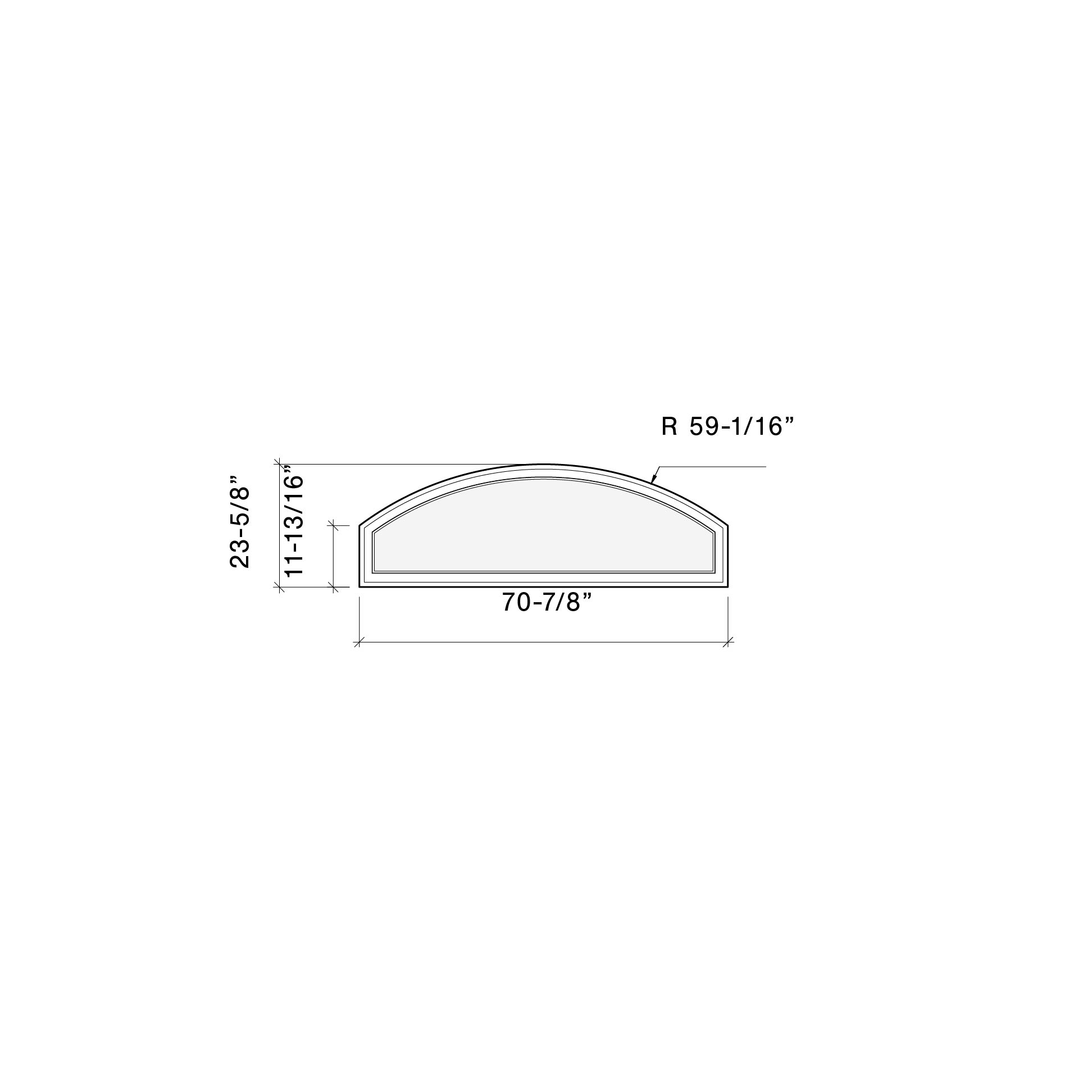

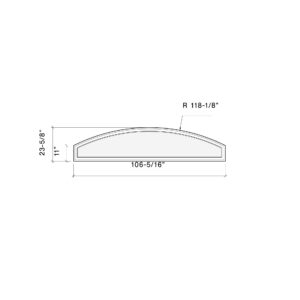

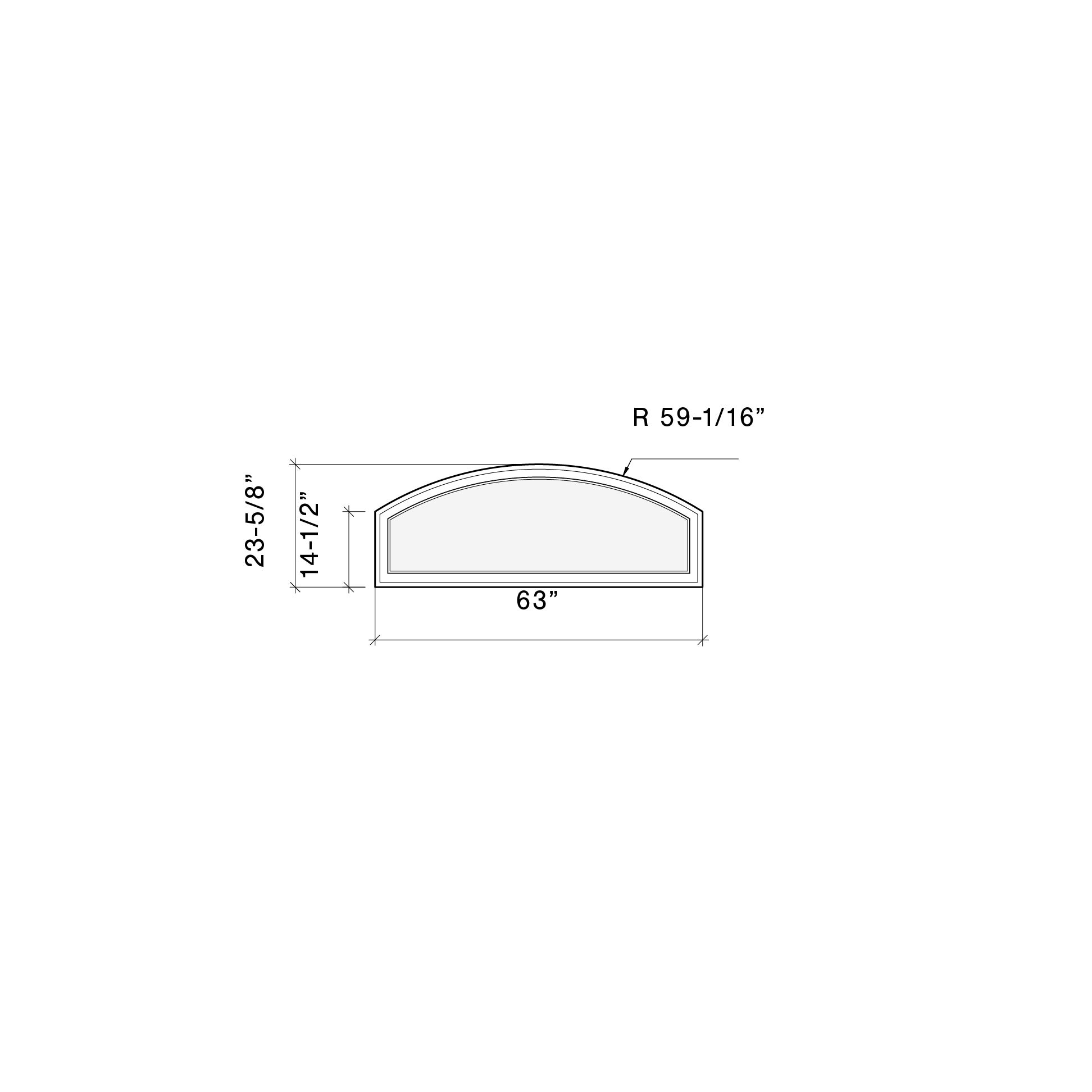

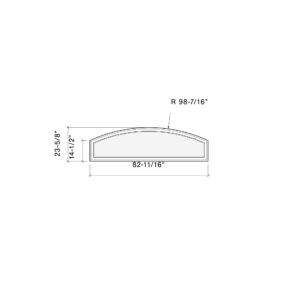

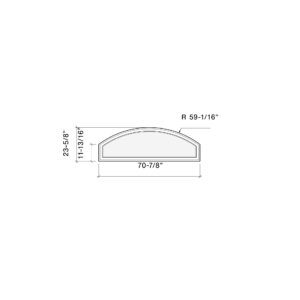

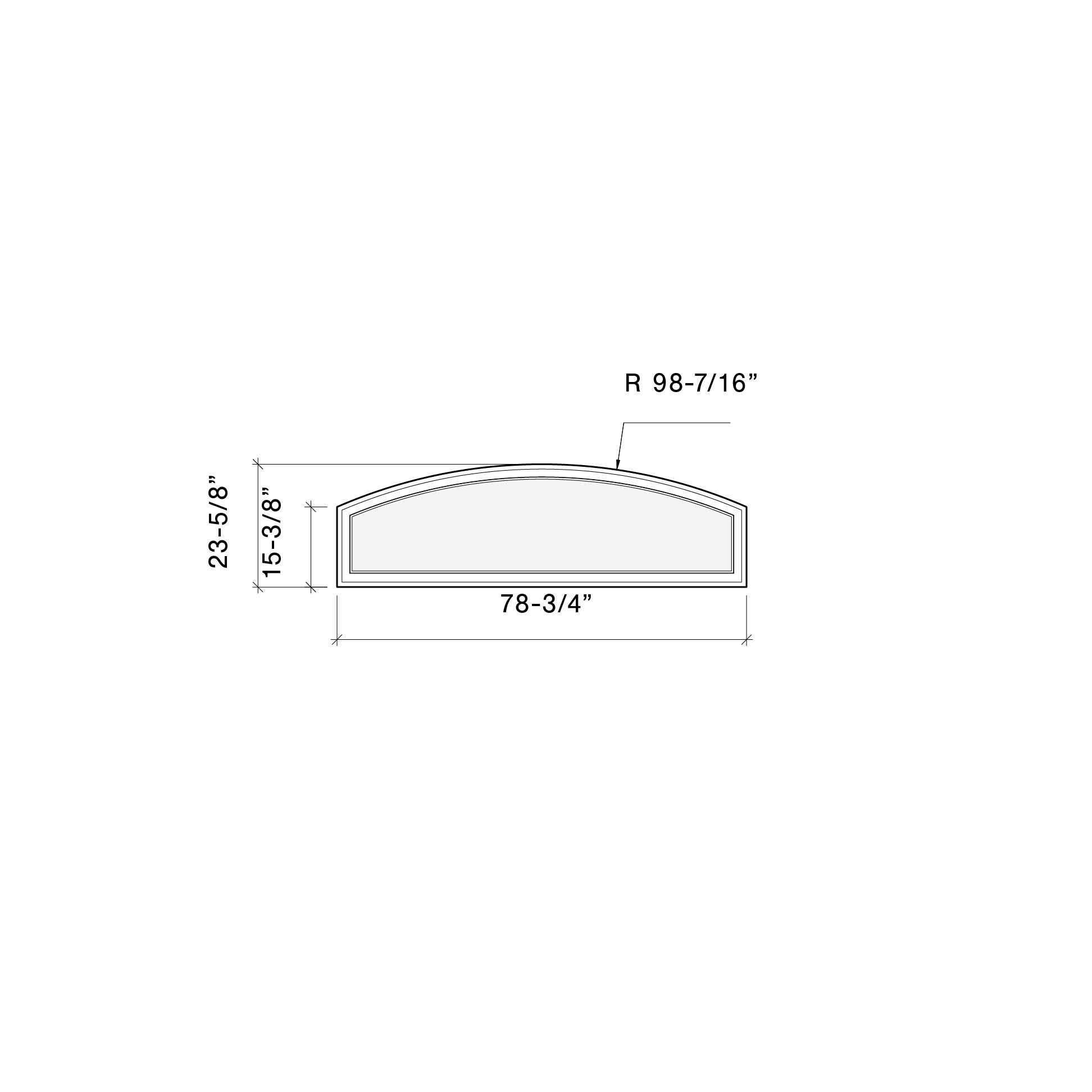

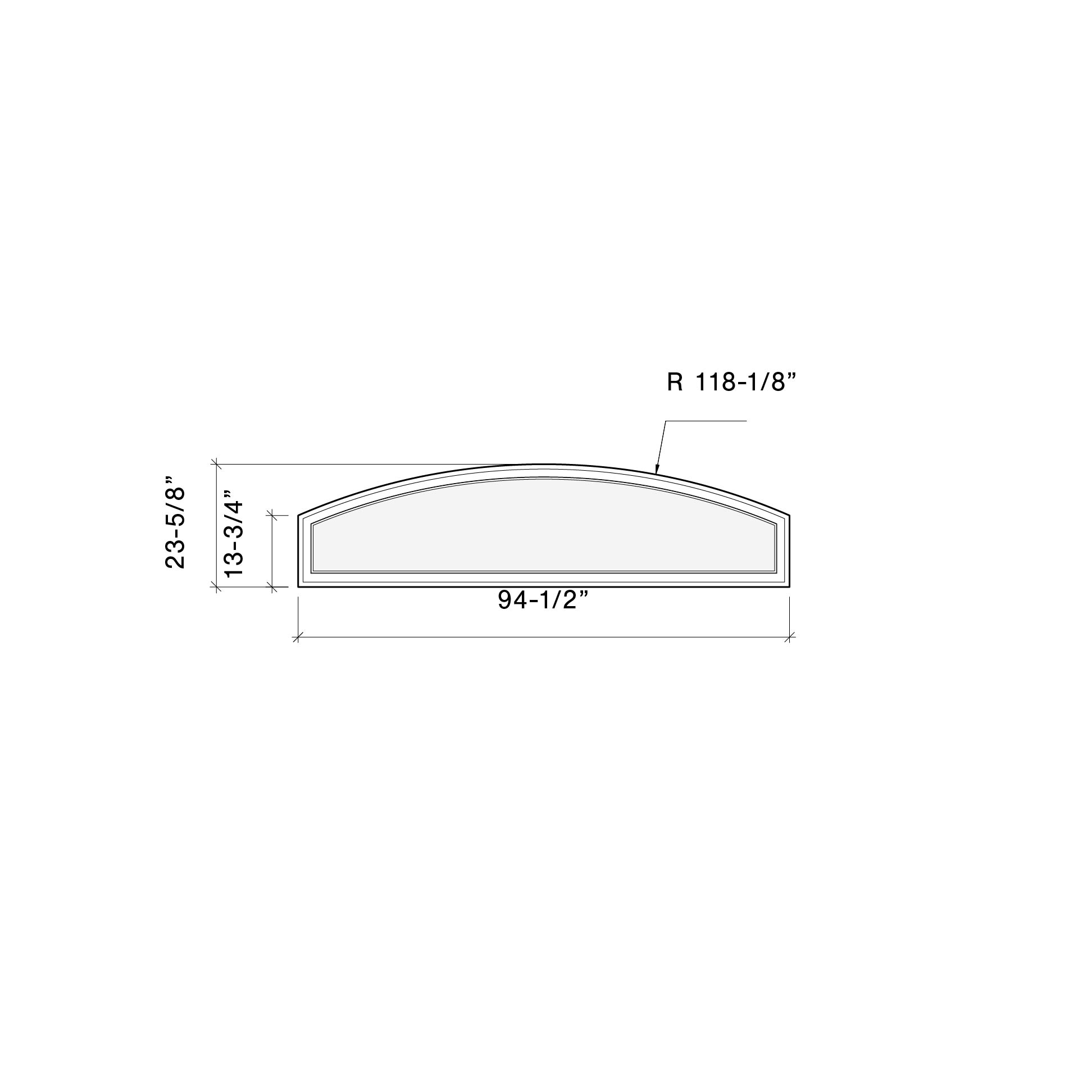

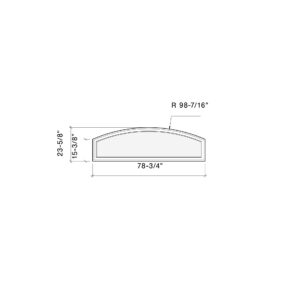

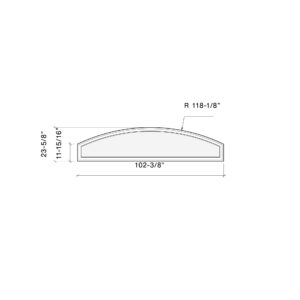

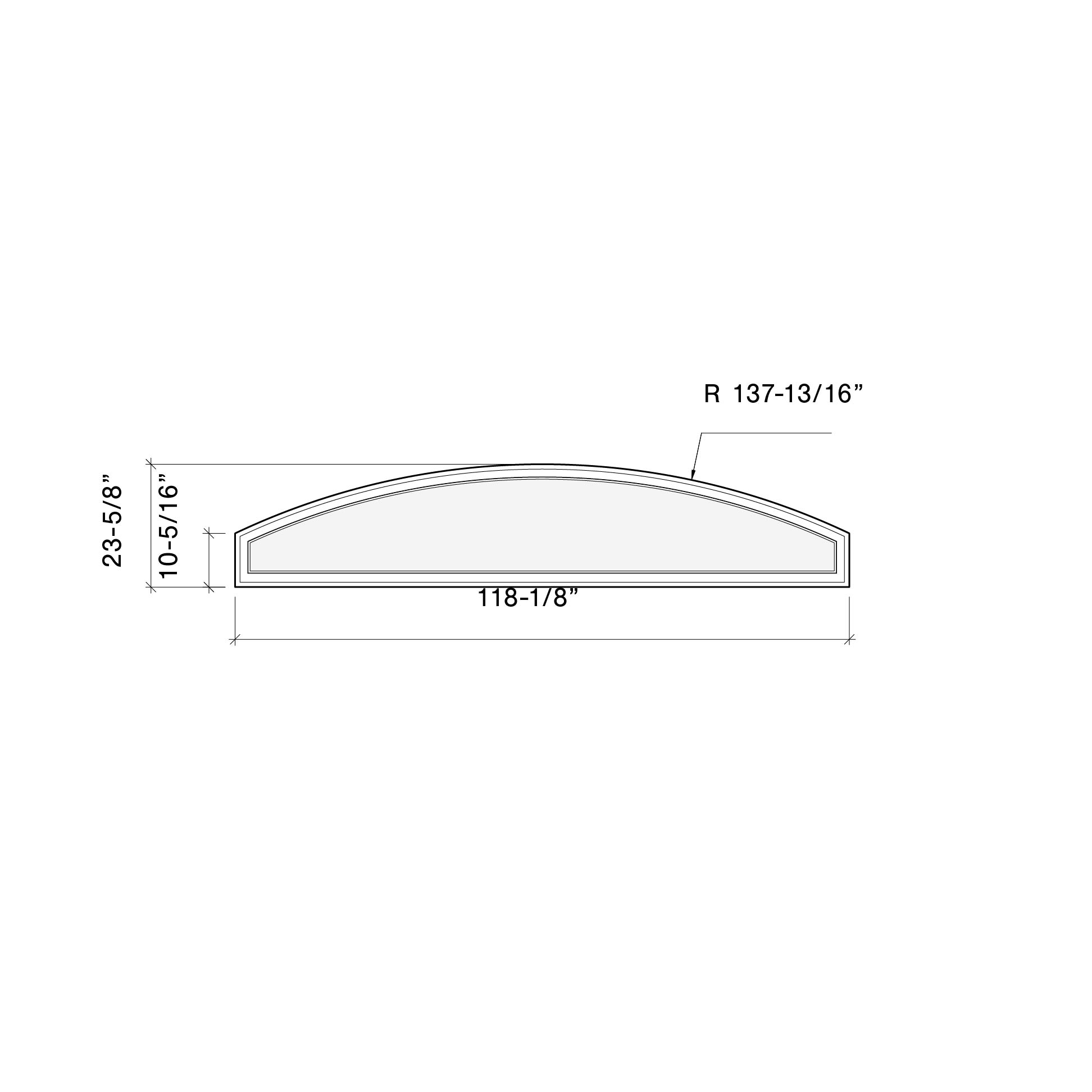

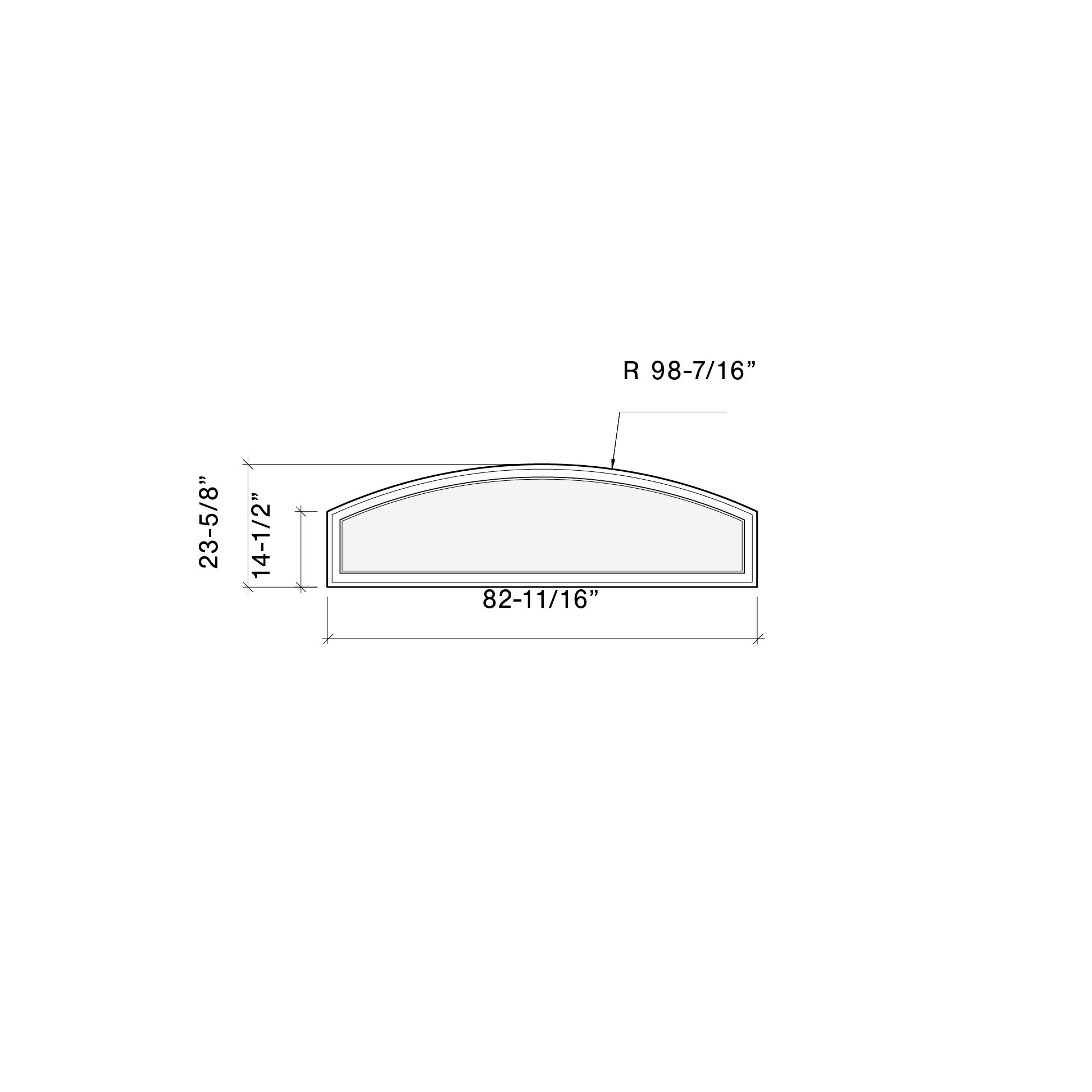

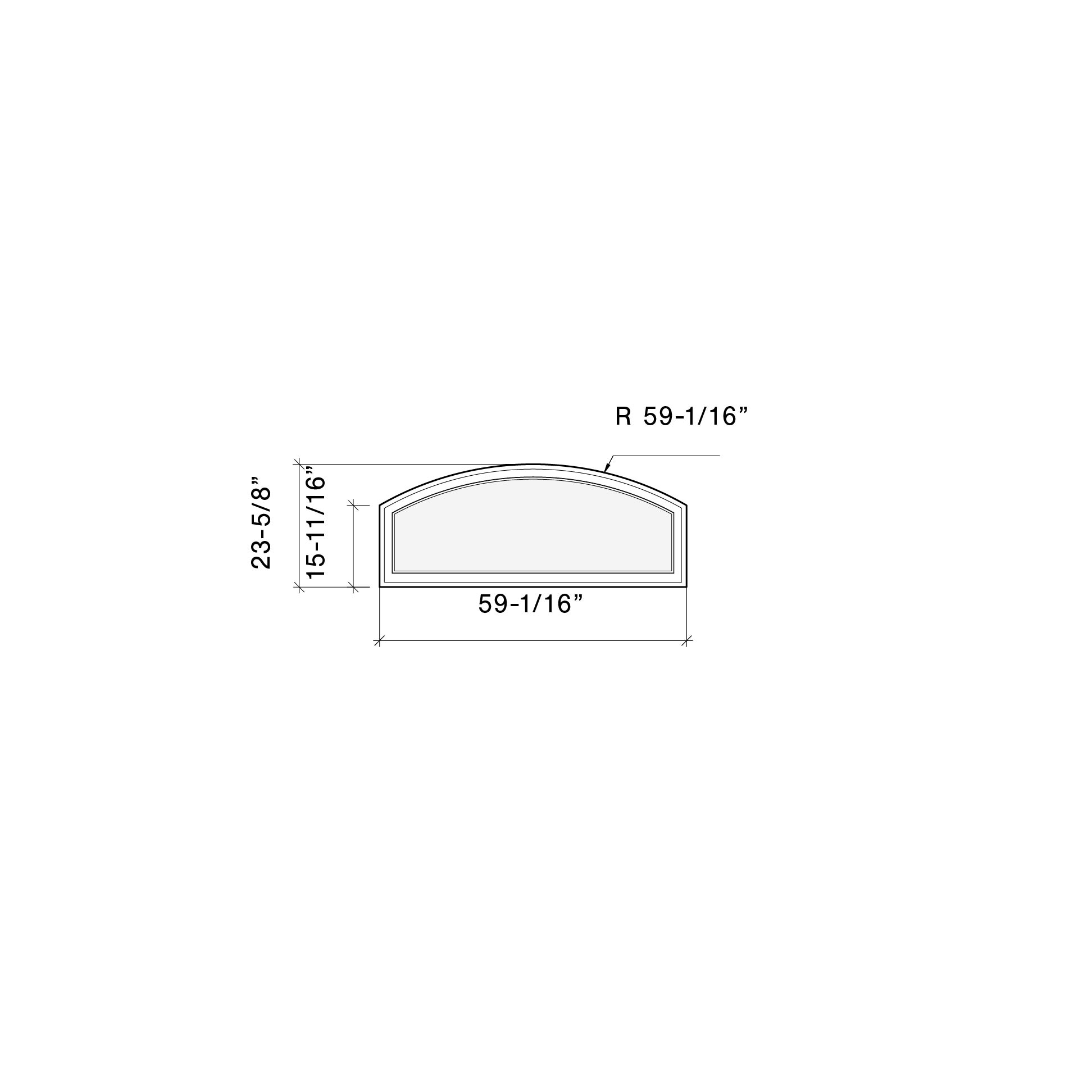

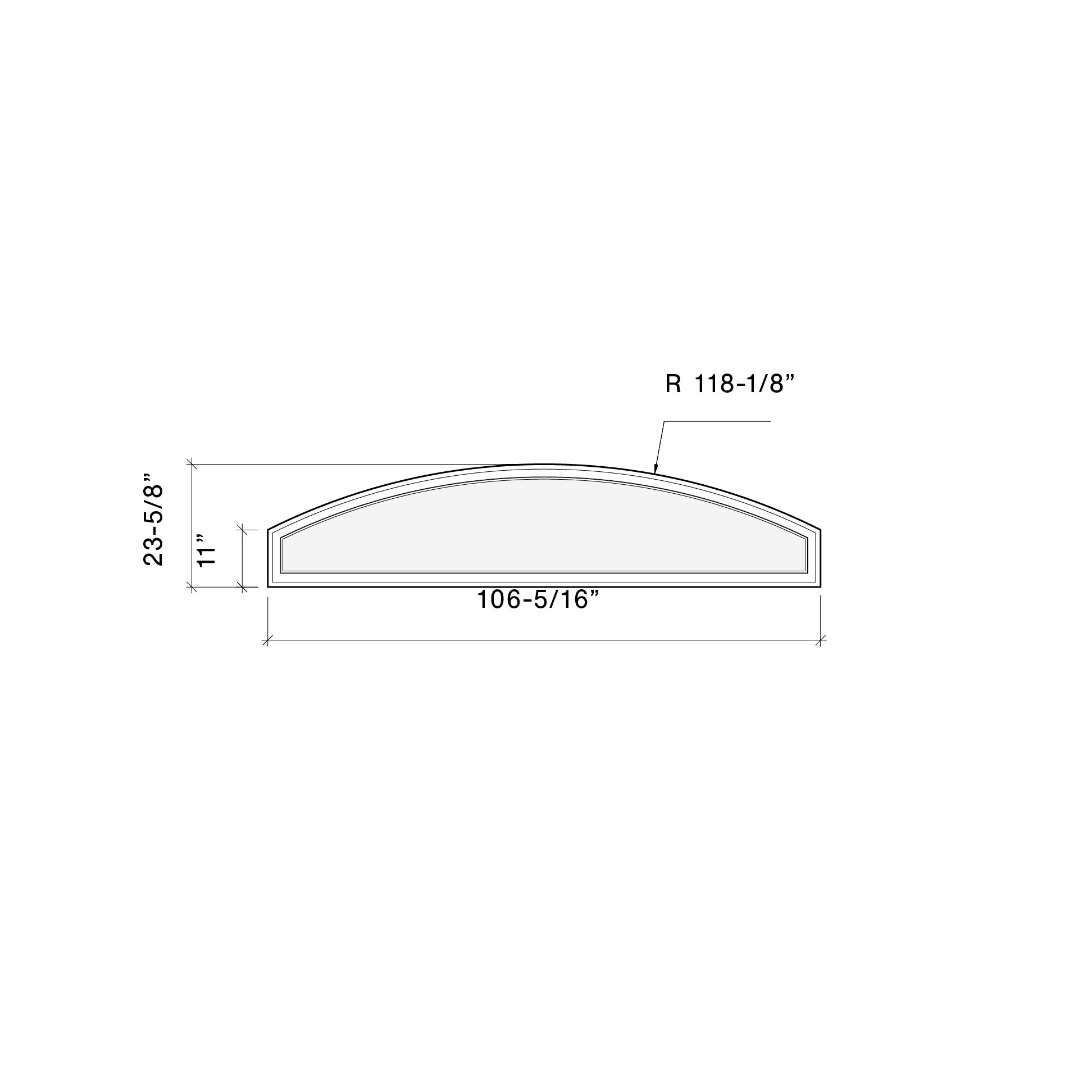

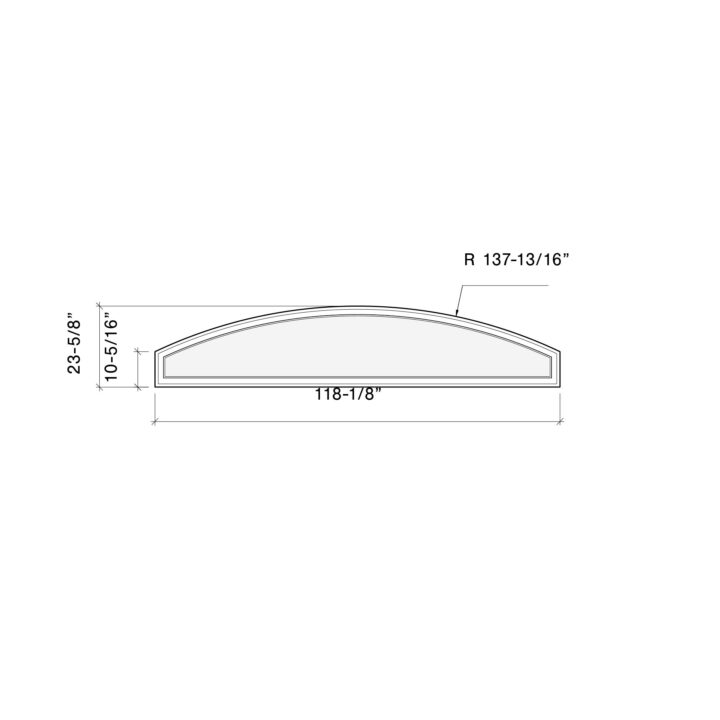

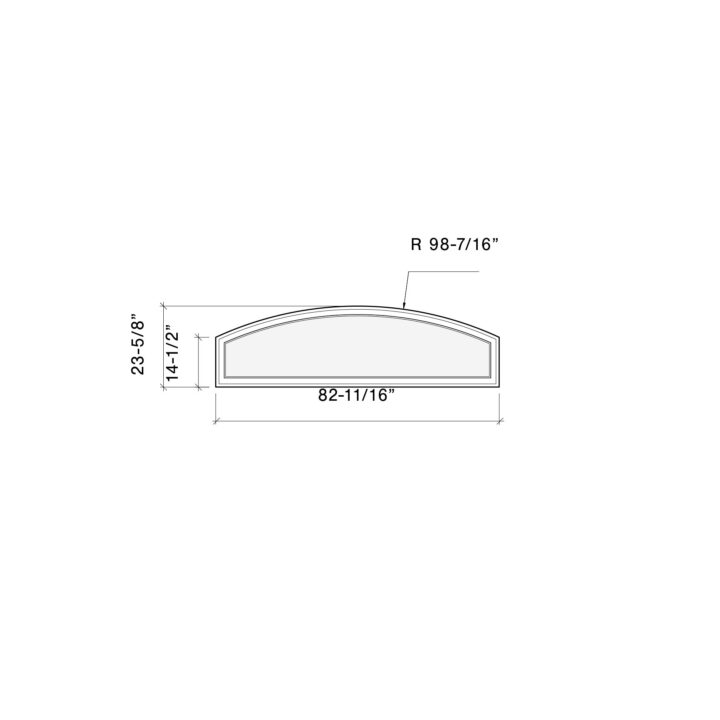

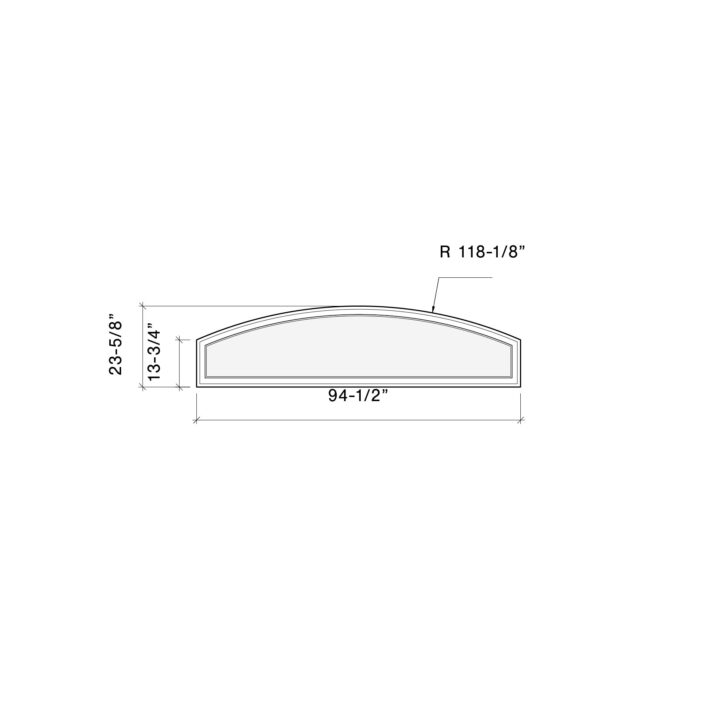

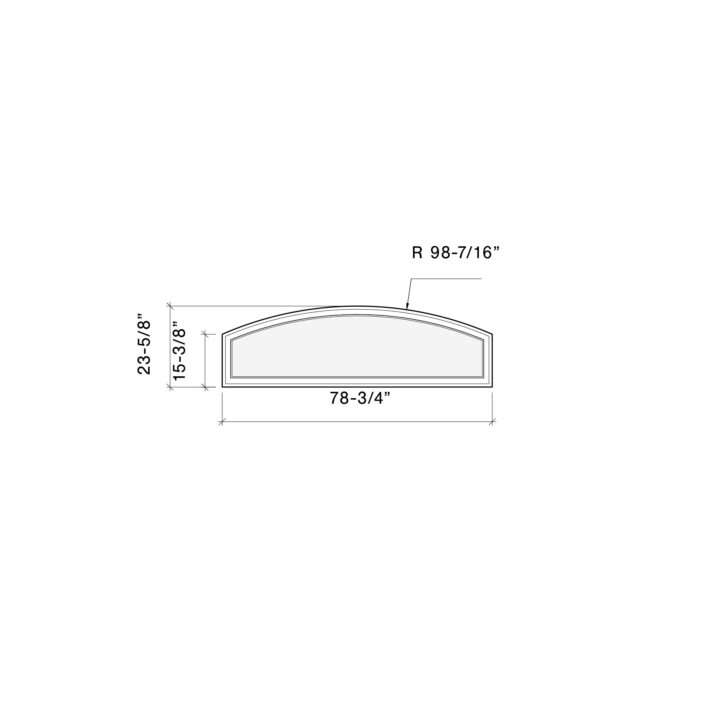

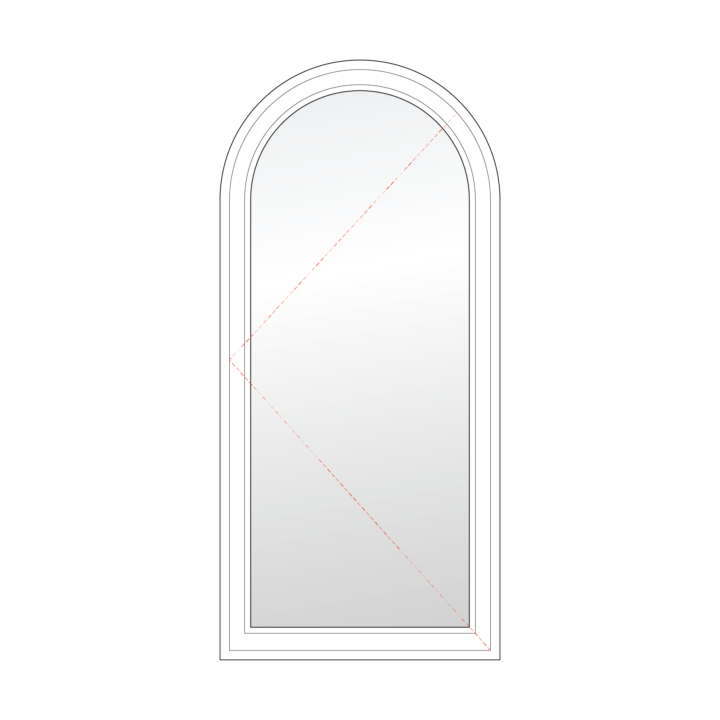

We offer a variety of radius-top configurations.

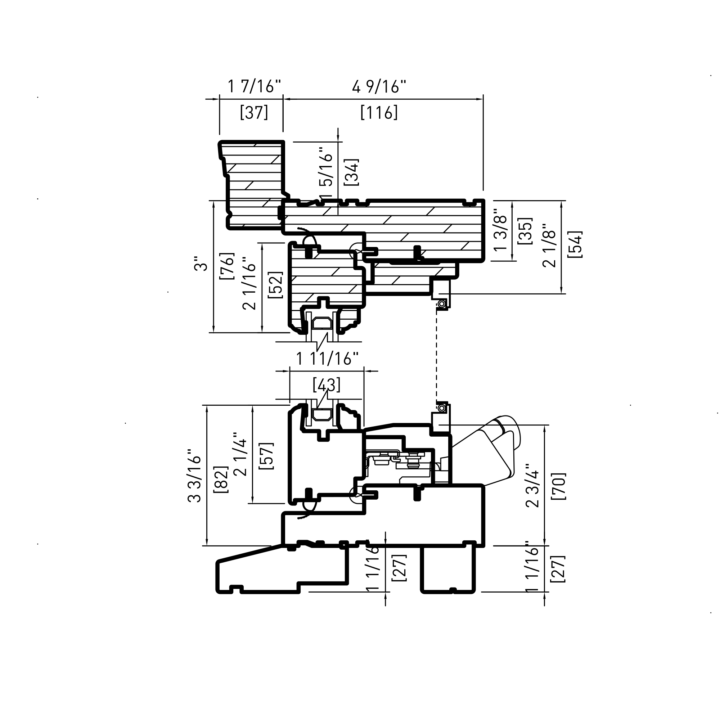

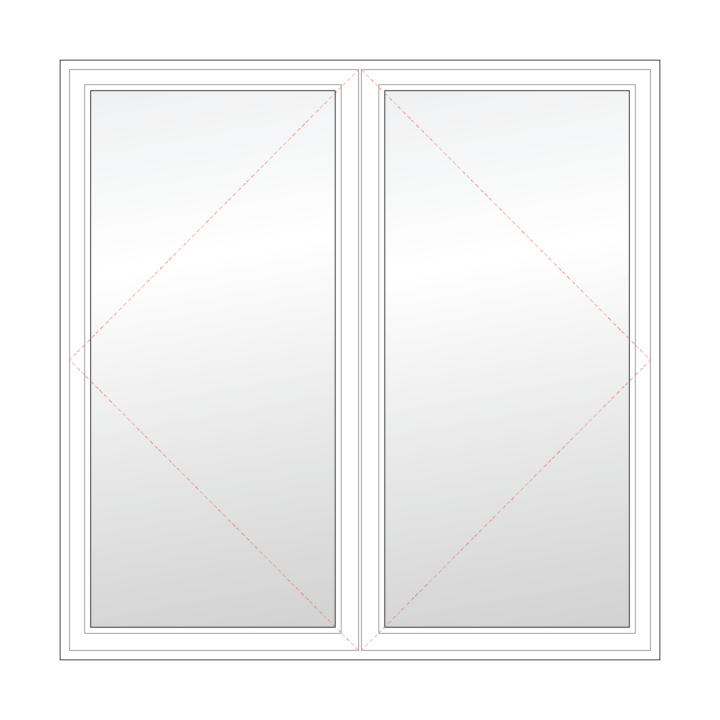

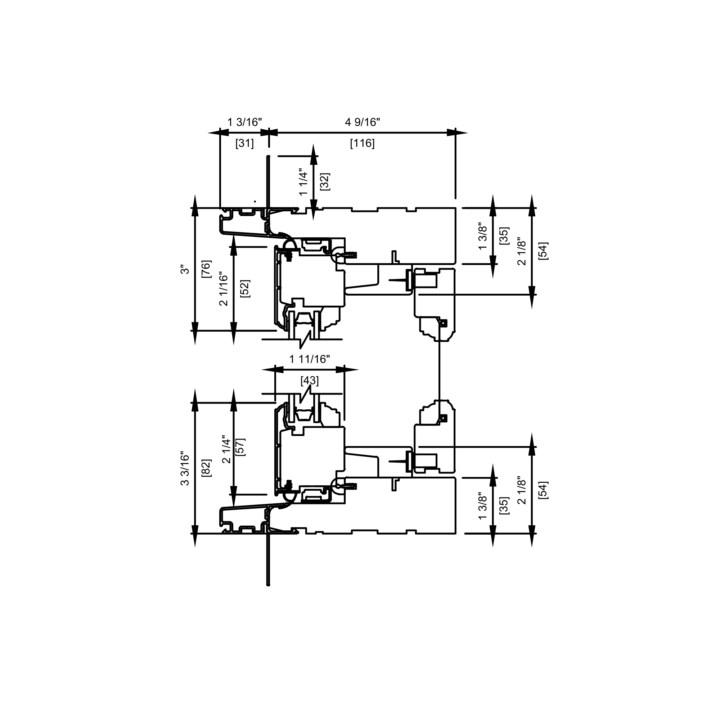

Hinged on both sides, French casements create large openings (our French casement is only available as a pushout).
Oversized operable casements are only available as rotogear.
These charts were last updated November 2024.

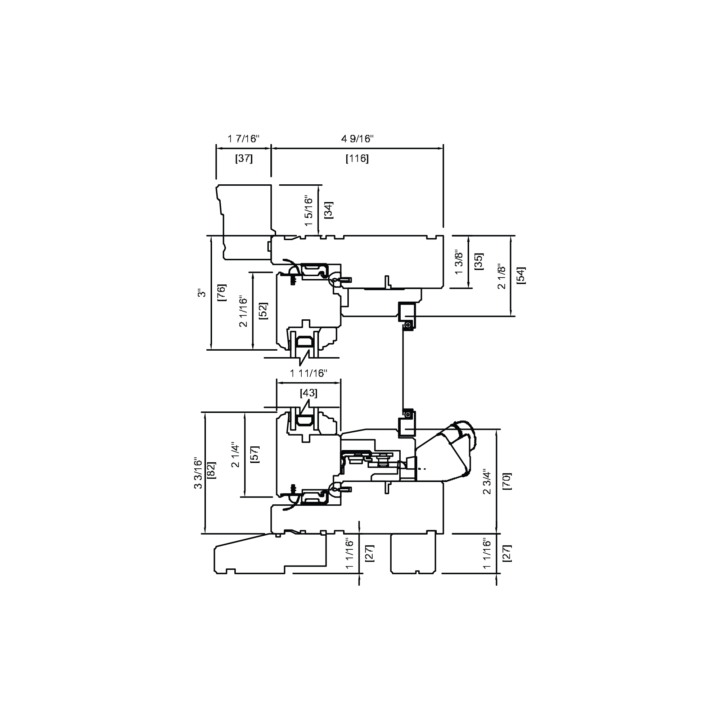

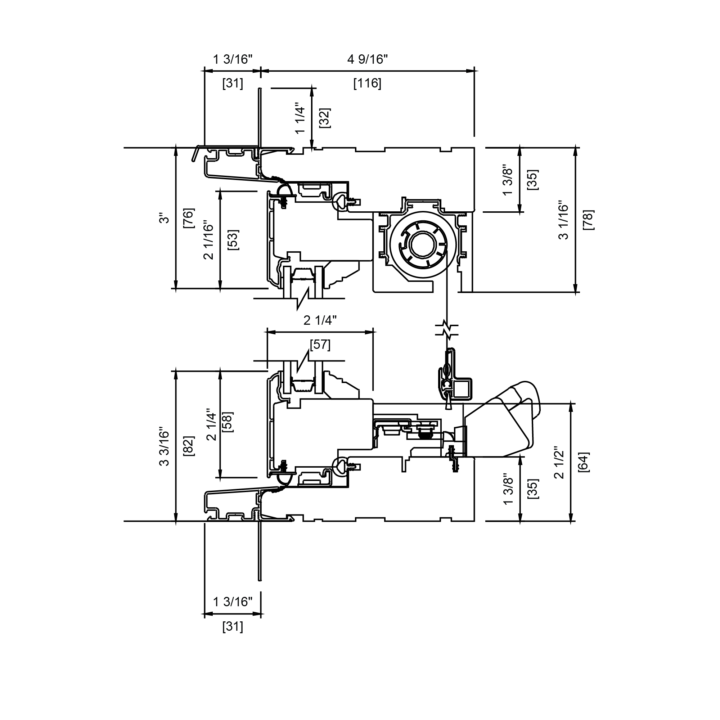

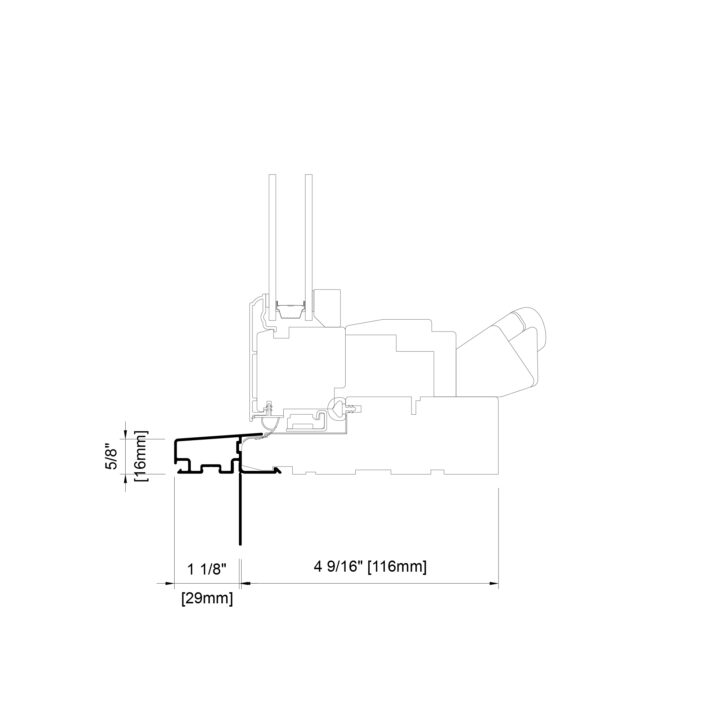

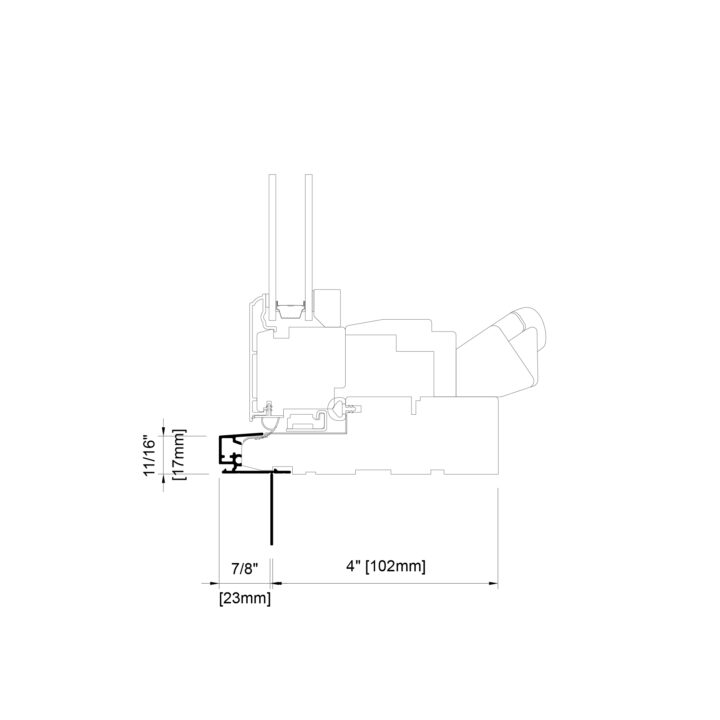

Our contemporary frame cladding moves the nailing flange towards the interior, because of this a jamb extension is needed to obtain a 4-9/16″ jamb depth.

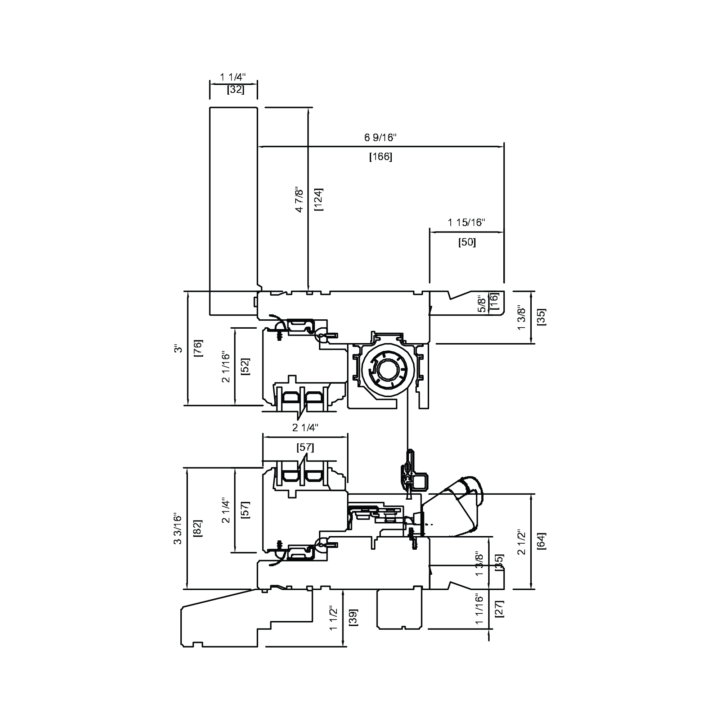

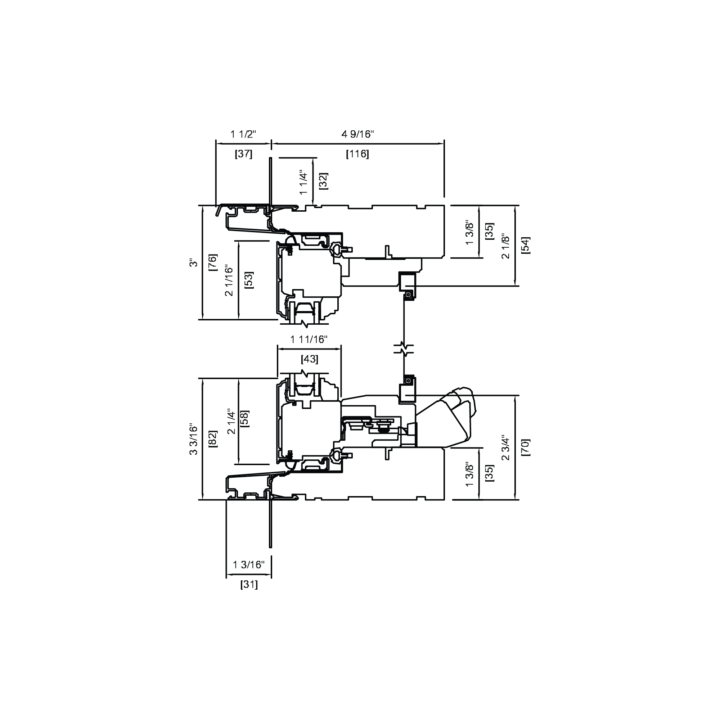

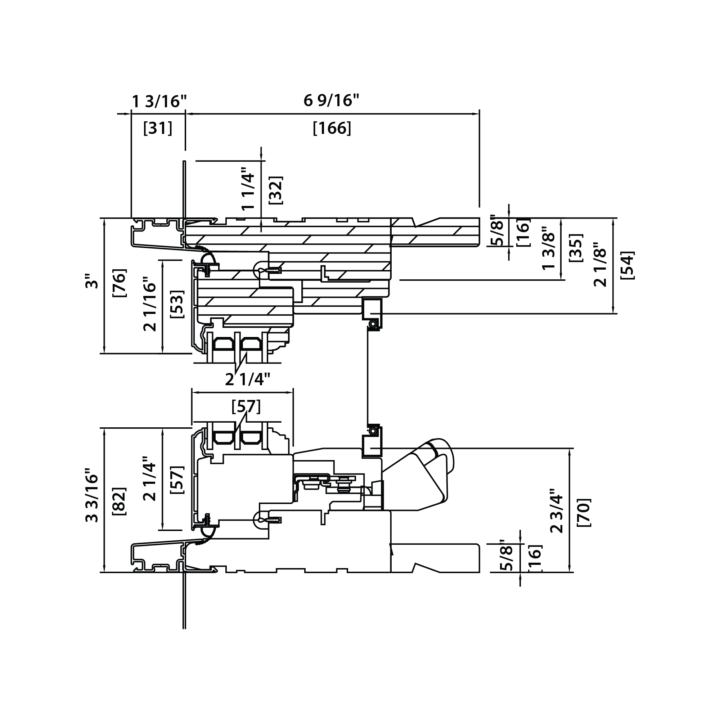

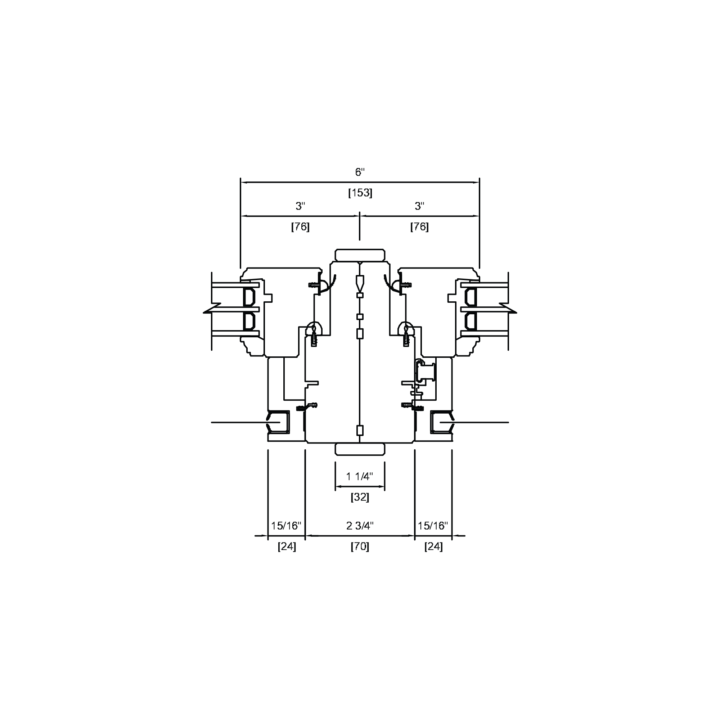

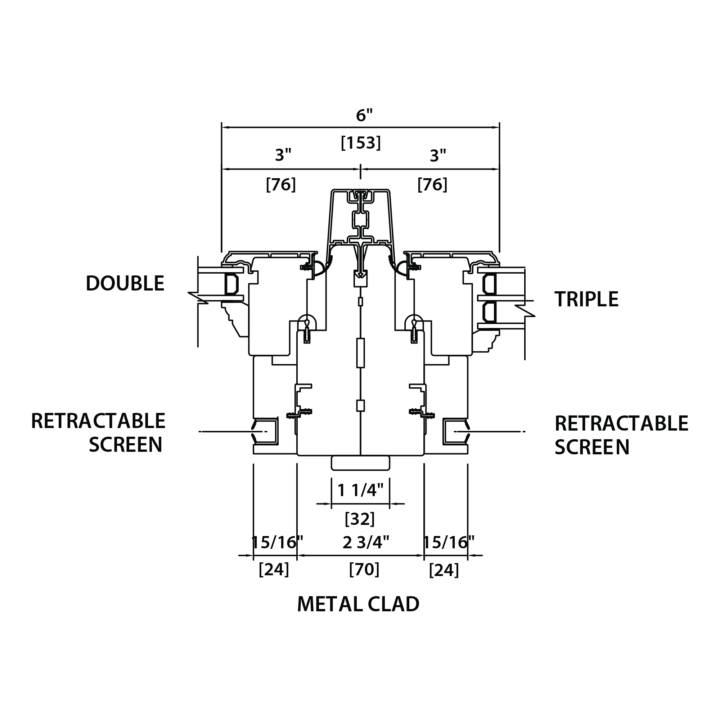

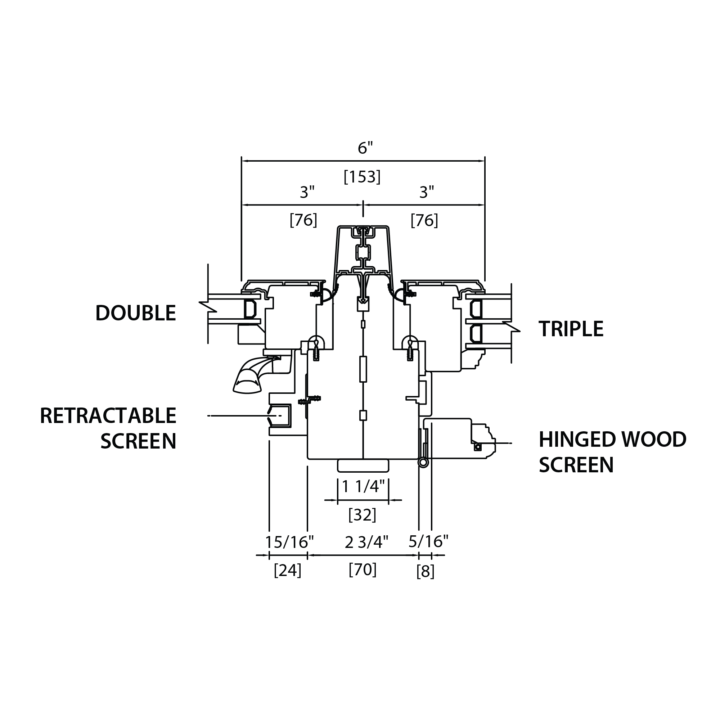

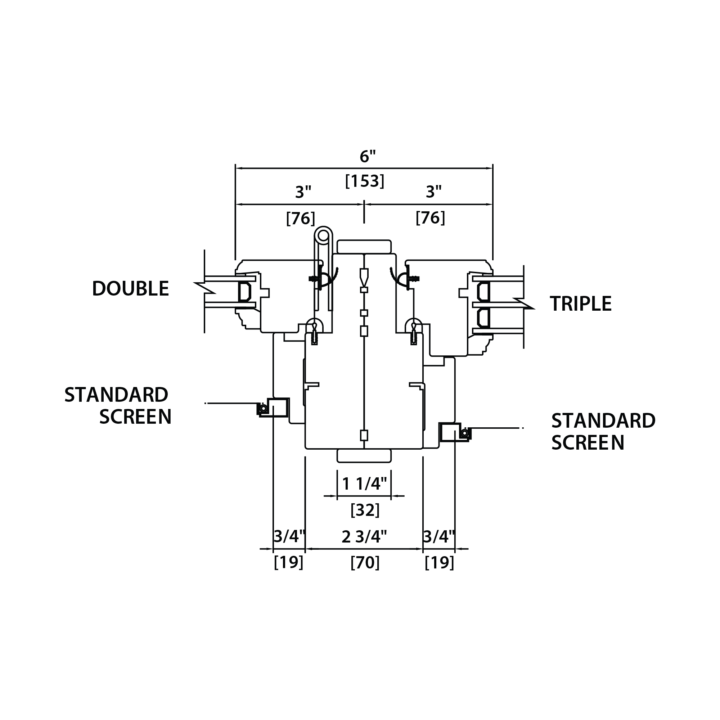

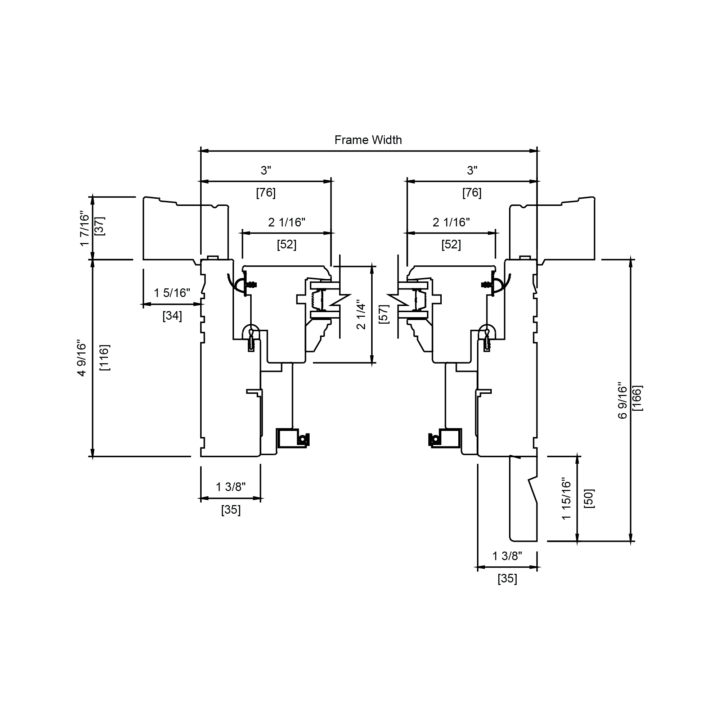

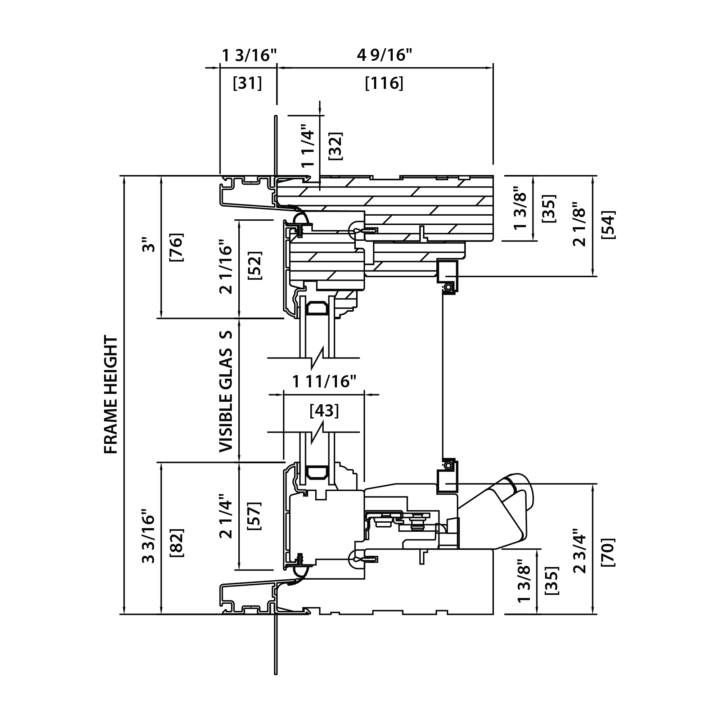

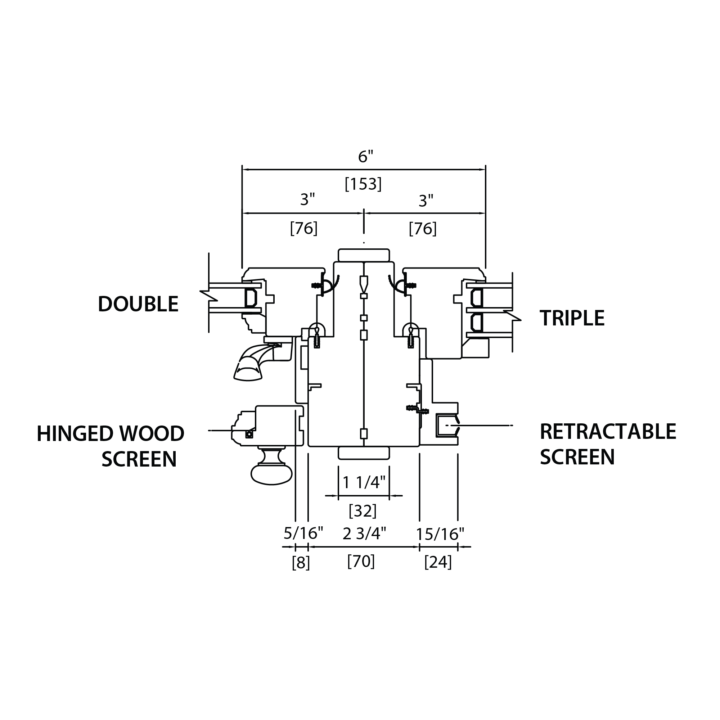

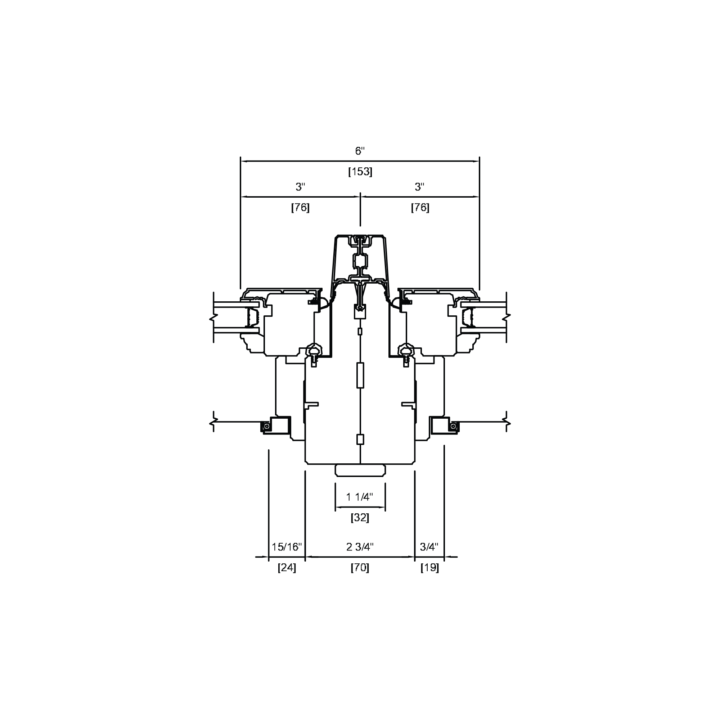

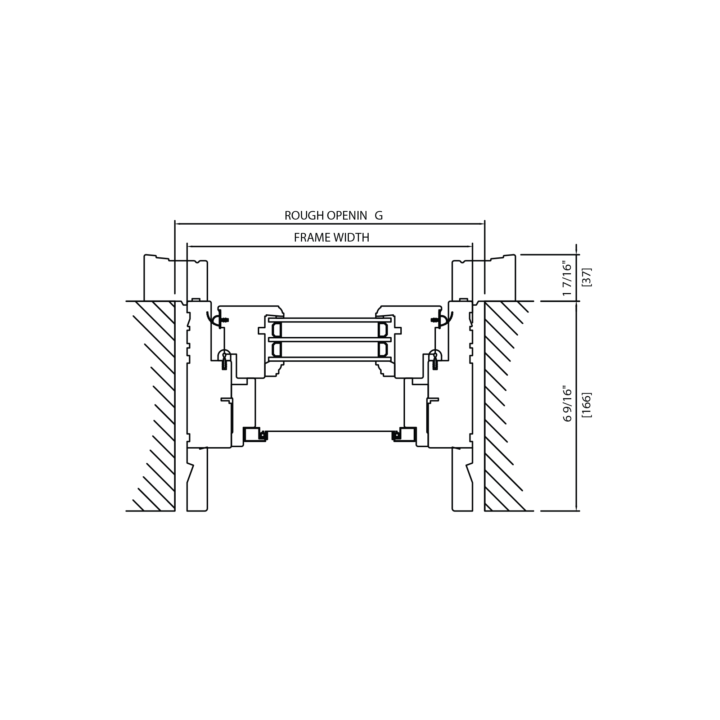

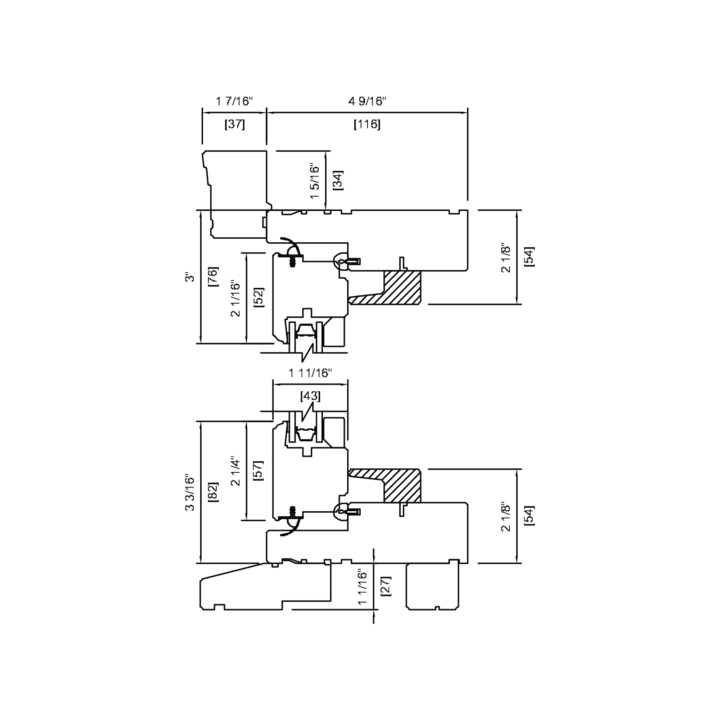

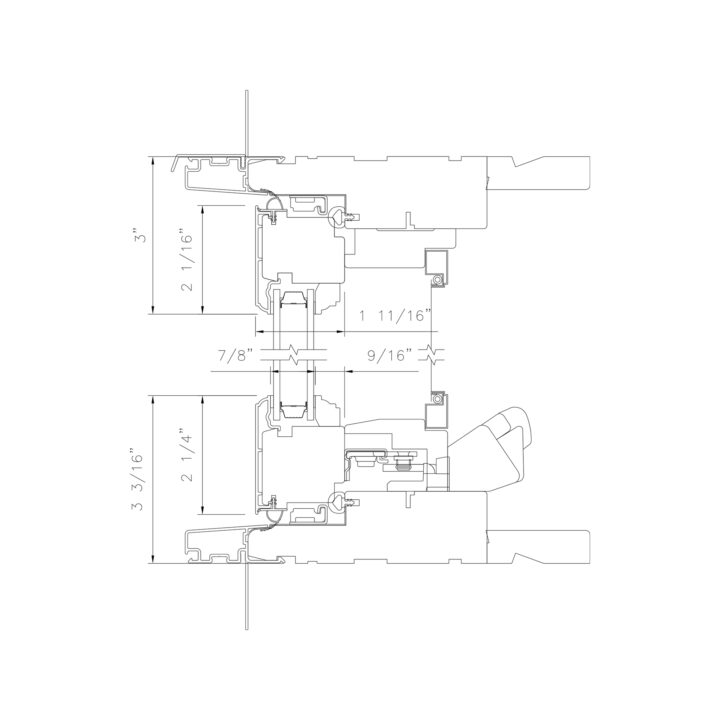

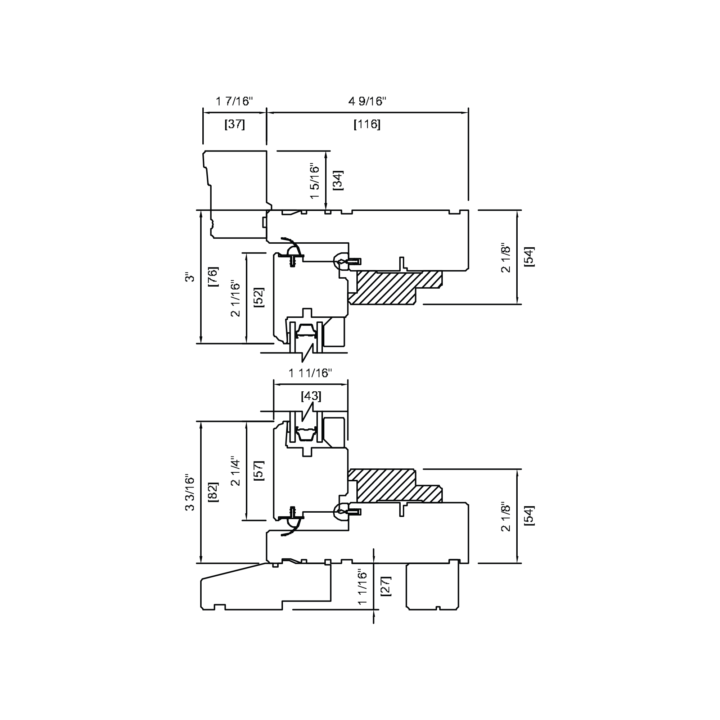

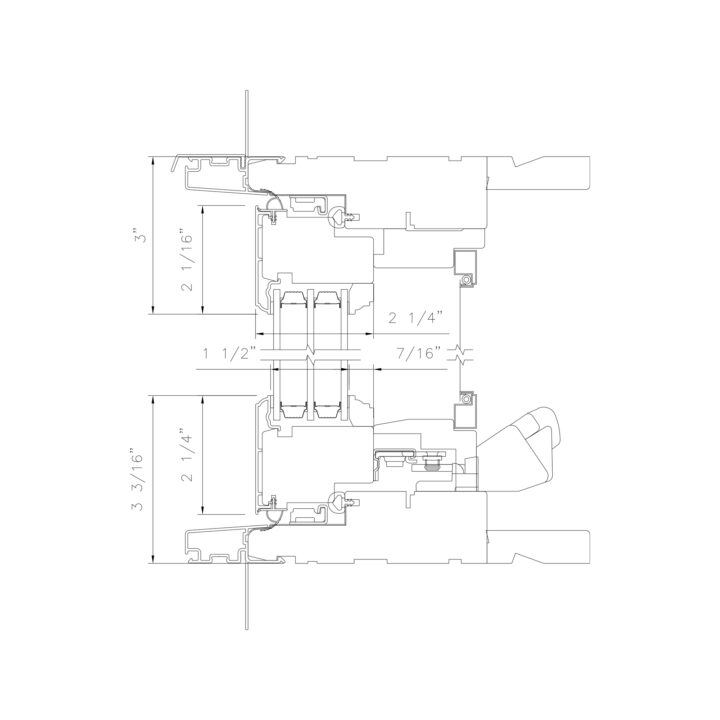

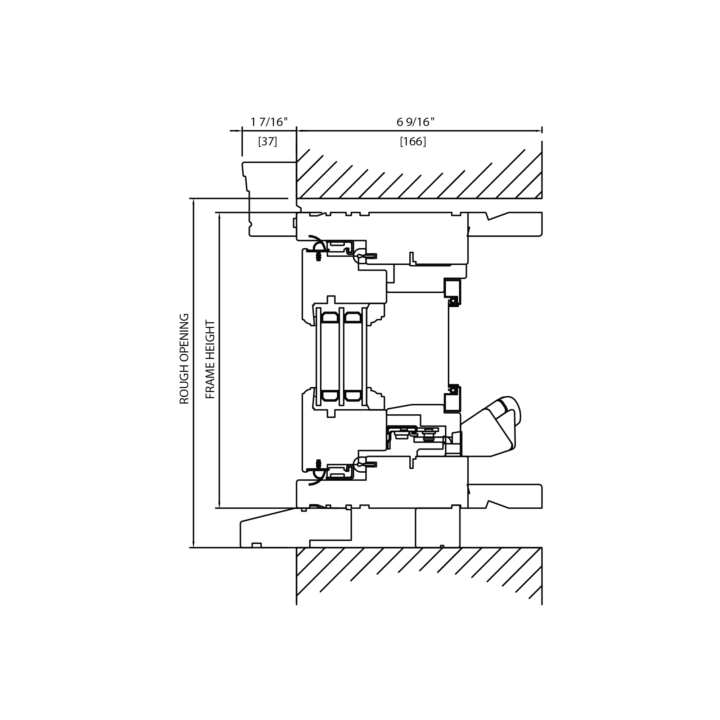

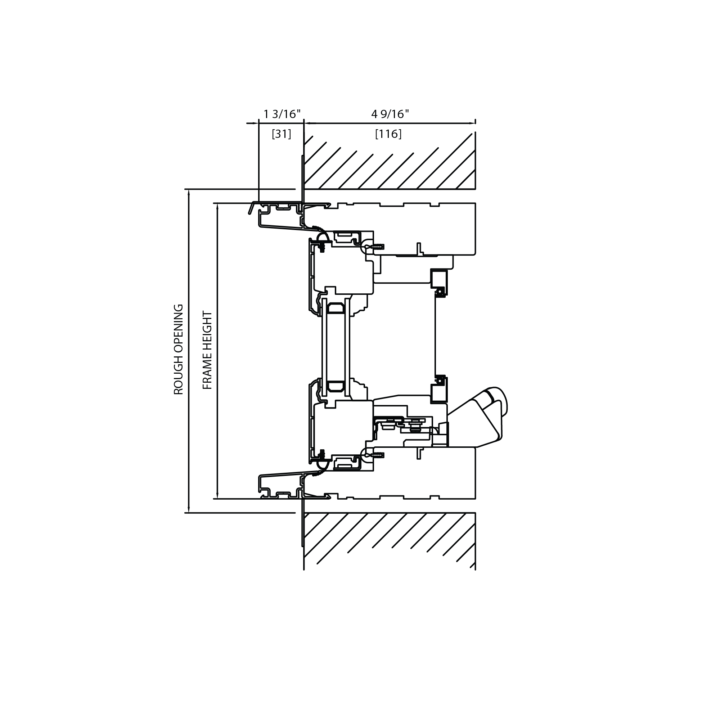

Our dual glazing uses our 1-11/16″ dual sash. Our triple glazing uses our 2-1/4″ triple sash, which moves the interior moldings further towards the interior.
Our oversized Casements are only available as Rotogears.
Other jamb widths available. All dimensions to have +/- 1/16” (2mm) tolerance.
All dimensions to have +/- 1/16” (2mm) tolerance.
