BiFold Doors

Overview

Our dramatic BiFold doors consist of multiple panels that fold open, creating a large opening that makes for a stunning transition to the fresh air and spaciousness of outdoor living. Available in configurations of up to 16 panels (52 feet wide), our customers are bound to make a statement with our BiFold doors.

Product Features

Our BiFold Doors use the same panels as our Terrace Doors and French Doors, ensuring seamless continuity of aesthetics between product lines
We can do system-wide configurations of up to 52 feet with panel heights of around 9 feet
All configurations can be accessible from the exterior using one of our keyed Terrace Door handle-sets or our keyed Twin Point BiFold handle
Utilizes the same stainless steel European multipoint gear that we use on our swinging doors
Available in our beautiful vertical-grain Coastal Douglas Fir or alternative wood species
Unique to this product, the weight of the door is carried at the head
Retractable screens can be integrated, allowing for maximum ventilation and protection from insects

The preparation of the rough opening for large openings such as those required by, but not limited to LiftSlide, BiFold and MultiSlide doors have unique requirments. Structural headers that allow for deletion no greater than 1/8″ along the unsupported length one the header is fully loaded are required. Special care needs to be taken when installing any unit including transoms above such large opening units. Loewen is not responsible for site measurements or the determination of structural and architectural requirements for the installation of large opening products such as but not limited to LiftSlide, BiFold and MultiSlide doors. Site specifications are the responsibility of building professionals or engineers to determine.

Looking for Loewen standard sizes? Our Product Configurator allows you to browse our standard sizes and make configurations.

Standard BiFold Sizes

Our Legacy PDF Size Charts

Narrow Stile Sizes

Standard Stile Sizes

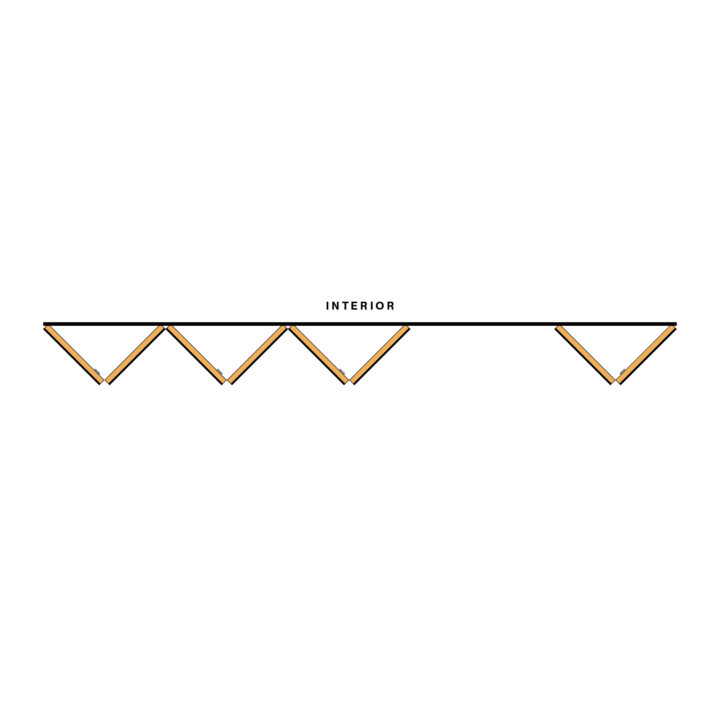

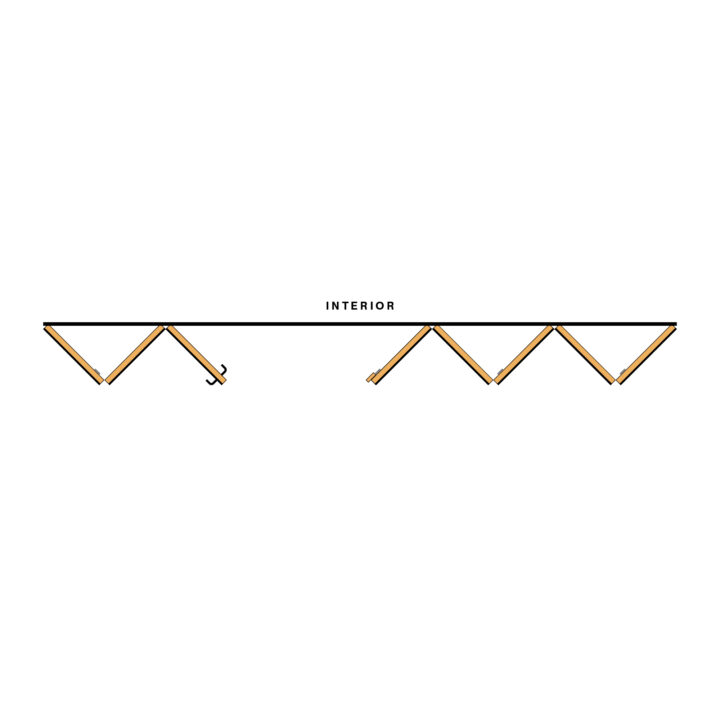

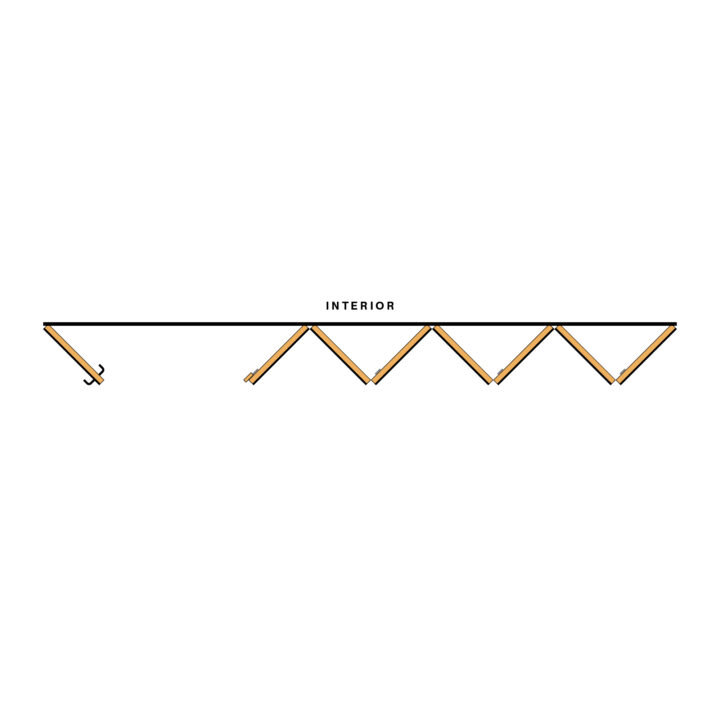

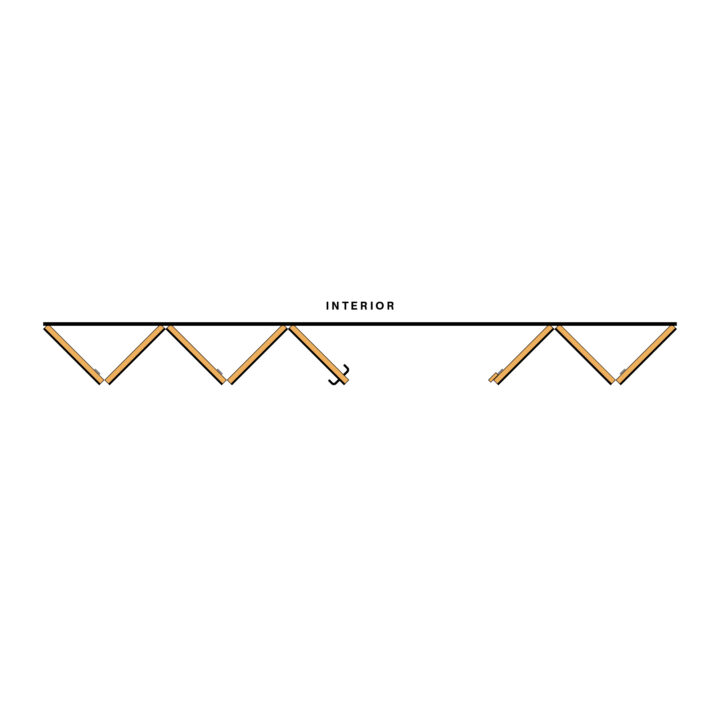

BiFold Door Openings

Even BiFold Openings

The three possible openings in a BiFold door with an even number of panels.

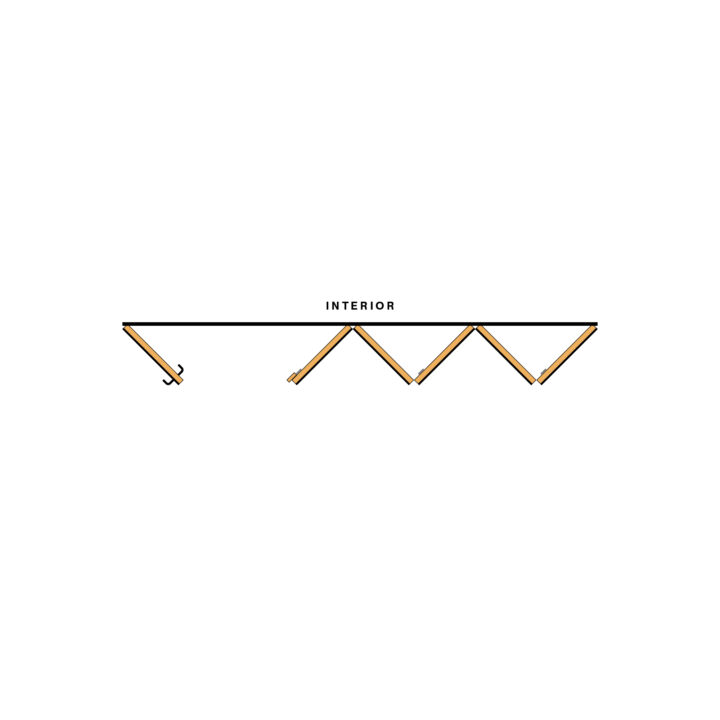

Bi-Parting (Outswing) *Allows for man-door.

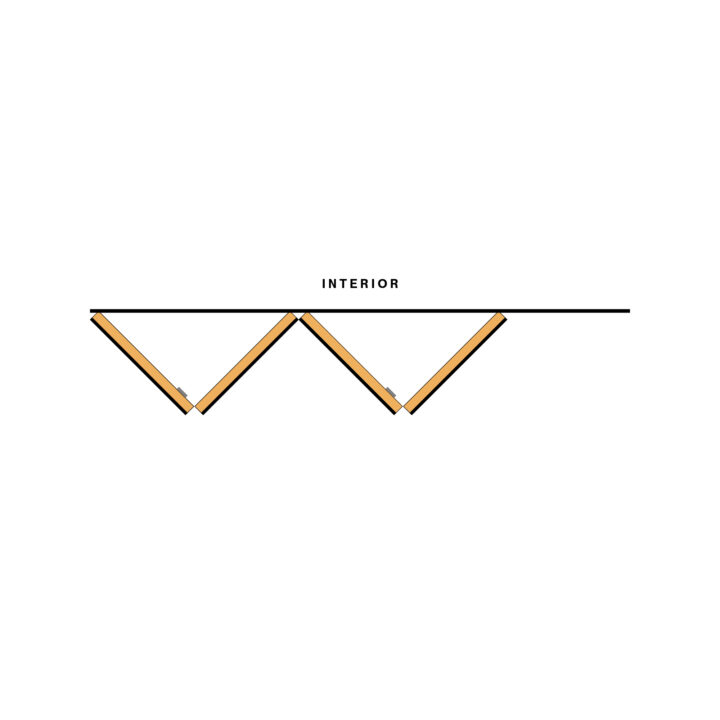

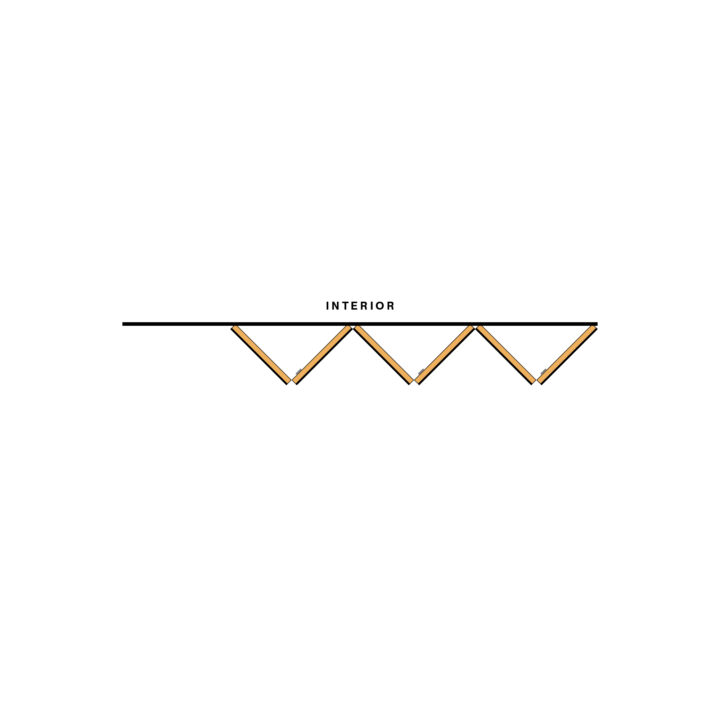

Straight-Stacking
The opening panel-edge does not swing outward. Operation of this door could include:

All Shoot Bolts (not accessible from the exterior)
All Non-Keyed Twin Point Locks (not accessible from the exterior)
Non-Keyed & Keyed Twin Point Locks (accessible from the exterior)

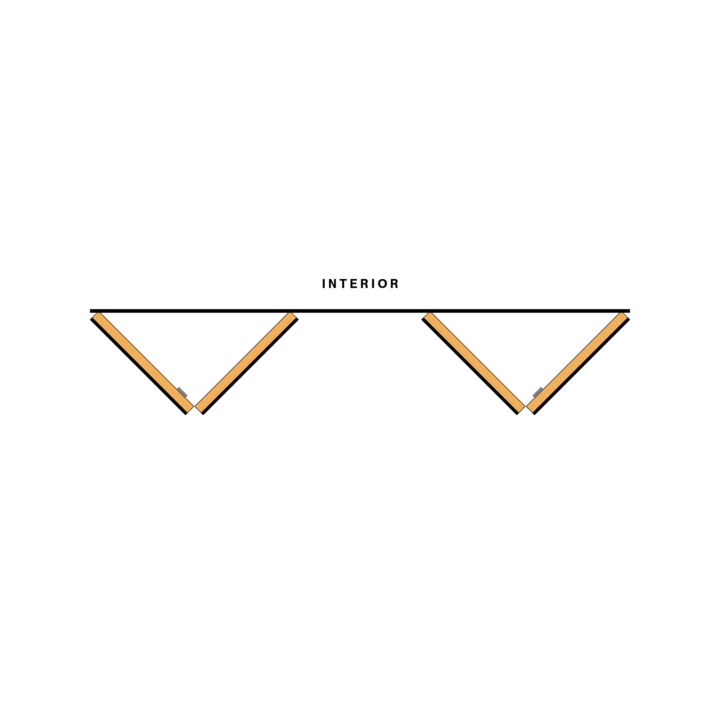

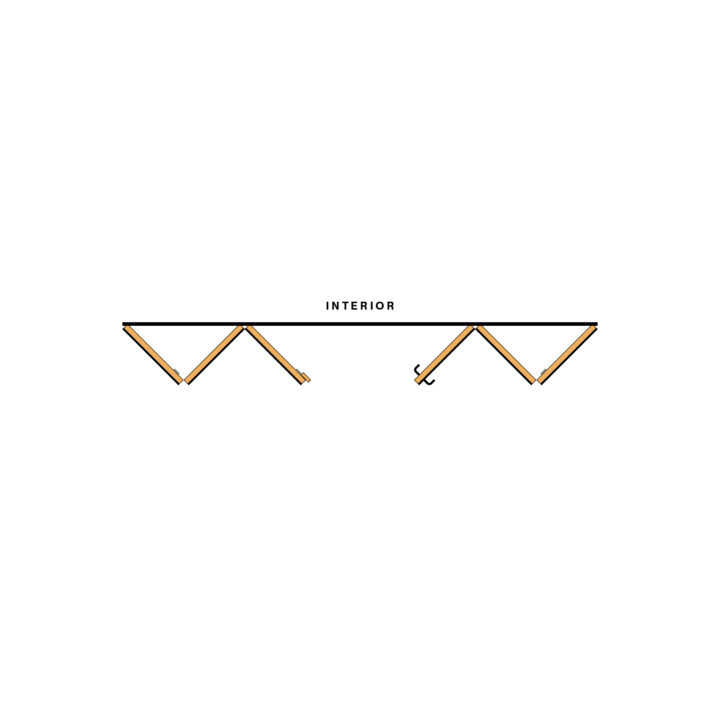

Bi-Parting
Both opening panel-edges glide along the track. Operation of this door could include:

All Shoot Bolts (not accessible from the exterior)
All Non-Keyed Twin Point Locks (not accessible from the exterior)
Non-Keyed & Keyed Twin Point Locks (accessible from the exterior)

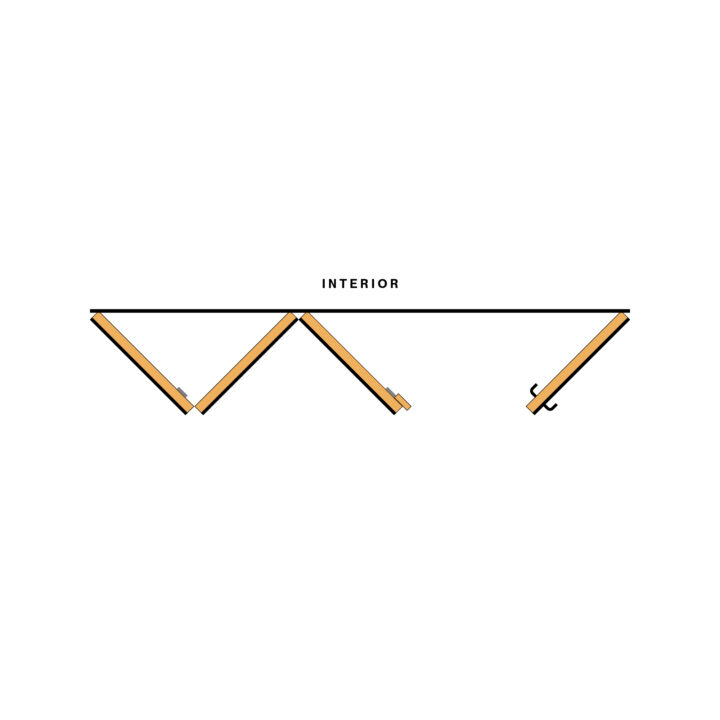

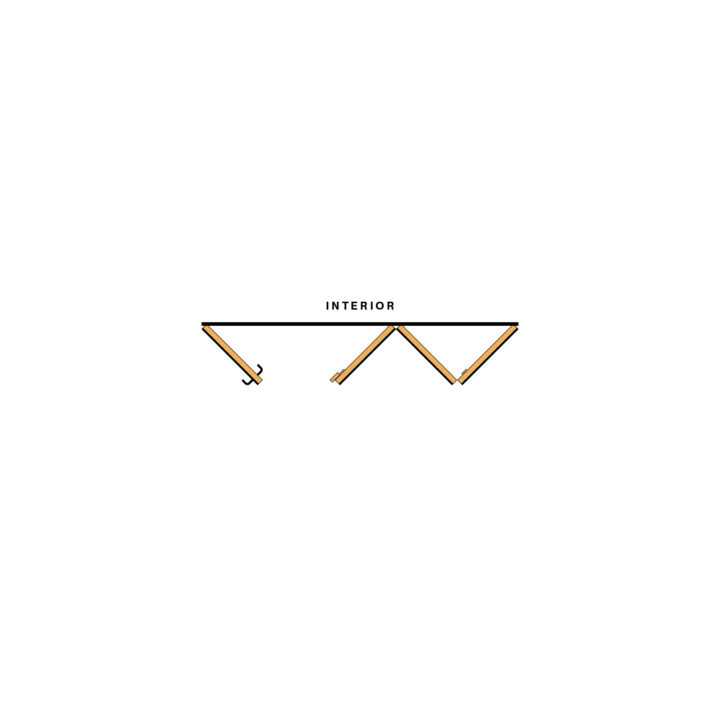

Bi-Parting (Outswing)
Both opening panel-edges swing outward. Operation of this door could include:

Shoot Bolts & Terrace Door Handle (accessible from the exterior)
Non-Keyed Twin Point Locks & Terrace Door Handle (accessible from the exterior)

All Loewen BiFold configurations can be exterior-accessible by using our keyed Twin Point Lock Handle or our Terrace Door handles.

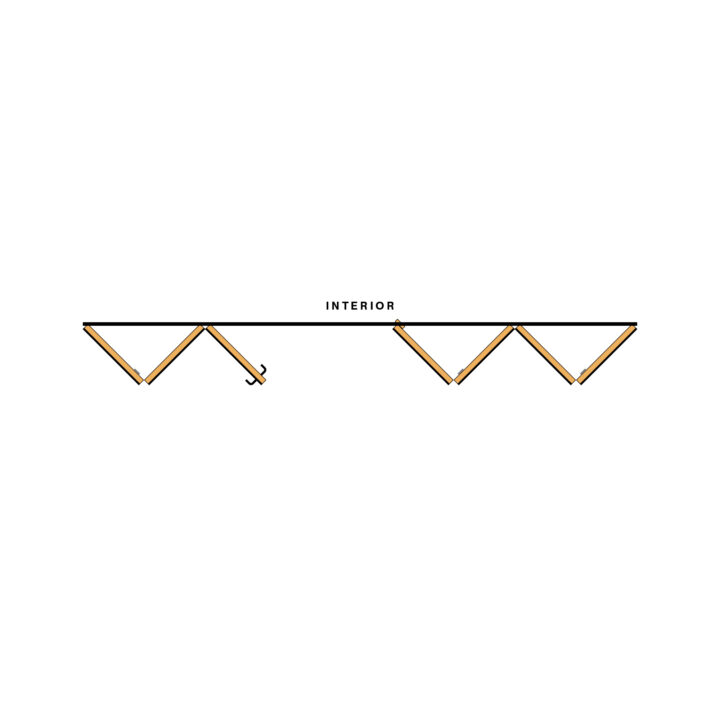

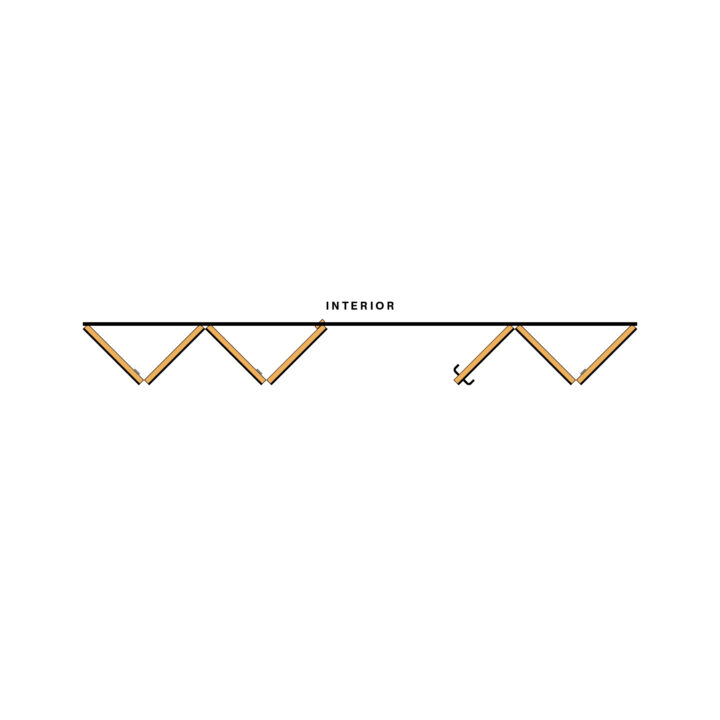

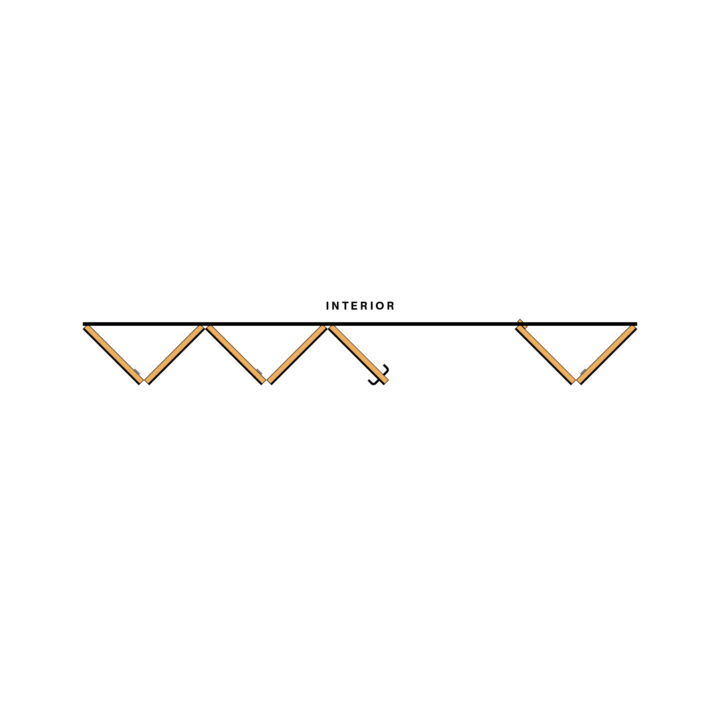

Odd BiFold Openings

The two possible openings in a BiFold door with an odd number of panels.

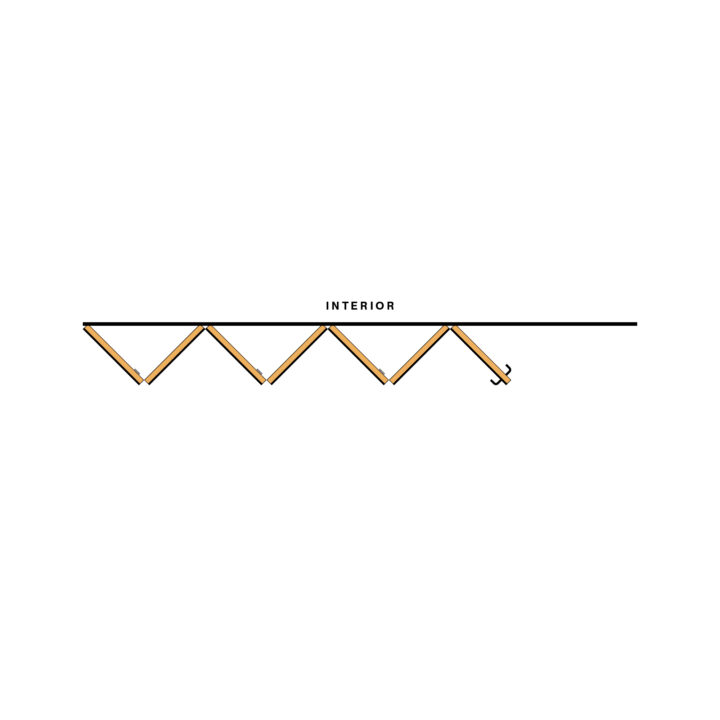

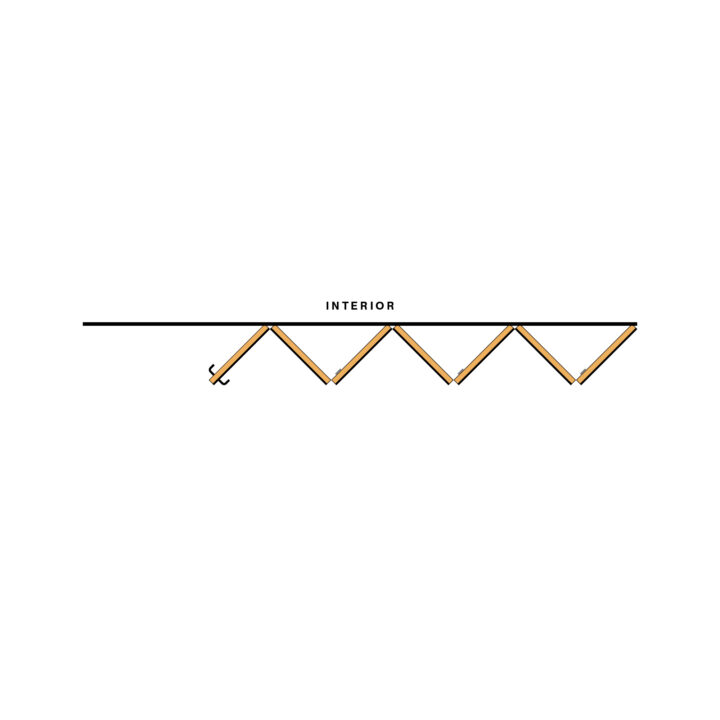

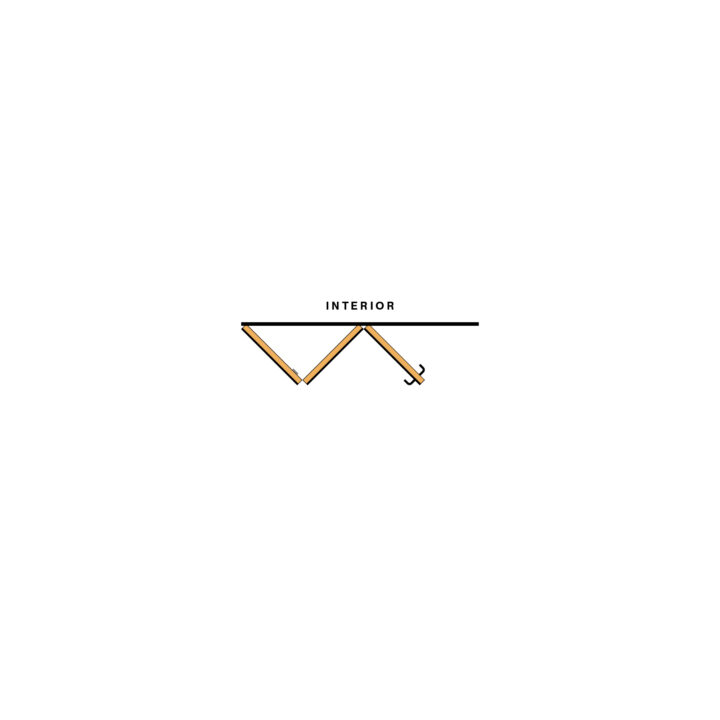

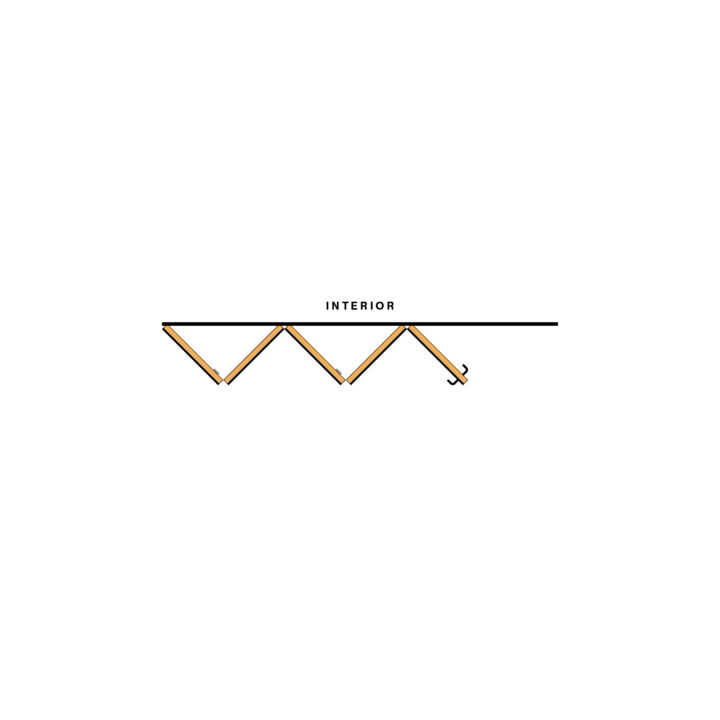

Straight-Stacking
The last panel-edge will always swing outward. Operation of this door could include:

Shoot Bolts & Terrace Door Handle (accessible from the exterior)
Non-Keyed Twin Point Locks & Terrace Door Handle (accessible from the exterior)

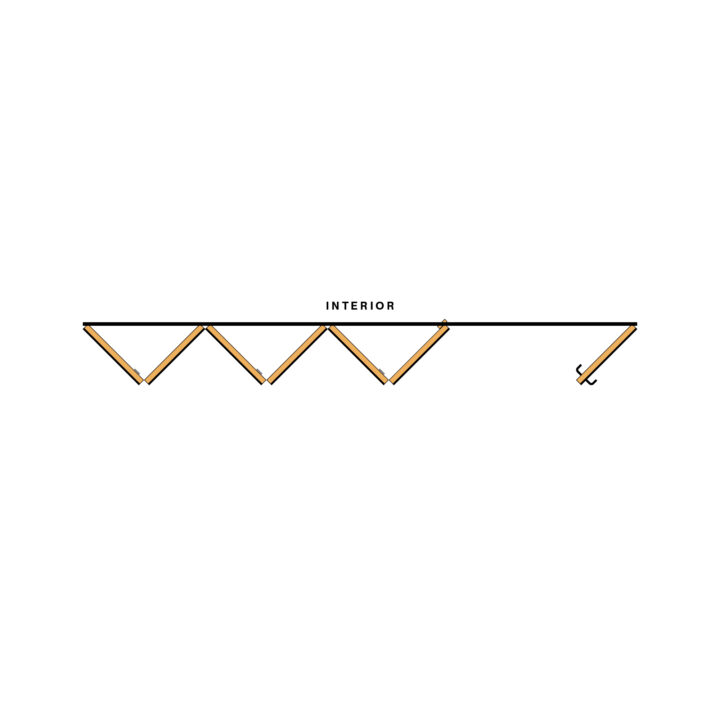

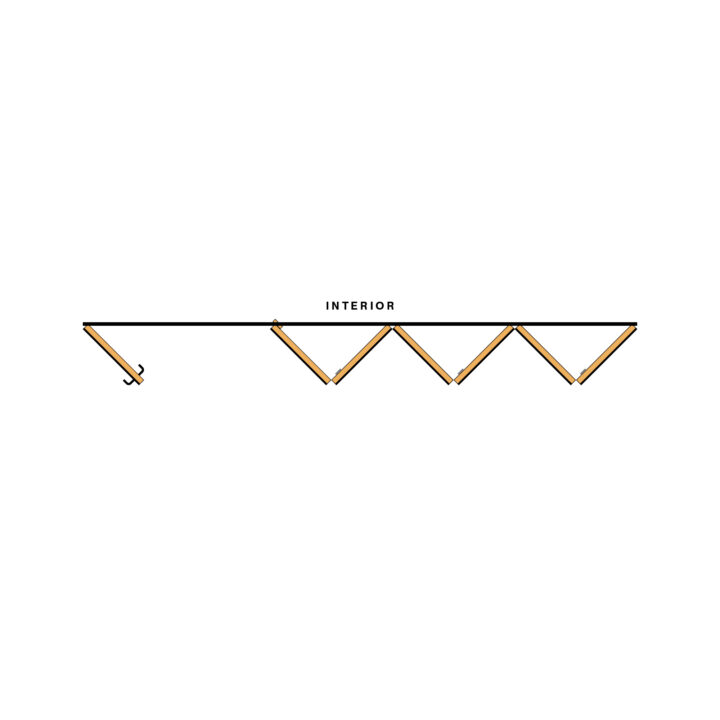

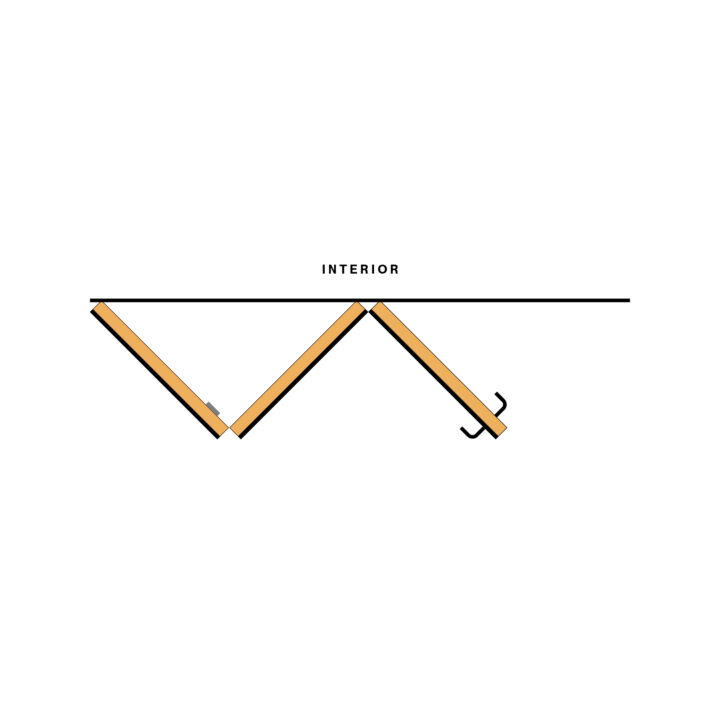

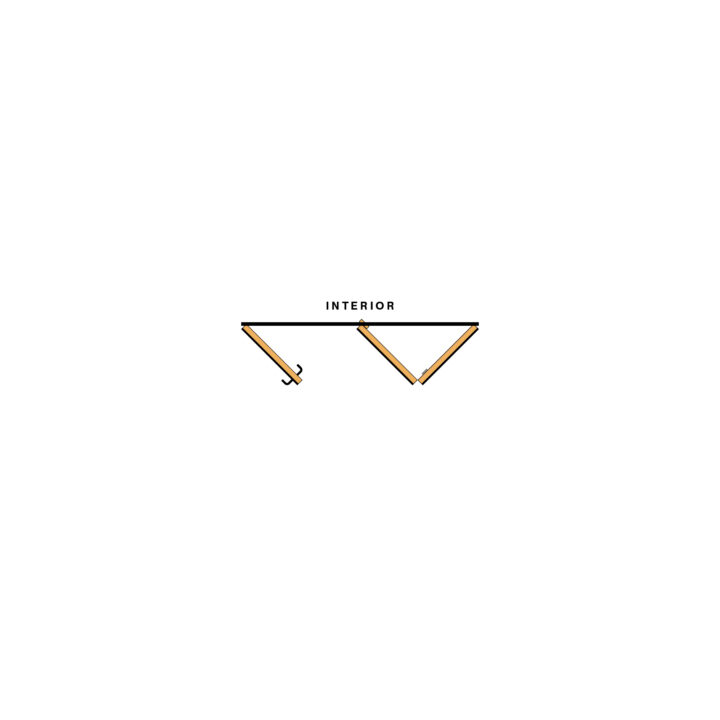

Bi-Parting
One panel-edge will always swing outward, whereas the other will sit in the track. Operation of this door could include:

Shoot Bolts & Terrace Door Handle (accessible from the exterior)
Non-Keyed Twin Point Locks & Terrace Door Handle (accessible from the exterior)

Detail Drawings

Narrow Stile

Metal Clad - Dual Glazed, 6-9/16 (166mm)

Metal Clad - Dual Glazed, Three Panel, with Flush Bolt Locks 6-9/16 (166mm)

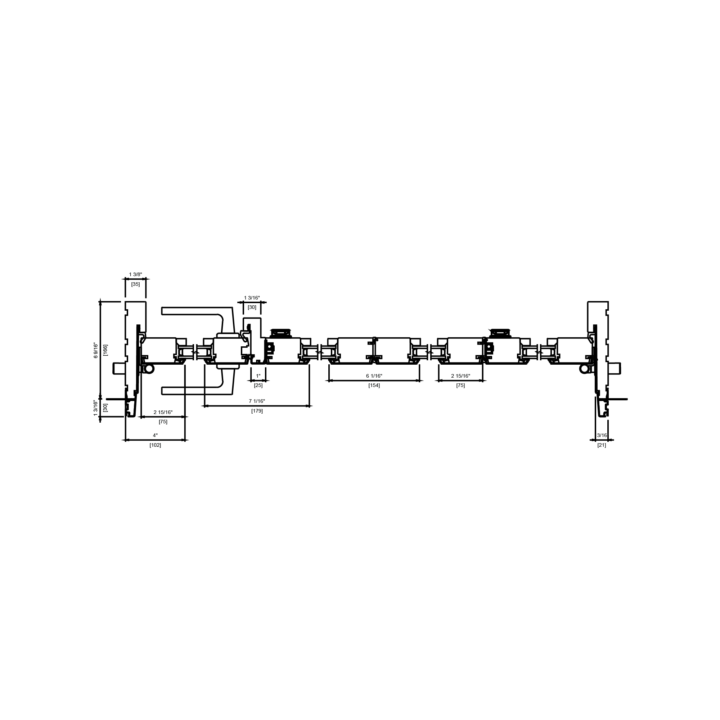

Metal Clad - Dual Glazed, Four Panel, with Twinpoint Locks 6-9/16 (166mm).png

Standard Stile

Metal Clad - Dual Glazed, Three Panel 6-9/16 (166mm)

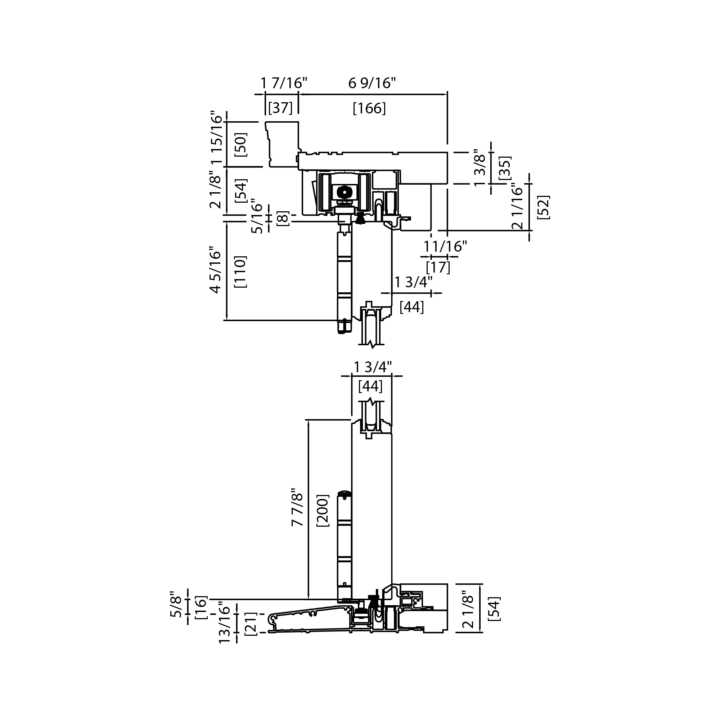

All Wood - Dual Glazed, Four Panel, with Twinpoint Locks 6-9/16 (166mm)

Even Panel Configurations

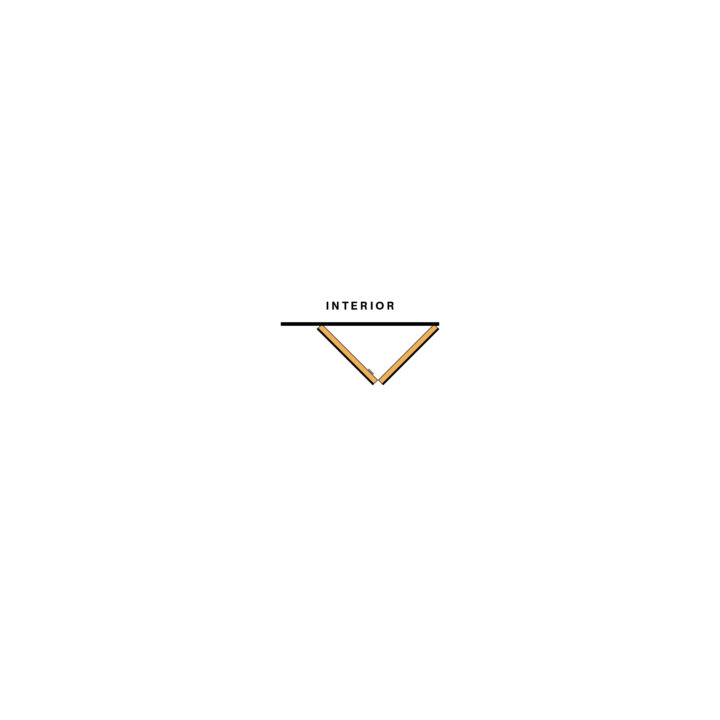

2 Panel Configurations

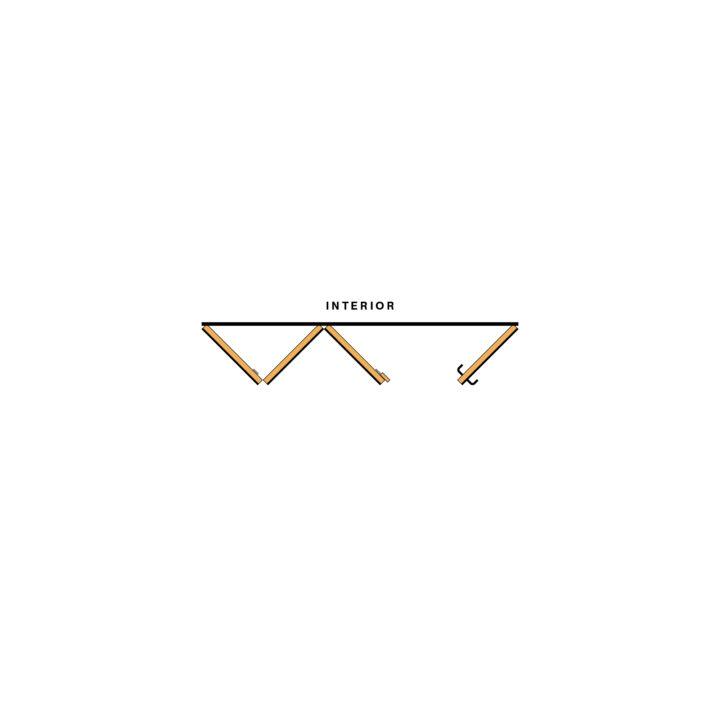

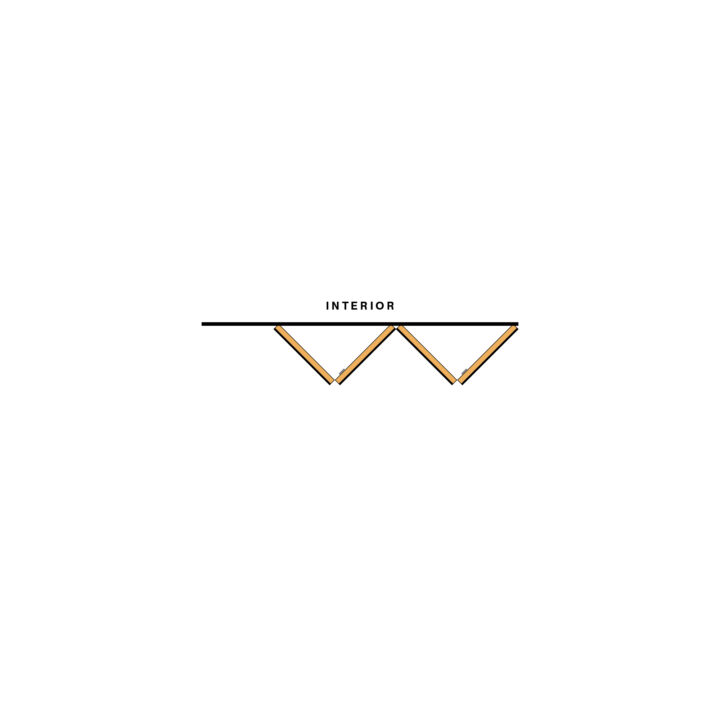

4 Panel Configurations

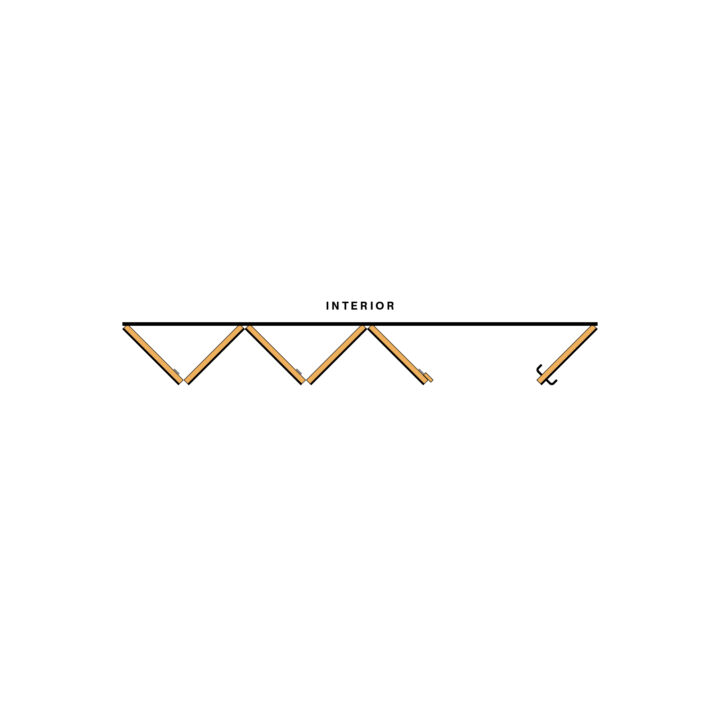

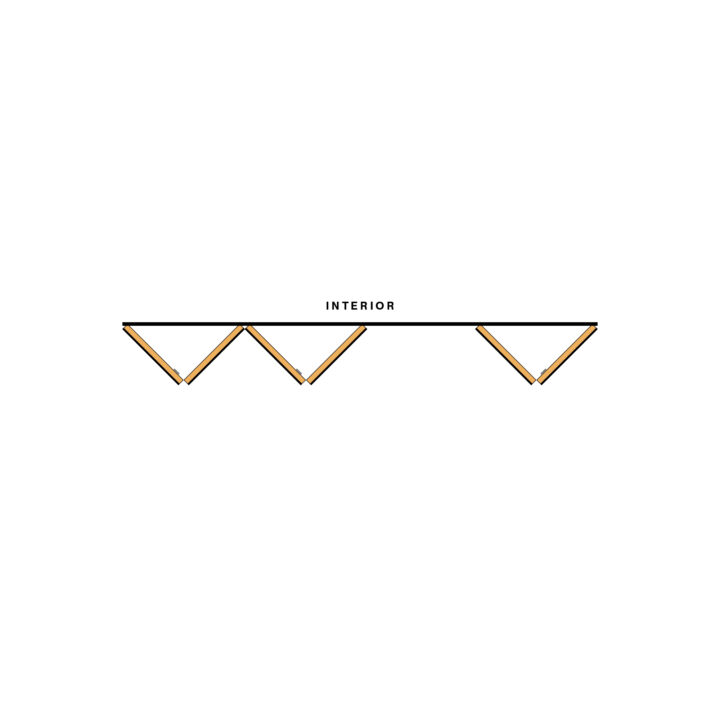

6 Panel Configurations

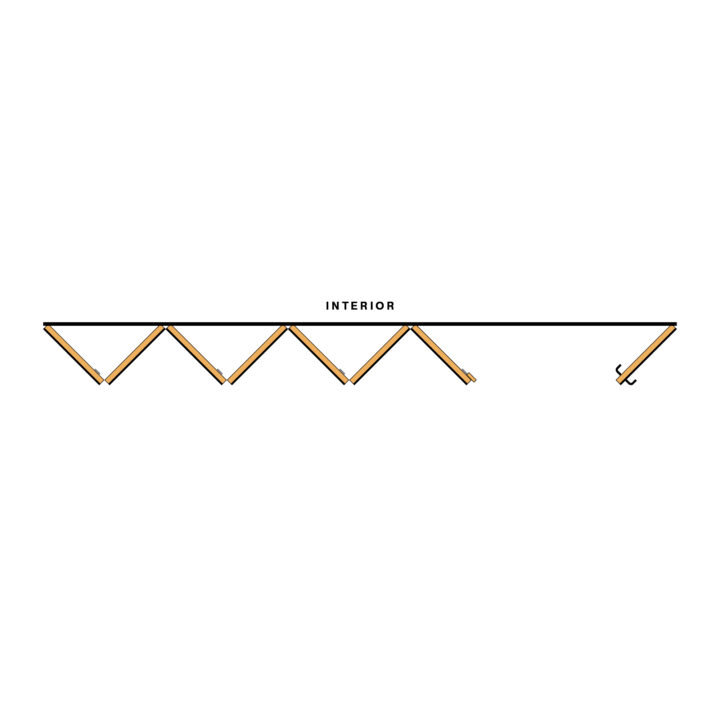

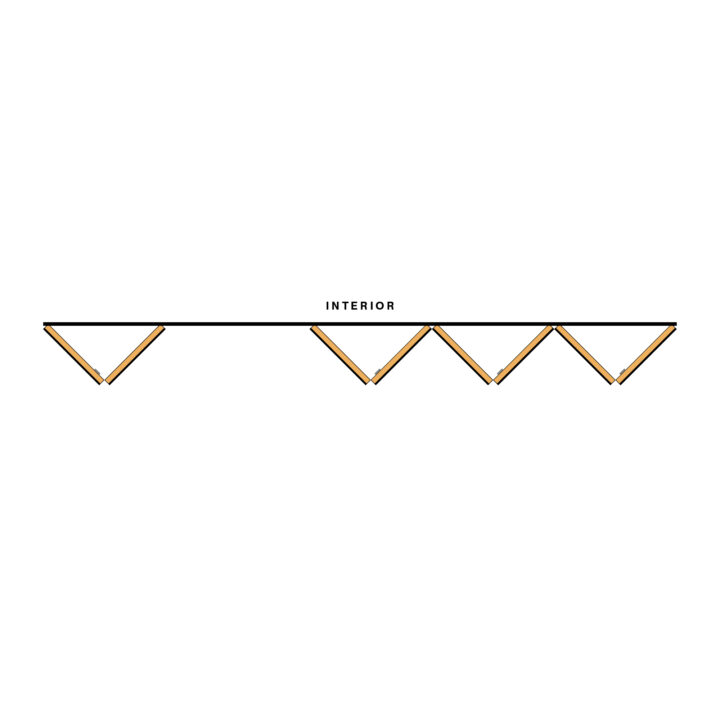

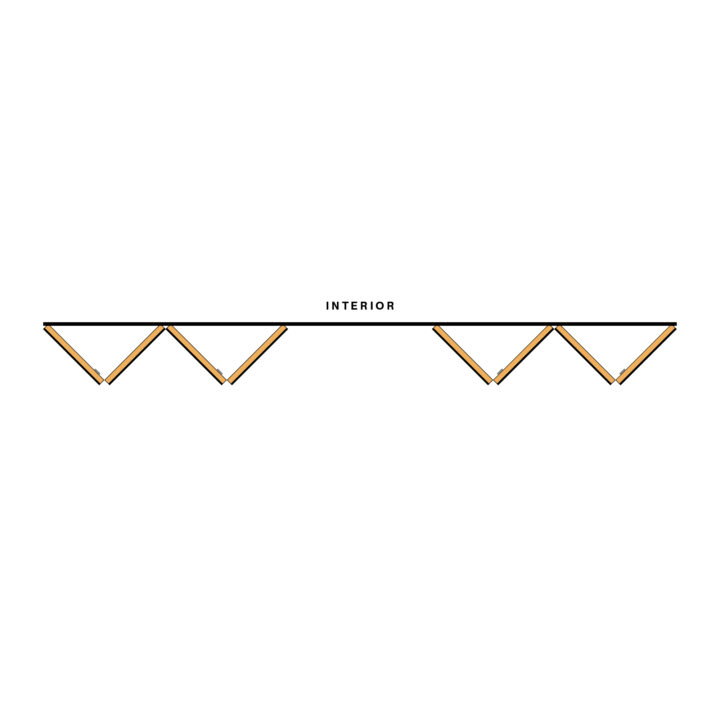

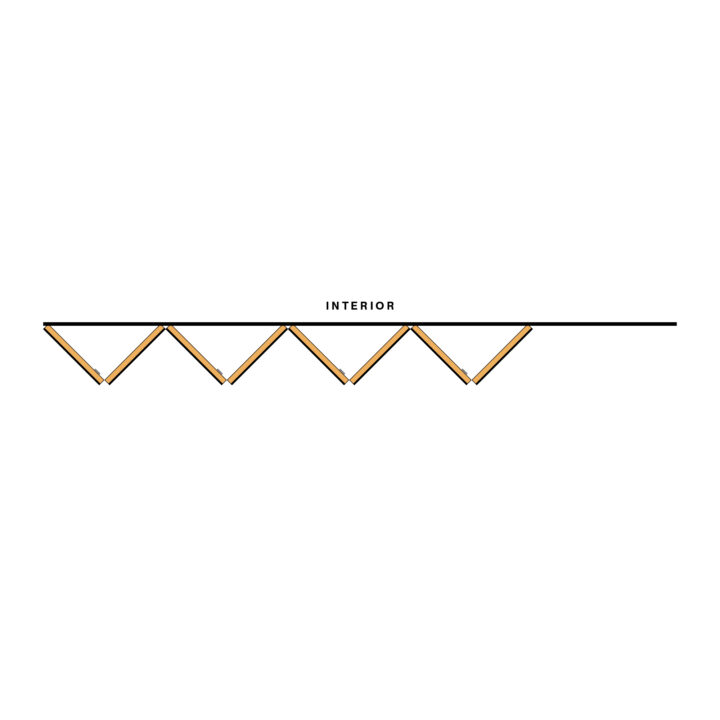

8 Panel Configurations

The preparation of the rough opening for large openings such as those required by, but not limited to, LiftSlide, Bifold and MultiSlide doors have unique requirements. Structural headers that allow for deflection no greater than 1/8” along the unsupported length once the header is fully loaded are required. Special care needs to be taken when installing any unit including transoms above such large opening units. • Loewen is not responsible for site measurements or the determination of structural and architectural requirements for the installation of large opening products such as but not limited to, LiftSlide, Bifold and MultiSlide doors. Site specifications are the responsibility of building professionals or engineers to determine.
