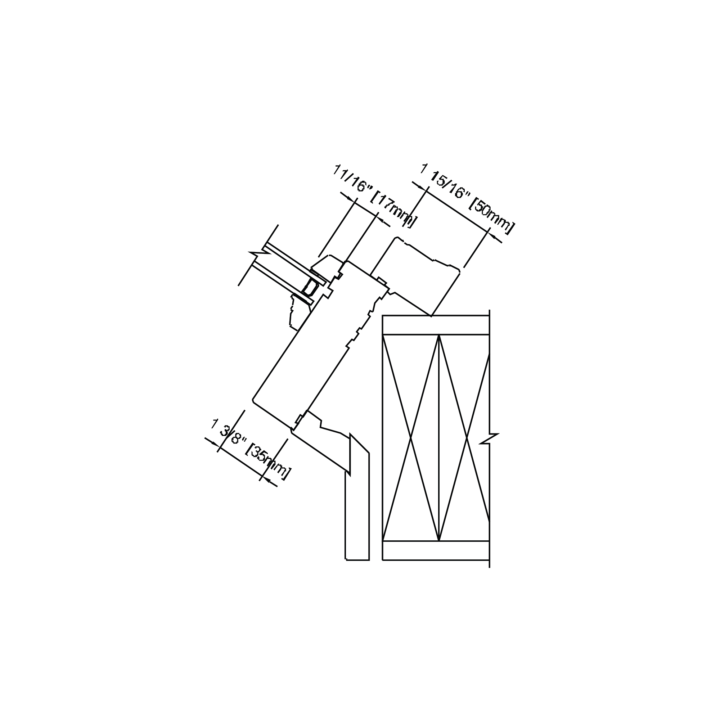

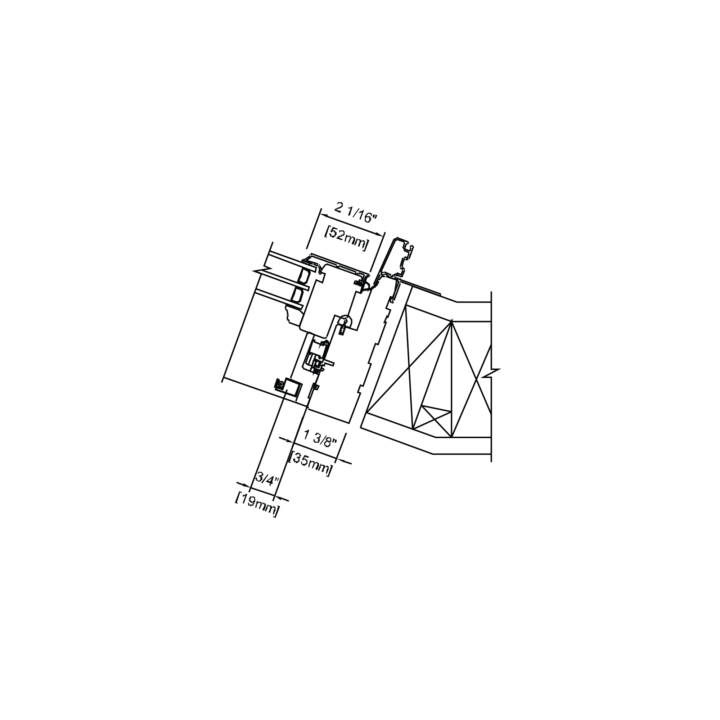

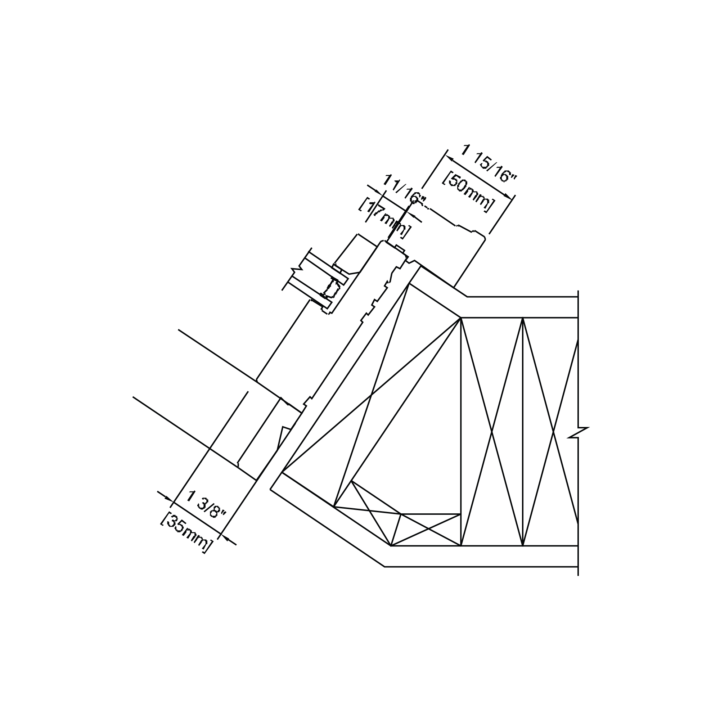

| 34°Framing Measurements – 23 5/8″ (600 mm) Flankers | ||||
|---|---|---|---|---|
| Description | 4 9/16″ (116mm) JAMB | 6 9/16″ (166mm) JAMB | ||
| in. | mm | in. | mm | |
| A Measurement | 23 1/4″ | 591 | 23 7/8″ | 606 |
| Projection | 14 15/16″ | 380 | 14 15/16″ | 380 |

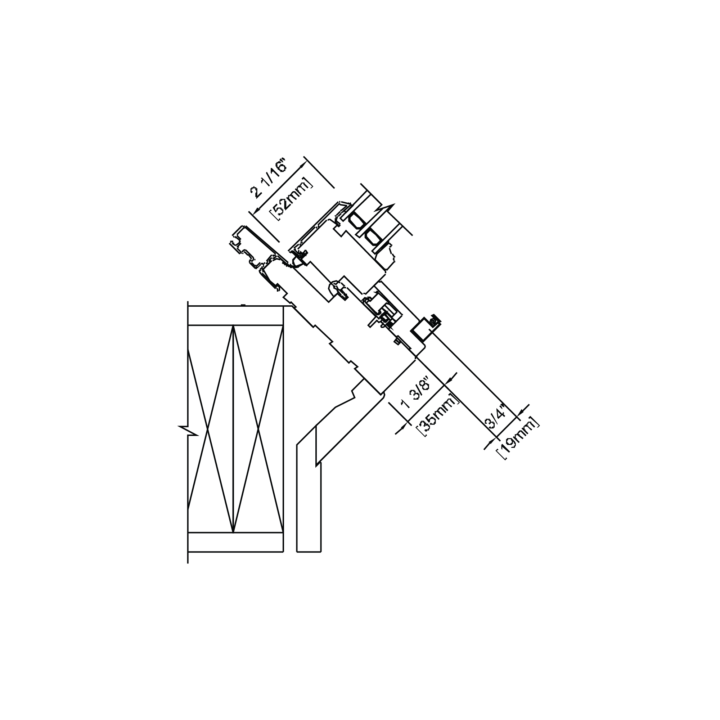

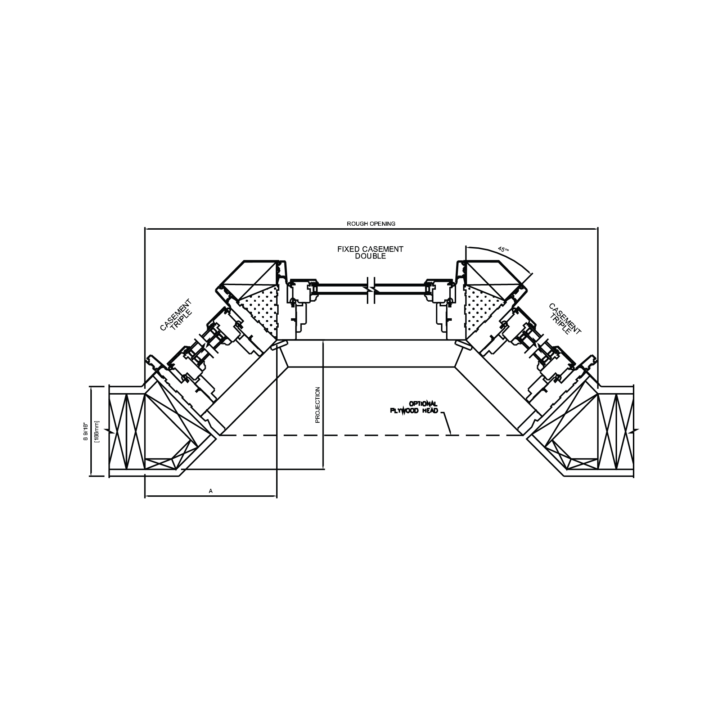

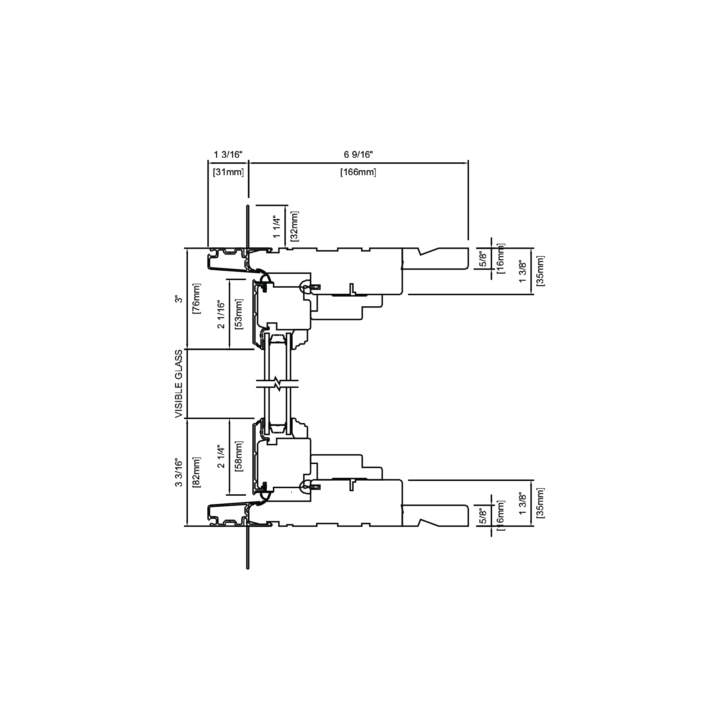

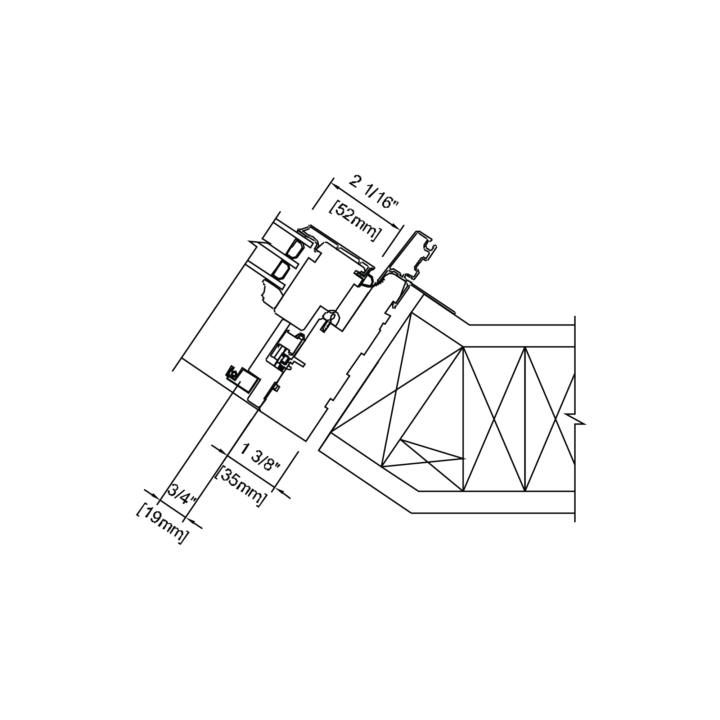

| 45°Framing Measurements – 23 5/8″ (600 mm) Flankers | ||||
|---|---|---|---|---|
| Description | 4 9/16″ (116mm) JAMB | 6 9/16″ (166mm) JAMB | ||
| in. | mm | in. | mm | |
| A Measurement | 20 11/16″ | 526 | 21 9/16″ | 547 |
| Projection | 19 3/16″ | 488 | 19 3/16″ | 488 |

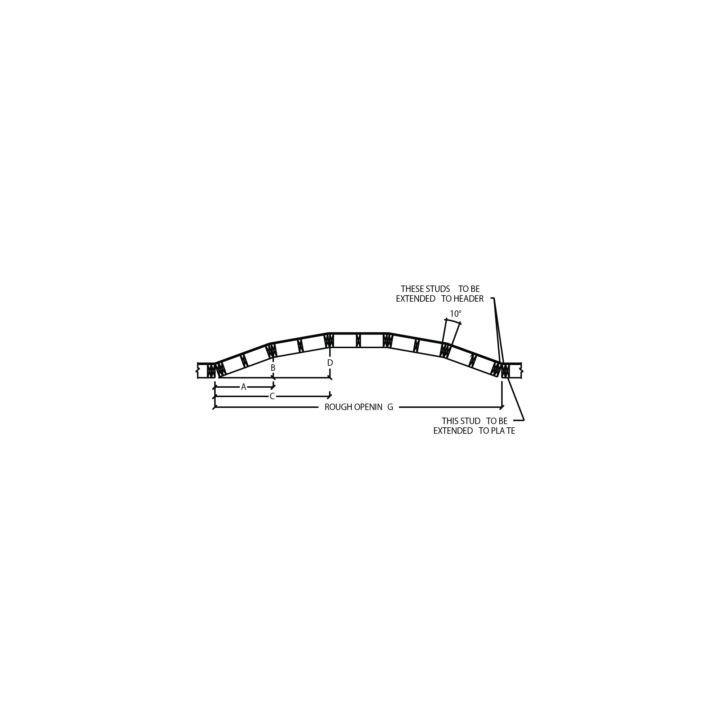

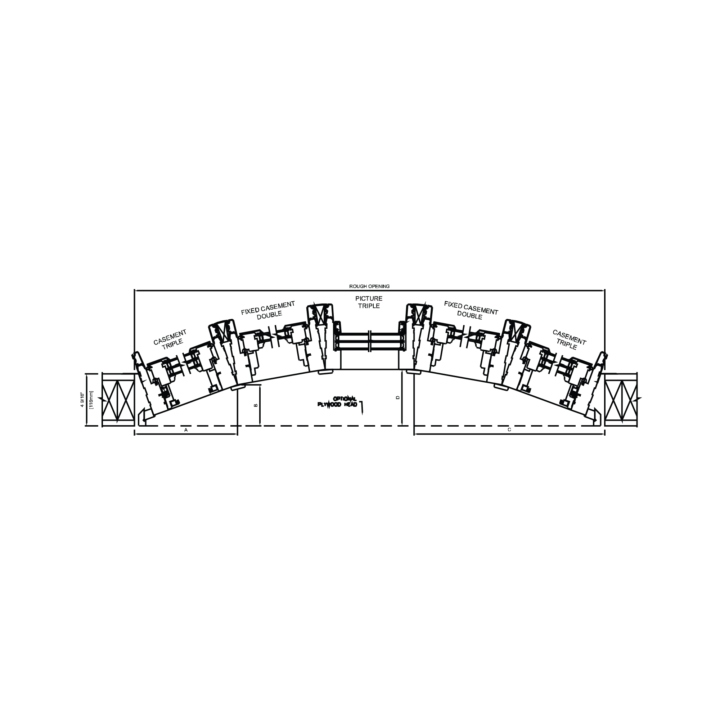

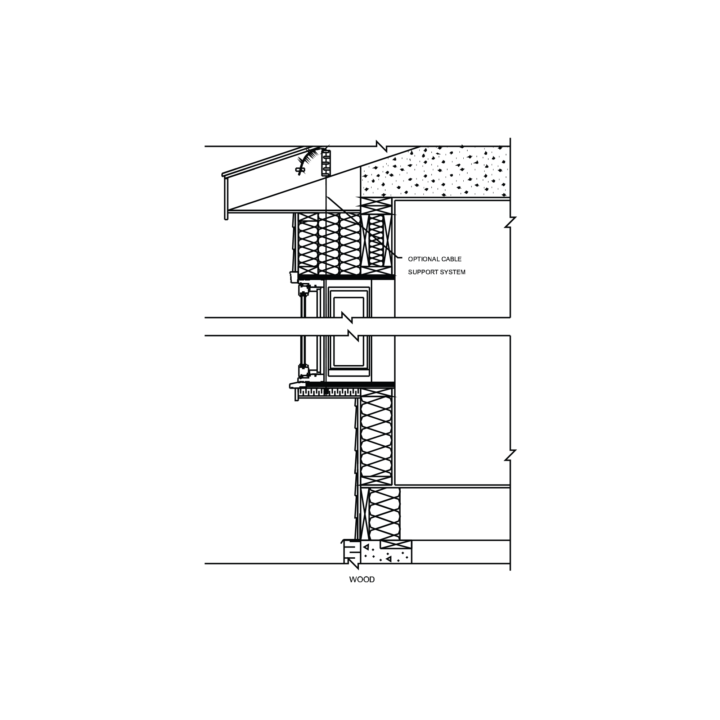

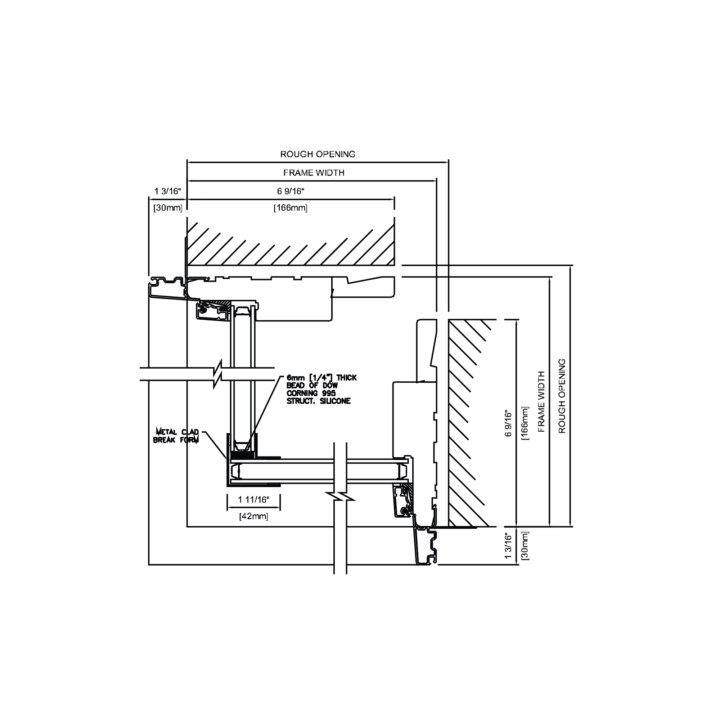

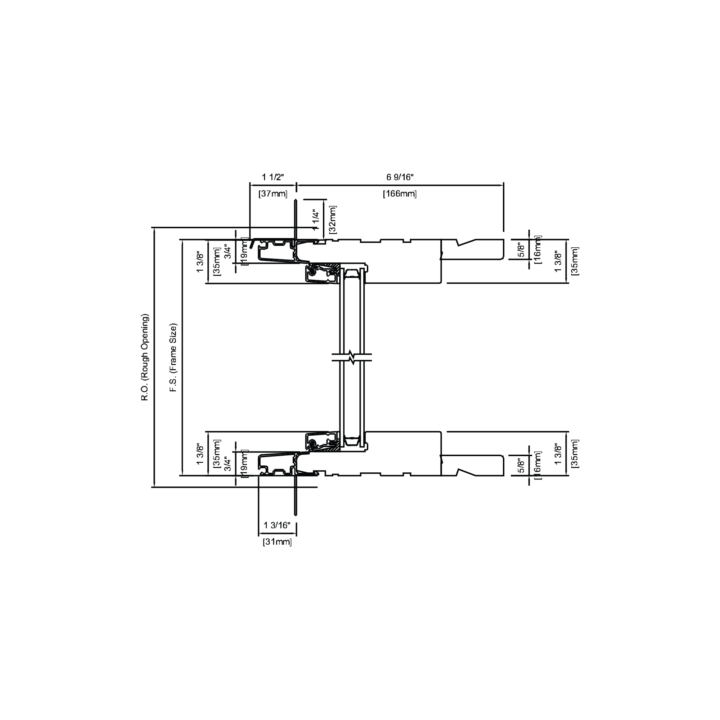

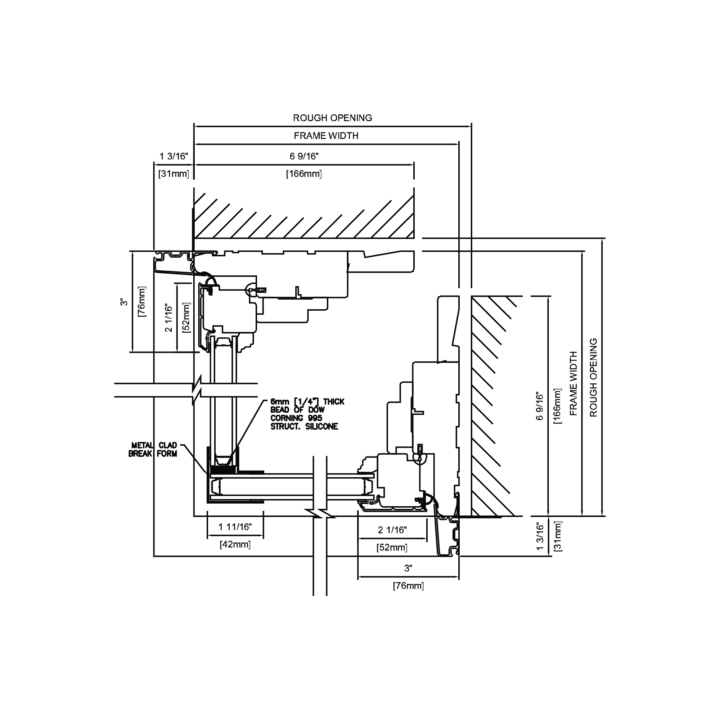

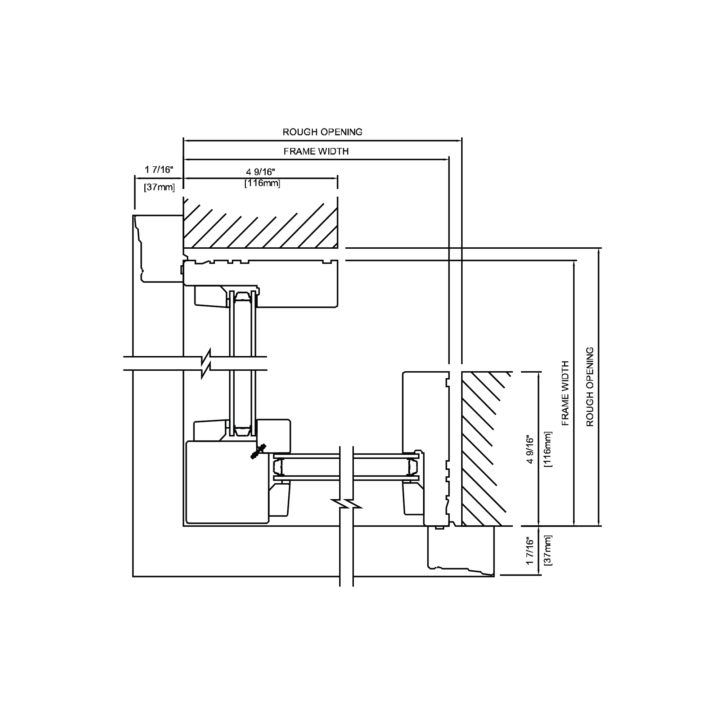

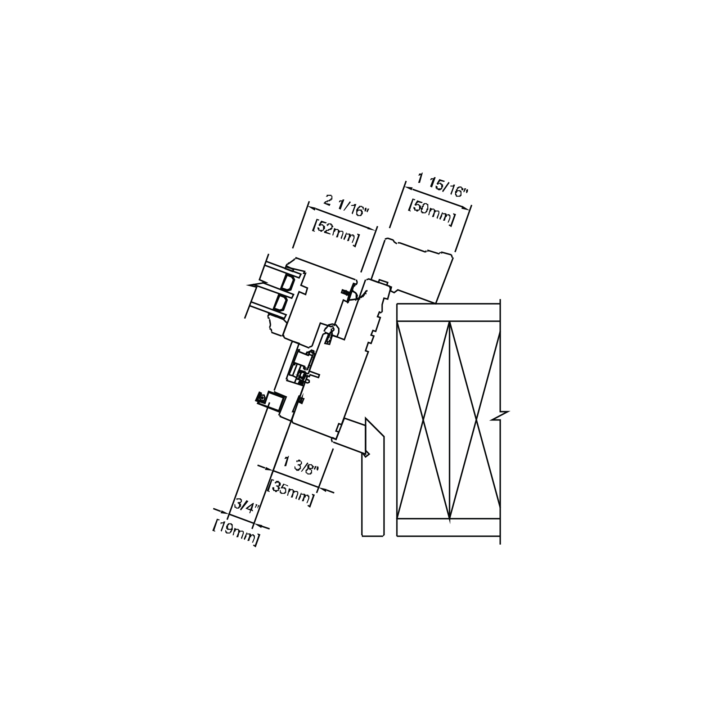

| Framing Measurements for Standard 23 5/8″ (600 mm) Units | ||||
|---|---|---|---|---|
| Description | 4 9/16″ (116mm) JAMB | 6 9/16″ (166mm) JAMB | ||
| in. | mm | in. | mm | |
| Rough Opening Width | 98 7/16″ | 2500 | 98 7/16″ | 2500 |
| Header Length | 101 7/16″ | 2576 | 101 7/16″ | 2576 |
| A Measurement | 25 5/8″ | 651 | 25 15/16″ | 659 |
| B Measurement | 6 3/4″ | 171 | 6 3/4″ | 172 |
| C Measurement | 49 3/16″ | 1250 | 49 3/16″ | 1250 |
| D Measurement | 8 13/16″ | 224 | 8 3/4″ | 223 |
| Framing Measurements for Standard 23 5/8″ (600 mm) Units | ||||
|---|---|---|---|---|
| Description | 4 9/16″ (116mm) JAMB | 6 9/16″ (166mm) JAMB | ||
| in. | mm | in. | mm | |
| Rough Opening Width | 120 13/16″ | 3069 | 120 13/16″ | 3069 |
| Header Length | 123 13/16″ | 3145 | 123 13/16″ | 3145 |
| A Measurement | 25 1/4″ | 641 | 25 3/4″ | 654 |
| B Measurement | 8 15/16″ | 227 | 9″ | 229 |
| C Measurement | 48 9/16″ | 1234 | 48 3/4″ | 1238 |
| D Measurement | 13 1/16″ | 332 | 13 1/16″ | 332 |
| 34° Framing Measurements – 15 3/4″ (400 mm) Flankers | ||||
|---|---|---|---|---|
| Description | 4 9/16″ (116 mm) JAMB | 6 9/16″ (166 mm) JAMB | ||
| in. | mm | in. | mm | |
| Projection | 9 13/16″ | 250 | 11 13/16″ | 300 |

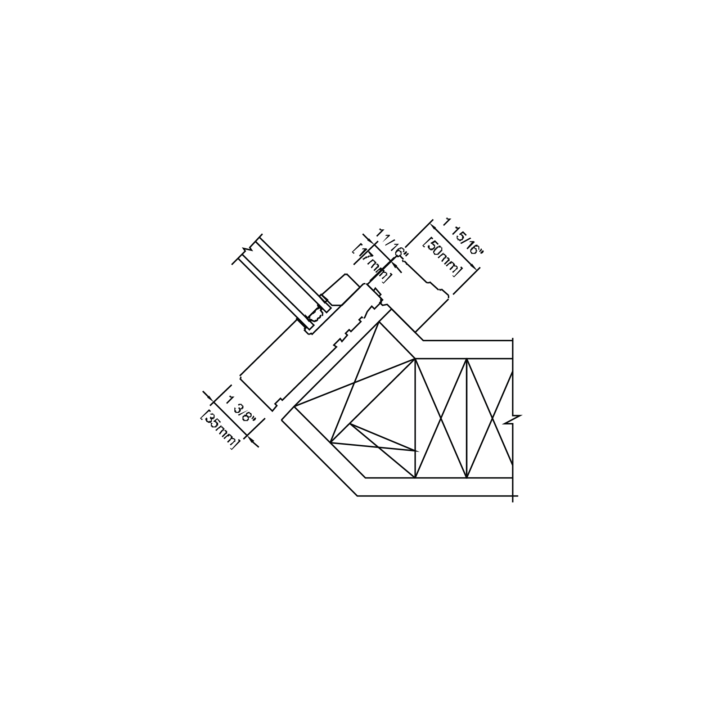

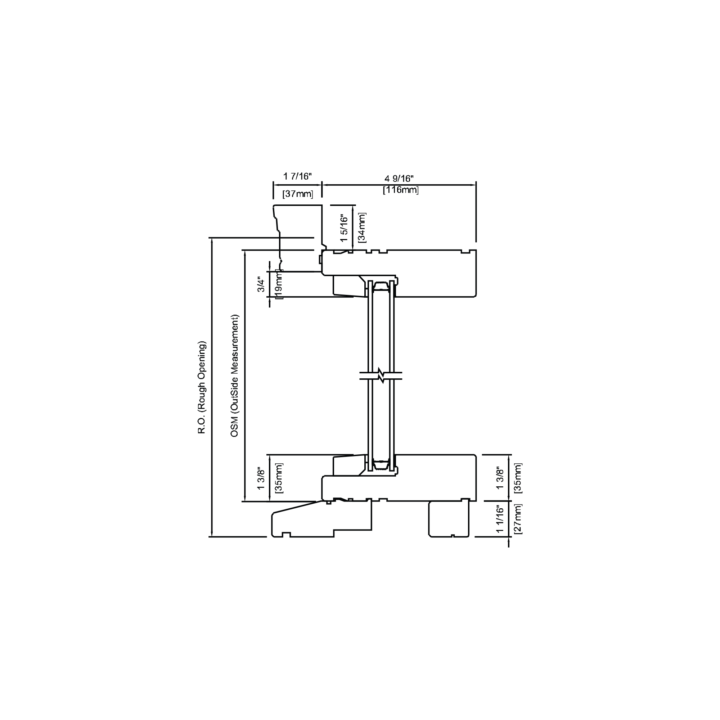

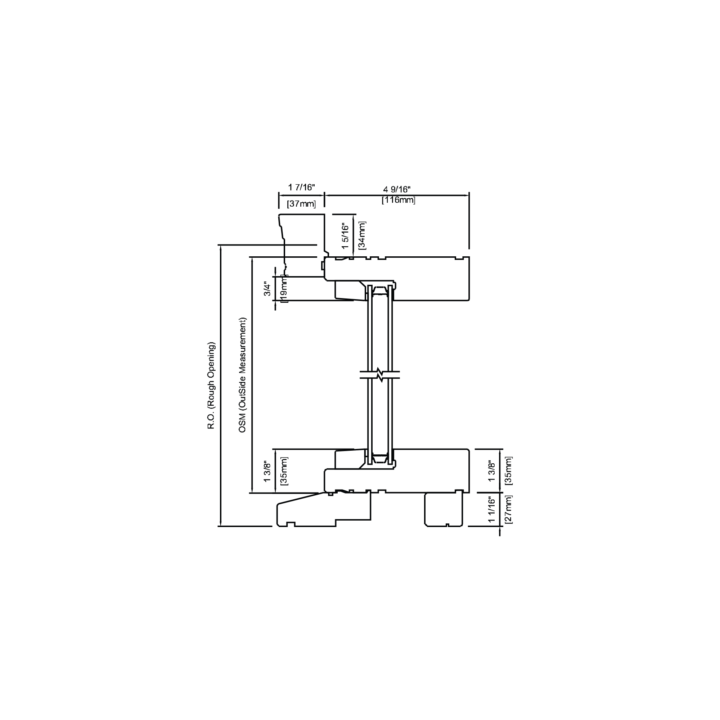

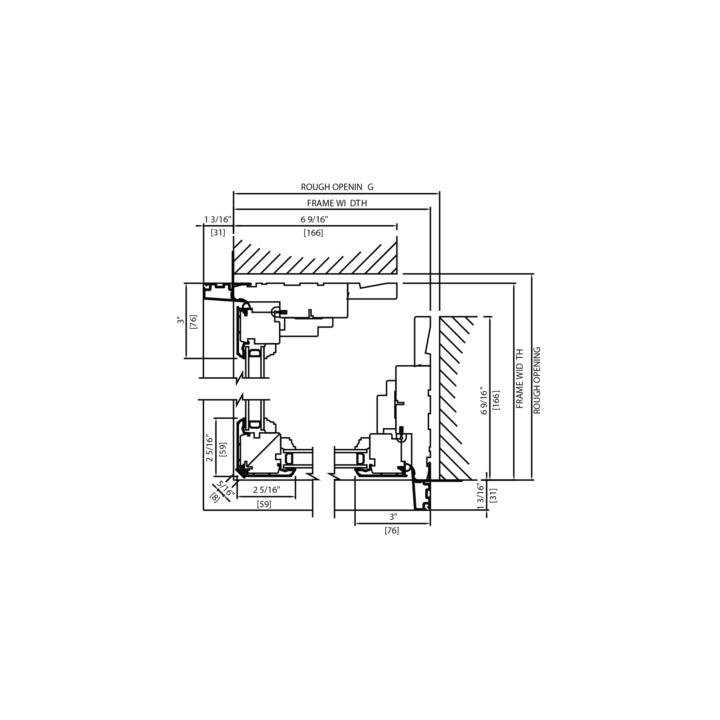

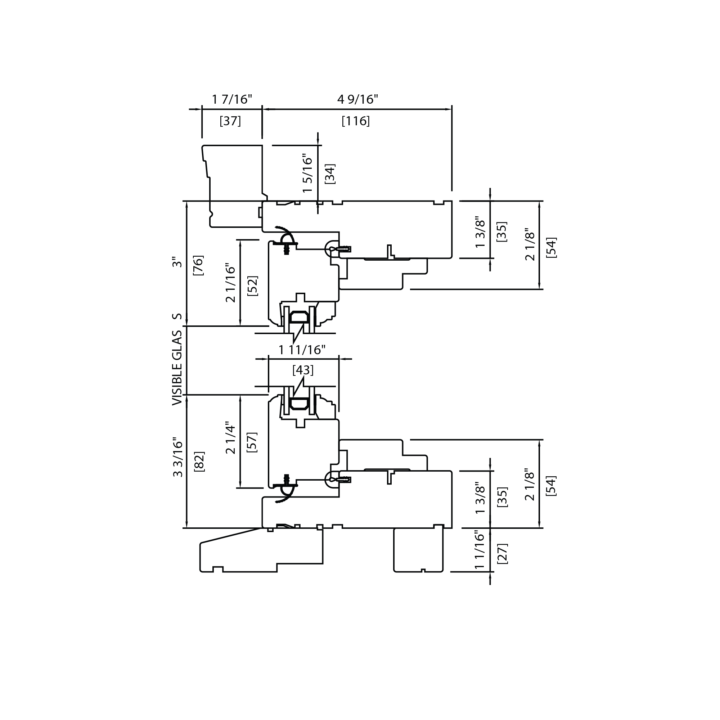

| 45° Framing Measurements – 15 3/4″ (400 mm) Flankers | ||||
|---|---|---|---|---|
| Description | 4 9/16″ (116 mm) JAMB | 6 9/16″ (166 mm) JAMB | ||
| in. | mm | in. | mm | |
| Projection | 12 15/16″ | 329 | 14 15/16″ | 379 |
| 34° Framing Measurements – 23 5/8″ (600 mm) Flankers | ||||
|---|---|---|---|---|
| Description | 4 9/16″ (116 mm) JAMB | 6 9/16″ (166 mm) JAMB | ||
| in. | mm | in. | mm | |
| Projection | 14 1/4″ | 362 | 16 1/4″ | 412 |

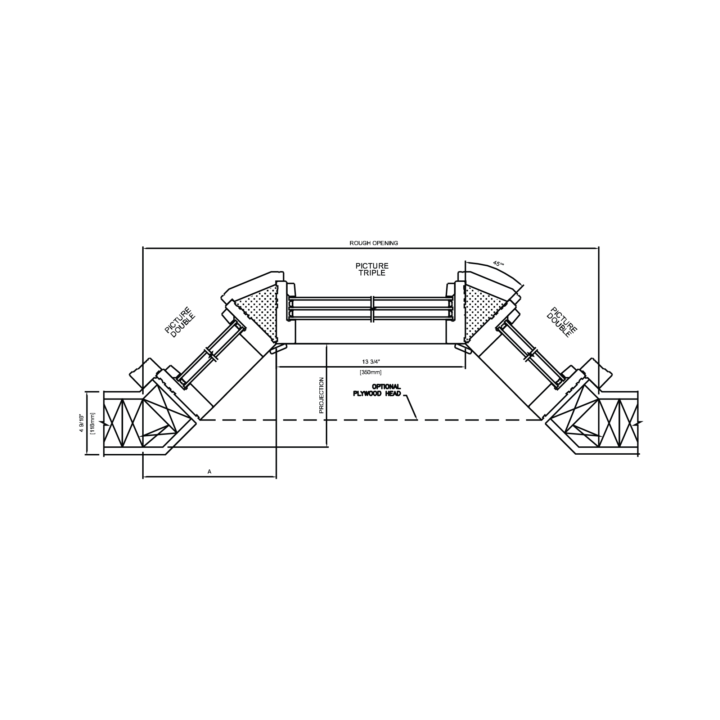

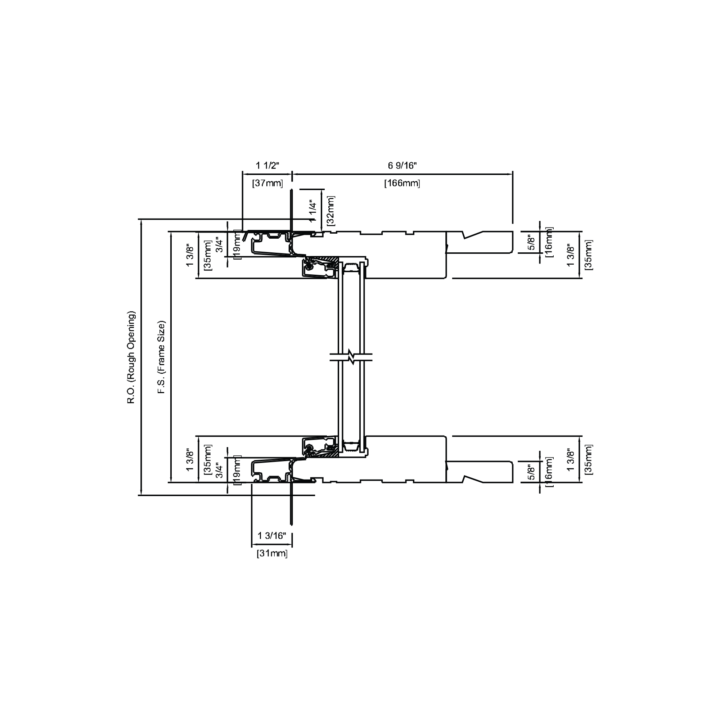

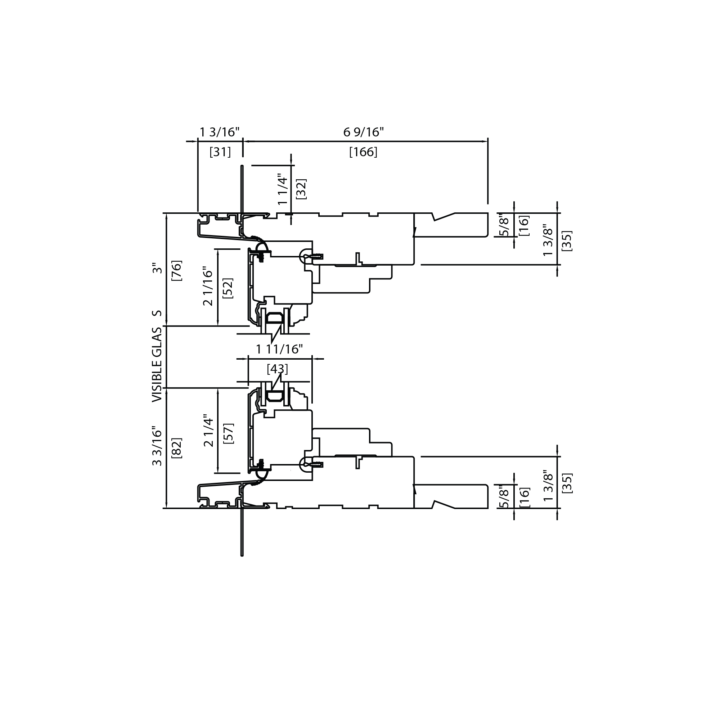

| 45° Framing Measurements – 23 5/8″ (600 mm) Flankers | ||||
|---|---|---|---|---|
| Description | 4 9/16″ (116 mm) JAMB | 6 9/16″ (166 mm) JAMB | ||
| in. | mm | in. | mm | |
| Projection | 18 1/2″ | 470 | 20 1/2″ | 520 |
| Framing Measurements For Standard 23 5/8″ (600 mm) Units | ||||
|---|---|---|---|---|
| Description | 4 9/16″ (116 mm) JAMB | 6 9/16″ (166 mm) JAMB | ||
| in. | mm | in. | mm | |
| Rough Opening Width | 95 9/16″ | 2428 | 95 9/16″ | 2428 |
| Header Length | 98 9/16″ | 2504 | 98 9/16″ | 2504 |
| A Measurement | 24 1/4″ | 616 | 24 1/4″ | 616 |
| B Measurement | 6 1/8″ | 155 | 8 1/16″ | 205 |
| C Measurement | 47 3/4″ | 1214 | 47 3/4″ | 1214 |
| D Measurement | 8 3/16″ | 208 | 10 3/16″ | 258 |
| Framing Measurements For Standard 23 5/8″ (600 mm) Units | ||||
|---|---|---|---|---|
| Description | 4 9/16″ (116 mm) JAMB | 6 9/16″ (166 mm) JAMB | ||
| in. | mm | in. | mm | |
| Rough Opening Width | 118″ | 2997 | 118″ | 2997 |
| Header Length | 121″ | 3073 | 121″ | 3073 |
| A Measurement | 23 15/16″ | 607 | 23 15/16″ | 607 |
| B Measurement | 8 5/16″ | 212 | 10 5/16″ | 262 |
| C Measurement | 47 3/16″ | 1198 | 47 3/16″ | 1198 |
| D Measurement | 12 7/16″ | 316 | 14 7/16″ | 366 |
