Swinging French Doors (1.75″)

ADDITIONAL RESOURCES

Use the buttons below to view additional technical drawings, models, and performance data, or keep scrolling.

CAD Drawings

3D Models

NFRC Ratings

Air, Water, Structural Performance

Looking for Loewen standard sizes? Our Product Configurator allows you to browse our standard sizes and make configurations.

01 - Basics

Standard French Door Sizes

Our Legacy PDF Size Charts

2 Wide

2 Wide Cambertop Sizes

2 Wide (Narrow Stile) Sizes

2 Wide (Standard Stile) Sizes

2 Wide 10ft Tall Sizes

3 Wide

3 Wide (Narrow Stile) Sizes

3 Wide (Standard Stile) Sizes

4 Wide

4 Wide Cambertop Sizes

4 Wide (Narrow Stile) Sizes

4 Wide (Standard Stile) Sizes

Shapes

2 Panels

Rectangular (or Square)
Camber Top Full
Half-Round

3 Panels

Rectangular (or Square)

4 Panels

Rectangular (or Square)
Camber Top Full

Panels

Narrow stile & rail option includes 3” vertical stile & top rail, and 4-5/16″ bottom rail.
Standard stile & rail option includes 4-5/16″ vertical stile & top rail, and 7-7/8″ bottom rail.
Middle rail options can include a bottom flat panel, a bottom raised panel, or a bottom sealed unit.
Panels with a middle rail and a vertical rail can include two bottom flat panels or two bottom raised panels.
All options shown here apply to metal-clad doors and all-wood doors.

Narrow Stiles & Rails

Narrow Stiles & Rails - Middle Rail - Bottom Sealed Unit

Narrow Stiles - Middle Rail & Vertical Rail - Flat Panels

Standard Stiles & Rails

Standard Stiles - Middle Rail - Bottom Sealed Unit

Standard Stiles - Middle Rail & Vertical Rail - Raised Panels

All examples shown are 36-3/8″ x 94-1/2″ frame size.

Door Swings

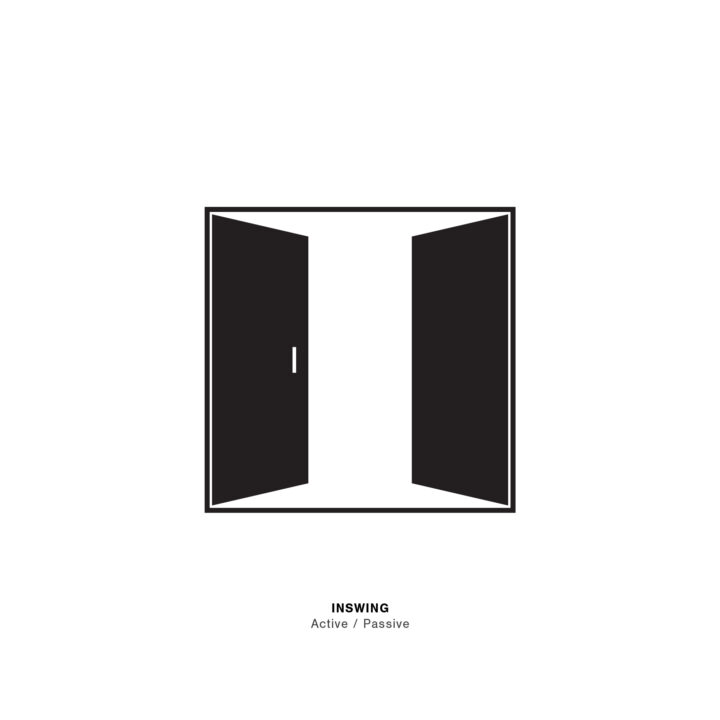

Inswing - Active / Passive

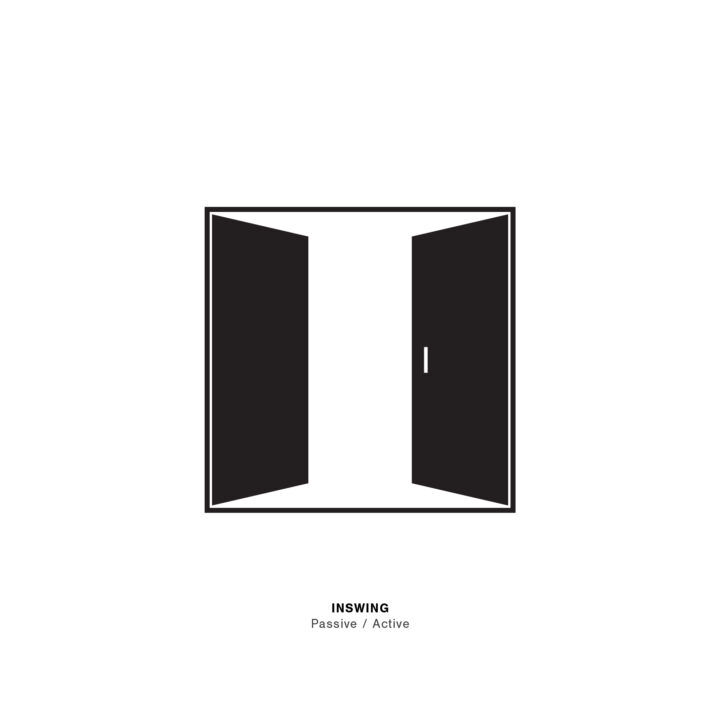

Inswing - Passive / Active

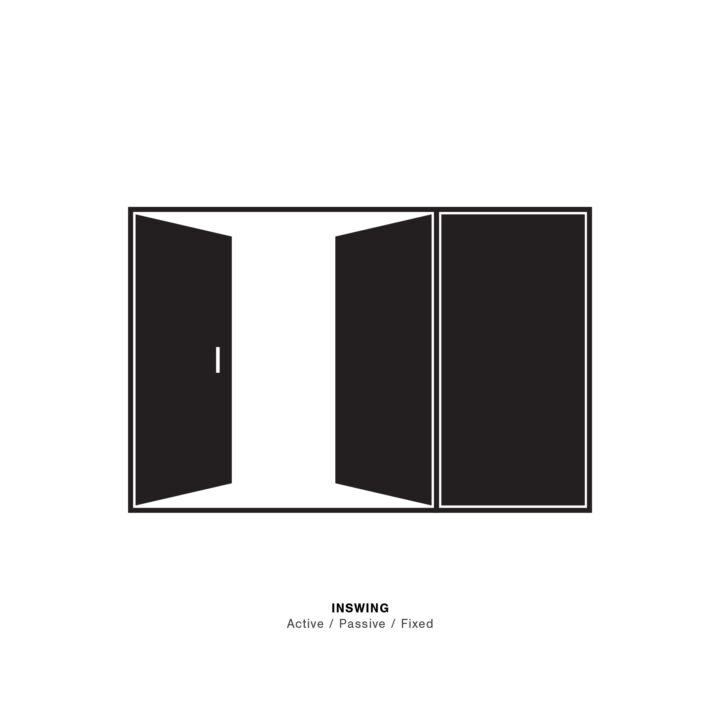

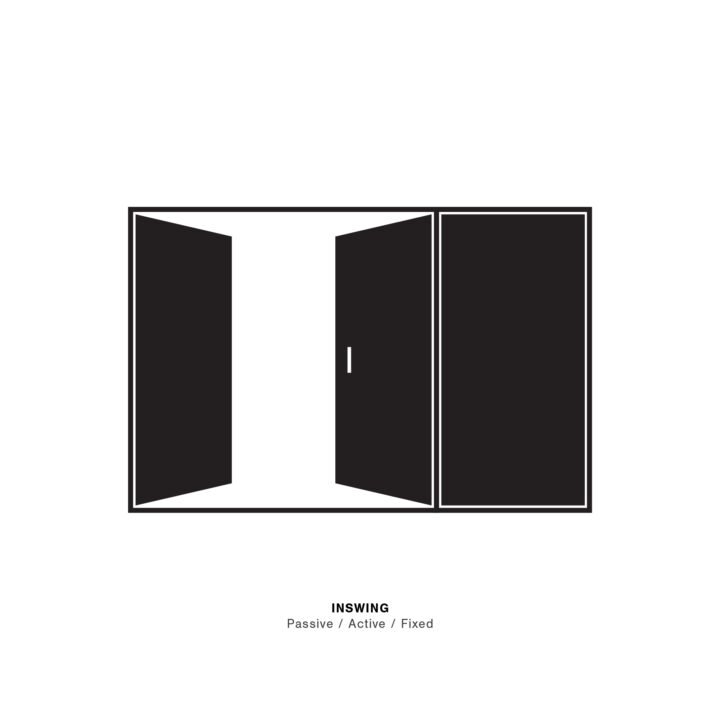

Inswing - Active / Passive / Fixed

Inswing - Passive / Active / Fixed

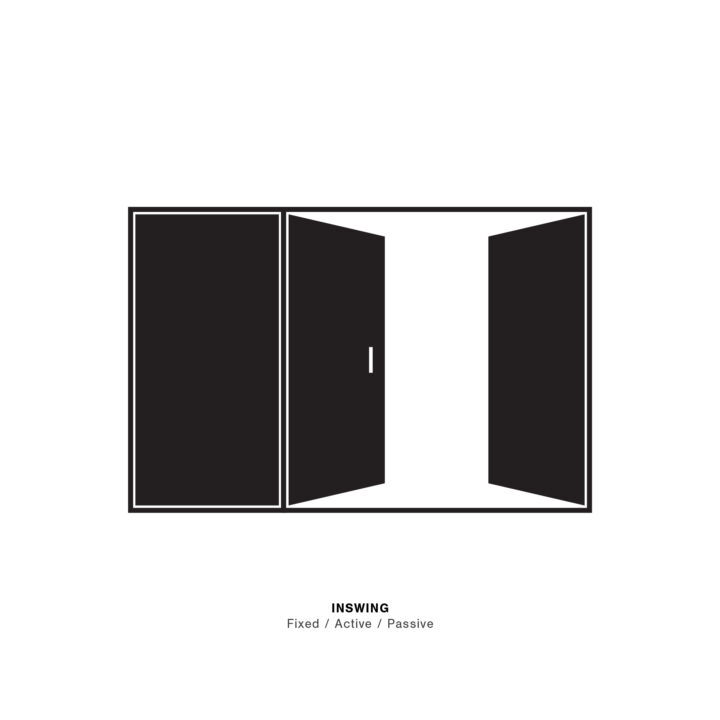

Inswing - Fixed / Active / Passive

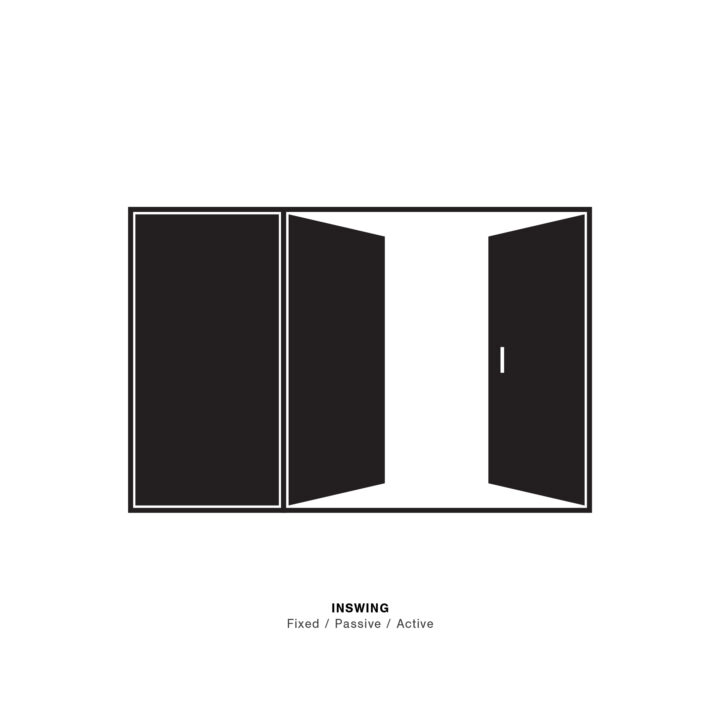

Inswing - Fixed / Passive / Active

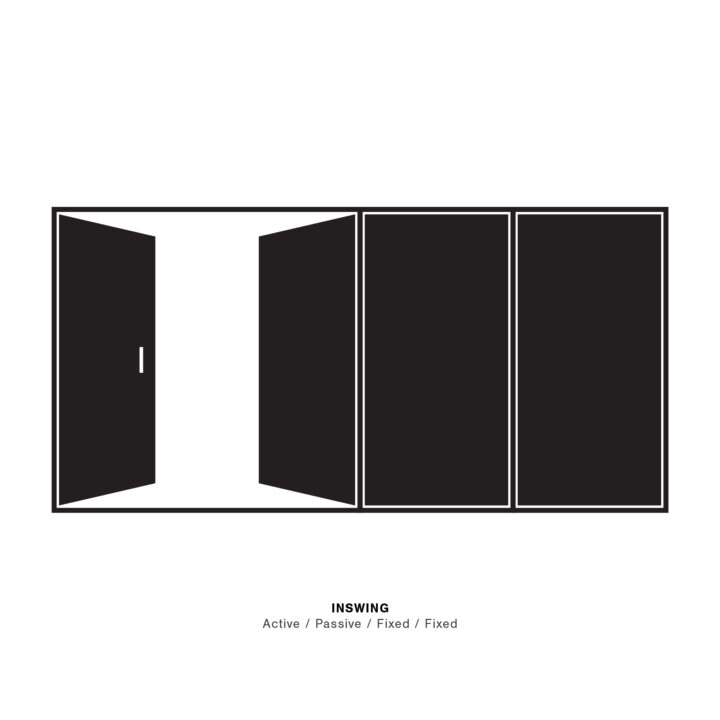

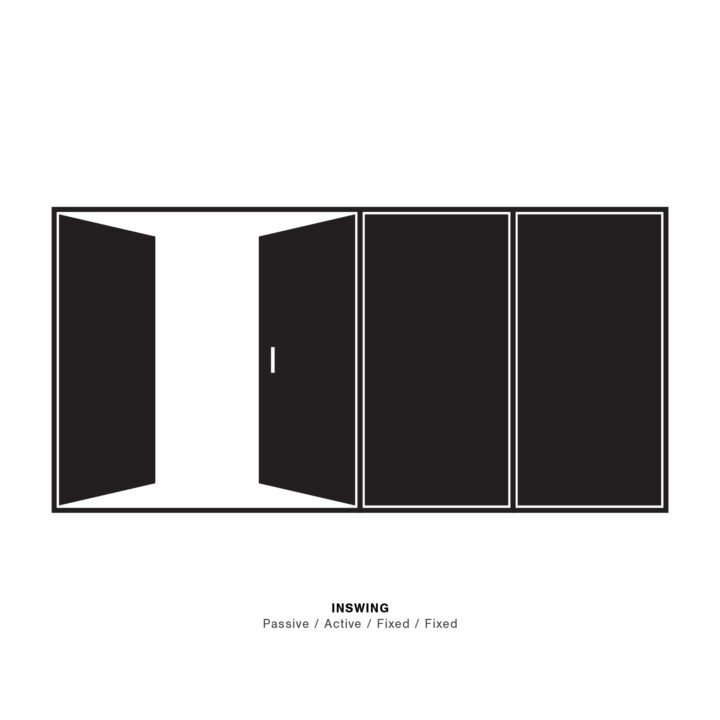

Inswing - Active / Passive / Fixed / Fixed

Inswing - Passive / Active / Fixed / Fixed

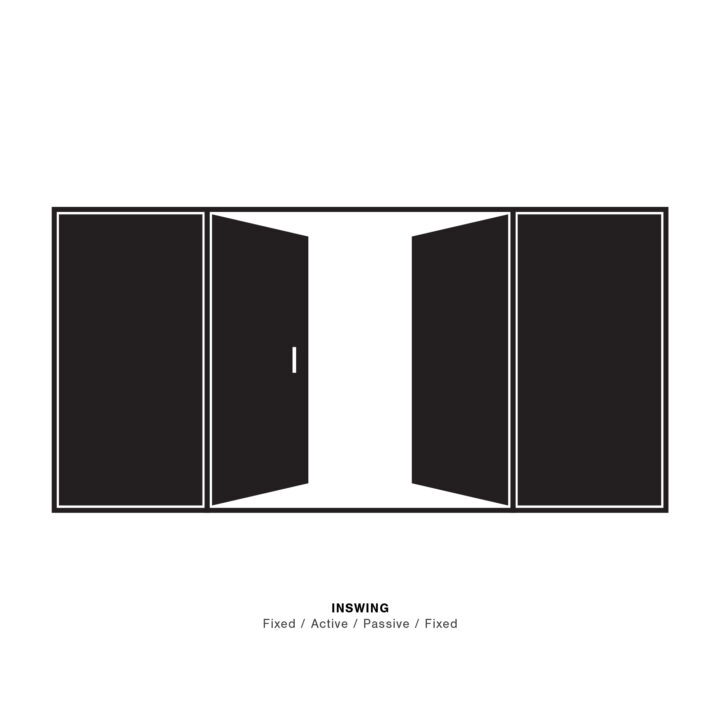

Inswing - Fixed / Active / Passive / Fixed

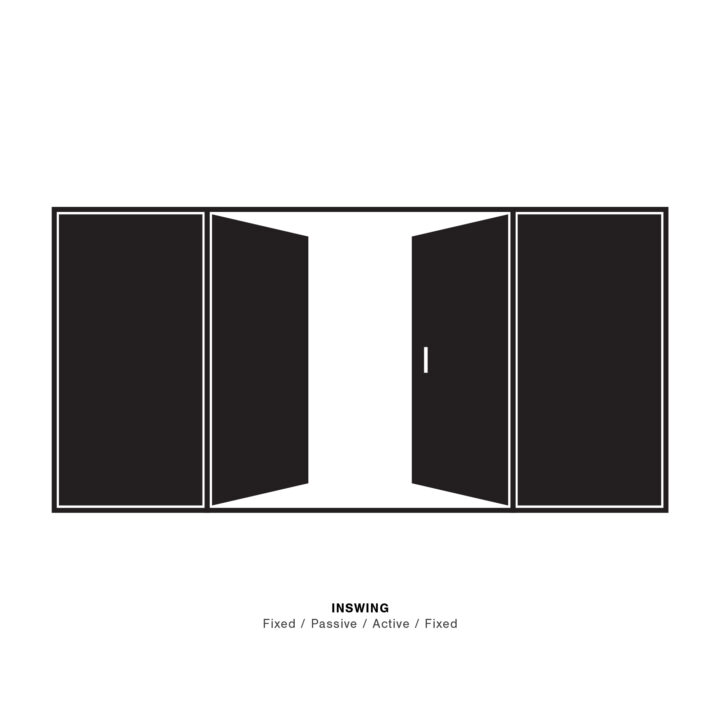

Inswing - Fixed / Passive / Active / Fixed

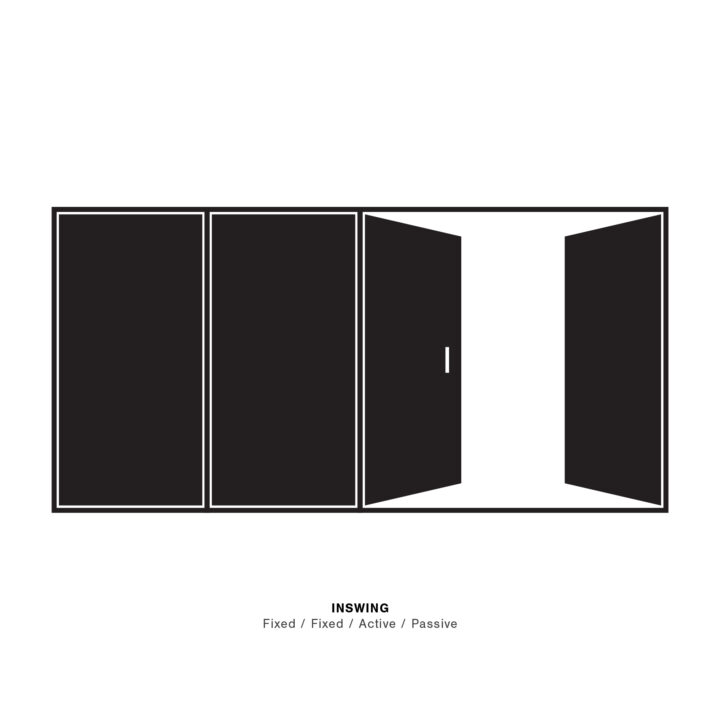

Inswing - Fixed / Fixed / Active / Passive

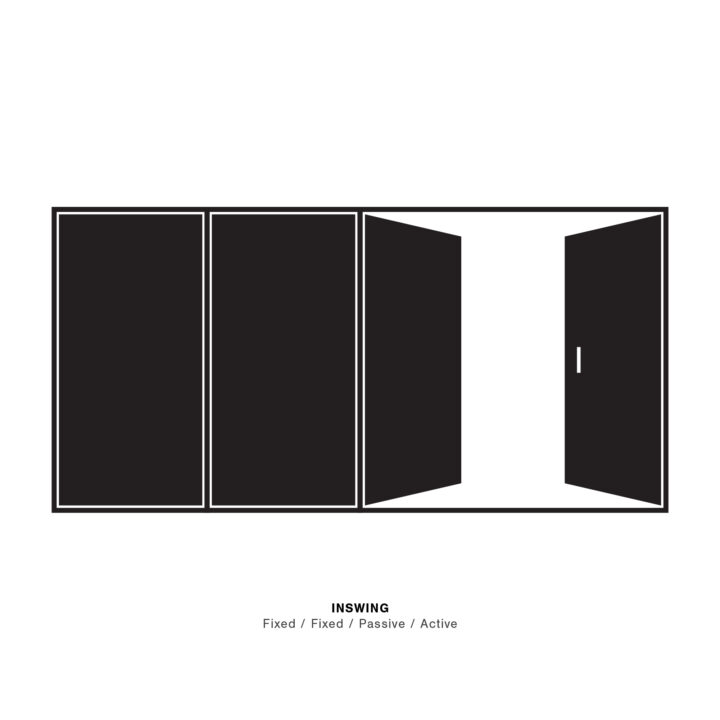

Inswing - Fixed / Fixed / Passive / Active

Outswing - Active / Passive

Outswing - Passive / Active

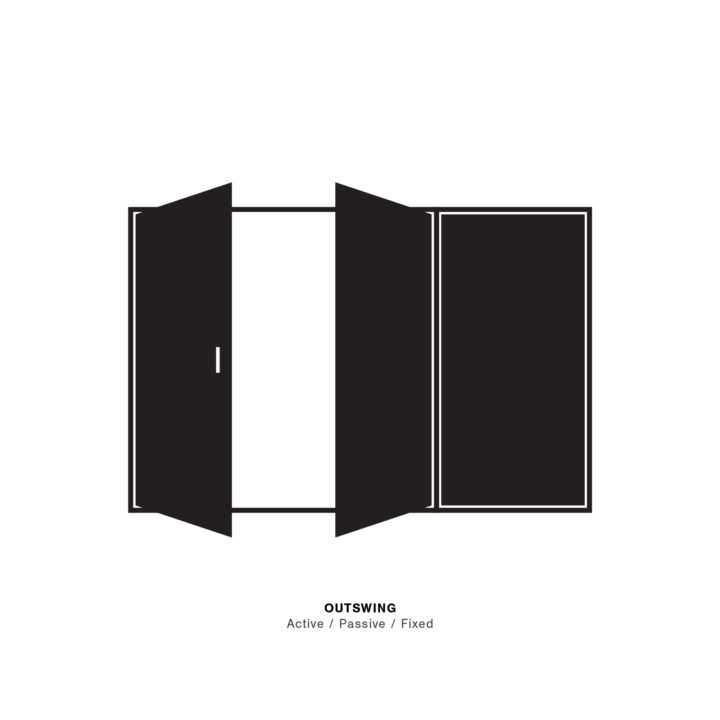

Outswing - Active / Passive / Fixed

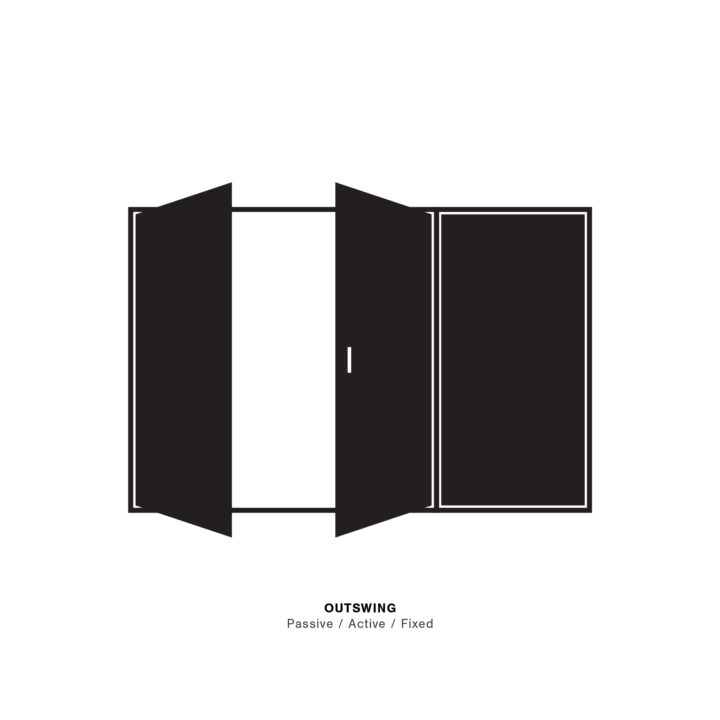

Outswing - Passive / Active / Fixed

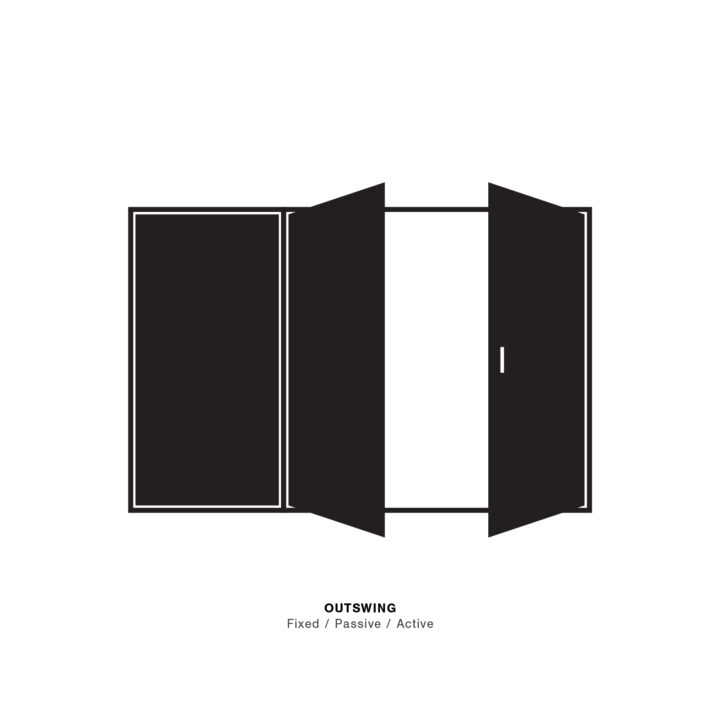

Outswing - Fixed / Active / Passive

Outswing - Fixed / Passive / Active

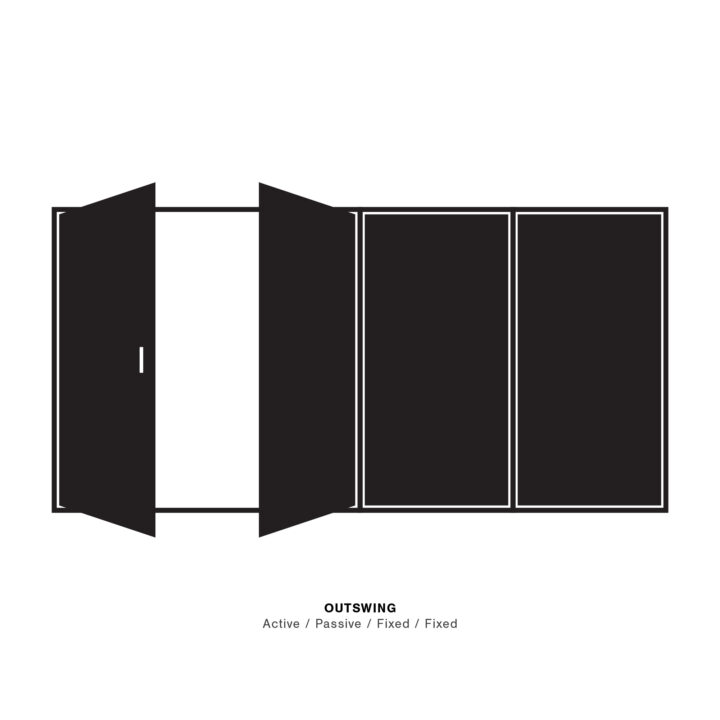

Outswing - Active / Passive / Fixed / Fixed

Outswing - Passive / Active / Fixed / Fixed

Outswing - Fixed / Active / Passive / Fixed

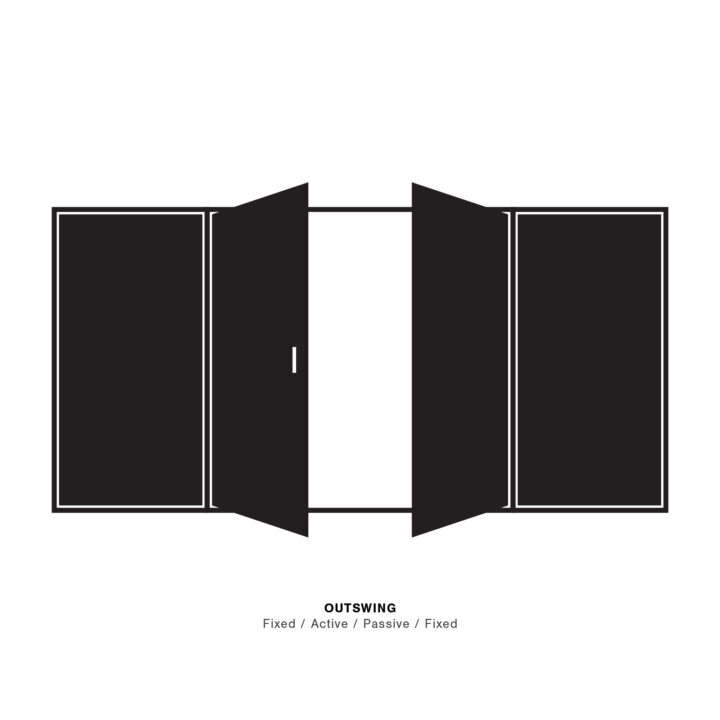

Outswing - Fixed / Passive / Active / Fixed

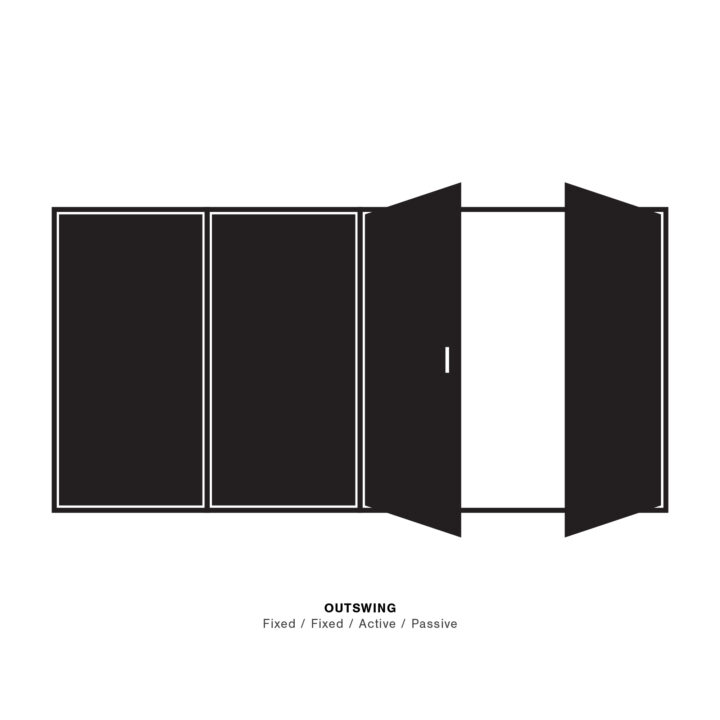

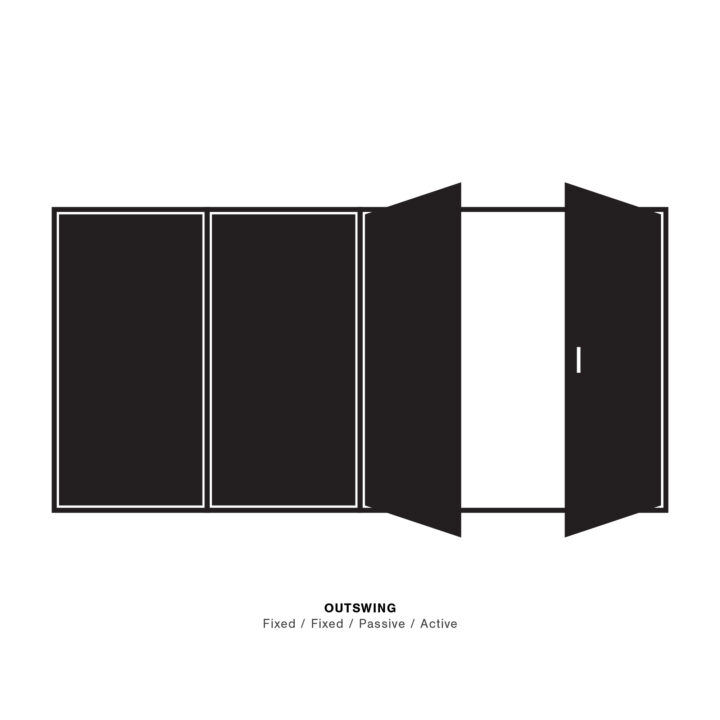

Outswing - Fixed / Fixed / Active / Passive

Outswing - Fixed / Fixed / Passive / Active

The “handing” designation always assumes an exterior to interior viewing angle. Looking from the exterior, if the hinge is on the left it is left-handed, if the hinge is on the right it is right-handed.

Frame Cladding

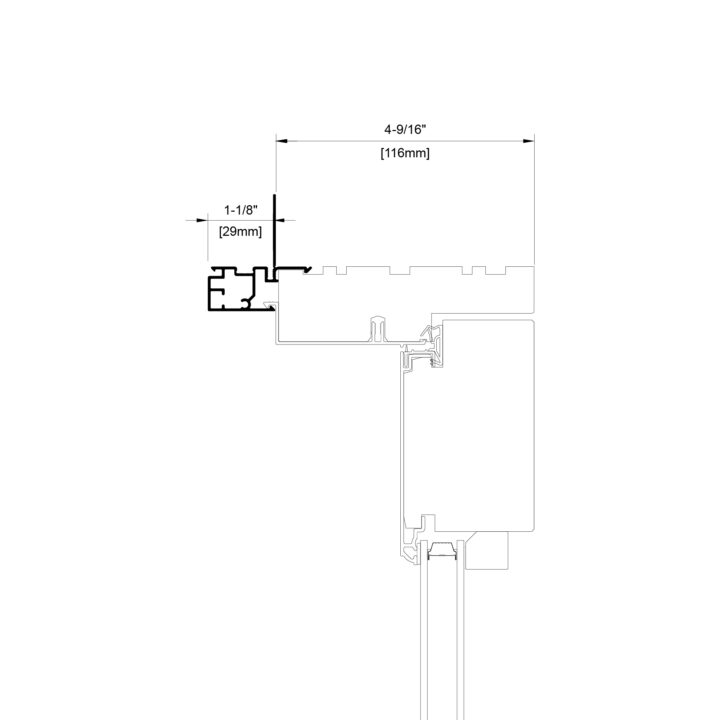

Standard Frame Cladding (Inswing)

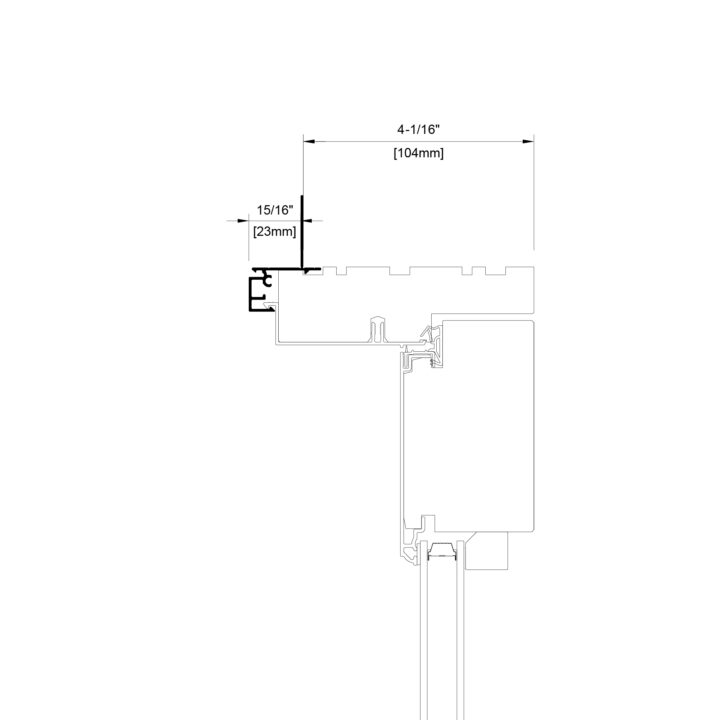

Contemporary Frame Cladding (Inswing)

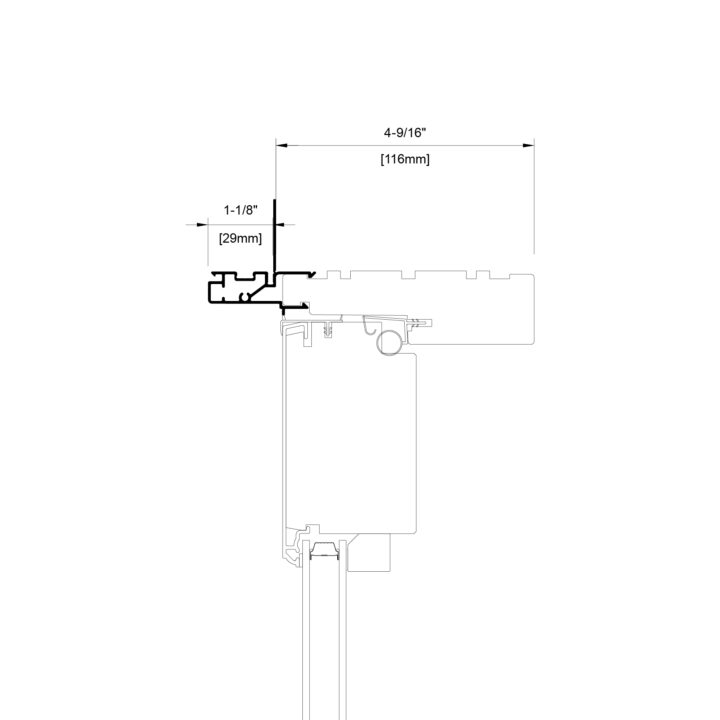

Standard Frame Cladding (Outswing)

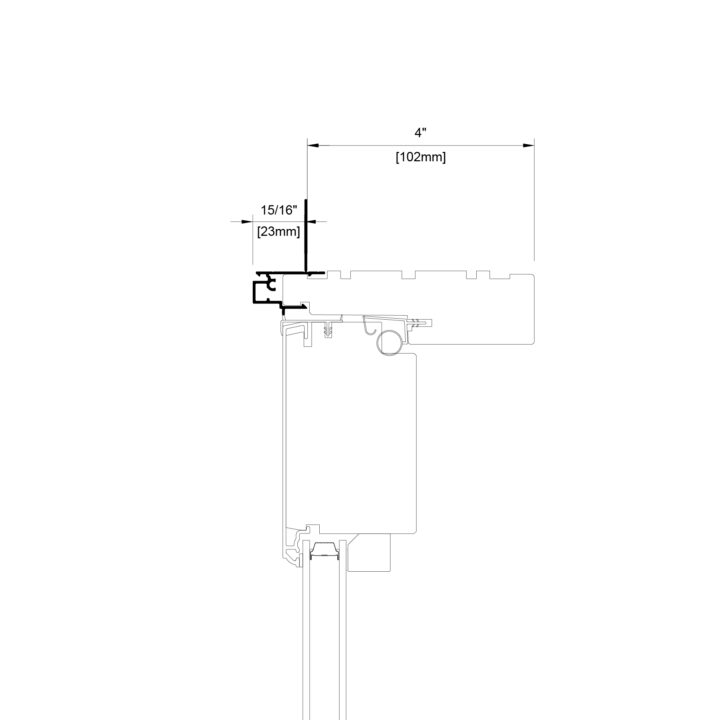

Contemporary Frame Cladding (Outswing)

Inswing & Outswing 3-Wide

Narrow Stile & Rail French Doors

Metal Clad - Three Wide 4 9/16" (116mm) Jamb

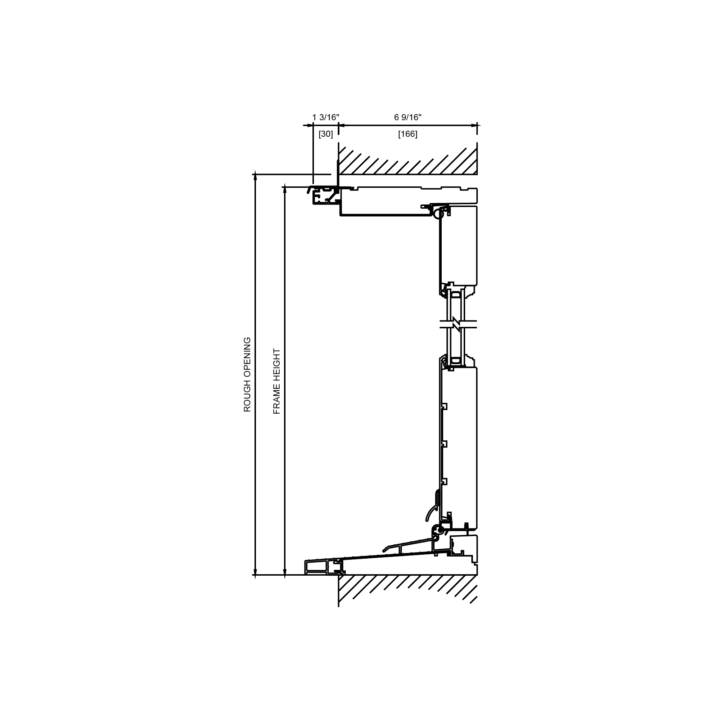

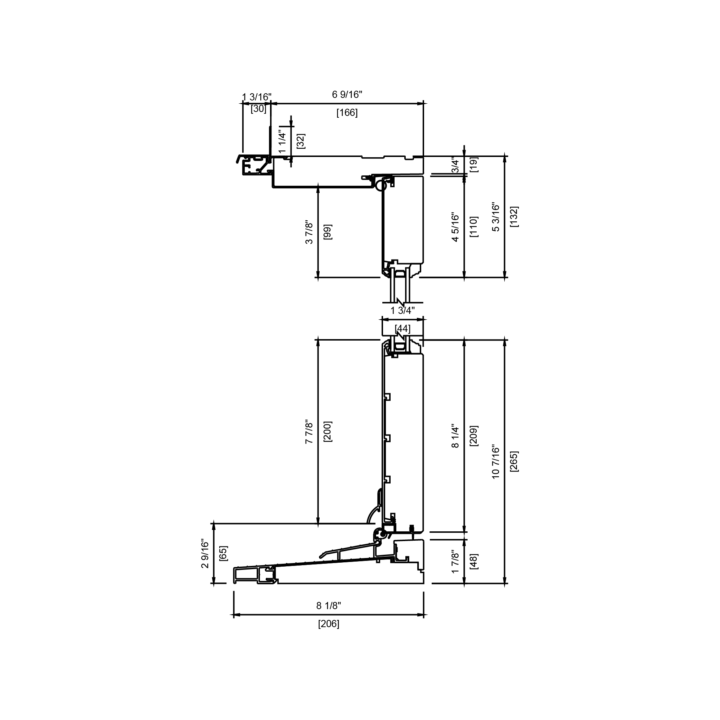

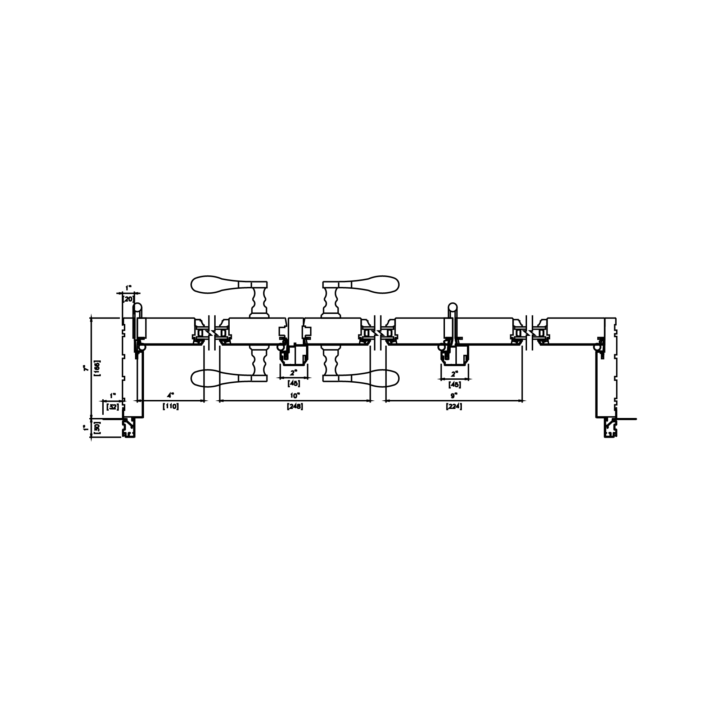

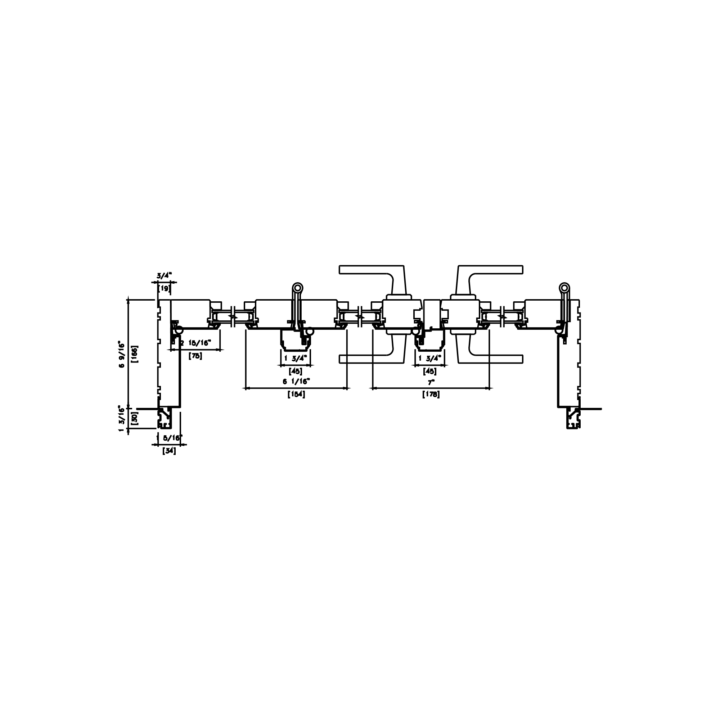

Metal Clad - Three Wide 6 9/16" (166mm) Full Jamb

Transom

Narrow Stile & Rail French Doors

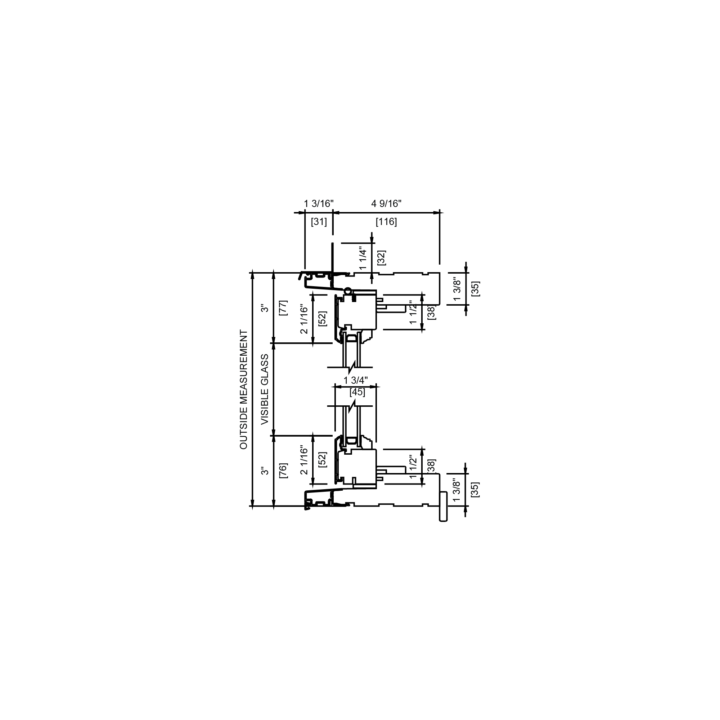

Metal Clad - Double 2 1/16" (52mm) Rails

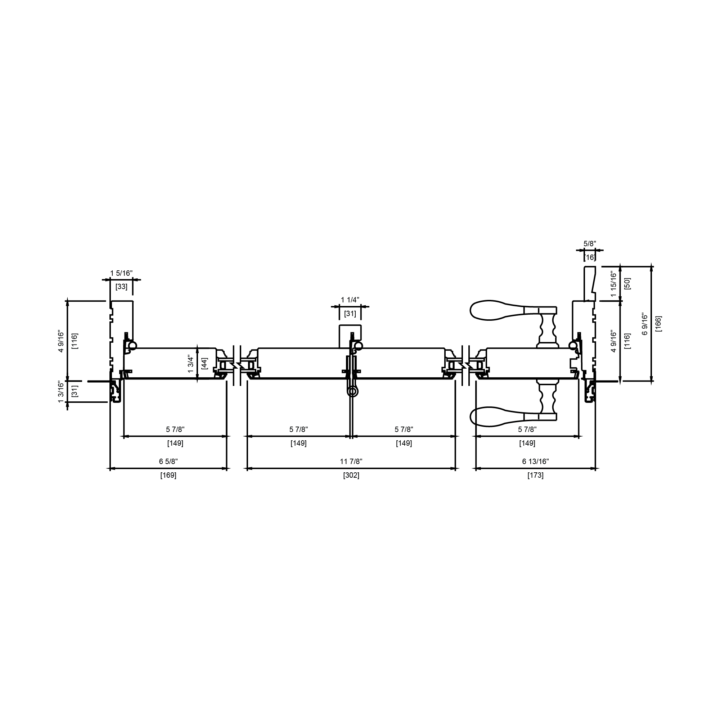

Metal Clad - Standard Stile 4 5/16" (110mm) Stiles

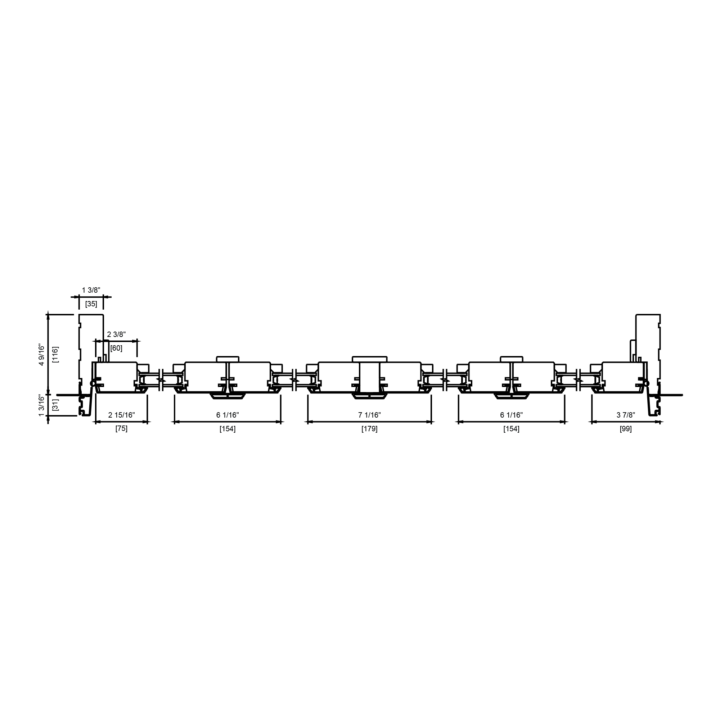

Metal Clad - Narrow Stile 3" (75mm) Stiles

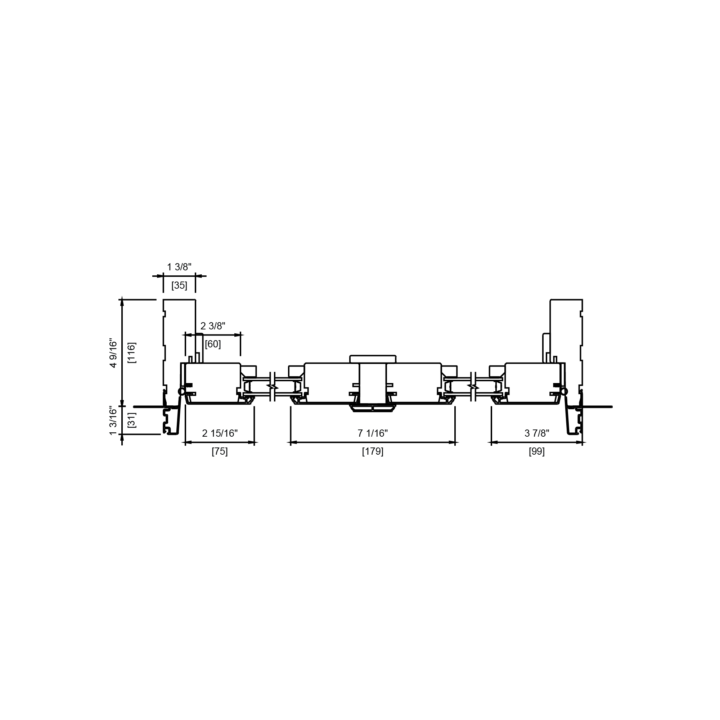

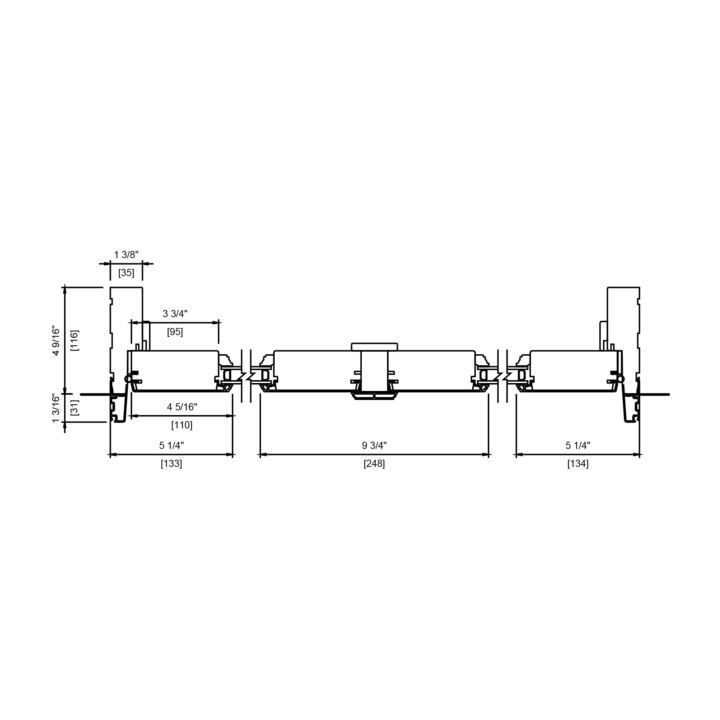

Metal Clad - Standard Stile 4 5/16" (110mm) Stiles - Plan View

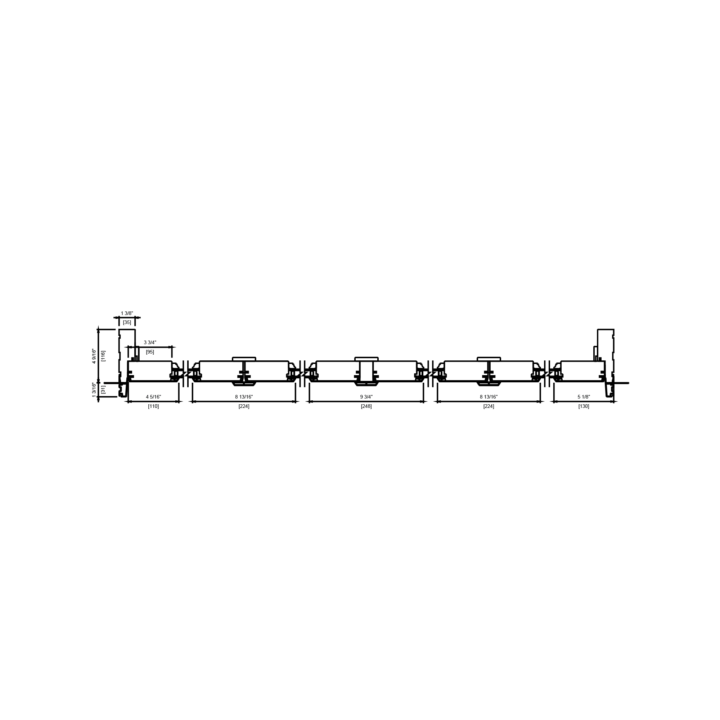

Metal Clad - Standard Stile 4 5/16" (110mm) Stiles - Plan View - Long

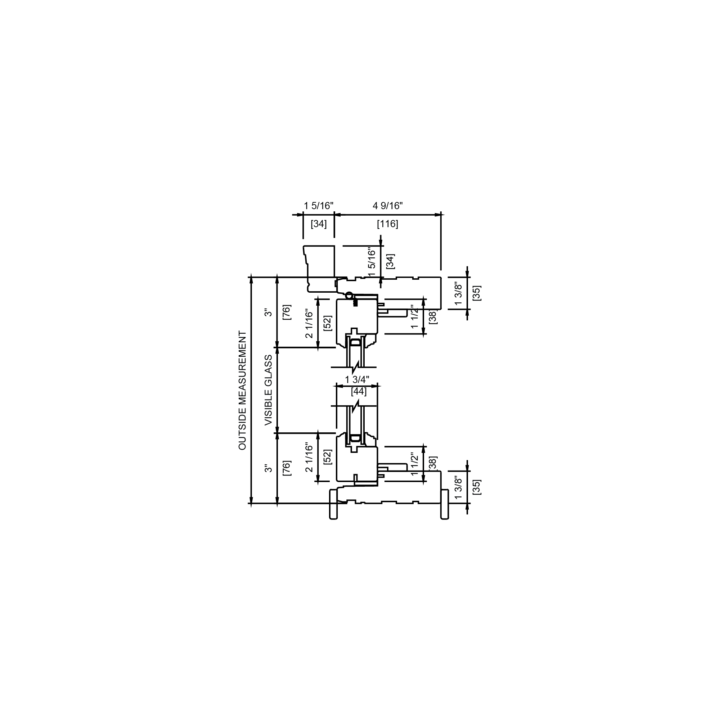

All Wood - Double 2 1/16" (52mm) Rails, 2" Brickmould

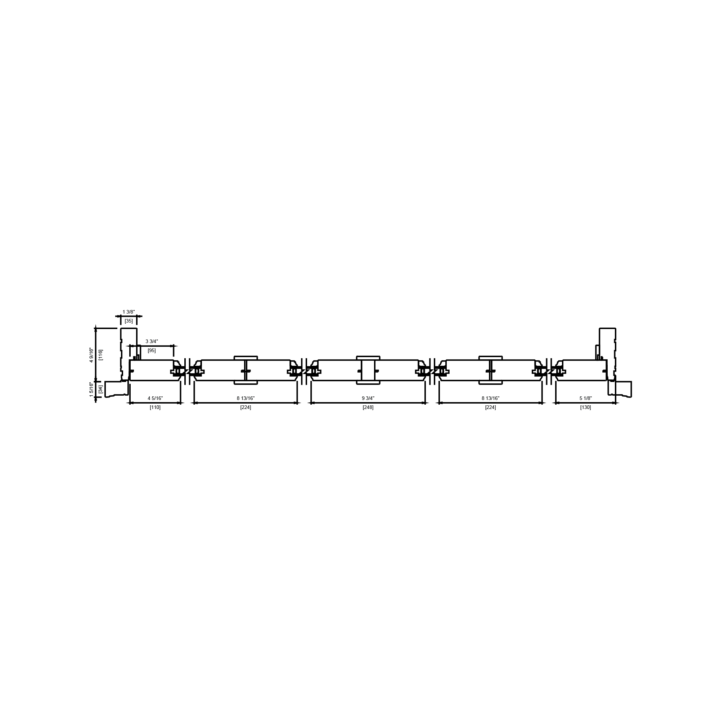

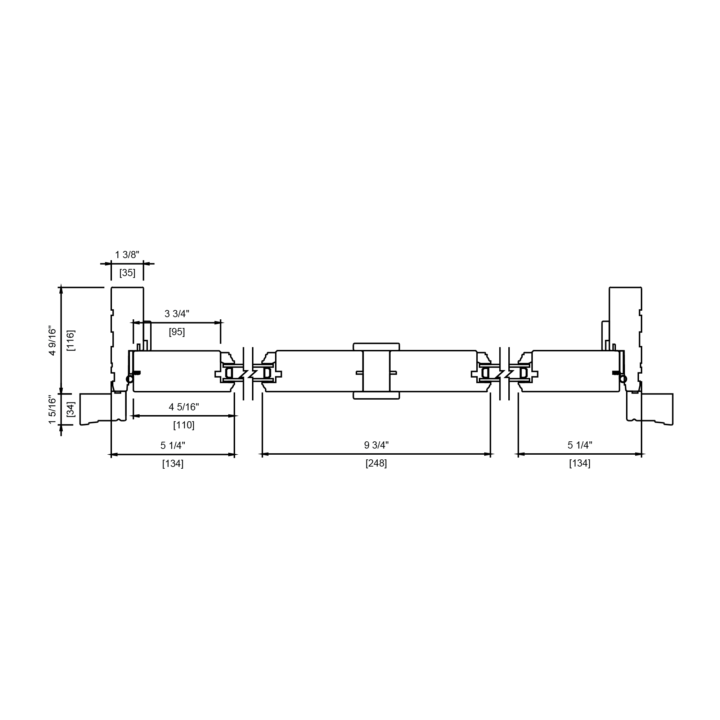

All Wood - Standard Stile 4 5/16" (110mm) Stiles

All Wood - Standard Stile 4 5/16" (110mm) Stiles

Flat Sill, Mid Rail & Bottom Rail

Narrow Stile & Rail French Doors

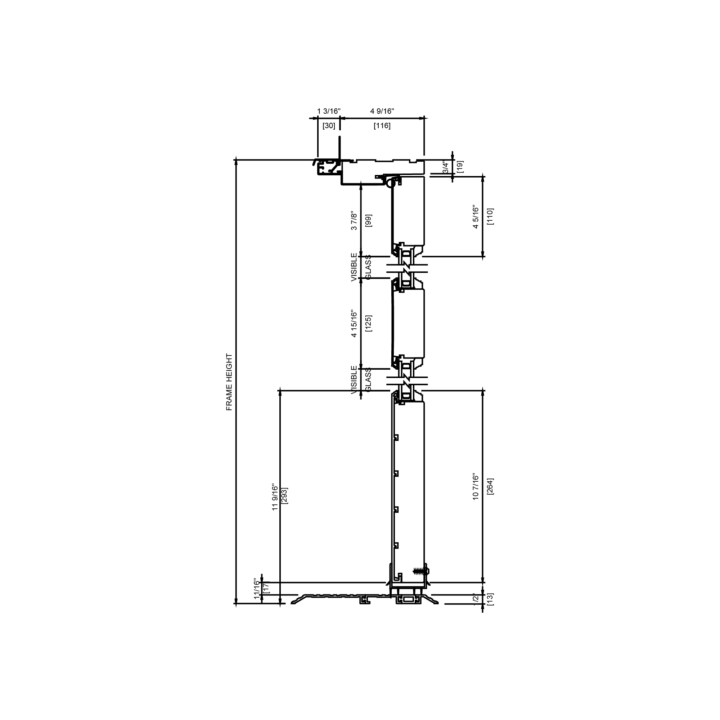

Metal Clad - Double Inswing

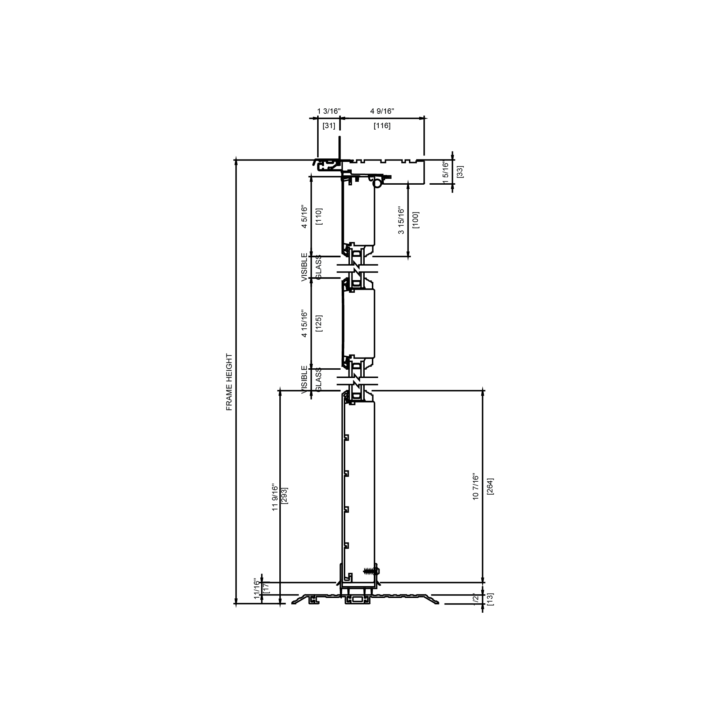

Metal Clad - Double Outswing

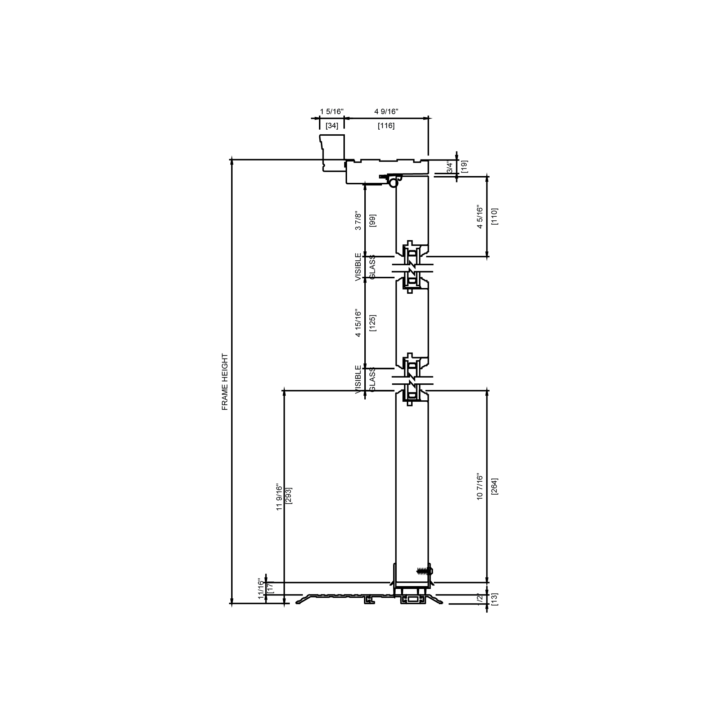

All Wood - Double Inswing

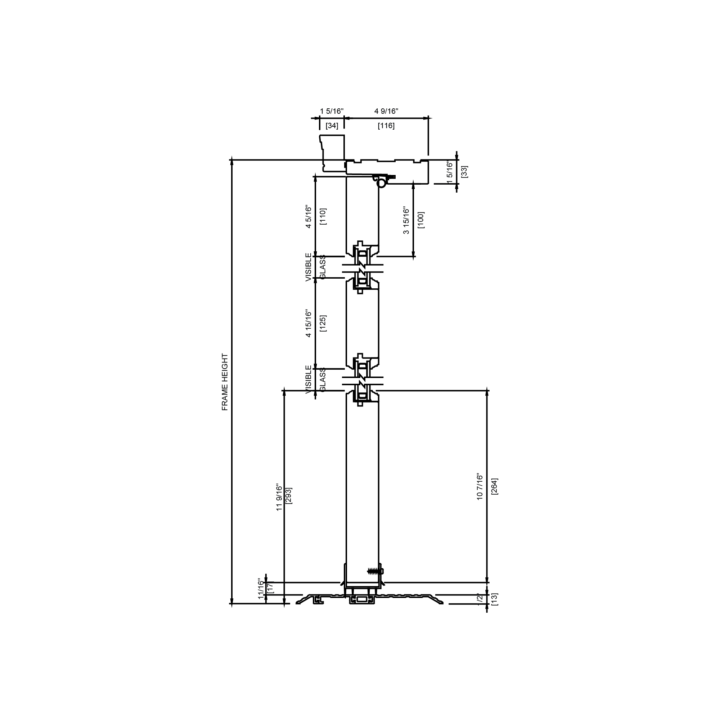

All Wood - Double Outswing

02 - Narrow Stile & Rail / Inswing

Inswing

Narrow Stile & Rail French Doors

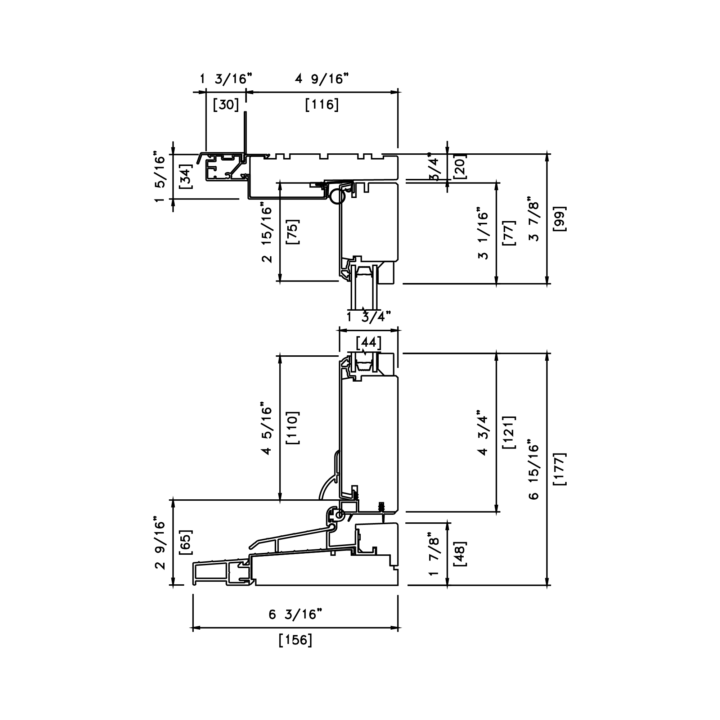

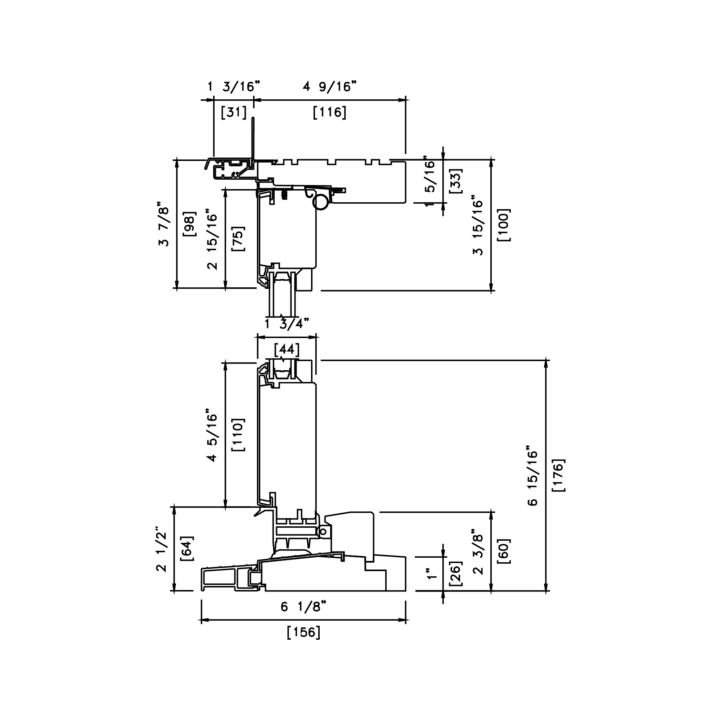

Metal Clad - Double 4 9/16" (116mm)

Metal Clad - Double 6 9/16" (166mm)

Metal Clad - Double 6 9/16" (166mm) Full Jamb

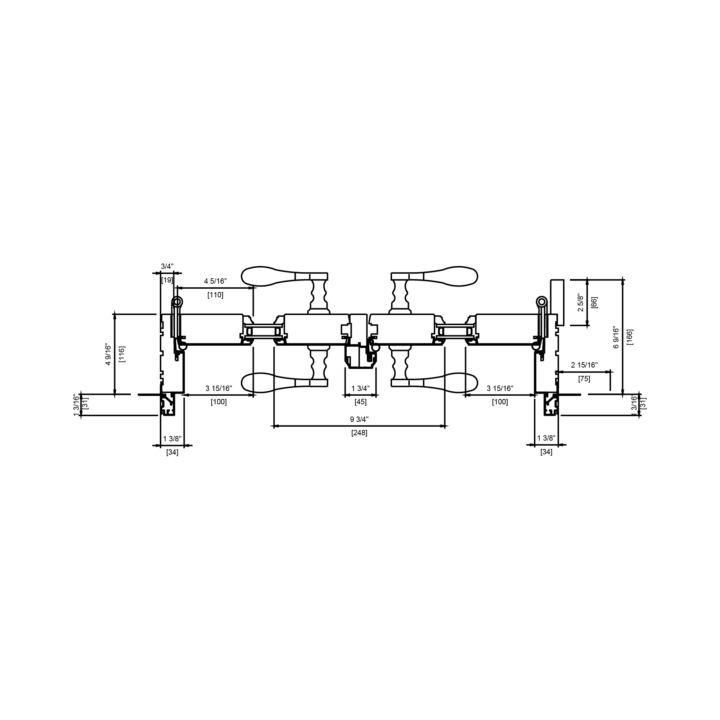

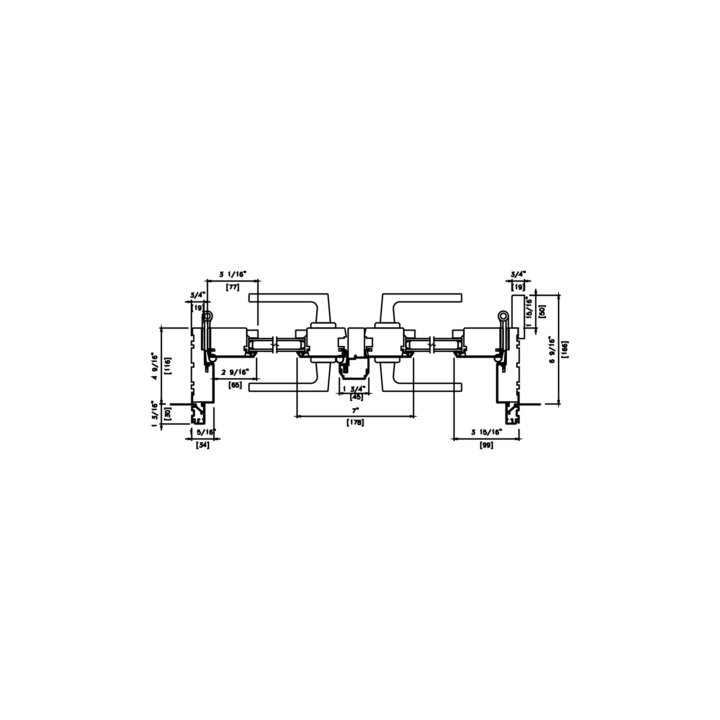

Metal Clad - Double, Two Panel, 4 9/16" - 6 9/16" (116mm - 166mm)

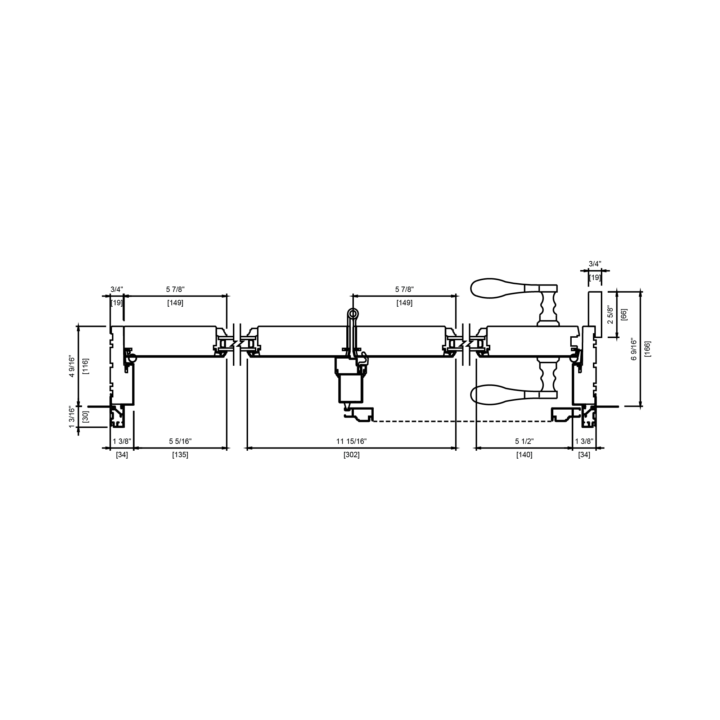

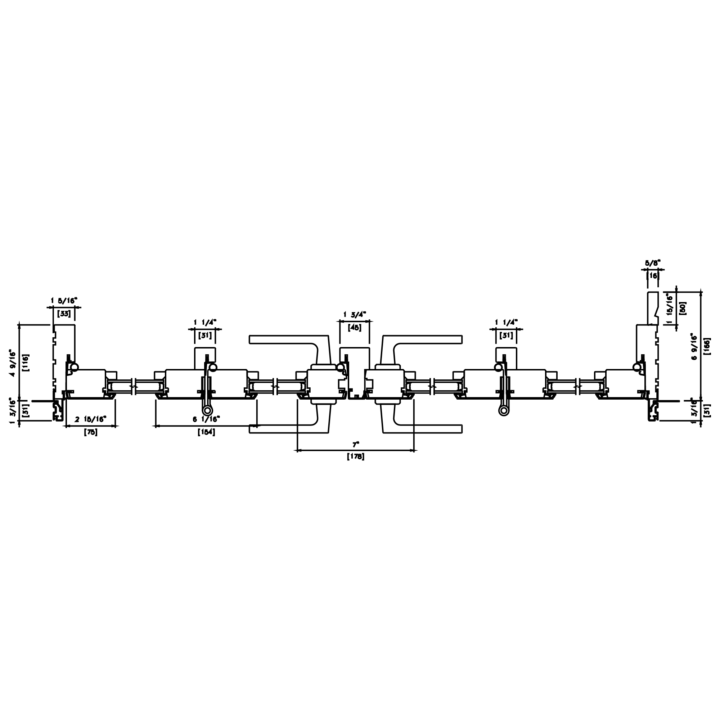

Metal Clad - Double, Four Panel 6 9/16" (166mm)

03 - Narrow Stile & Rail / Outswing

Outswing

Narrow Stile & Rail French Doors

Metal Clad - Double 4 9/16" (116mm)

Metal Clad - Double 6 9/16" (166mm)

Metal Clad - Double 6 9/16" (166mm) Full Jamb

Metal Clad - Double, Two Panel 6 9/16" (166mm)

Metal Clad - Double, Four Panel, 4 9/16" - 6 9/16" (116mm - 166mm)

04 - Standard Stile & Rail / Inswing

Inswing

Standard Stile & Rail French Doors

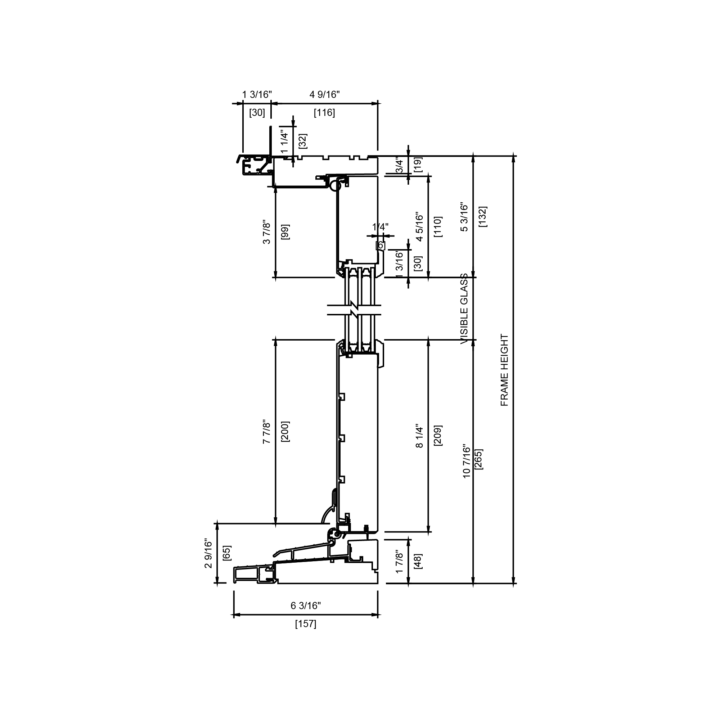

Metal Clad - Triple 4 9/16" (116mm) Triple Glazing Stop

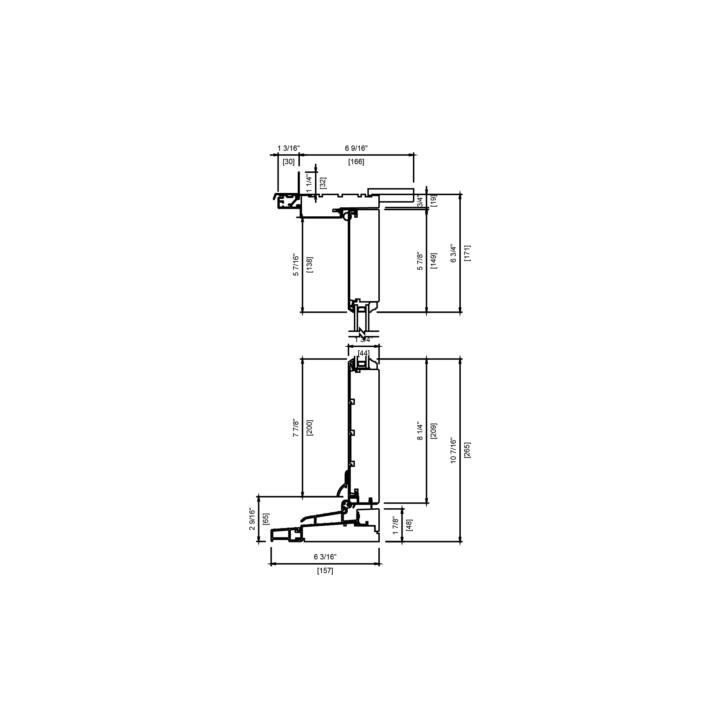

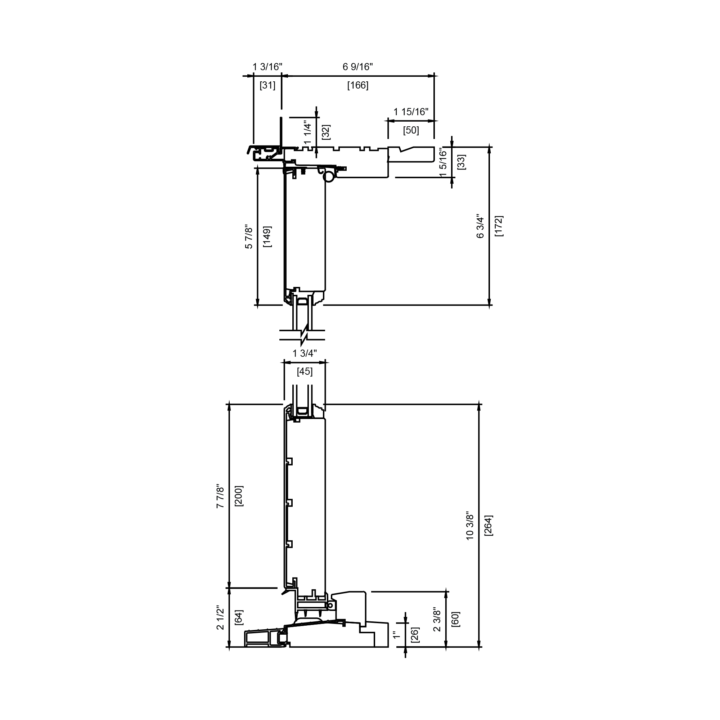

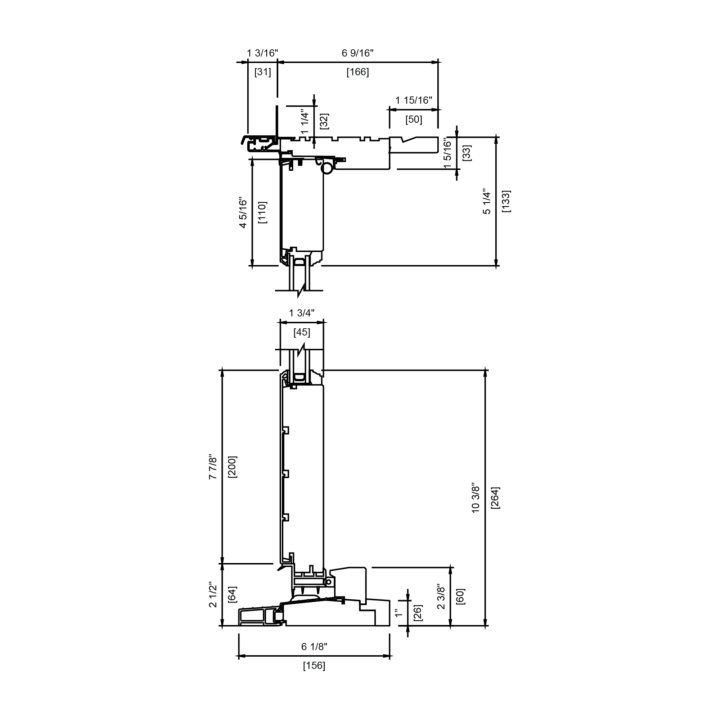

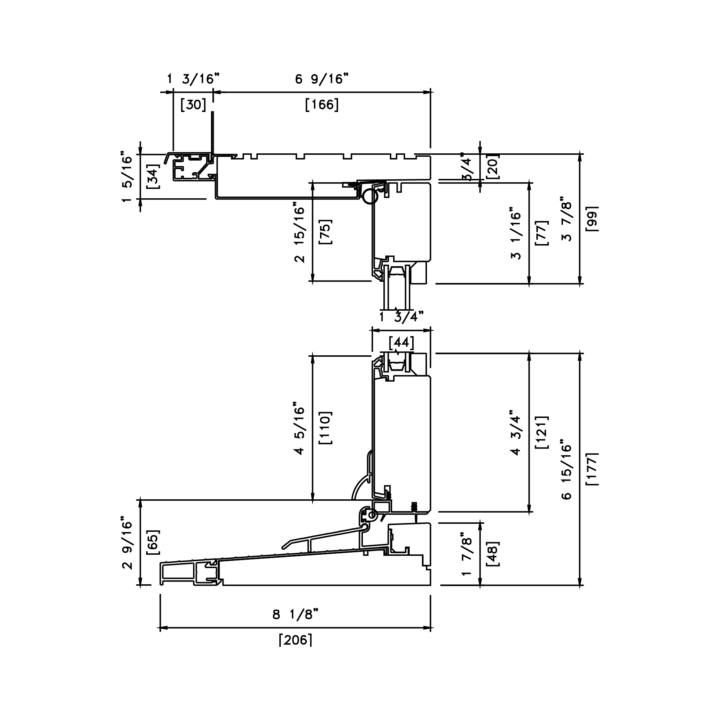

Metal Clad - Double 6 9/16" (166mm)

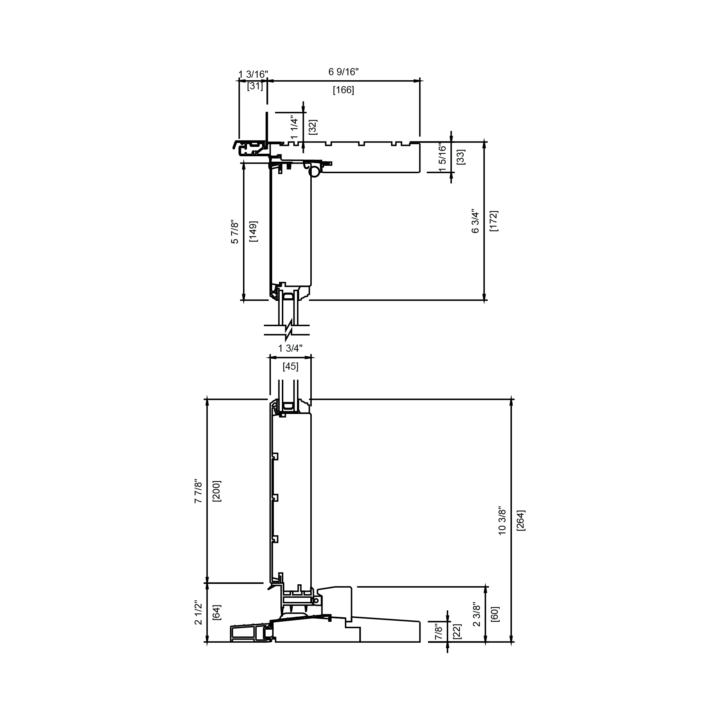

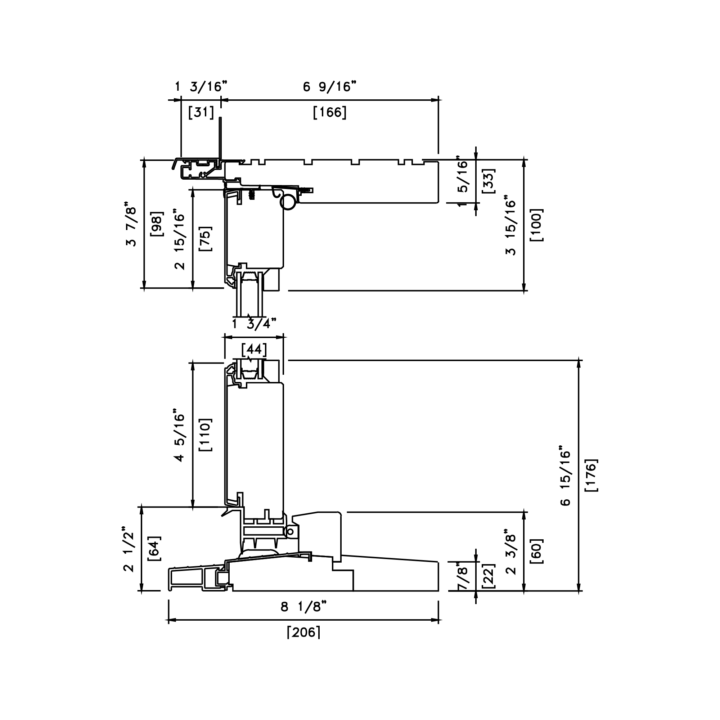

Metal Clad - Double 6 9/16" (166mm) Full Jamb

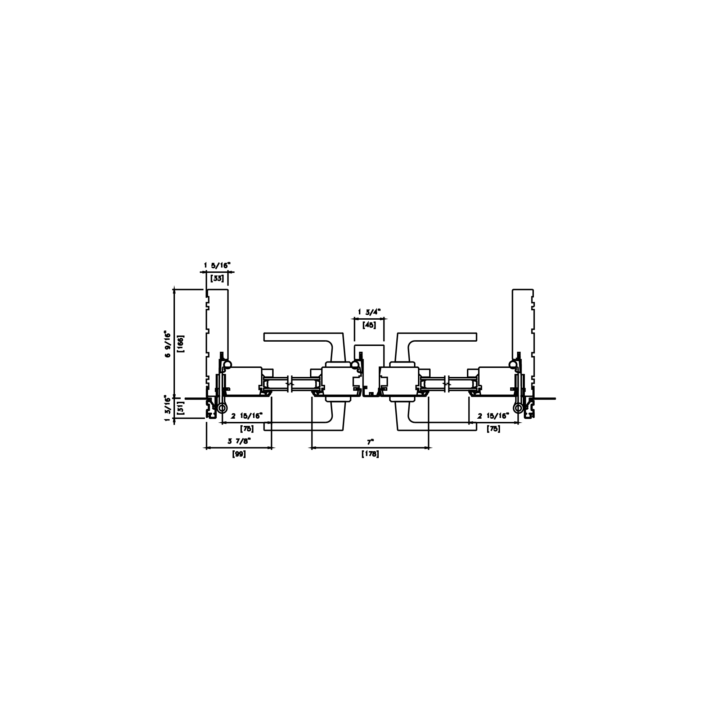

Metal Clad - Double, Two Panel

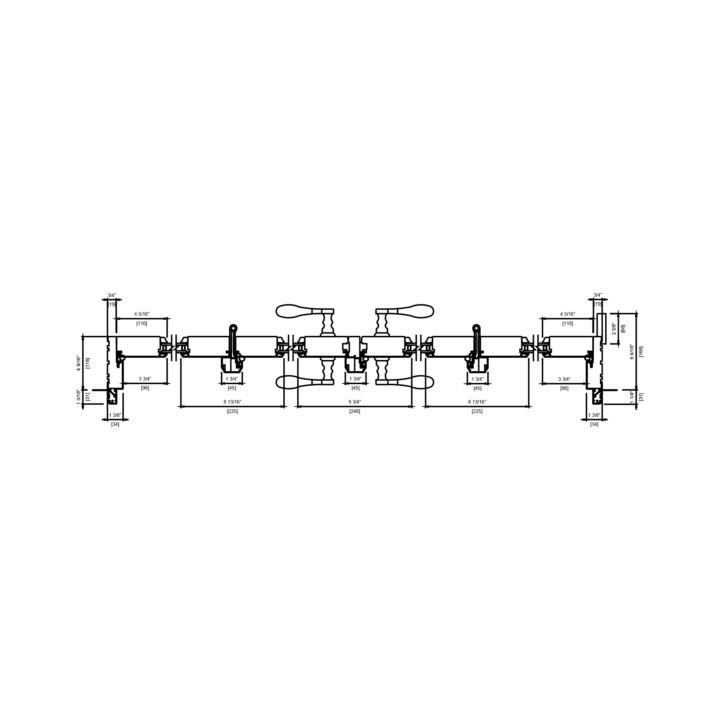

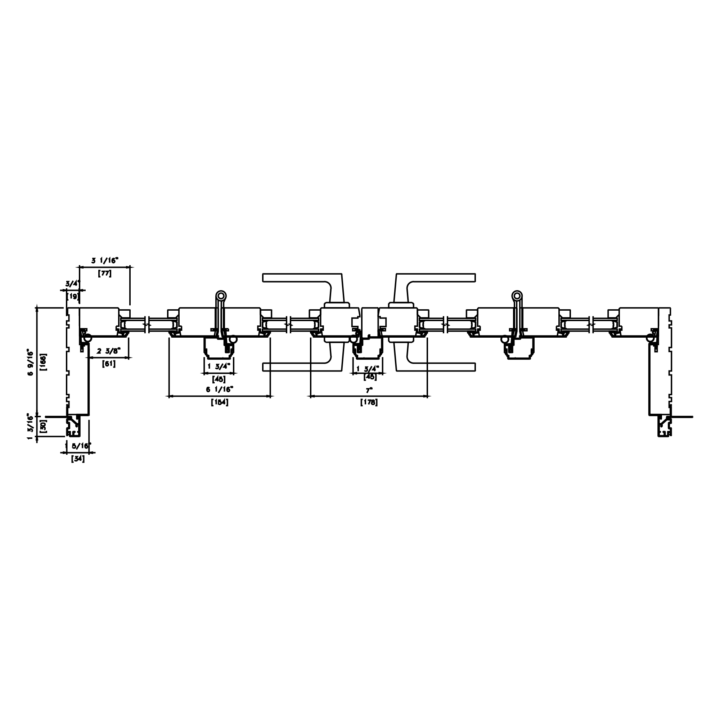

Metal Clad - Double, Four Panel

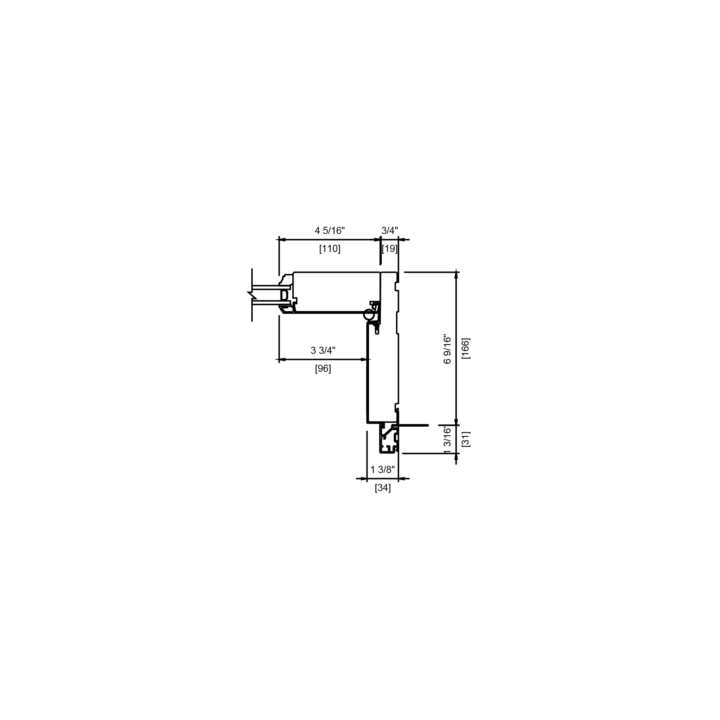

Metal Clad - Double 6 9/16" (166mm) Full Jamb - Plan View

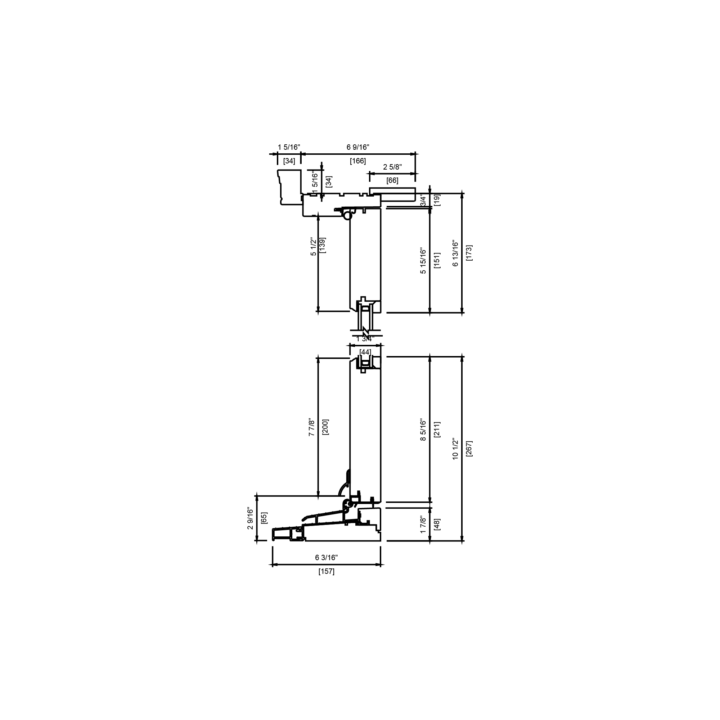

All Wood Double 6 9/16" (166mm) 2" Brickmould, Square Stop

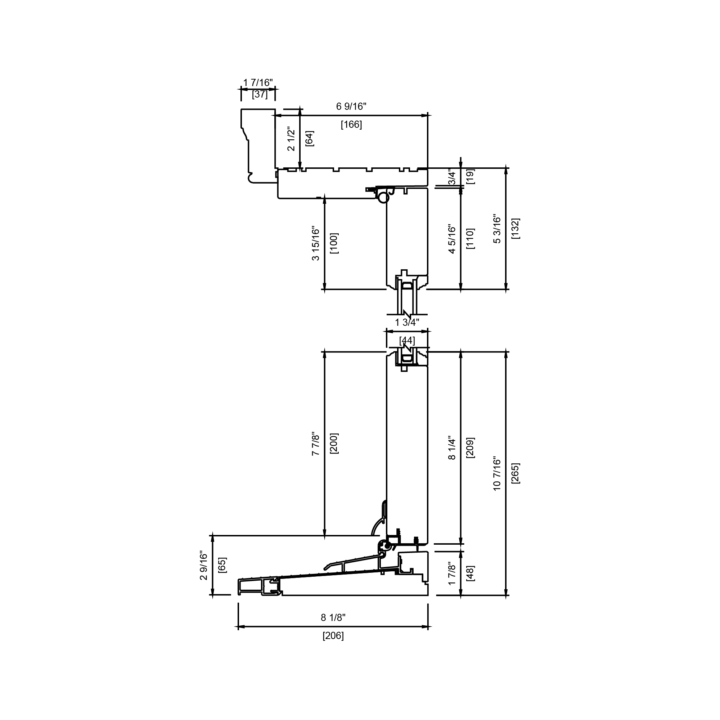

All Wood Double 6 9/16" (166mm) Full Jamb, Williamsburg Casing

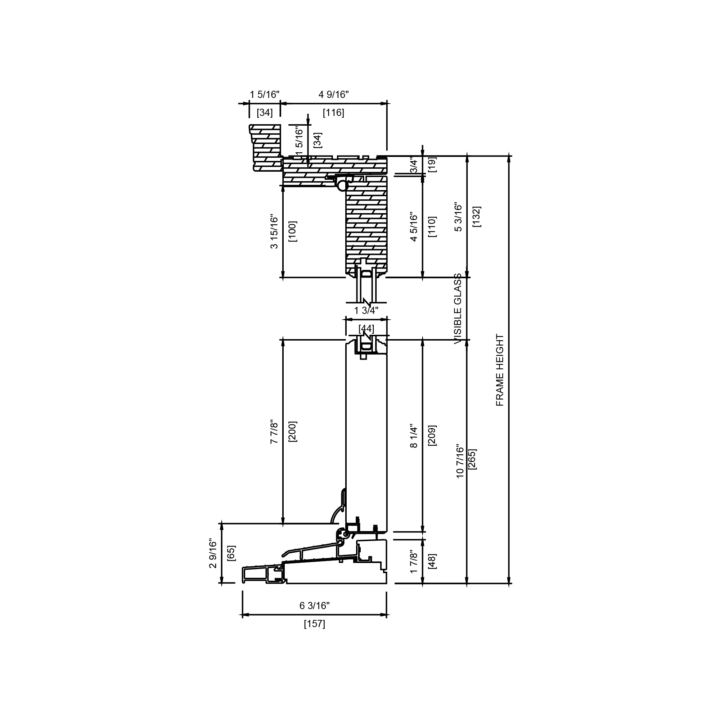

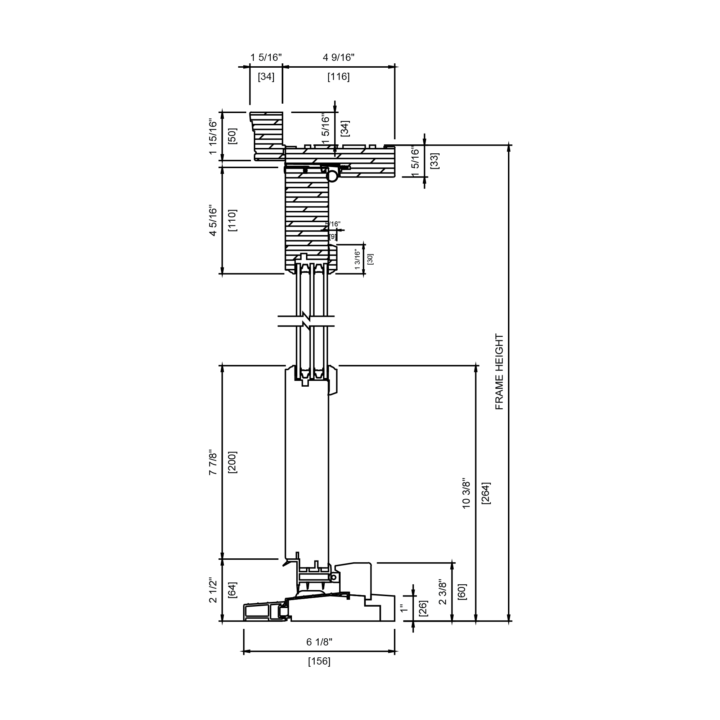

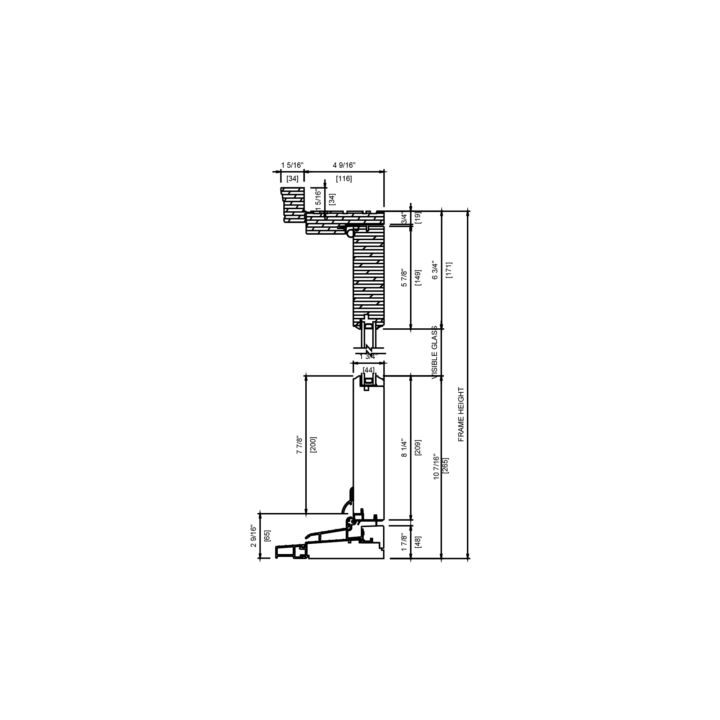

All Wood - Camber/Roundtop Double 4 9/16" (116mm) 2" Brickmould

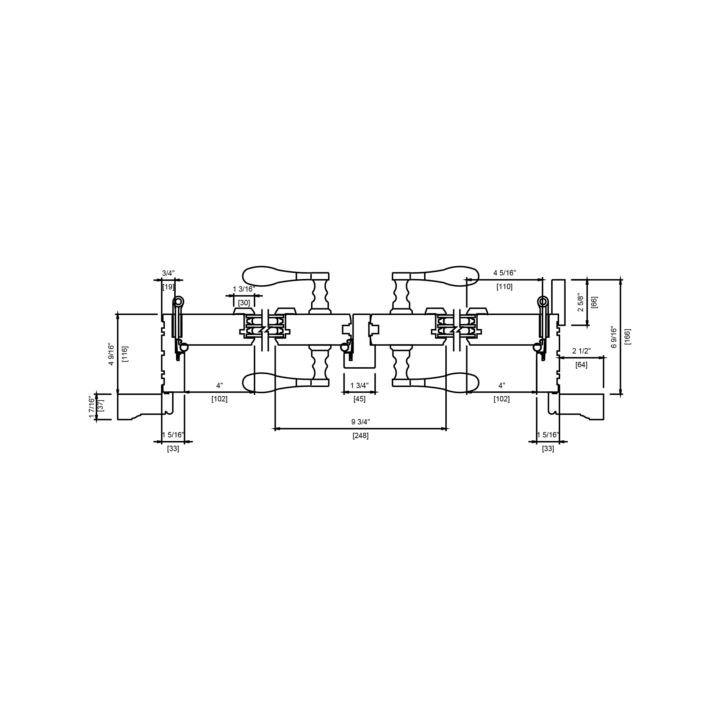

All Wood - Triple, Two Panel, Williamsburg Casing, Triple Glazing Stop

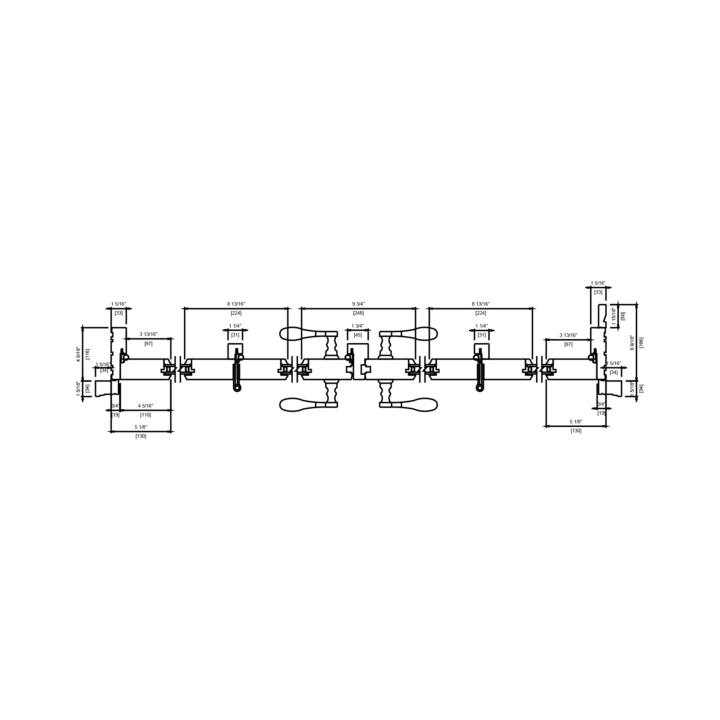

All Wood - Double, Four Panel, 2" Brickmould

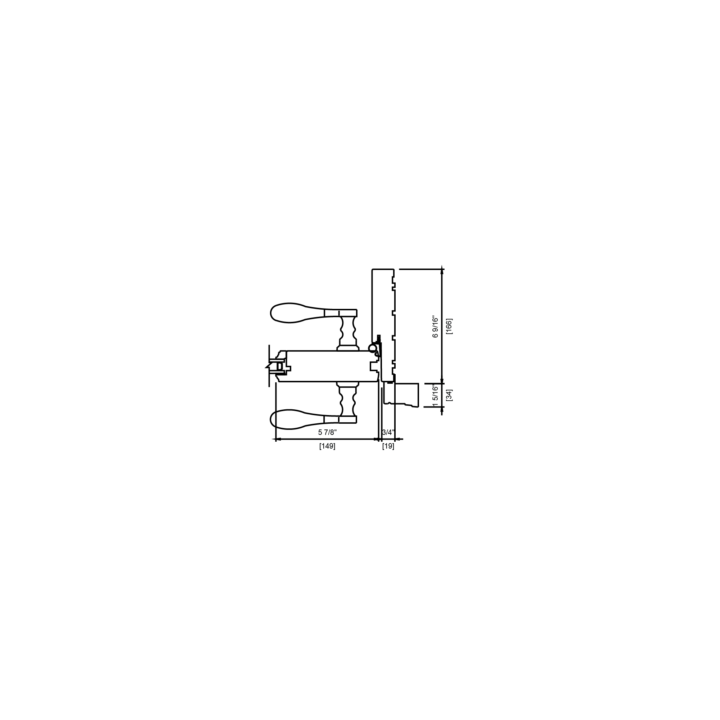

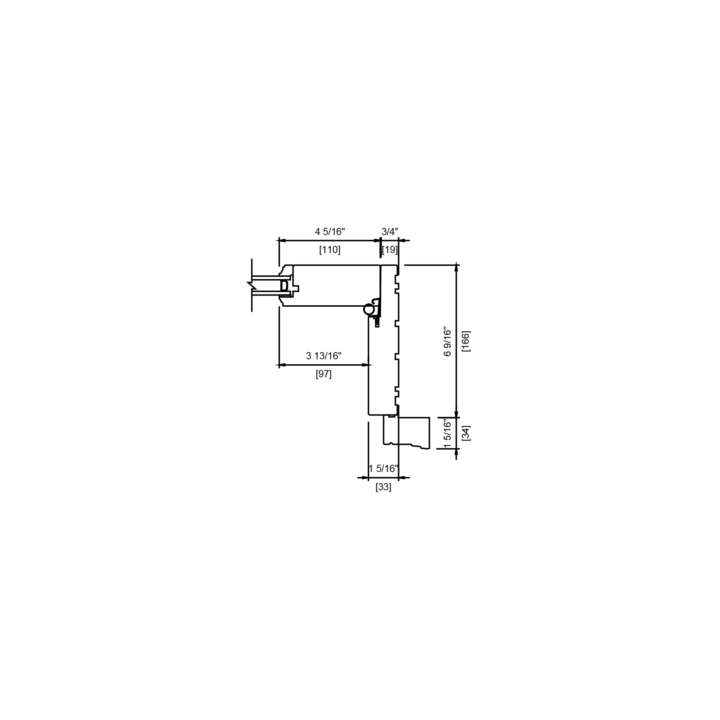

All Wood - Double 6 9/16" (166mm) Full Jamb, 2" Brickmould

05 - Standard Stile & Rail / Outswing

Outswing

Standard Stile & Rail French Doors

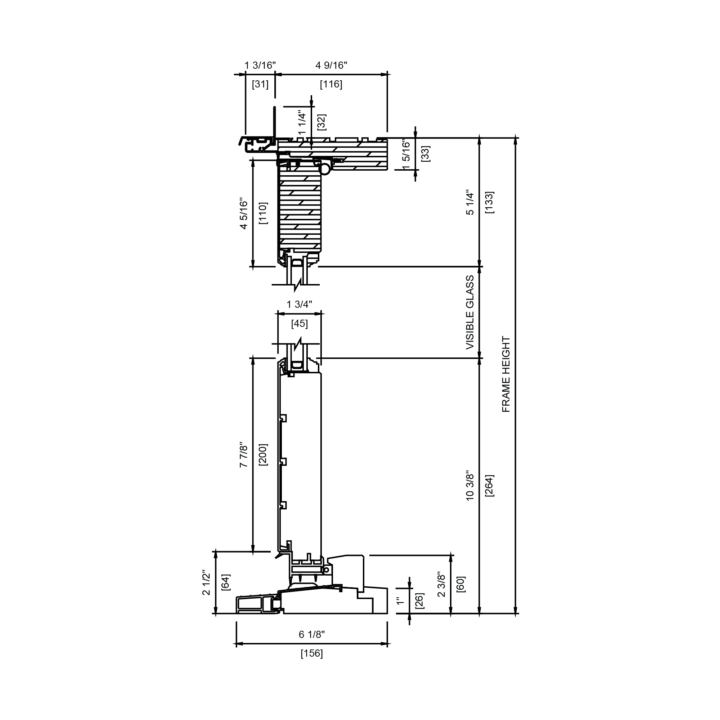

Metal Clad - Double, Cambertop 4 9/16" (116mm)

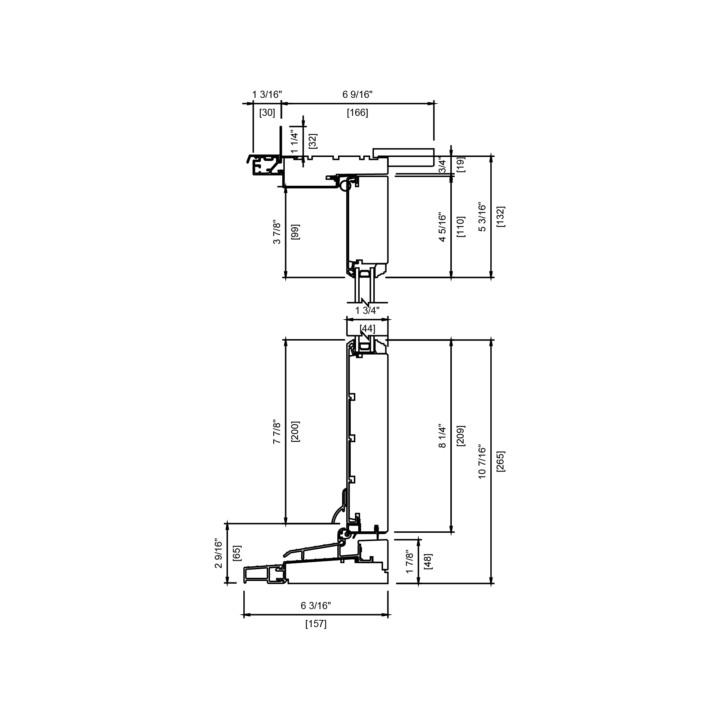

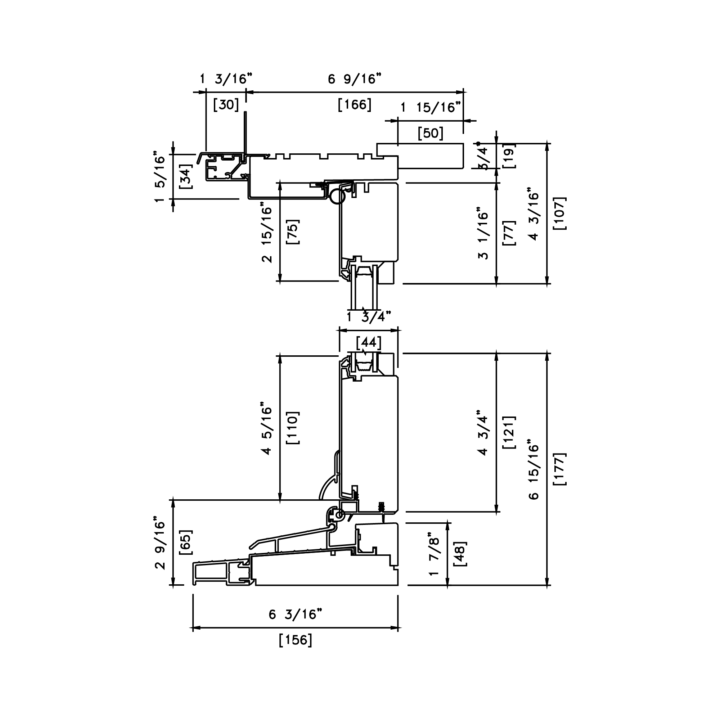

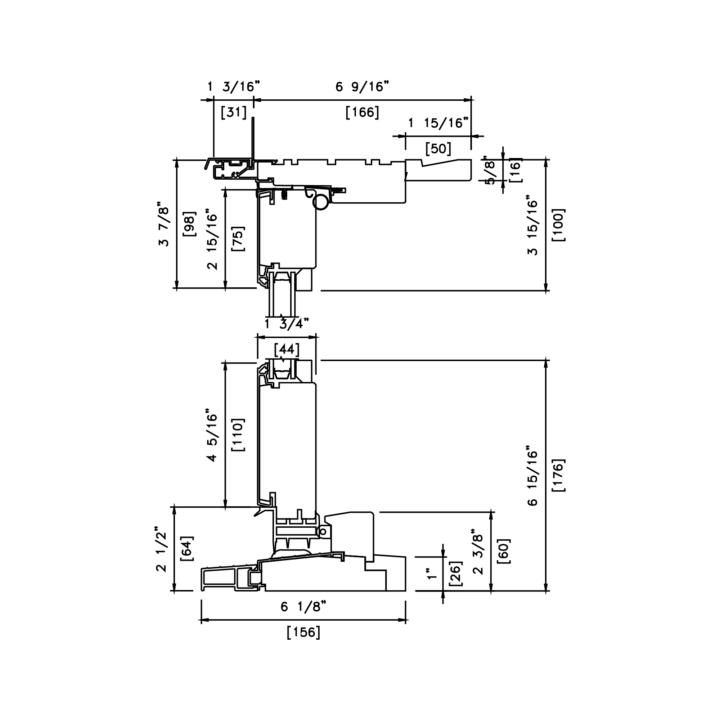

Metal Clad - Double 6 9/16" (166mm)

Metal Clad - Double 6 9/16" (166mm) Full Jamb

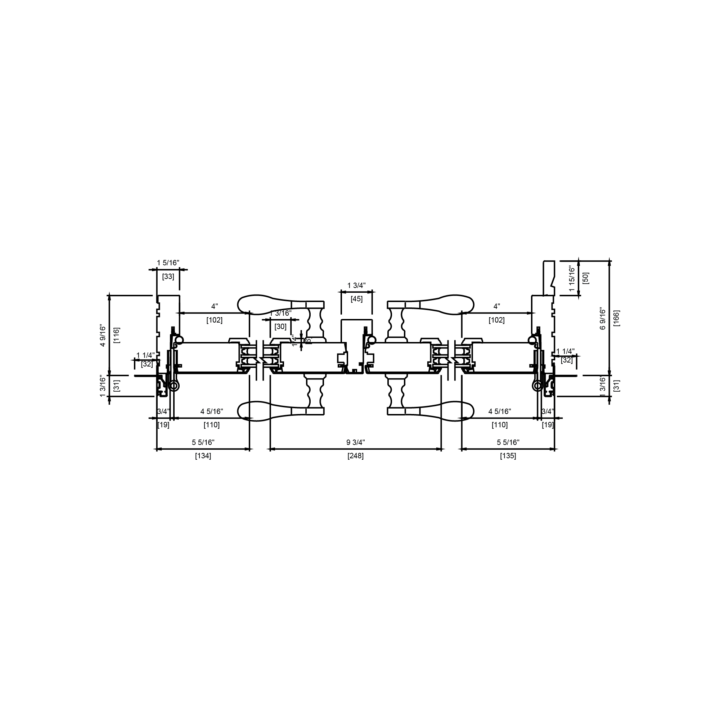

Metal Clad - Triple, Two Panel, Triple Glazing Stop

Metal Clad - Double, Four Panel

Metal Clad - Double 6 9/16" (166mm) Full Jamb - Plan View

All Wood - Triple, Cambertop, 2" Brickmould, Triple Glazing Stop

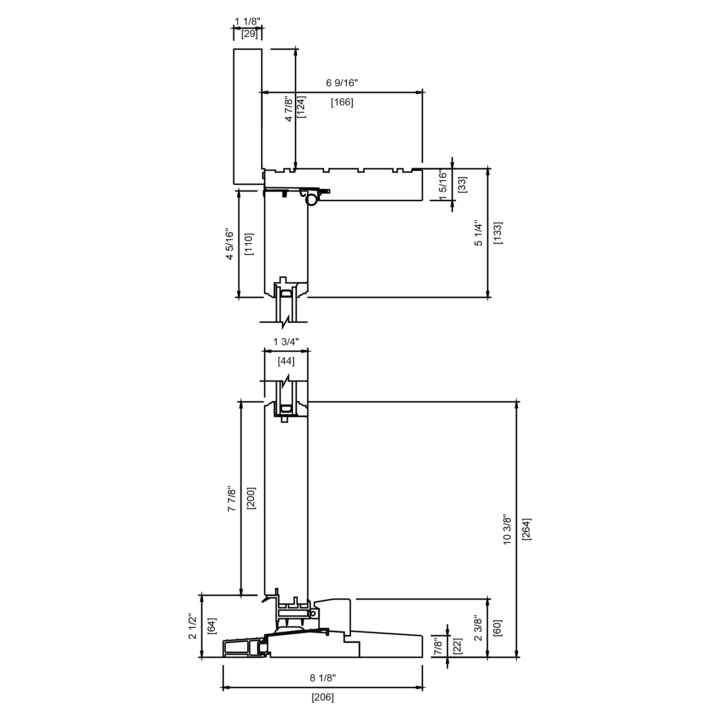

All Wood - Double 6 9/16" (166mm) Full Jamb, 5 1/2" Flat Casing

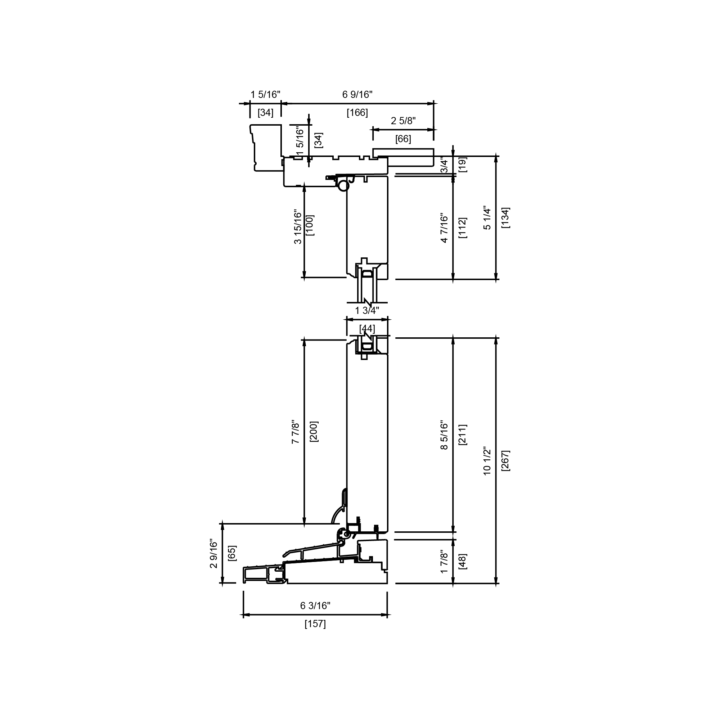

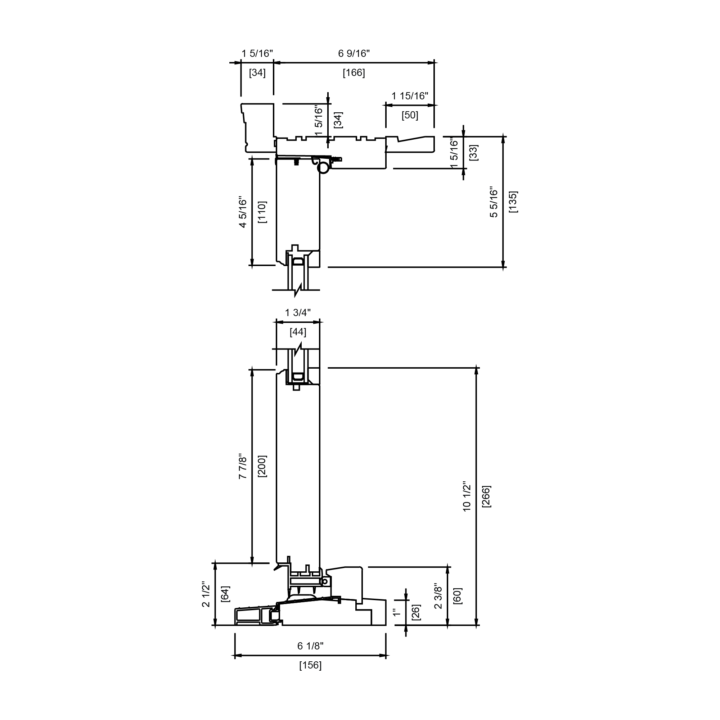

All Wood - Double 6 9/16" (166mm) 2" Brickmould, Square Stop

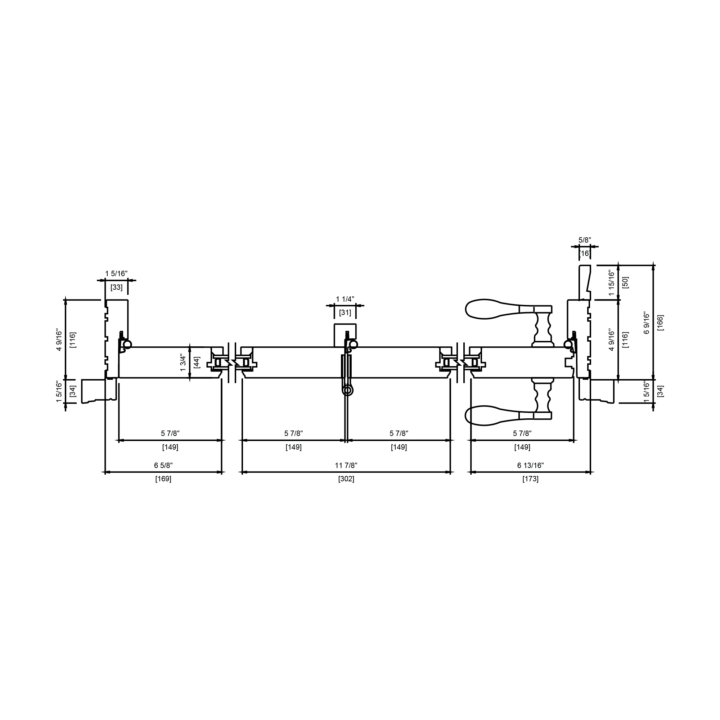

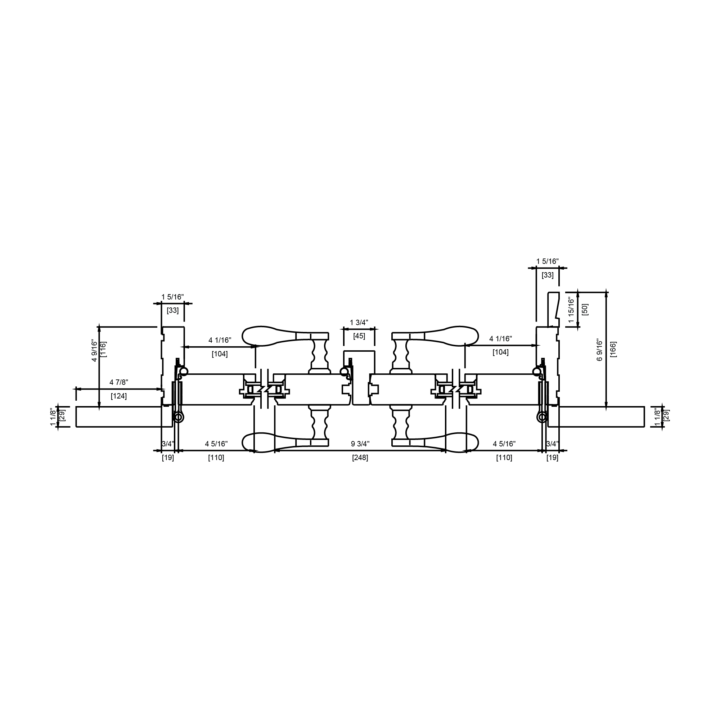

All Wood - Double, Two Panel, 5 1/2" Flat Casing, Square Stop

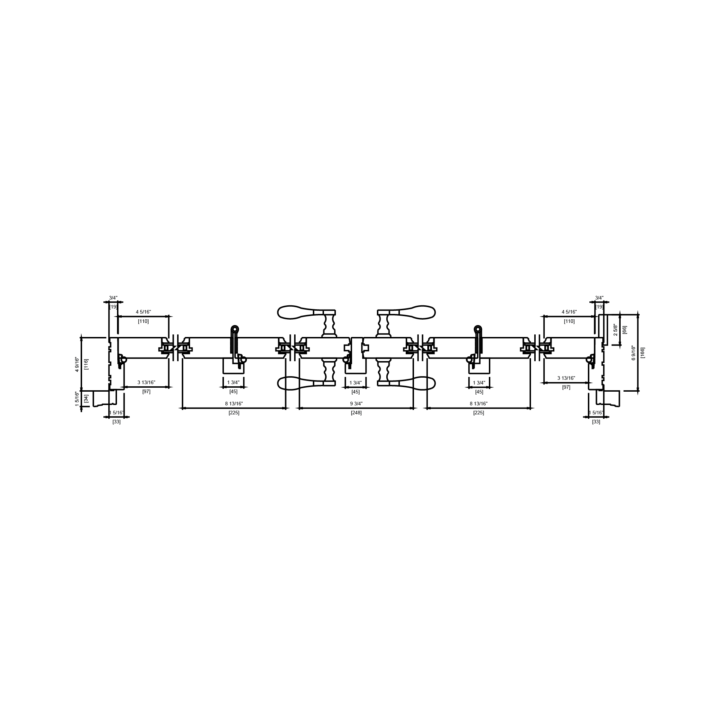

All Wood - Double, Four Panel, 2" Brickmould

All Wood - Double 6 9/16" (166mm) Full Jamb, 2" Brickmould

Inswing & Outswing 3-Wide

Standard Stile & Rail French Doors

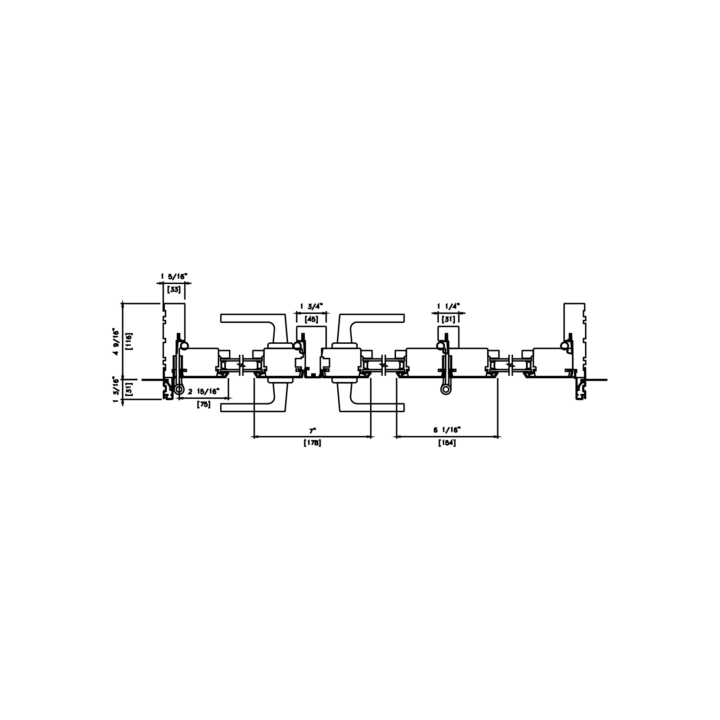

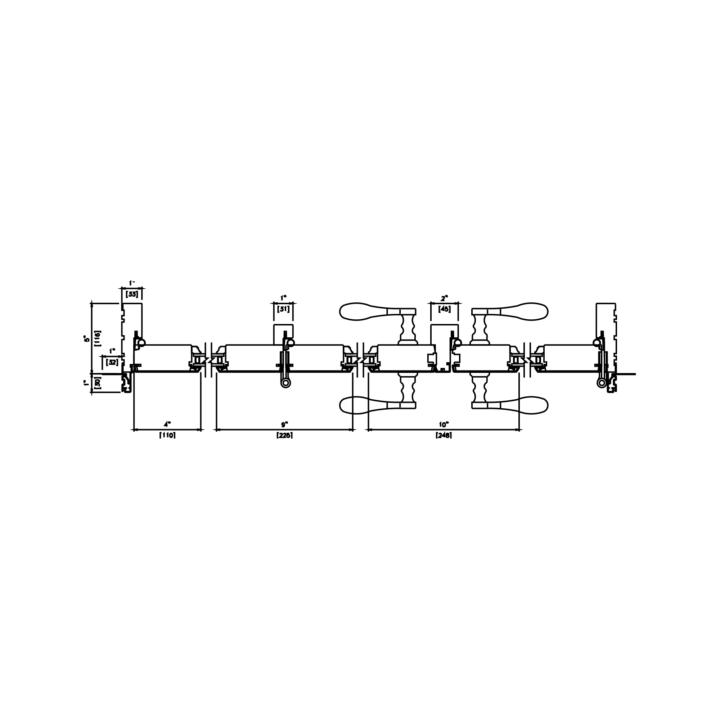

Metal Clad - Three Wide 4 9/16" (116mm) Jamb

Metal Clad - Three Wide 6 9/16" (166mm) Full Jamb

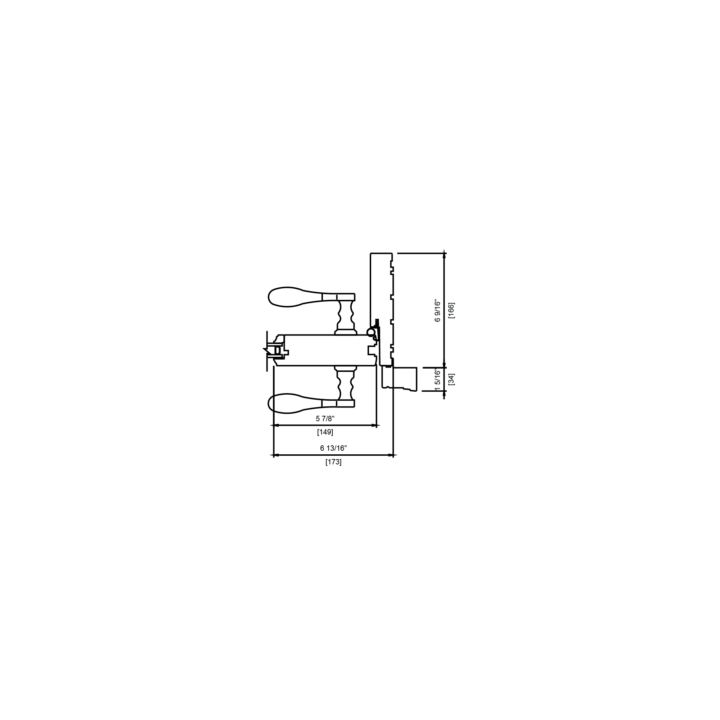

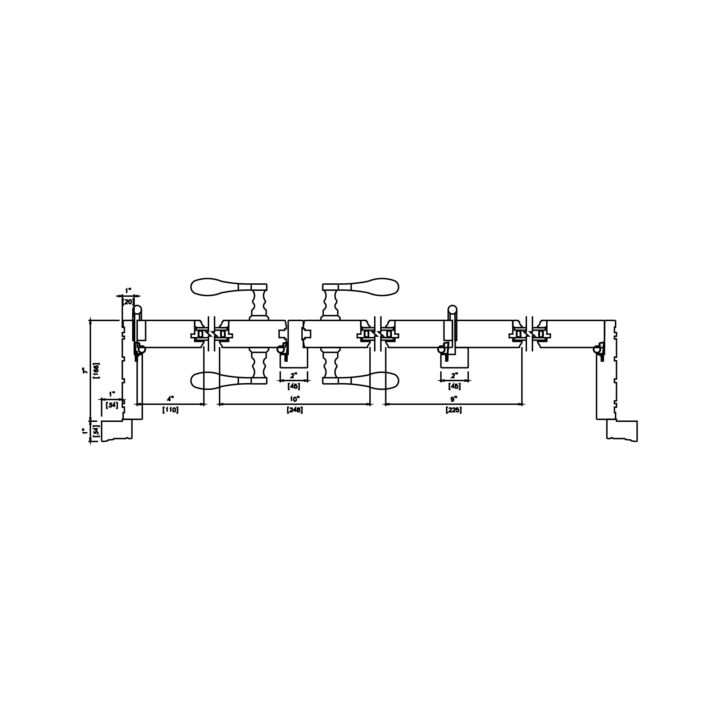

All Wood - Three Wide 6 9/16" (166mm) Full Jamb

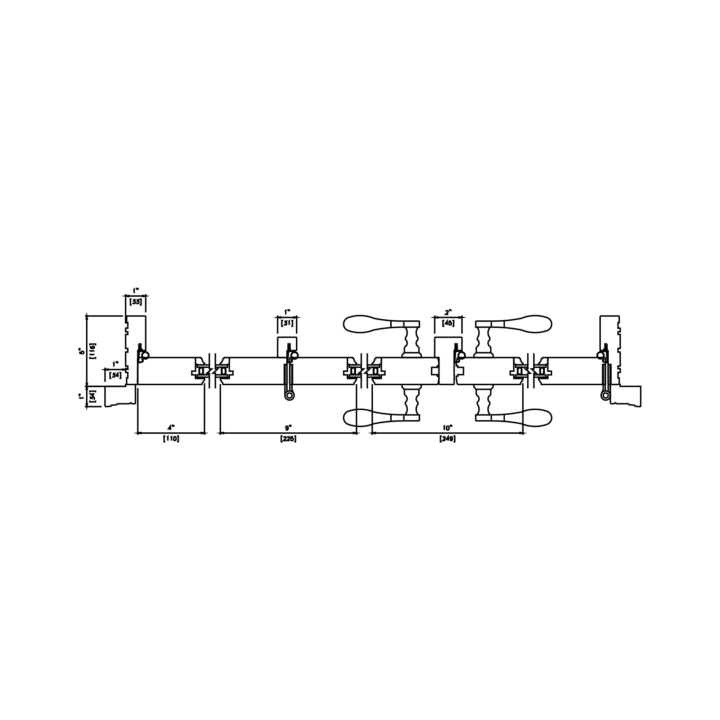

All Wood - Three Wide 4 9/16" (116mm) Jamb

Wall Connection

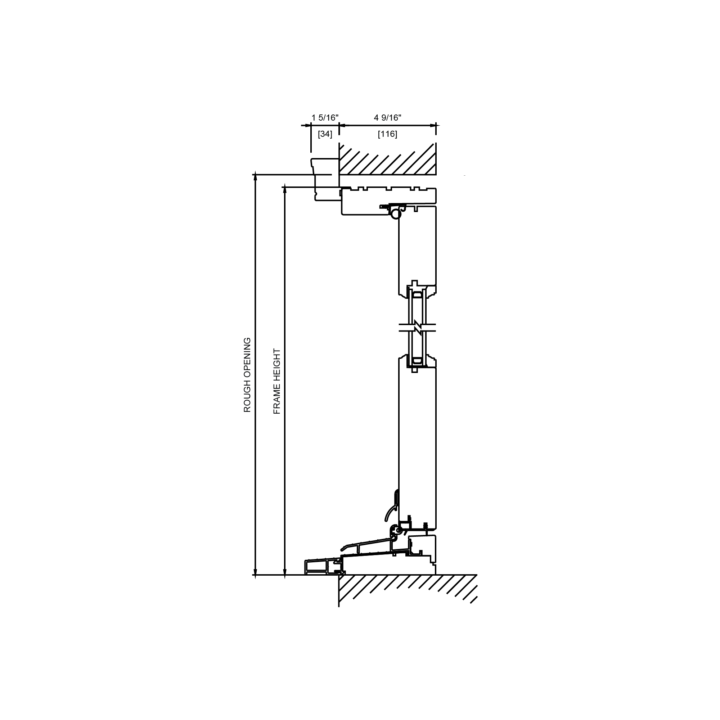

Non-Clad - 4 9/16" (116mm) 2" Brickmould

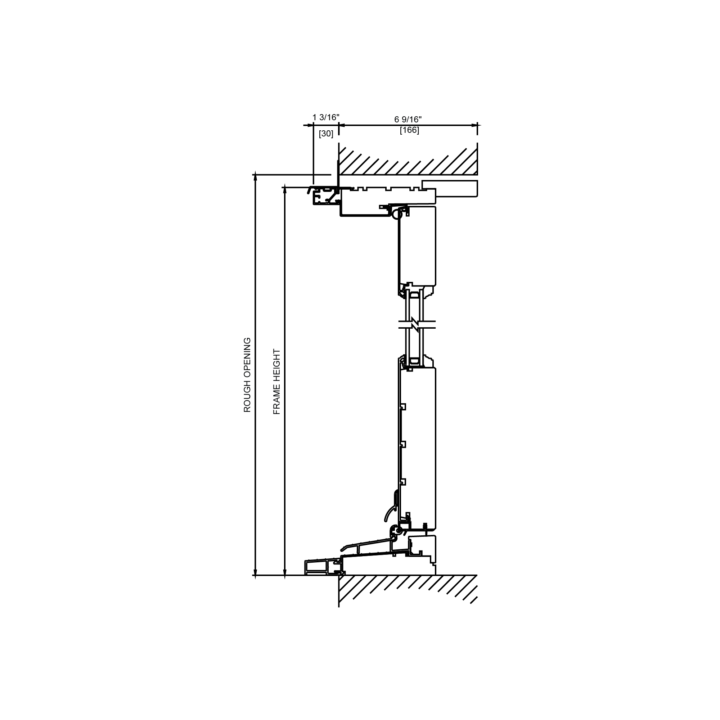

Metal Clad - 6 9/16" (166mm)

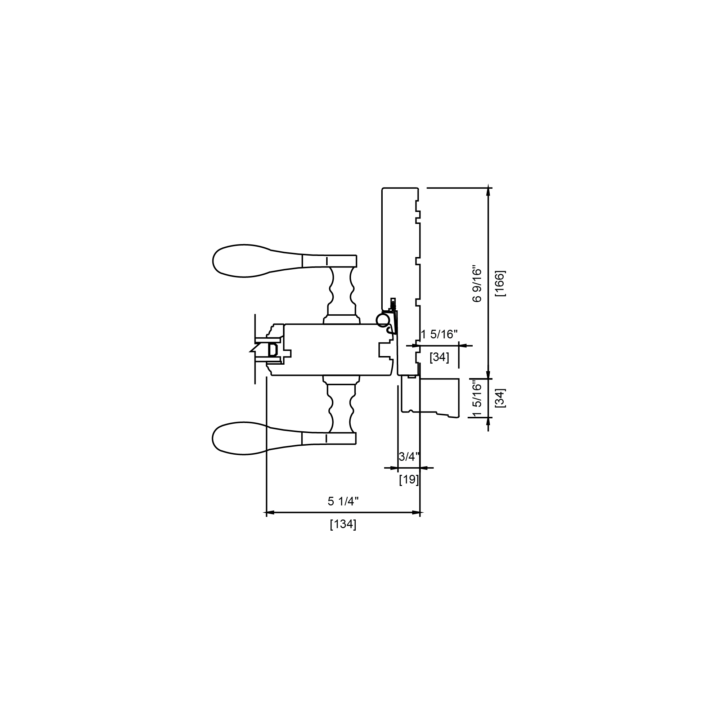

Metal Clad - 6 9/16" (166mm) Full Jamb

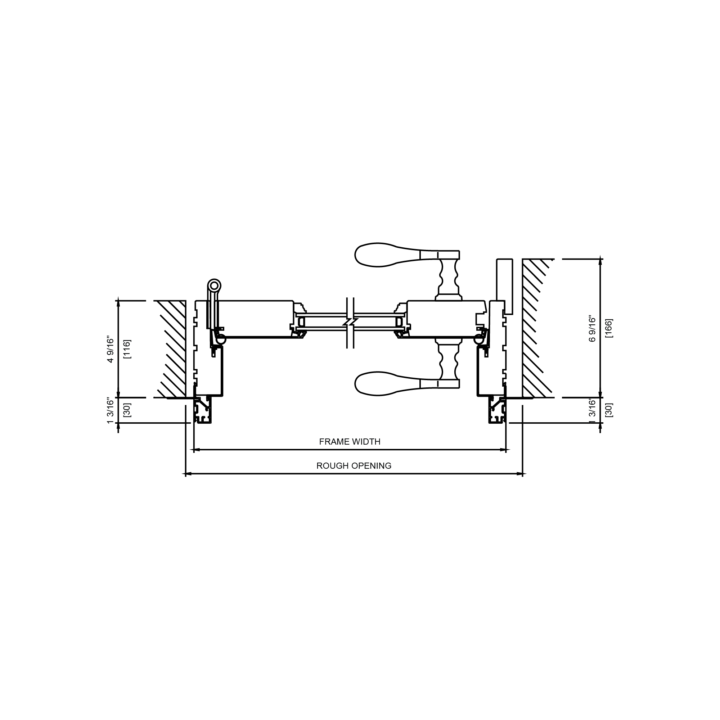

Metal Clad - 4 9/16" & 6 9/16" (116mm & 166mm)

Non-Clad - 4 9/16" & 6 9/16" (116mm & 166mm) 2" Brickmould

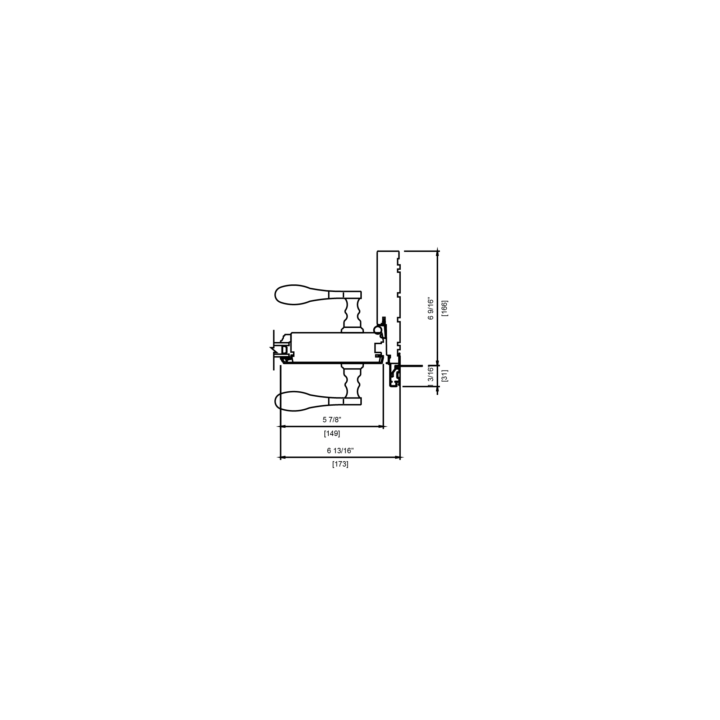

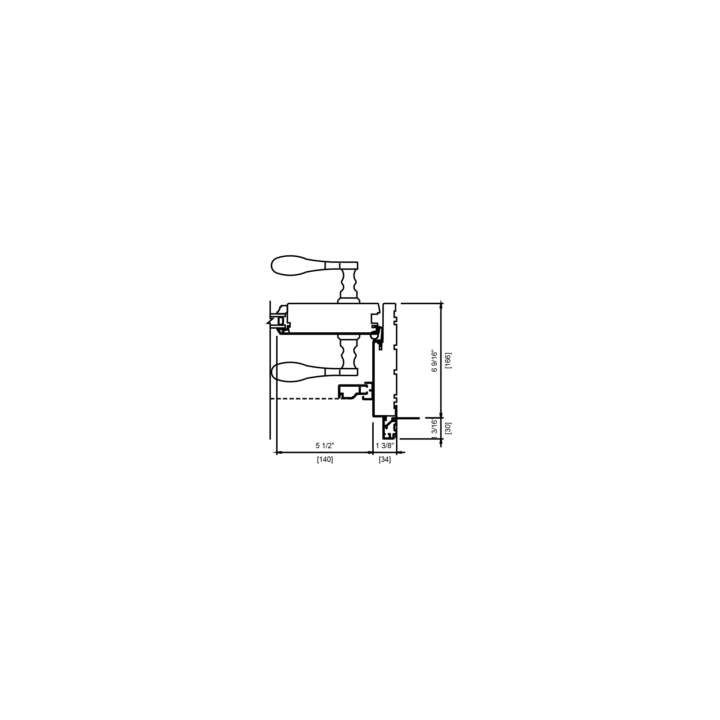

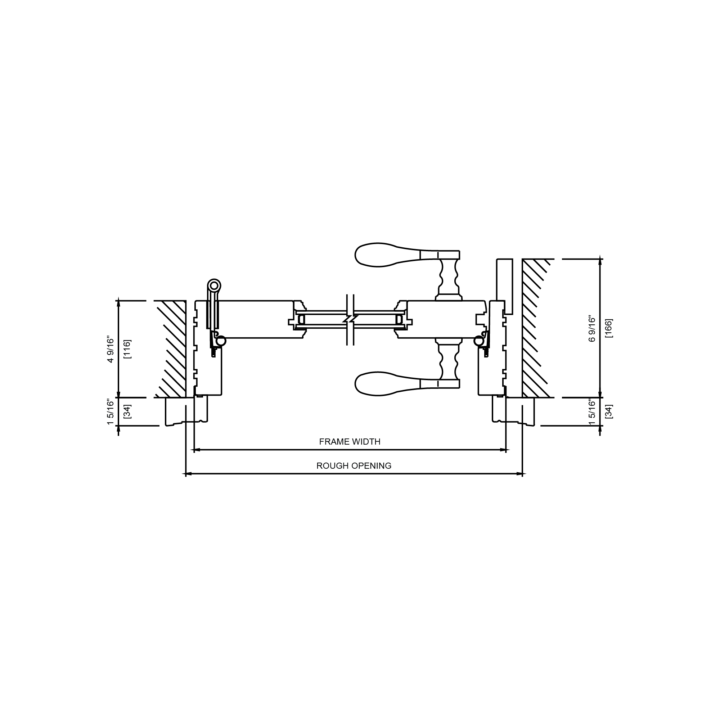

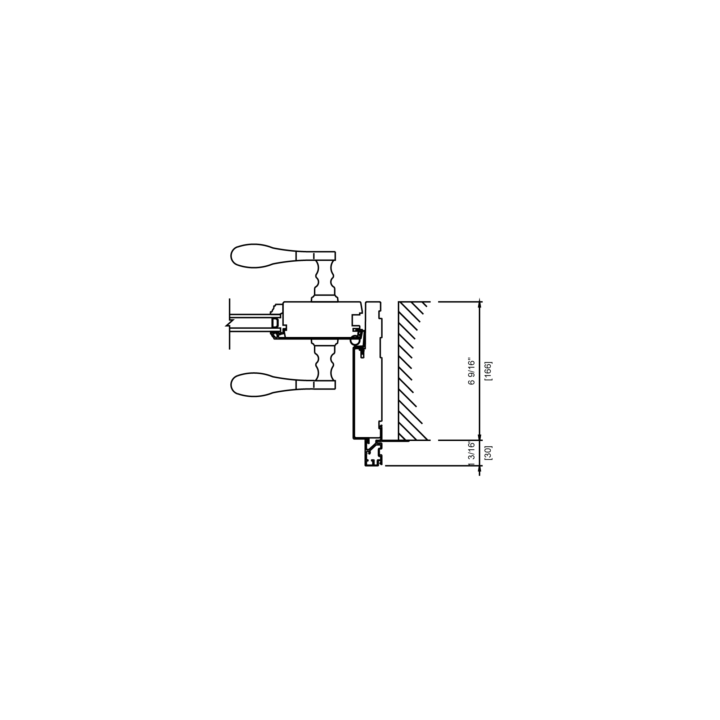

Metal Clad - 6 9/16" (166mm) Full Jamb - Plan View

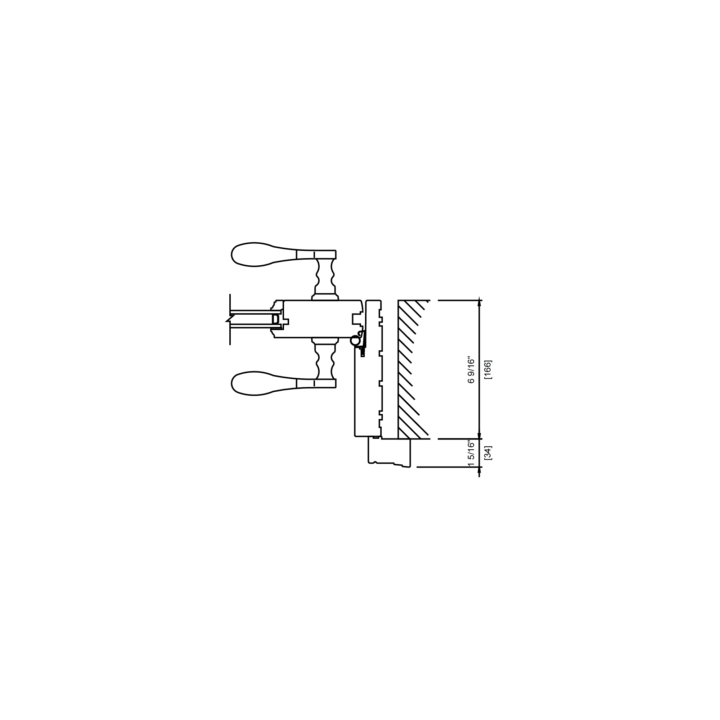

Non-Clad - 4 9/16" (116mm) Full Jamb, 2" Brickmould - Plan View

Mull & Sidelite

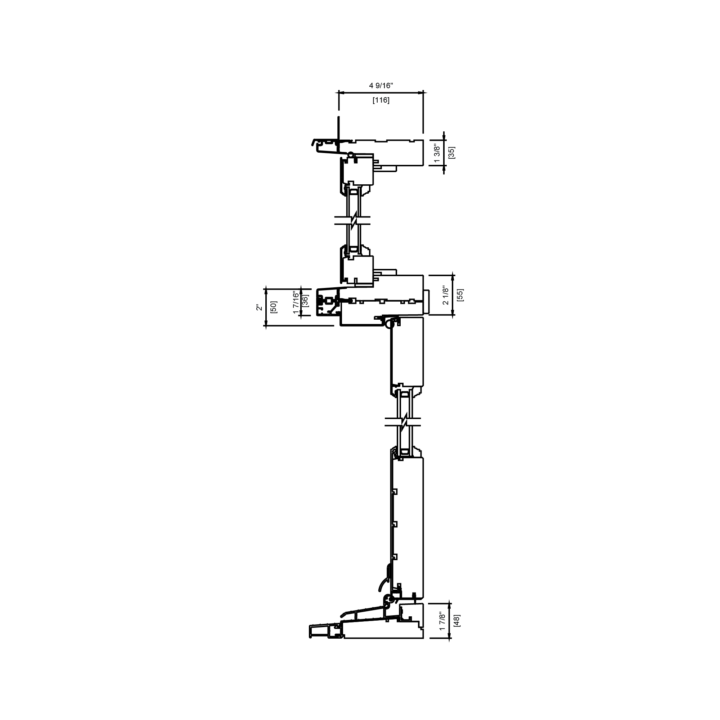

Metal Clad - Double Transom over Inswing Door

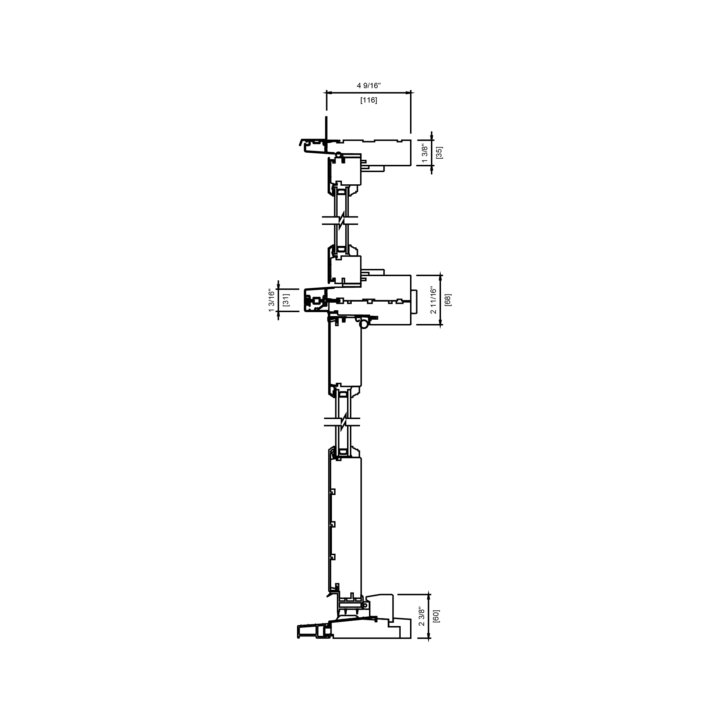

Metal Clad - Double Transom over Outswing Door

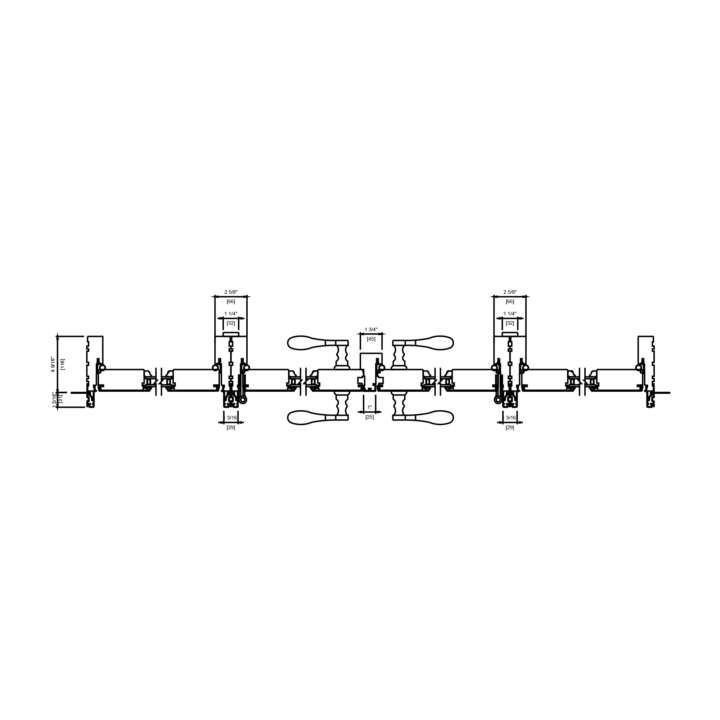

Metal Clad - Double Sidelites Beside Outswing French Terrace Door

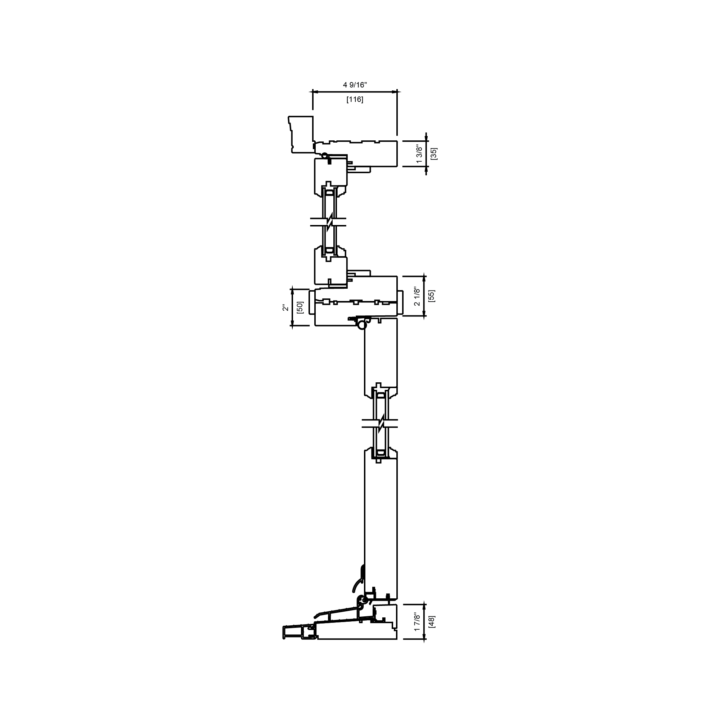

All Wood - Double Transom over Inswing Door, 2" Brickmould

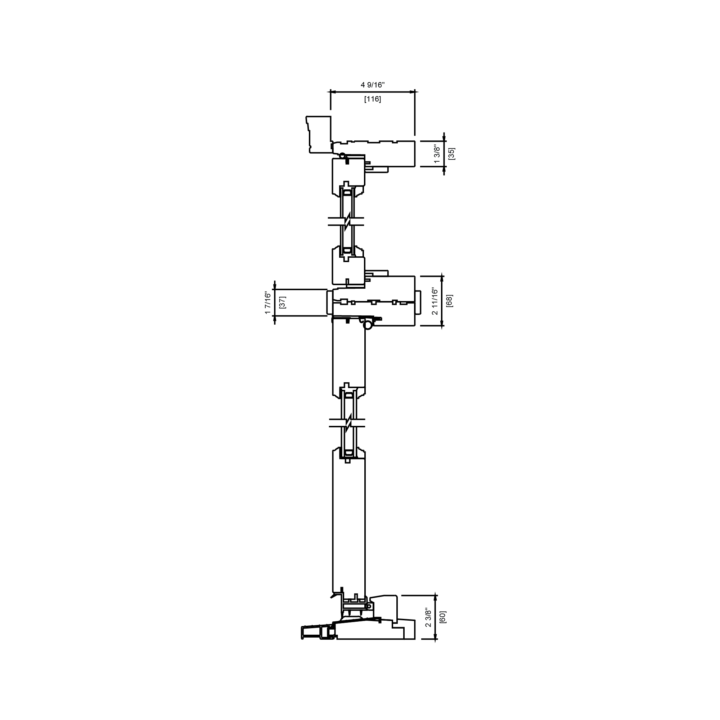

All Wood - Double Transom over Outswing Door, 2" Brickmould

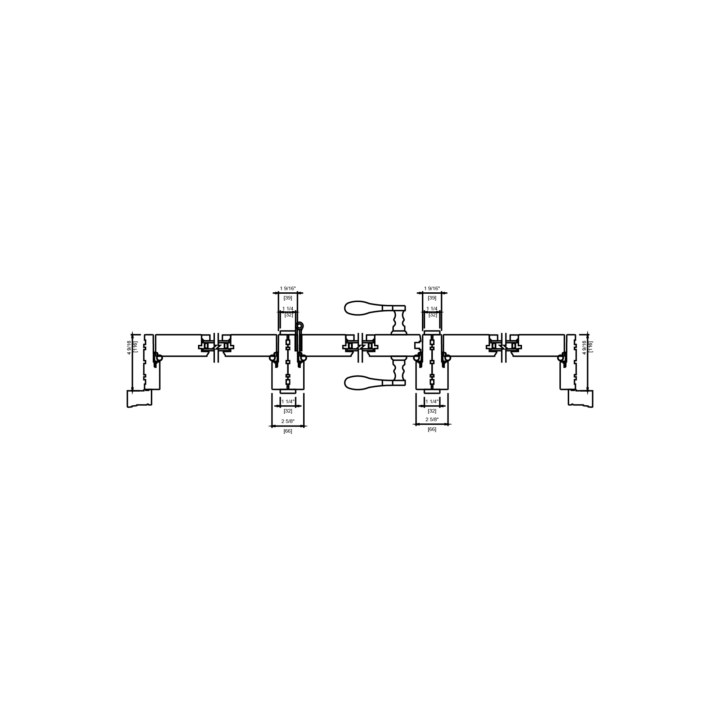

All Wood - Double Sidelites Beside Inswing Terrace Door, Square Stops

10 Foot

Inswing

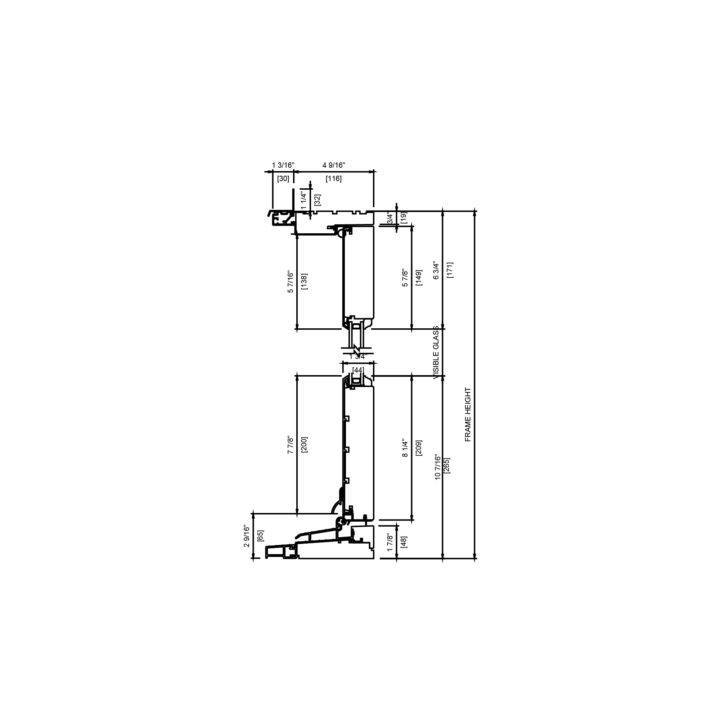

Metal Clad - Double 4 9/16" (116mm)

Metal Clad - Double 6 9/16" (166mm)

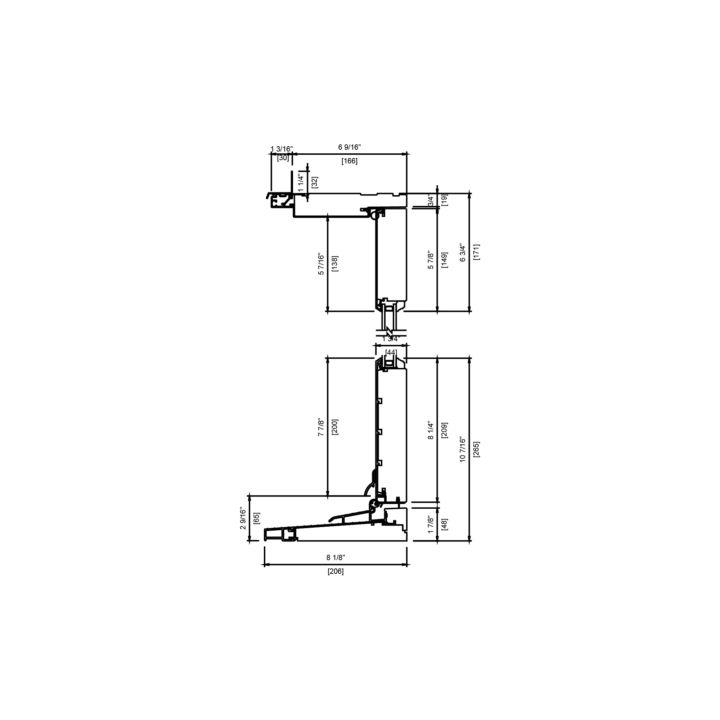

Metal Clad - Double 6 9/16" (166mm) Full Jamb

Metal Clad - Double, One Panel

Metal Clad - Double, Two Panel

Metal Clad - Double, 6 9/16" (166mm) Full Jamb

All Wood - Double 6 9/16" (166mm) 2" Brickmould, Square Stop

All Wood - Double 6 9/16" (166mm) Full Jamb, 2" Brickmould

All Wood - Camber/Roundtop, Double 4 9/16" (116mm) 2" Brickmould

Non-Clad - Double, One Panel 3 1/2" Flat Casing

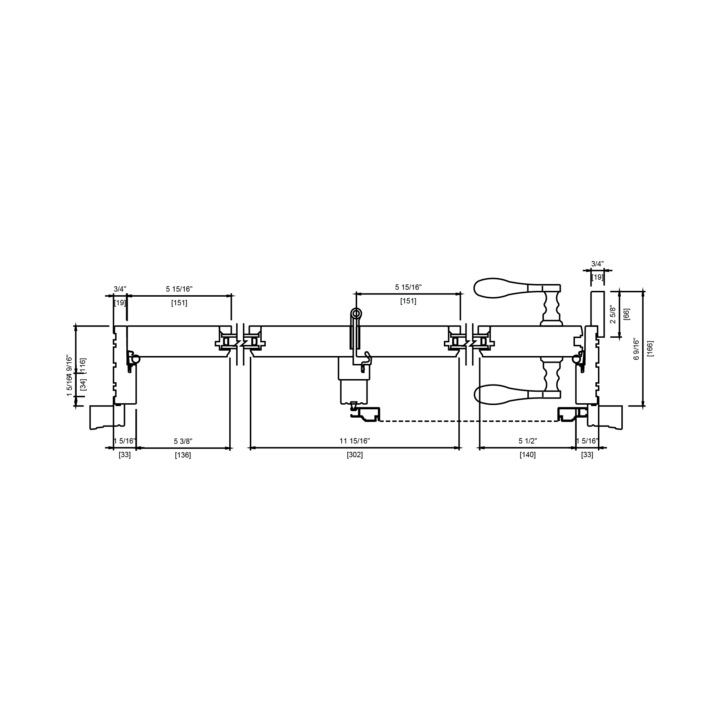

All Wood - Double, Two Panel, 2" Brickmould, Square Stop

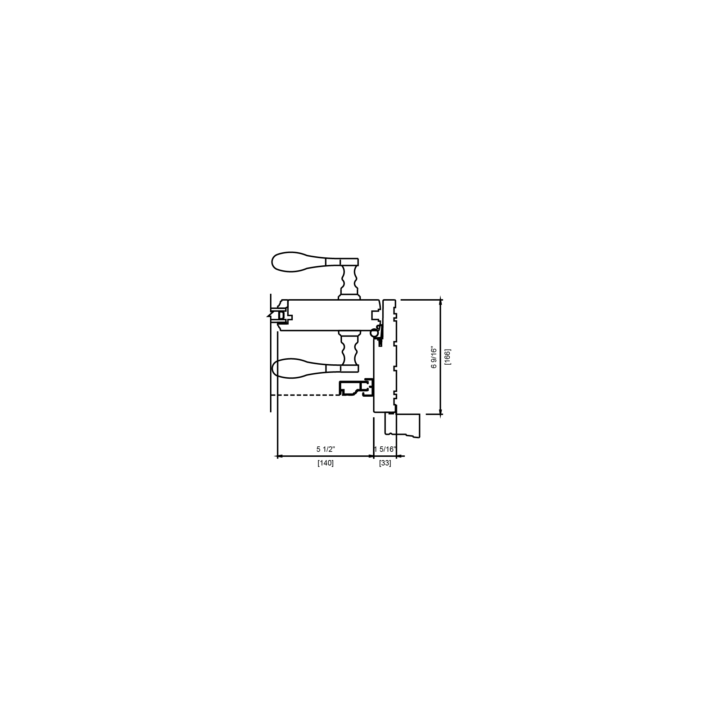

All Wood - Double 6 9/16" (166mm) Full Jamb, 2" Brickmould - Plan View

Outswing

Metal Clad - Double, Cambertop 4 9/16" (116mm)

Metal Clad - Double 6 9/16" (166mm)

Metal Clad - Double 6 9/16" (166mm) Full Jamb

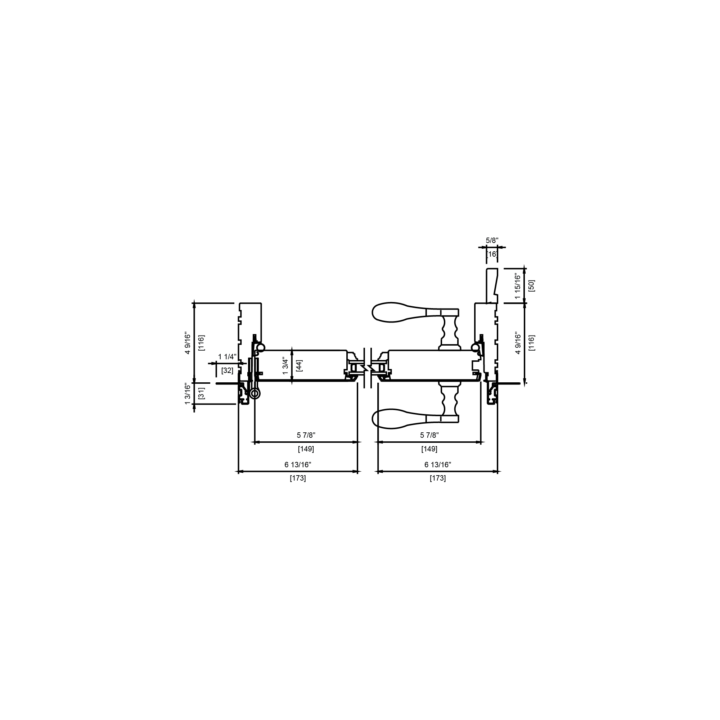

Metal Clad - Double, One Panel

Metal Clad - Double, Two Panel

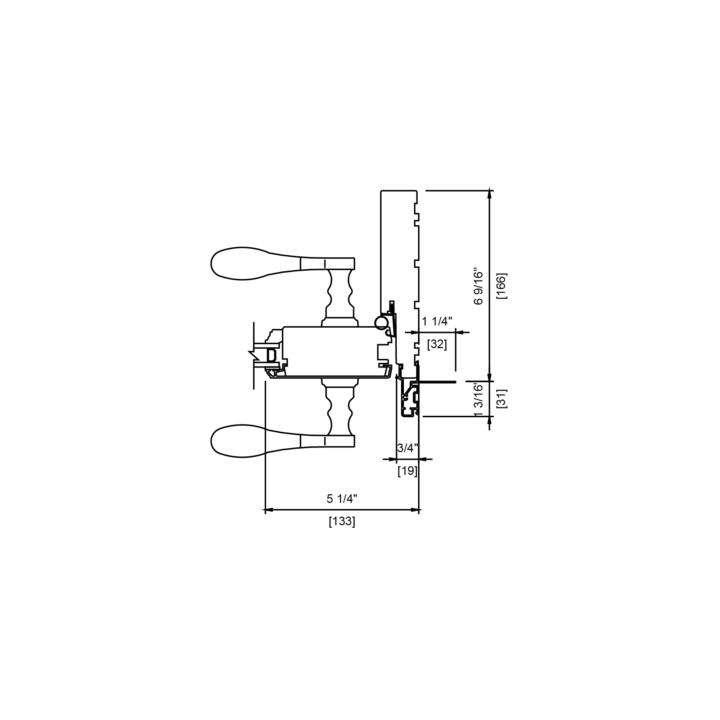

Metal Clad - Double 6 9/16" (166mm) Full Jamb - Plan View

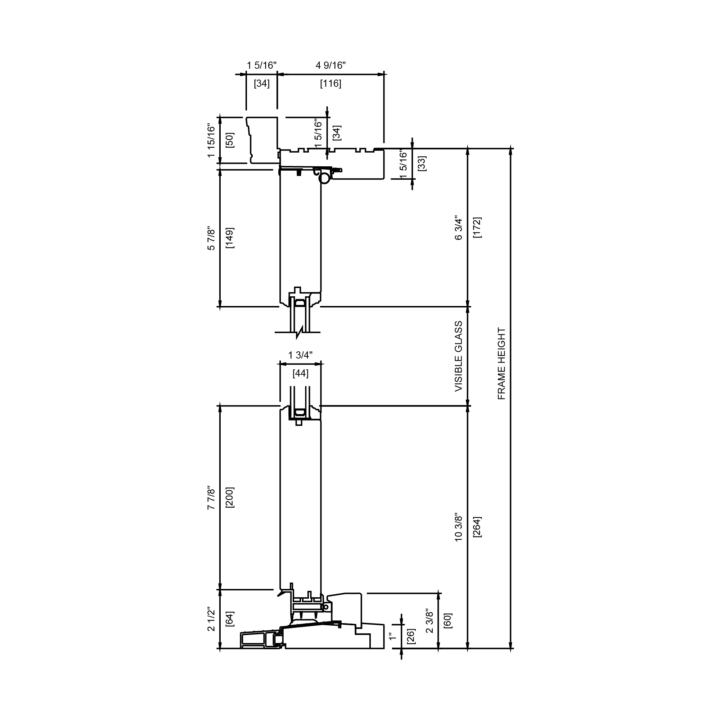

All Wood - Double 4 9/16" (116mm) 2" Brickmould

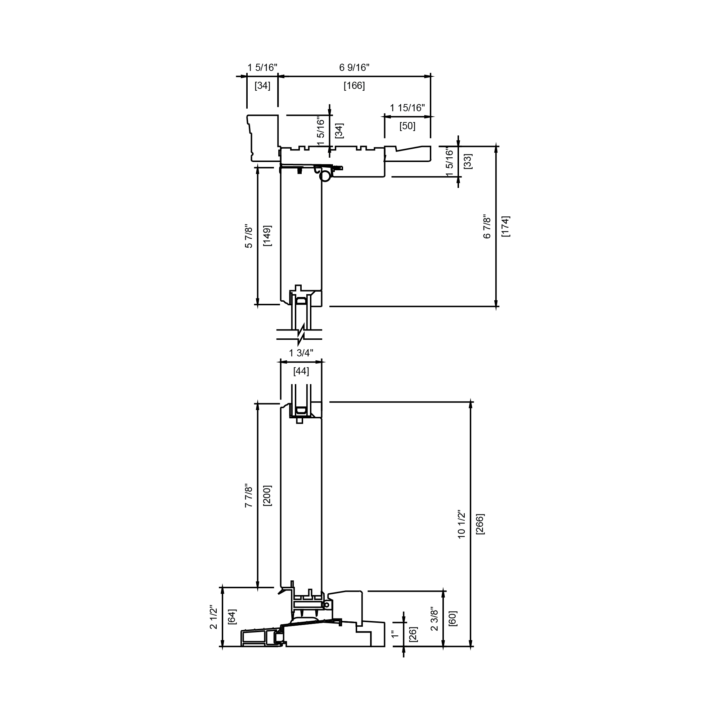

All Wood - Double 6 9/16" (166mm) 2" Brickmould, Square Stop

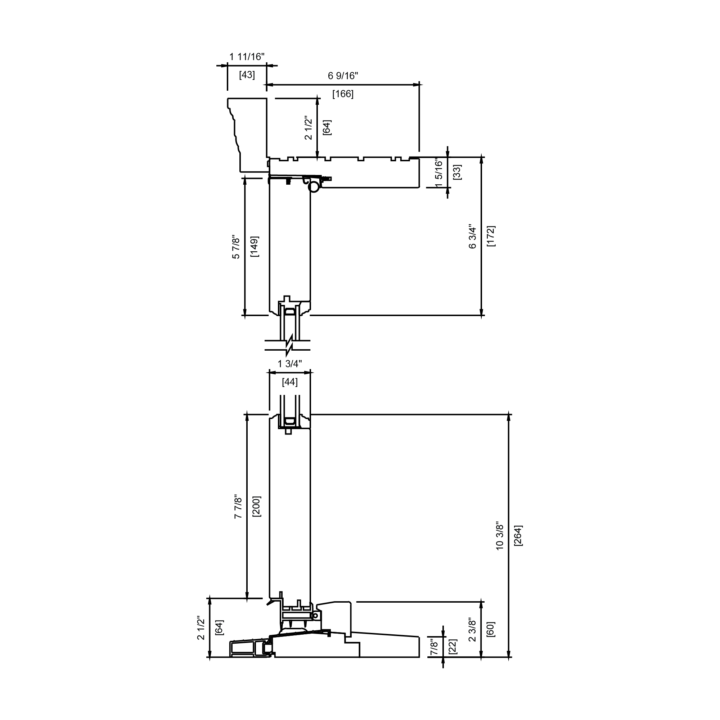

All Wood - Double 6 9/16" (166mm) Full Jamb, Adams Casing

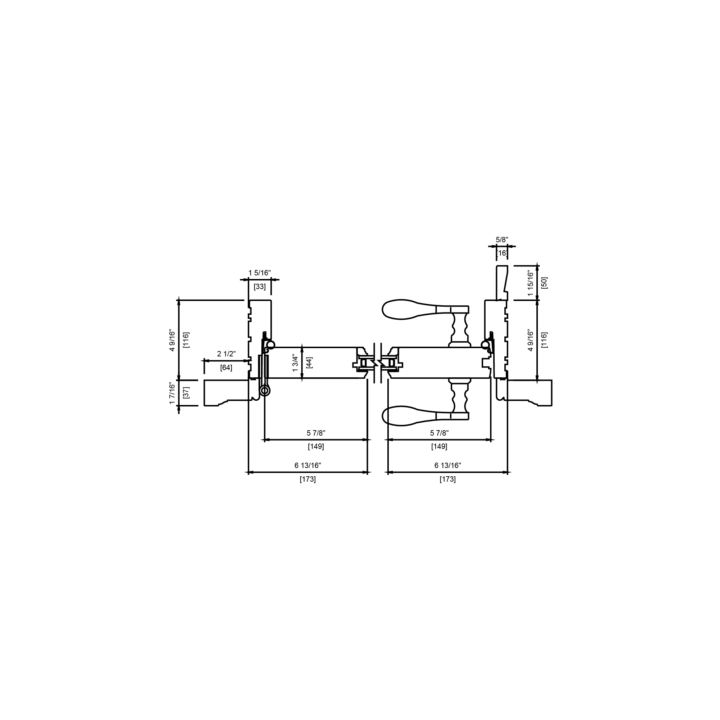

All Wood - Double, One Panel, Williamsburg Casing

All Wood - Double, Two Panel, 2" Brickmould, Square Stop

All Wood - Double 6 9/16" (166mm) Full Jamb, 2" Brickmould

Inswing & Outswing

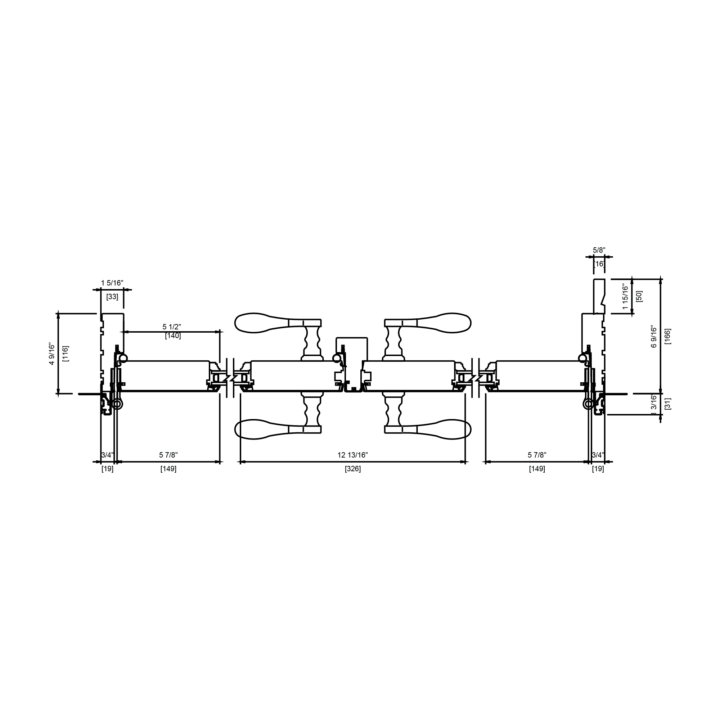

Metal Clad - Double, Two Panel

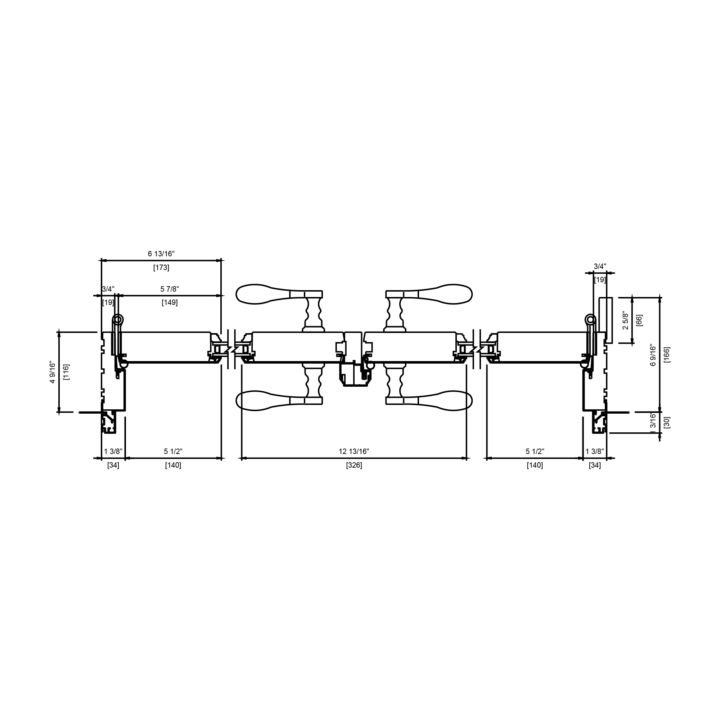

Metal Clad - Double, Two Panel - Inswing

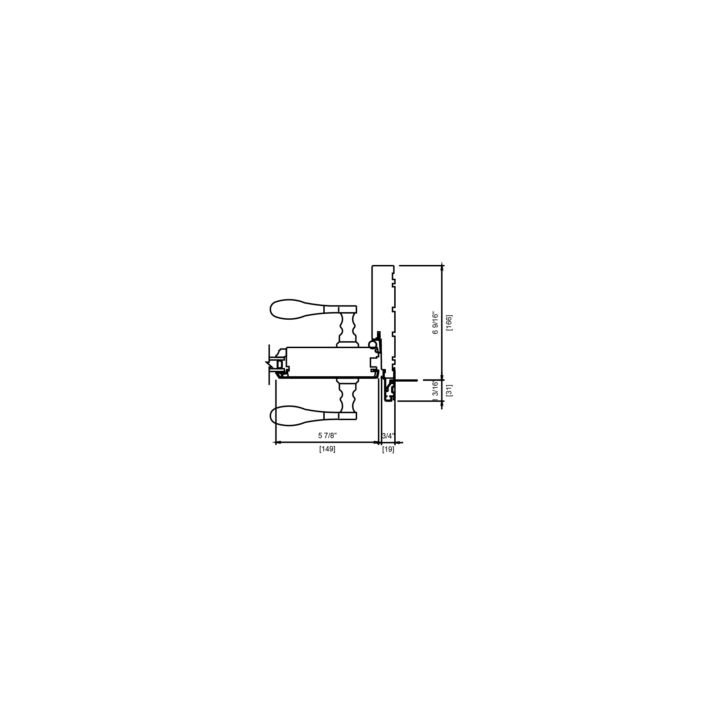

Metal Clad - Double 6 9/16" Full Jamb

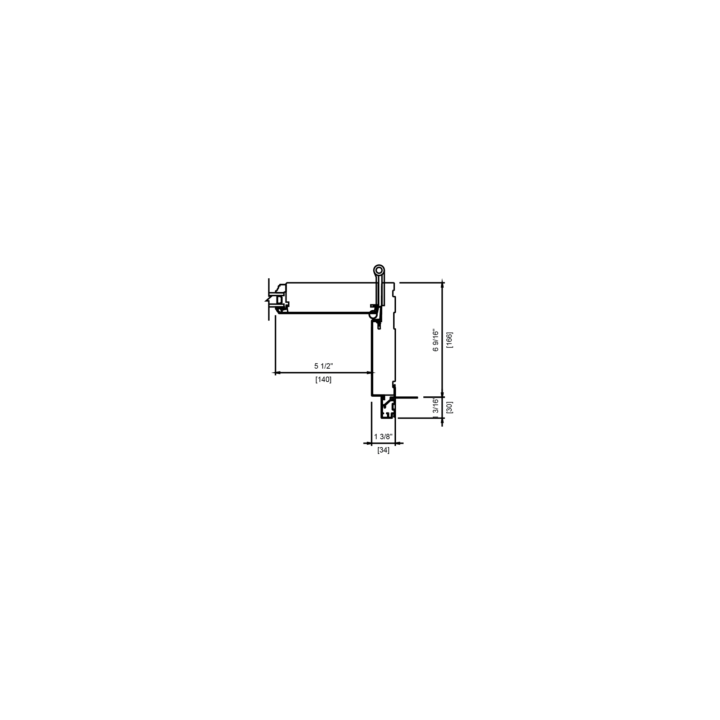

Metal Clad - Double 6 9/16" Full Jamb - Inswing

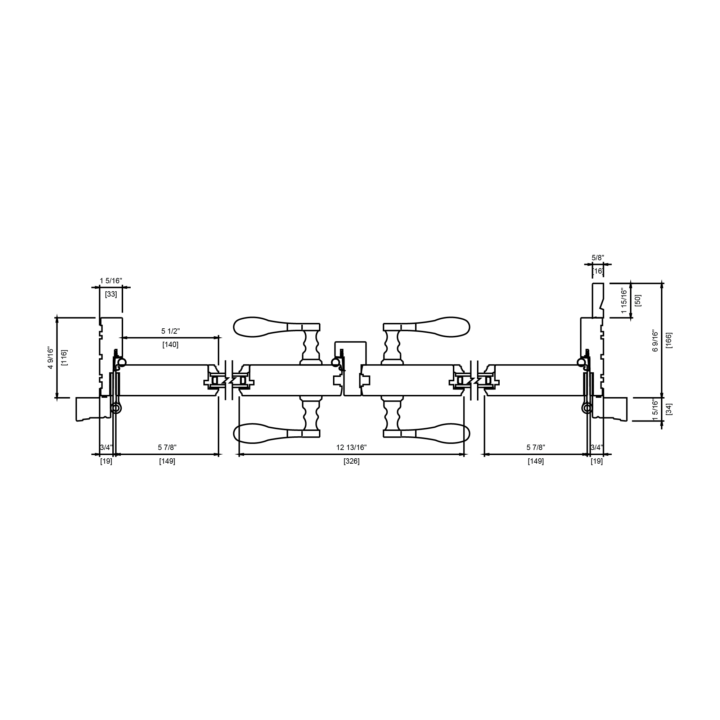

All Wood - Double, Two Panel, 2" Brickmould

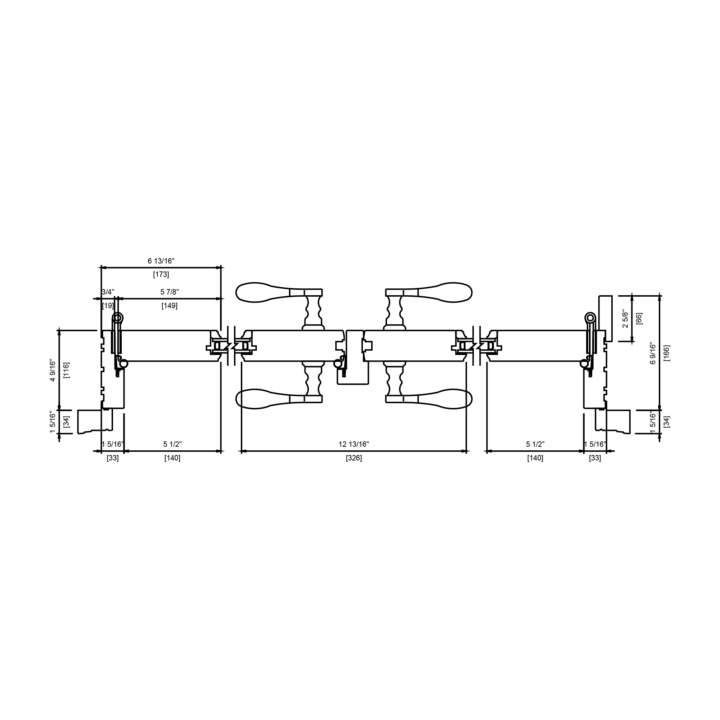

All Wood - Double, Two Panel, 2" Brickmould - Inswing

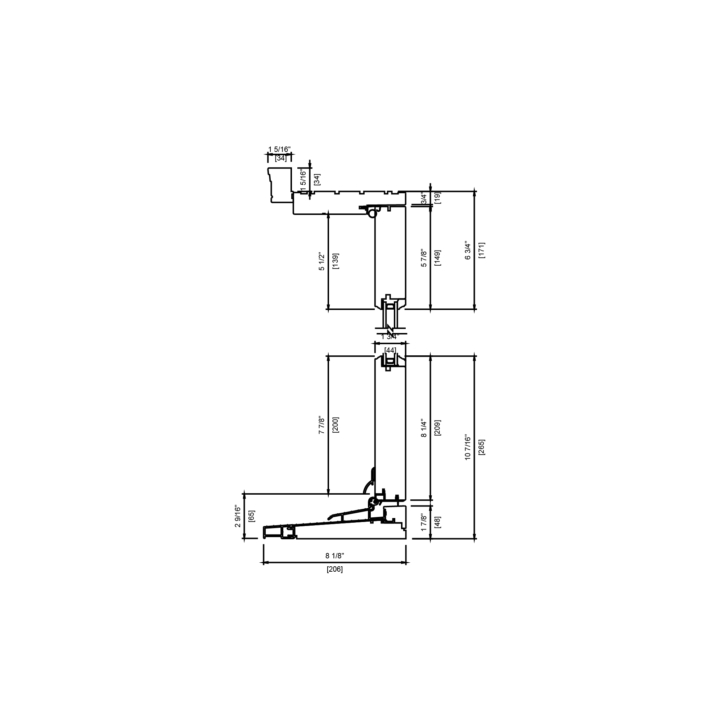

All Wood - Double 6 9/16" Full Jamb, 2" Brickmould

All Wood - Double 6 9/16" Full Jamb, 2" Brickmould - Inswing
